Modelo 3D Quick-Change Jigsaw Handle por Aaron Broom no MakerWorld

Descrição

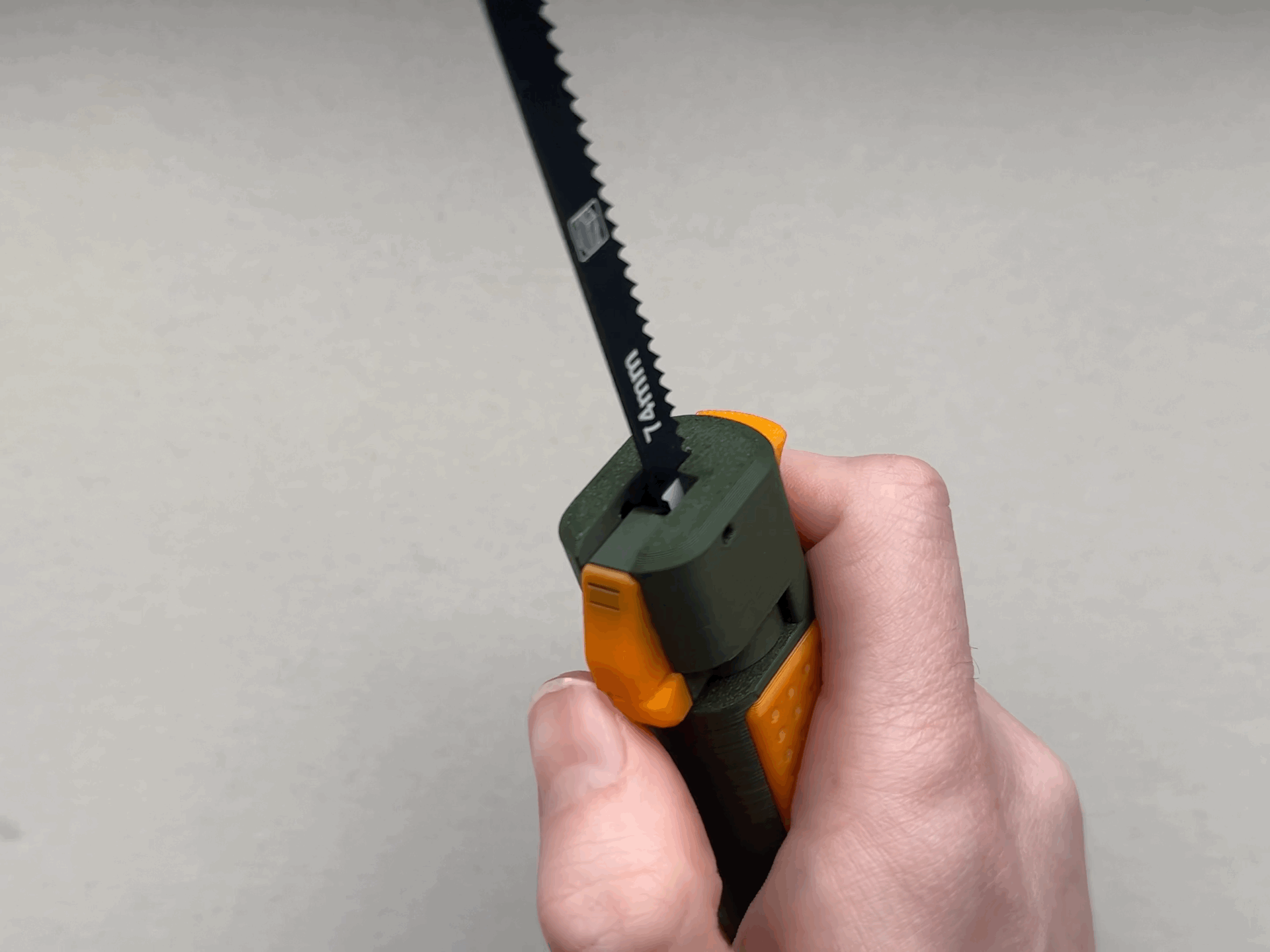

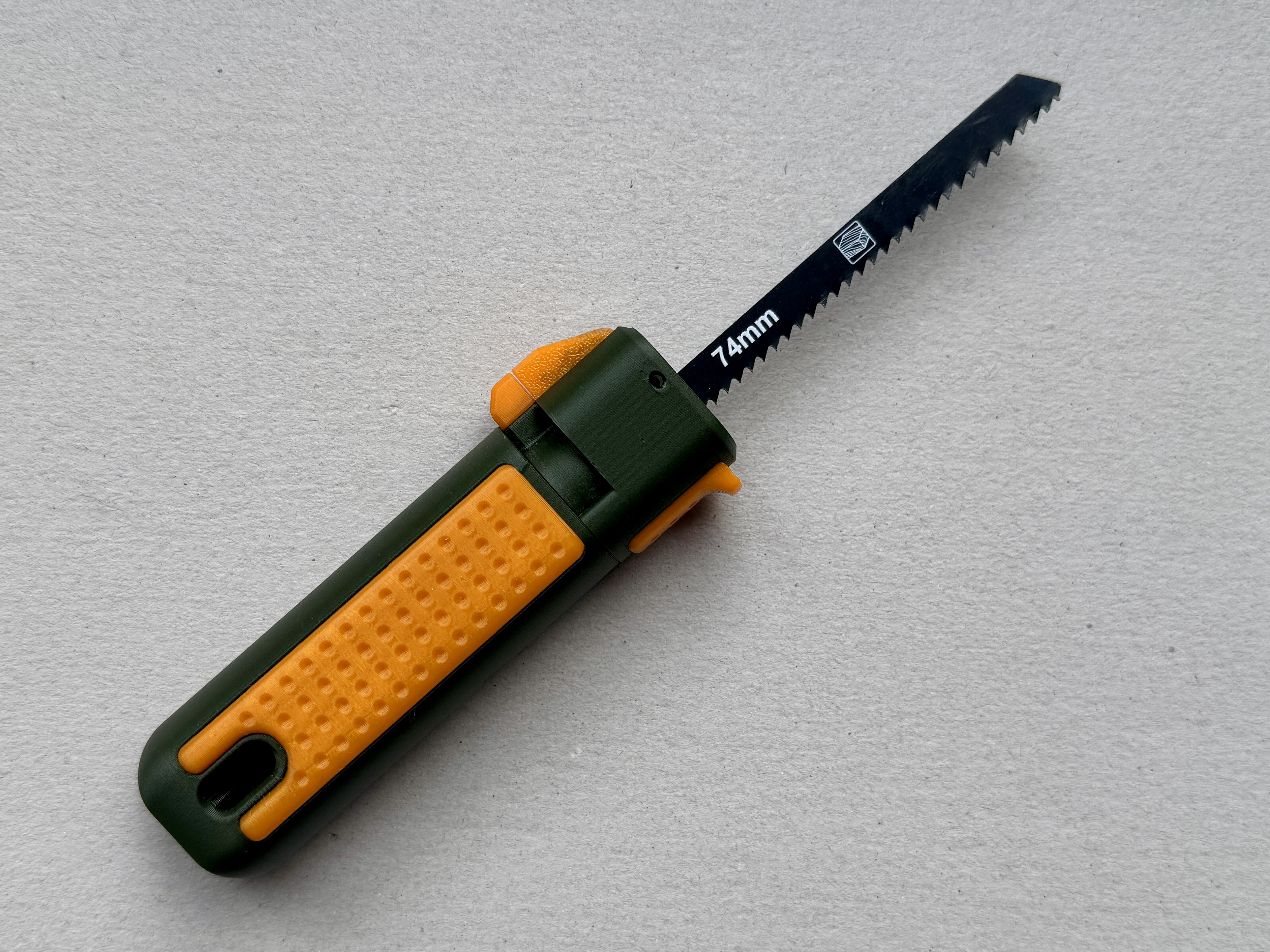

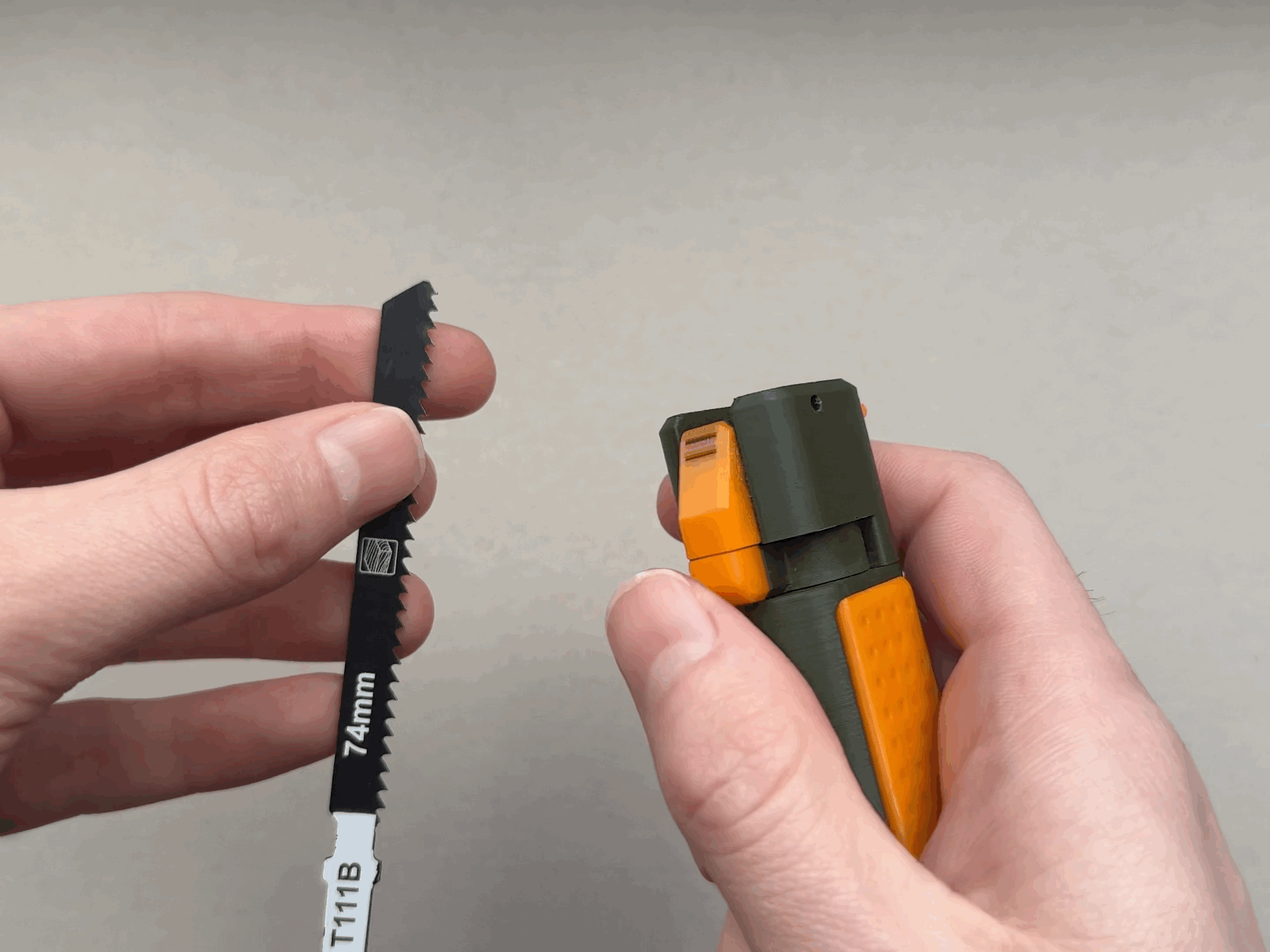

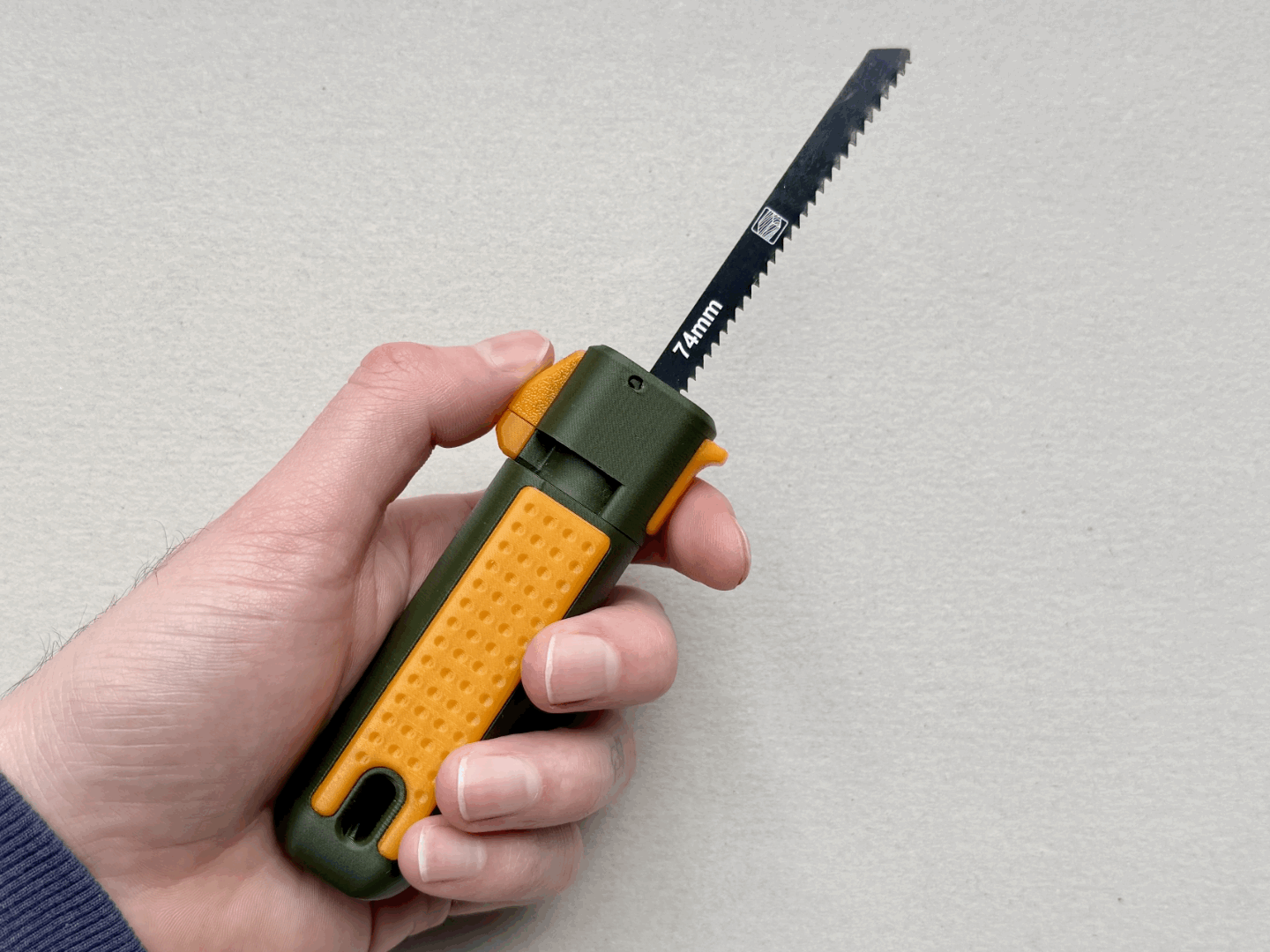

I created this handle as an easy and convenient way to use jigsaw blades as a hand saw. It has a quick change mechanism and lock, allowing you to quickly change blades. The handle is compatible with standard T shape Jigsaw blades. So it's easy to pick the right blade for the job.

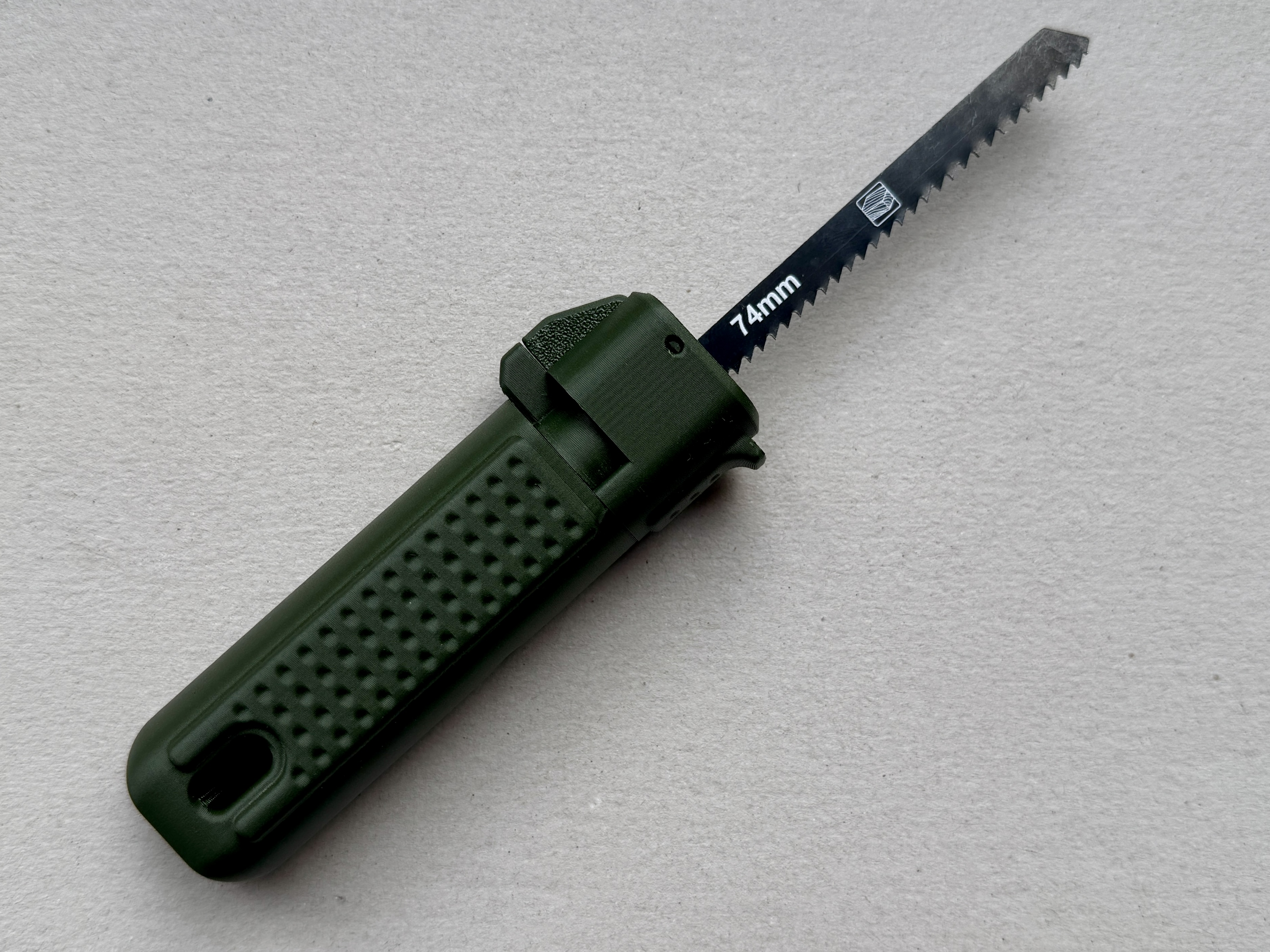

The original design is printed using TPU and PLA-CF. The TPU creates a nice grip. But it is also possible to print it with a single material (both profiles are available).





Assembly is easy, all the steps are clearly described in the Assembly Guide.



You will need the following hardware:

1x 2mmx12mm stainless steel dowel pin [available from MakerSupply(DA009)]

2x 3mmx10mm stainless steel dowel pin [available from MakerSupply(DA038)]

1x 5x10mm extension spring [available from MakerSupply (BA005)]

1x BT2.6x8 Self tapping screw [available from MakerSupply(AA004)]



Disclaimer: This is intended for light usage, such as cutting small pieces of wood and wooden dowels.

MakerWorld

Quick-Change Jigsaw Handle

Publicado em 1 de abr de 2026

2,381
Curtidas
1,689
Downloads
7,488
Coleções
867
Impressões
Categoria Hand Tools
Tags
tools saw handsaw woodwork cutting Tool functional
Licença Standard Digital File License
