This is a pencil box or crochet hook box I designed for family that feature print in place hinges and space for magnetic clasps. Optionally you can also print the insert tray for additional organization.

Notes on printing

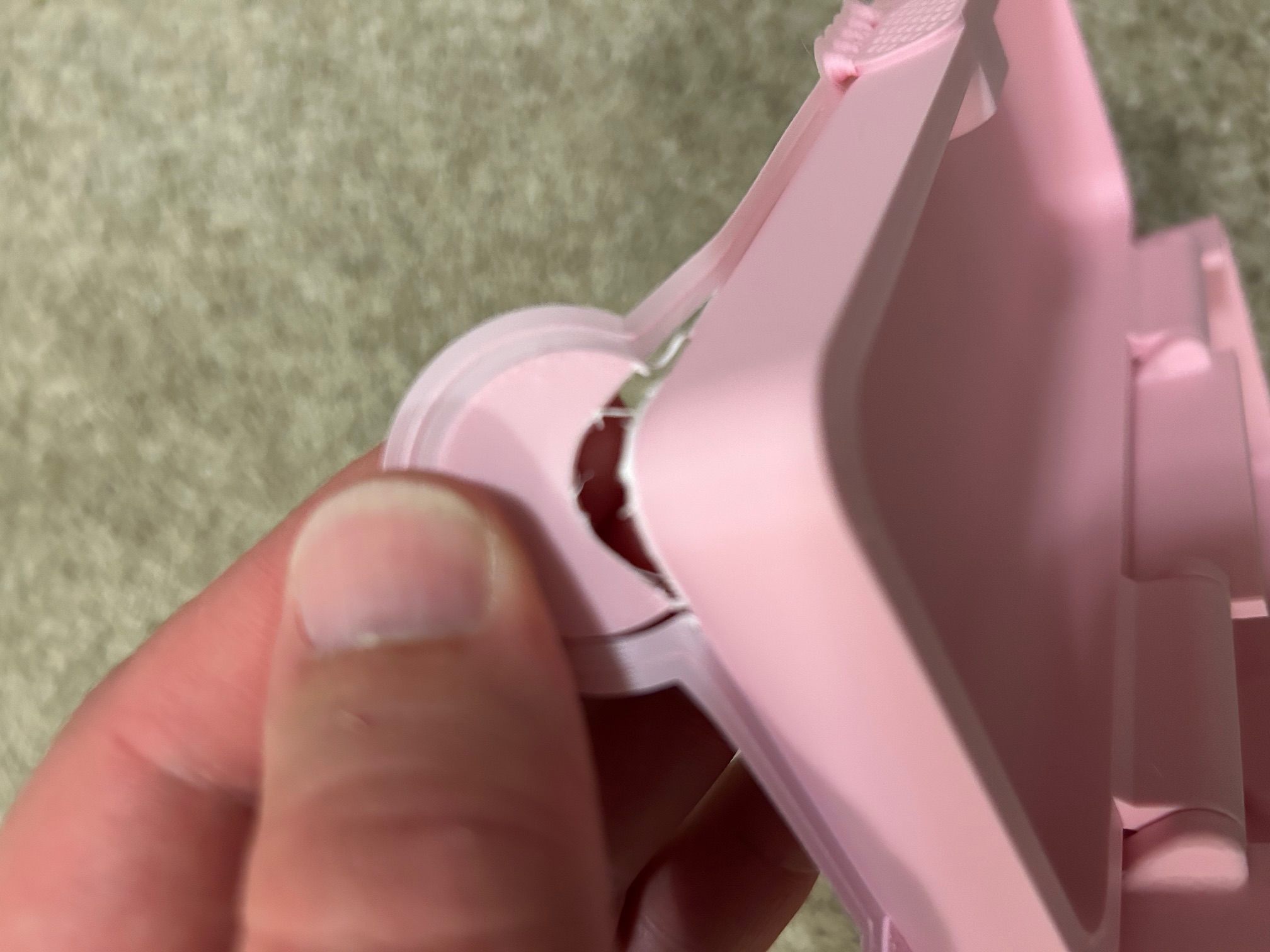

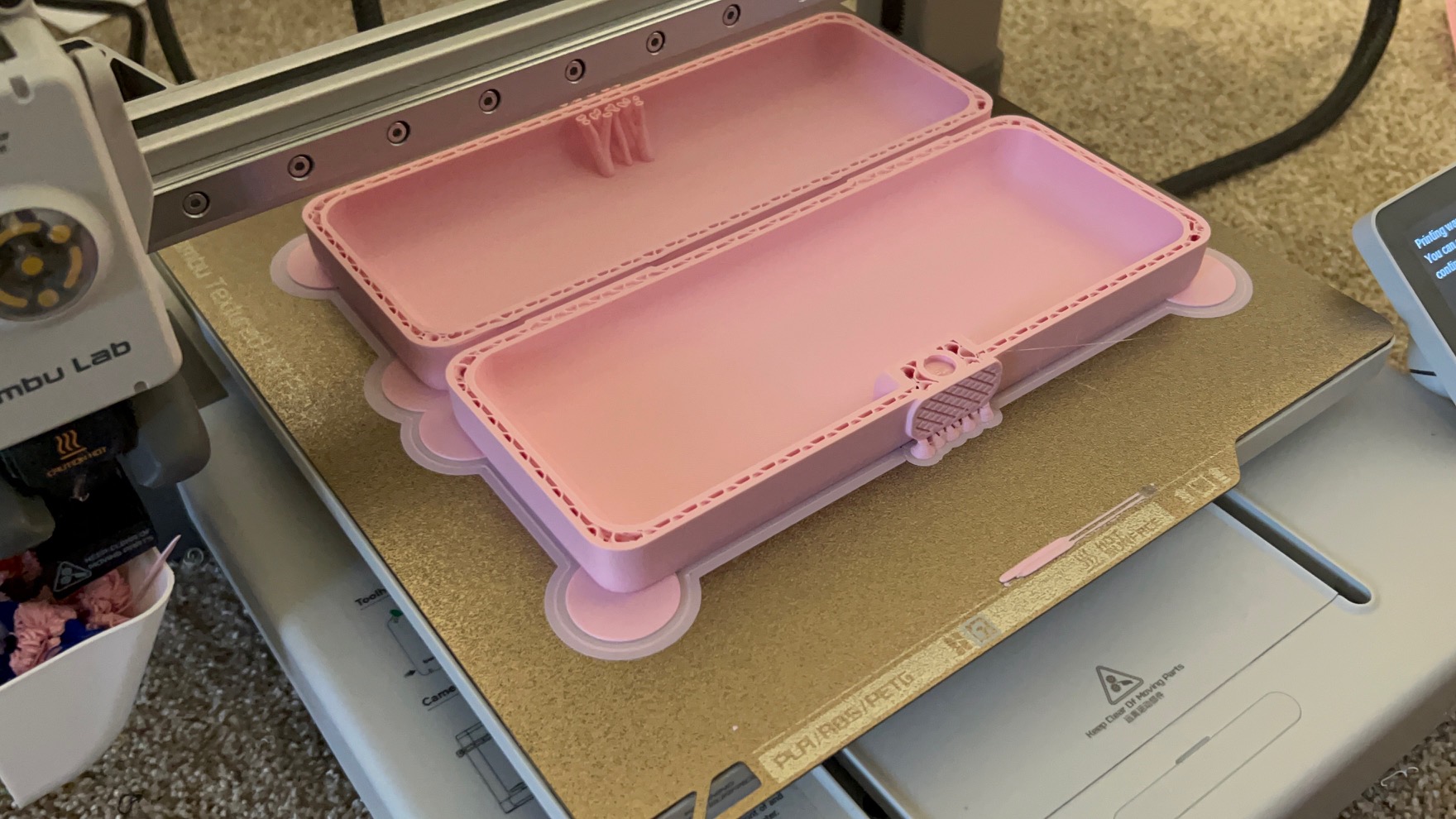

1. The circular nubs built into the print profile are to stop warping. This is a long rectangular object that will warp without them. They are made to be easily ripped off or shaved off if needed.

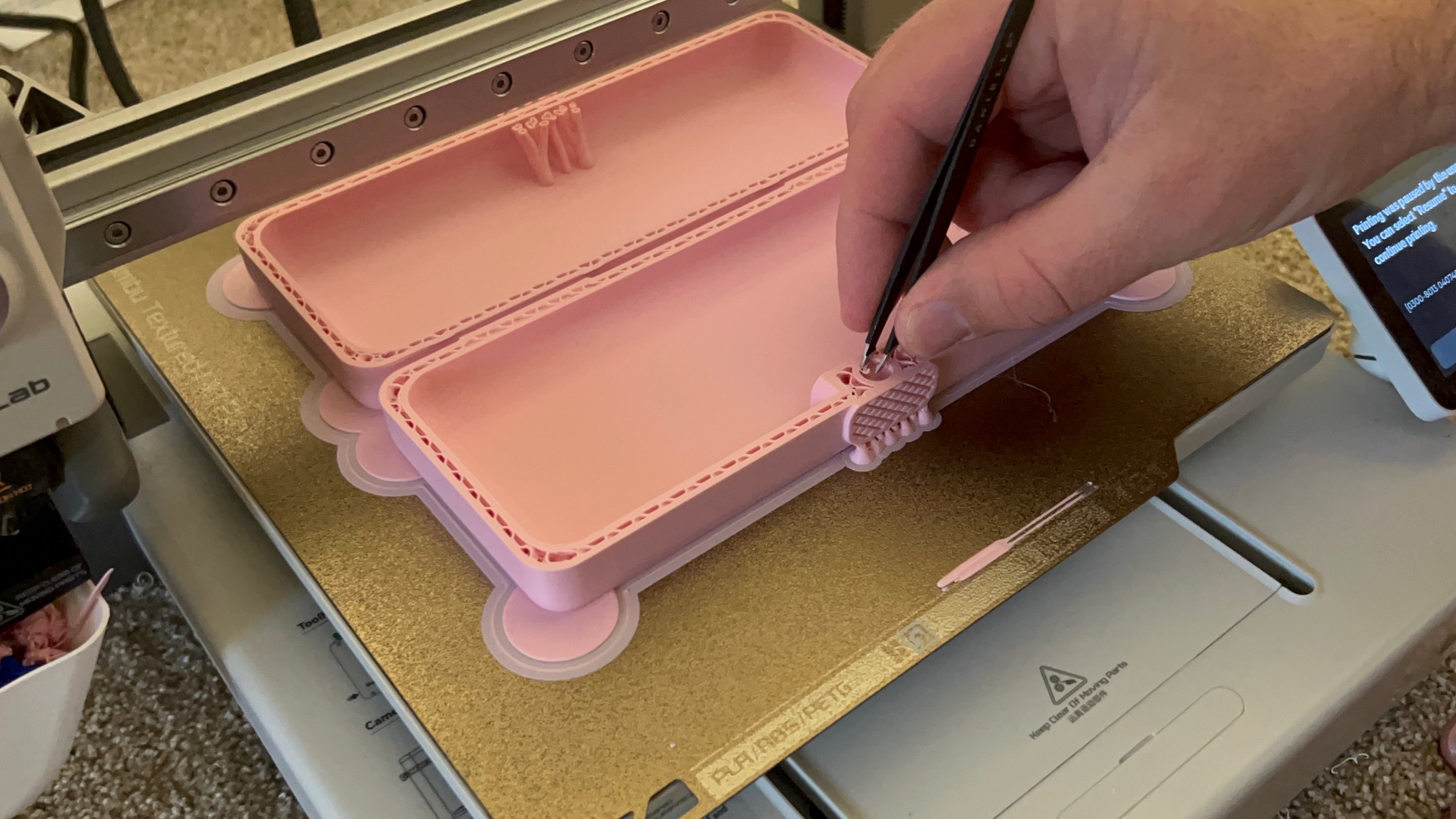

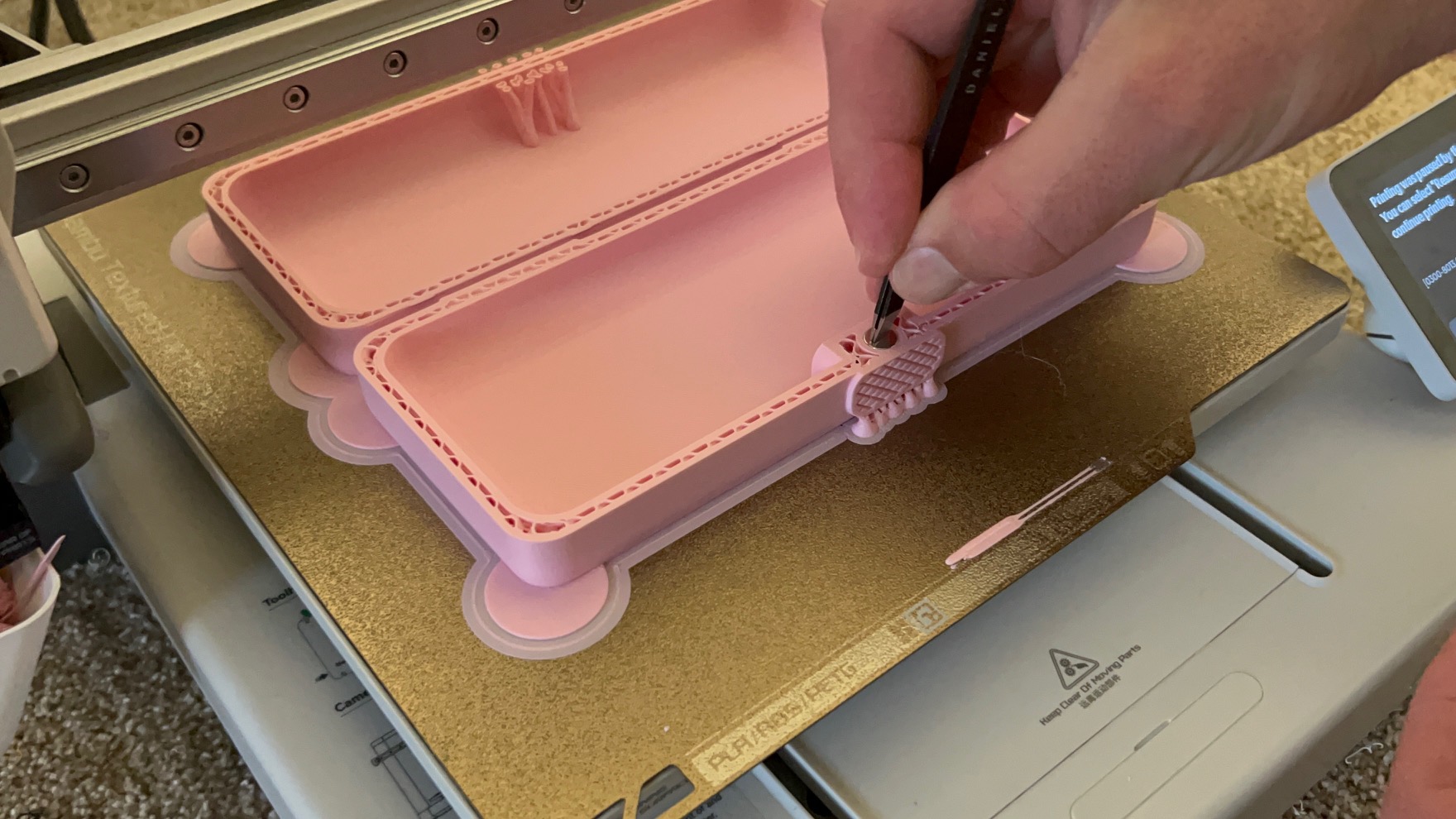

2. There are pauses built into the print profile for inserting the magnets into the clasps. You don't want this to take long of course so you don't affect the print too much but there are some supports you will have to take out first with some tweezers.
3. I printed in Matte PLA. I am sure other filaments will work too but matte just prints looking so smooth.

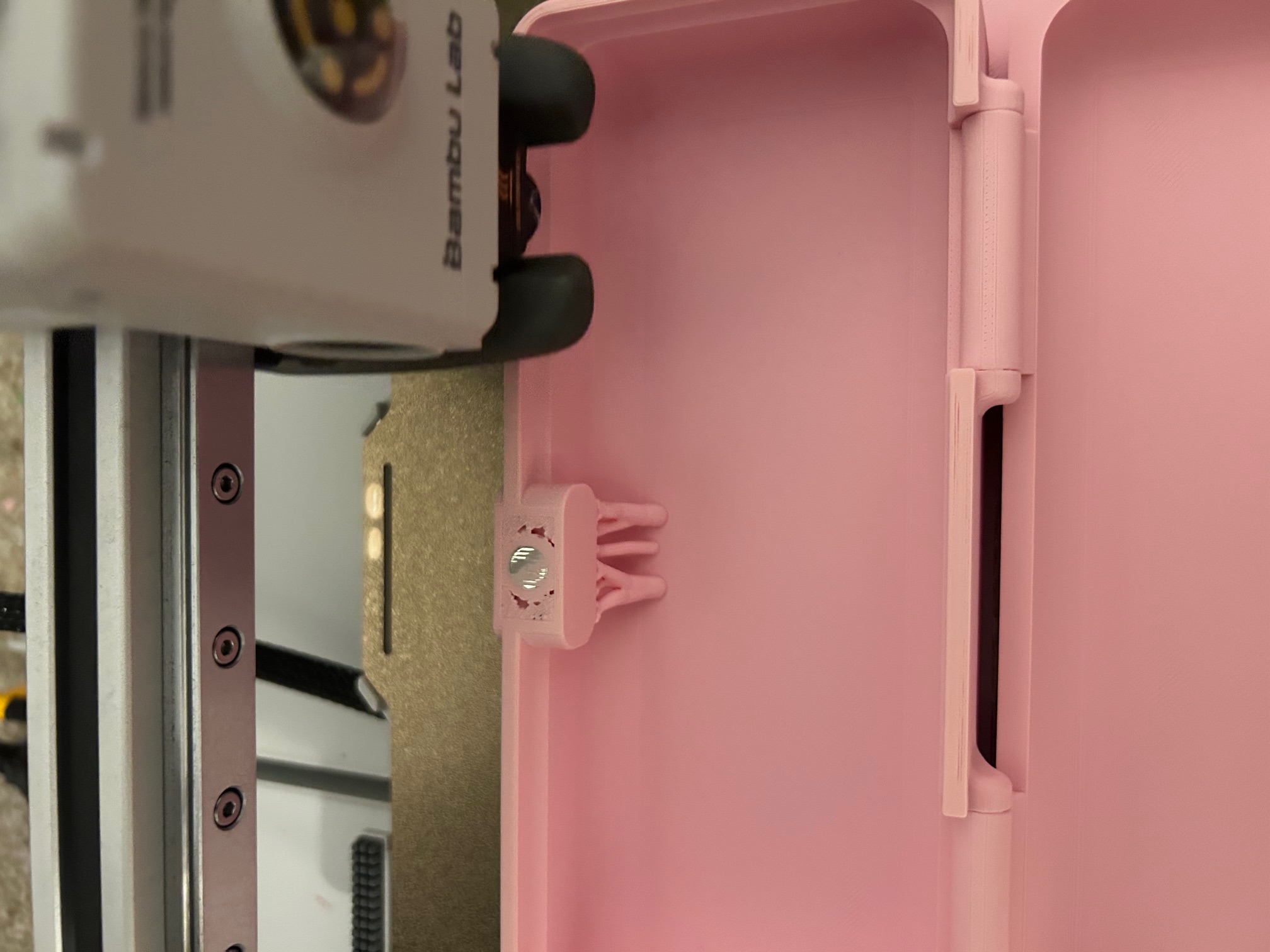

Inserting the magnets

If this is your first time inserting magnets into print… it was mine too. The profile has been tested and confirmed (in PLA matte) to fit the magnets perfectly. The only thing you should have to worry about is making sure the magnets are facing the right direction to attract to each other.

I had some good advice given to me which was to select your two magnets ahead of time and mark both of them with a marker to show which side needs to point up within the print.

If you try other fun colors or filaments please share pictures! I love seeing prints out in the wild and want to see how the hinges and finish turn out with other filaments!
