Parametric Angled Gridfinity Base (Customizer)

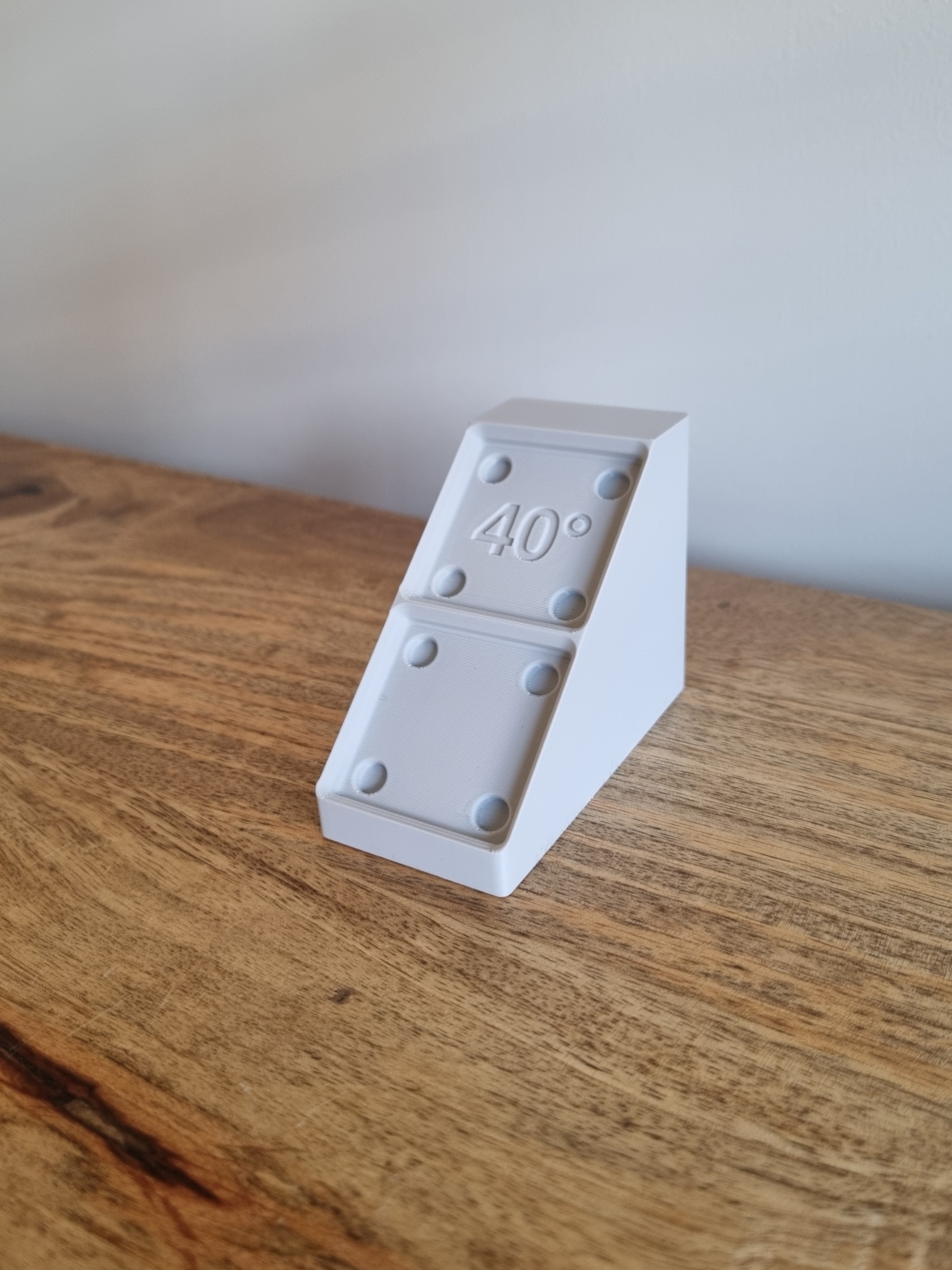

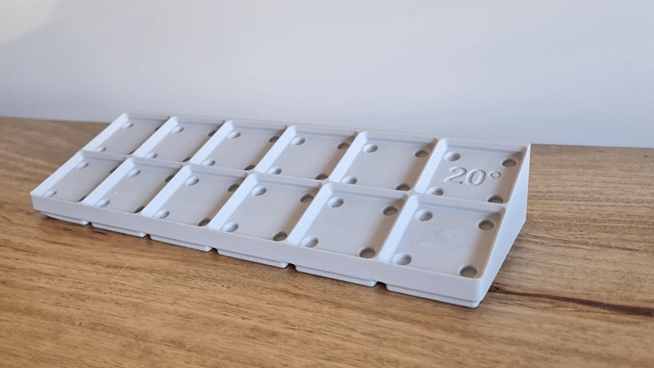

This is a fully parametric Angled Gridfinity Base generator. Whether you need a subtle 10° tilt for a shallow desk drawer or a steep 40° incline for a tool display, this script creates the perfect fit for your specific tools.

Show Off Your Setup

Got a unique use case? I’d love to see it!

Please post a photo of your print in the comments section. Seeing how you use these angled bases—whether it's for calipers, specialized hex keys, or dental tools—helps me improve the parametric script for future updates.

How to Customize:

1. Click the "Customize" button here on MakerWorld.
2. Set your Angle: Choose any angle between 10° and 40°.
3. Define your Grid: Set the X and Y dimensions to fit your drawer or workspace.
4. Enable foot: Remove or enable the bottom Gridfinity.
5. Extension Units: Extend the height by using the extension unit slider.
6. Download & Print: The Customizer generates the STL

Thank you:

Special thanks to Jun making Low Profile Gridfinity 6" Caliper Tray v2.

Updates:

• 12-04-2025: Updated minimum angle in customize from 15 to 10 degree.
