Modelo 3D Stackable Drink Can Dispenser (Different sizes) por Sc0tTy no MakerWorld

Descrição

!! Please give all thanks to Javier Hernando (Ljhtom) on Printables !!





Full parts pack for original design and remixed dividers for other can sizes

Support for:

  • 330ml 60x150mm “slim” cans (EU/Netherlands)
  • 330ml 66x115mm cans (original)

Printing

Use Top right/left plates for the single version or the top of the stack.

Stackable parts require a plate per part for P1S

Select divider size plate for Can wanted size, print for each block, include pins for when not using wooden dowels

Pins are required for each block.



Assembly, by original author

The stackable, is obtained by means of dovetail, fitting both pieces and preventing the complete movement even upwards, for the assembly it is necessary to clip first one side and then the other.
For the clipping between them, 6x30mm wood dowels are recomended, specially designed for it, but if you want.

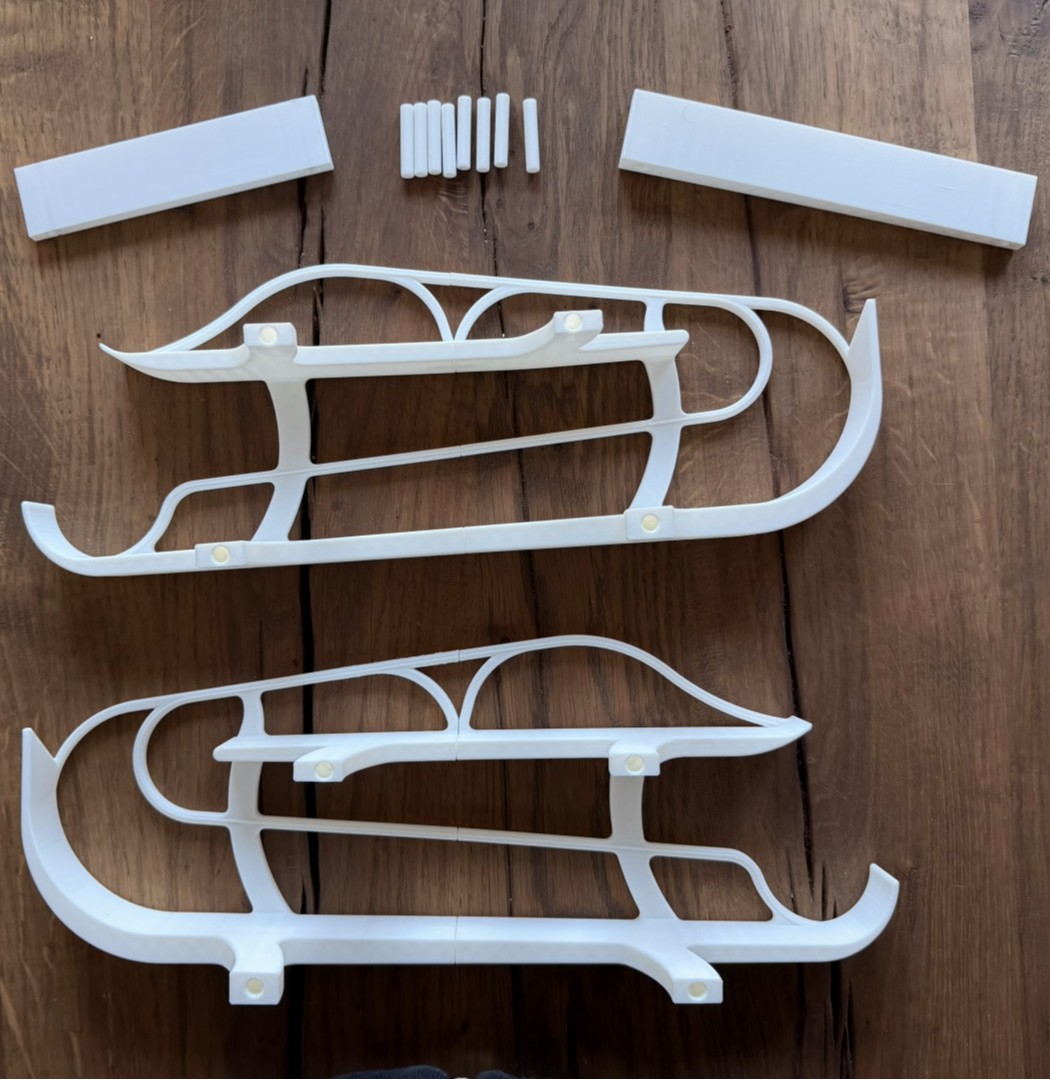

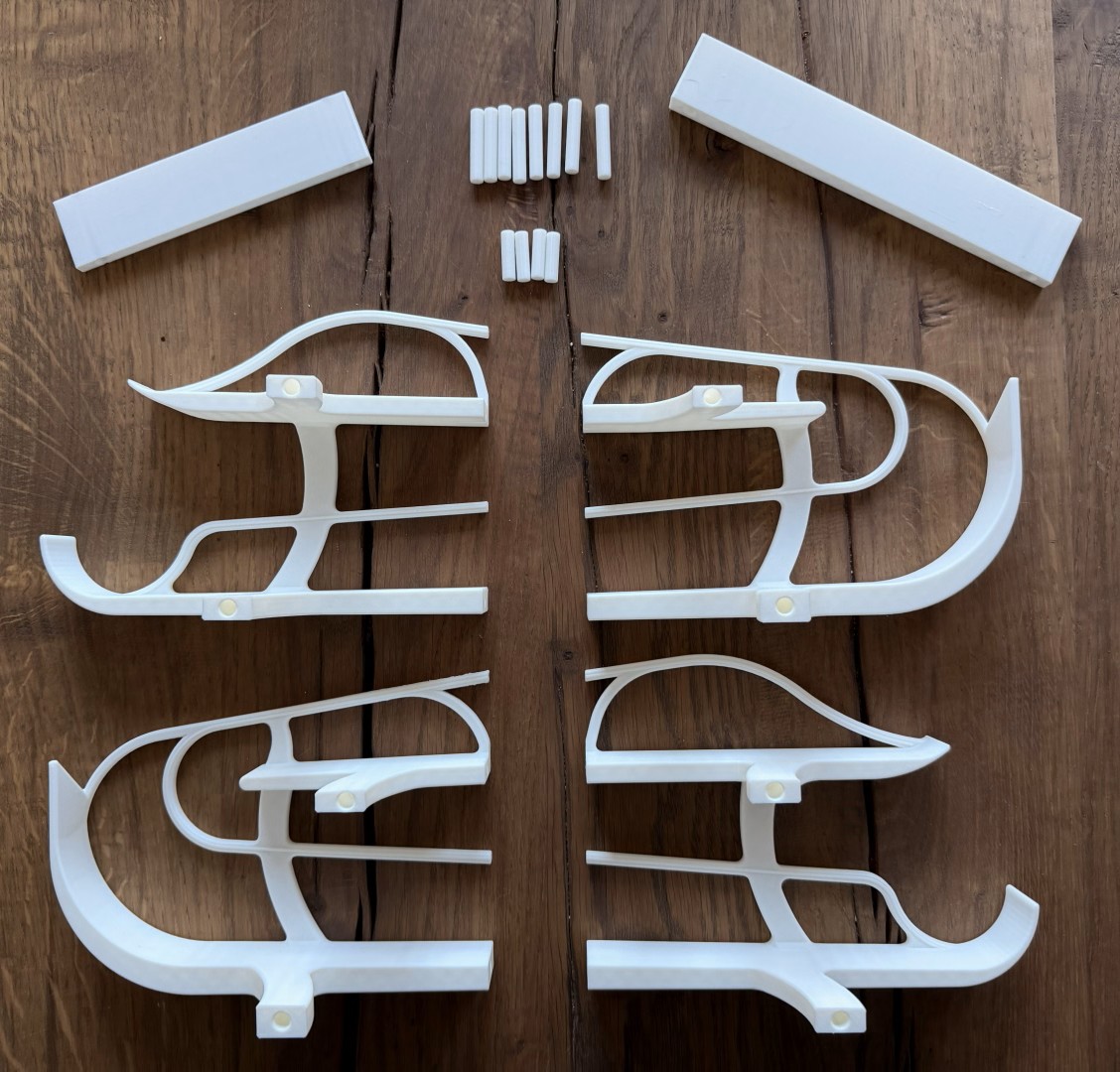

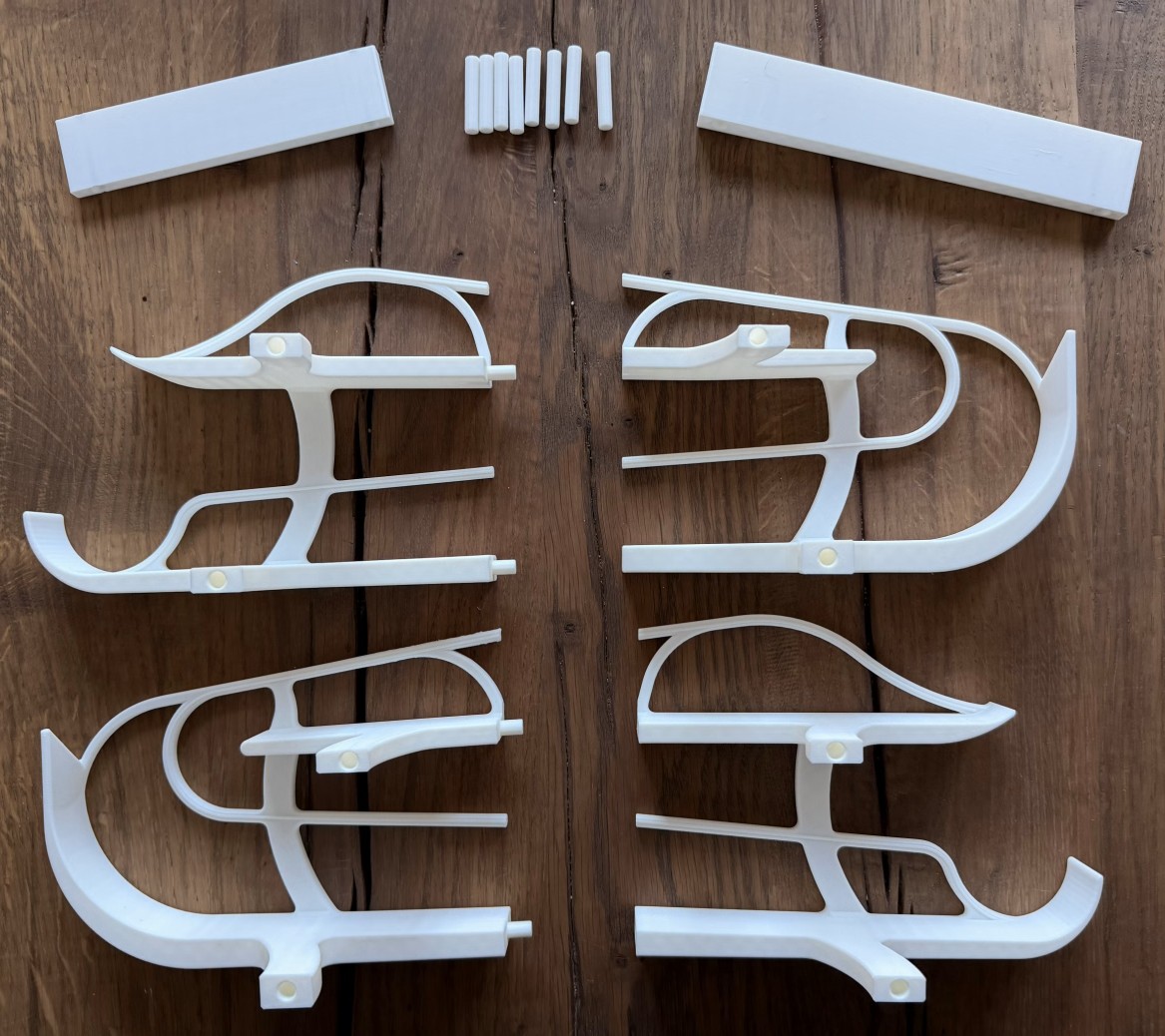

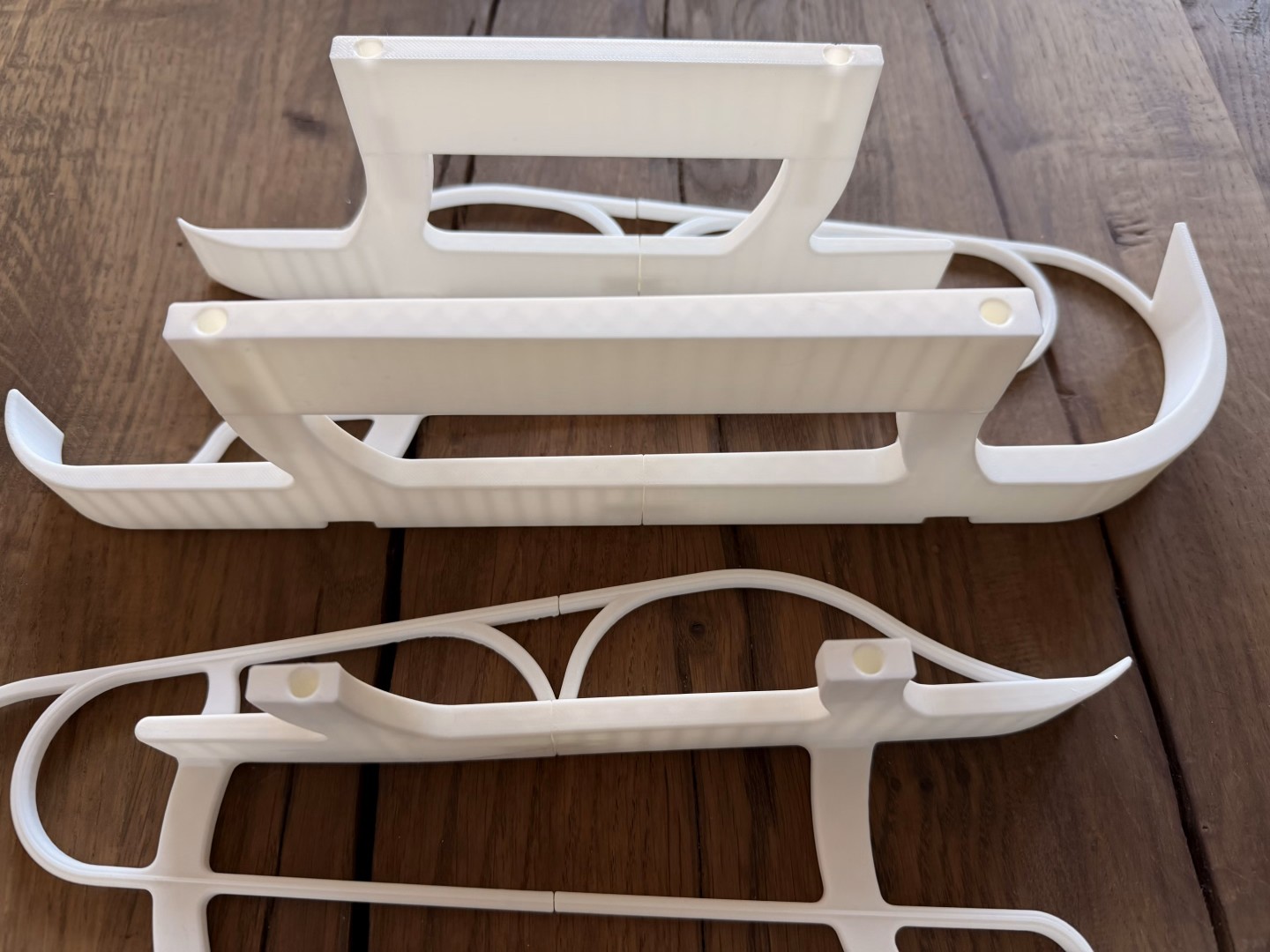

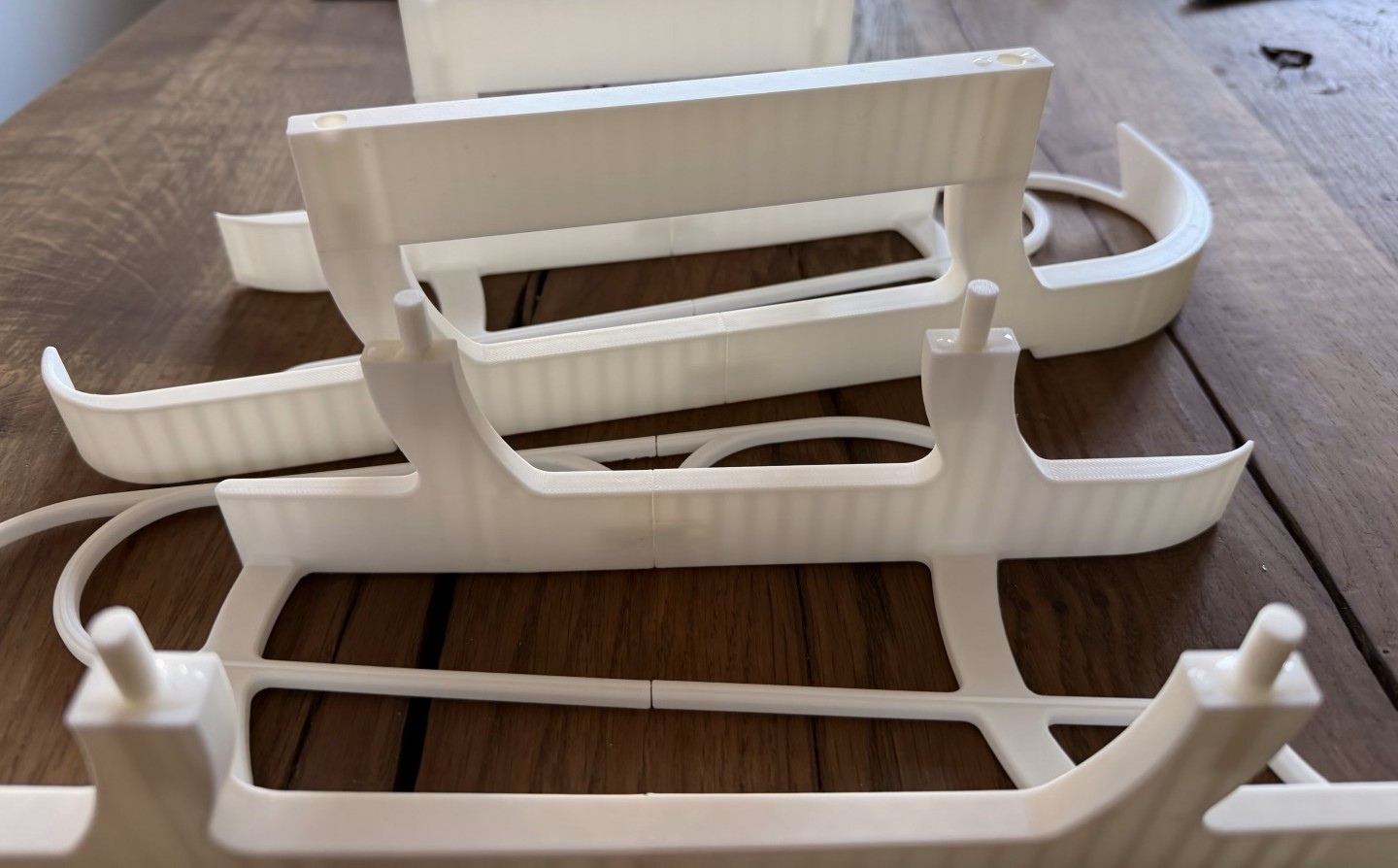

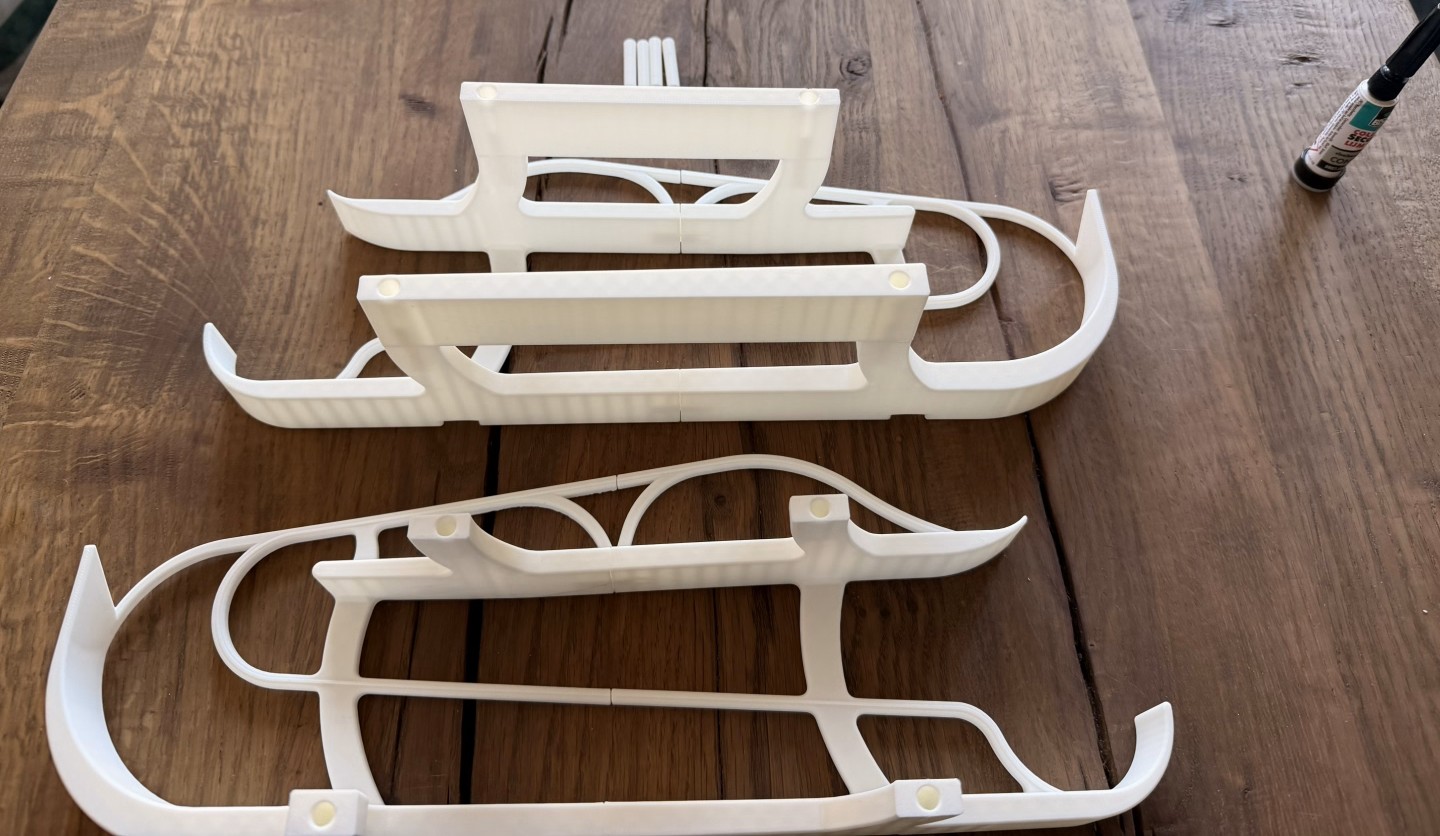

Assembly, in pictures:

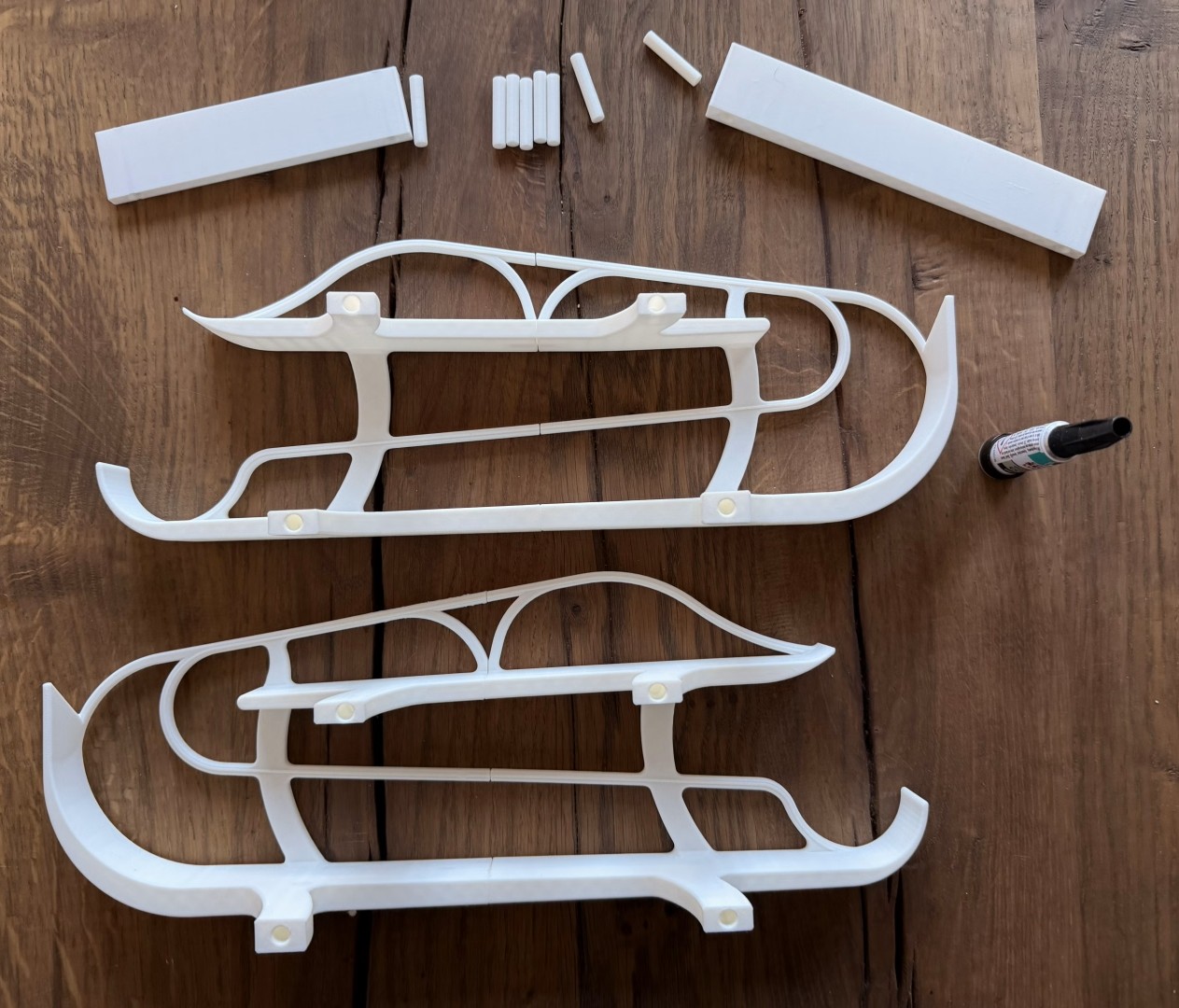

Using CA glue put some in the holes and the sides next to the holes. Add the dowels and then move the next part on top.





Please note

This is my first upload so I only tested on my P1S.

I tried to make it as easy as possible (for even a novice like me to follow) but please give feedback on issues.
