Modular Scraper System – Precision Print Removal Tool

This is not a scraper.
This is a modular print removal system built for real use.

Designed, tested and refined in daily workflows.

Not Just a Scraper – Modular Interchangeable Blade Tool for 3D Printing

🔥 WHY THIS EXISTS

Most scrapers are:

• too flexible
• uncomfortable
• or just copies with different colors

This one was built from scratch to solve real problems:

• controlled force
• better grip
• interchangeable heads
• real durability

⚙️ ENGINEERING FEATURES

🔧 Modular Head System

• interchangeable top plate
• future-ready for multiple tool heads
• scalable design (this is just v1)

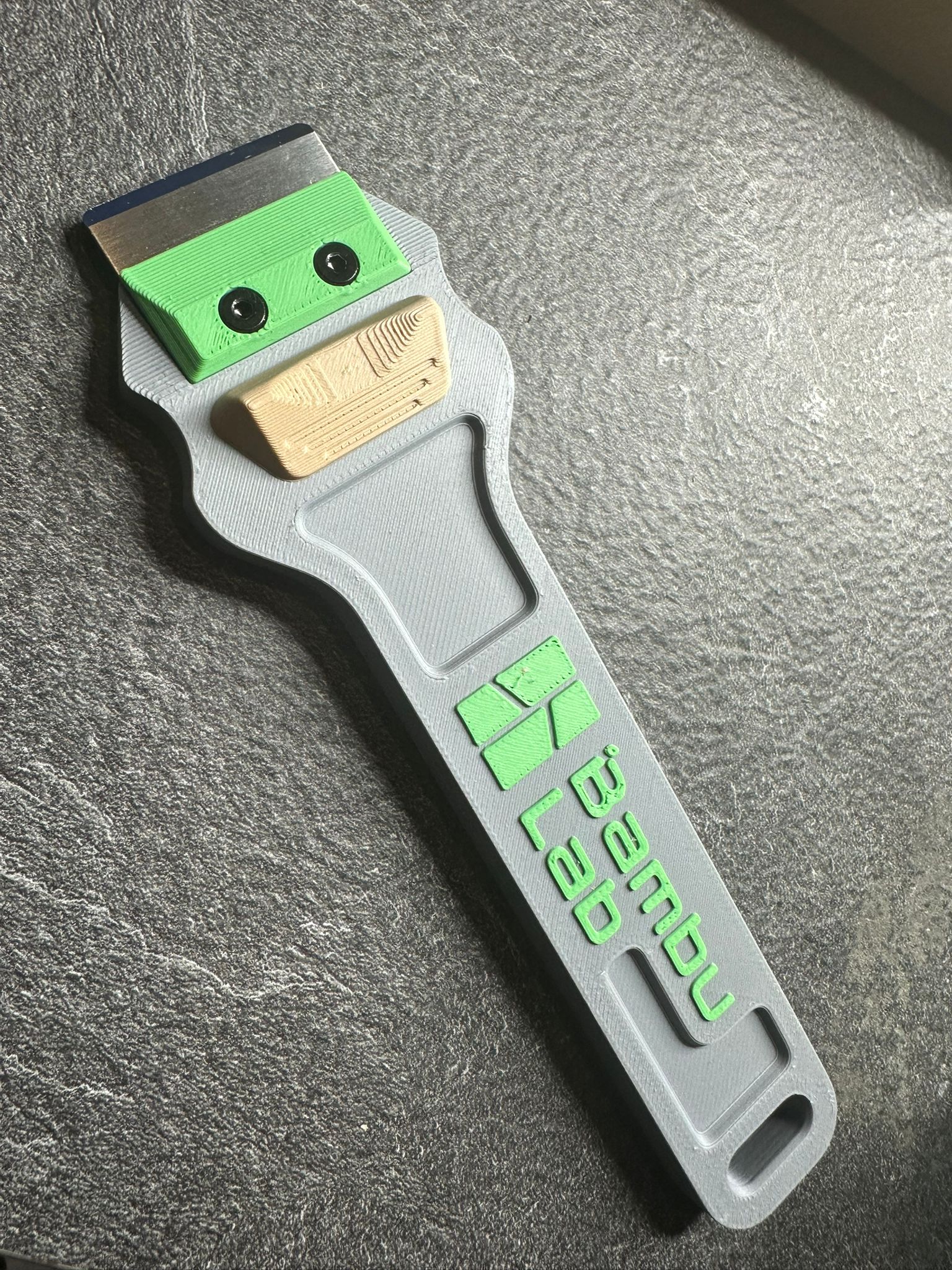

🗡️ Secure Blade Interface

• dual screw locking system
• stable clamping surface
• no wobble during aggressive scraping

🔩 Compatibility

Compatible with the official Bambu Lab blade
Attachment with 2 x BT2.6x8 SHCS screws (AA004).

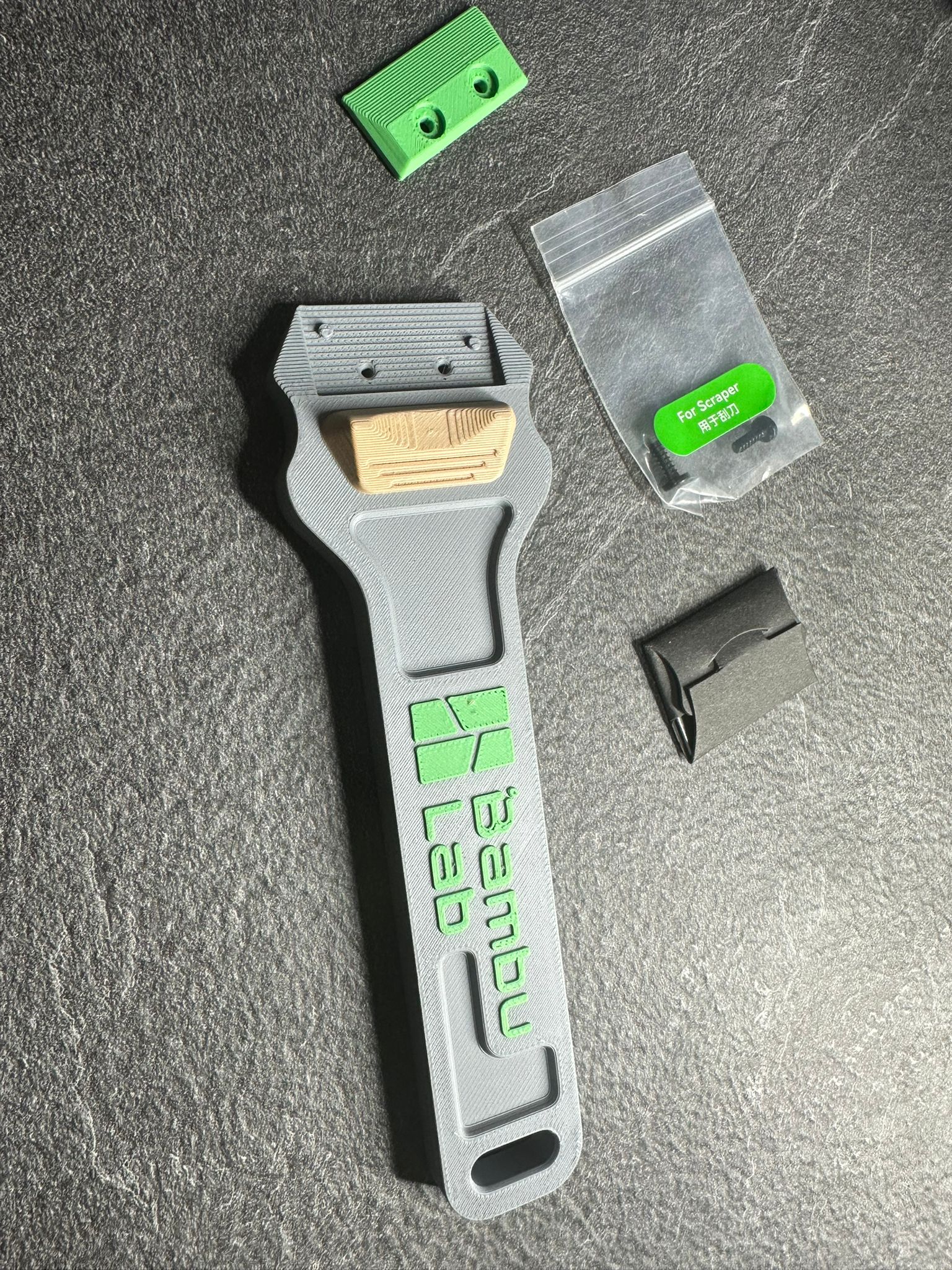

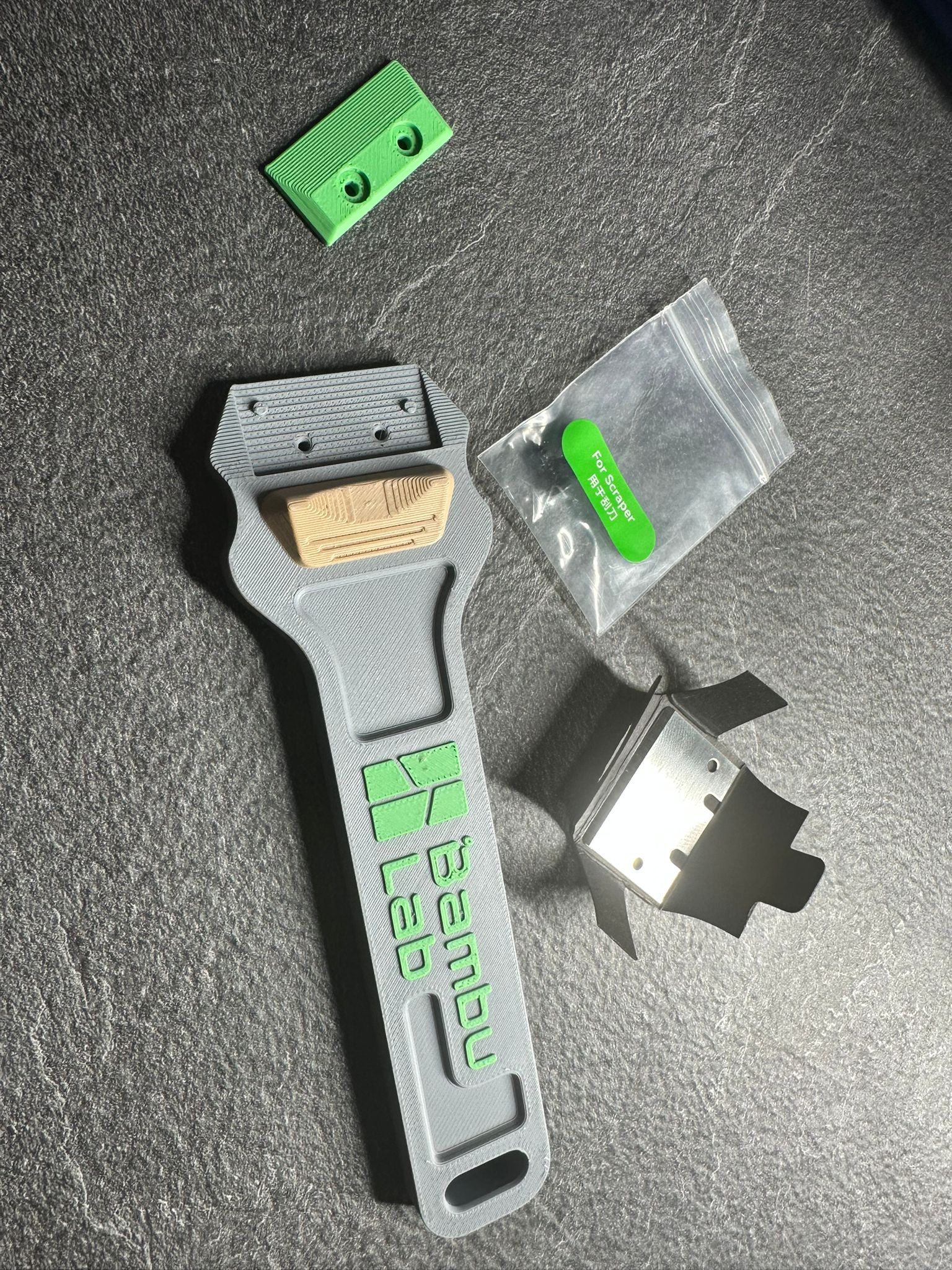

📦 Blade and screws included in the "For Scraper" bag supplied with the printer.

🧲 Versatile rear mounting (integrated):

• Ø8 mm hole for wall mounting
• Ø8 x 2 mm magnet compatible for mounting on metal surfaces (ref. Bambu Lab B-CA005 – available in the parts list)

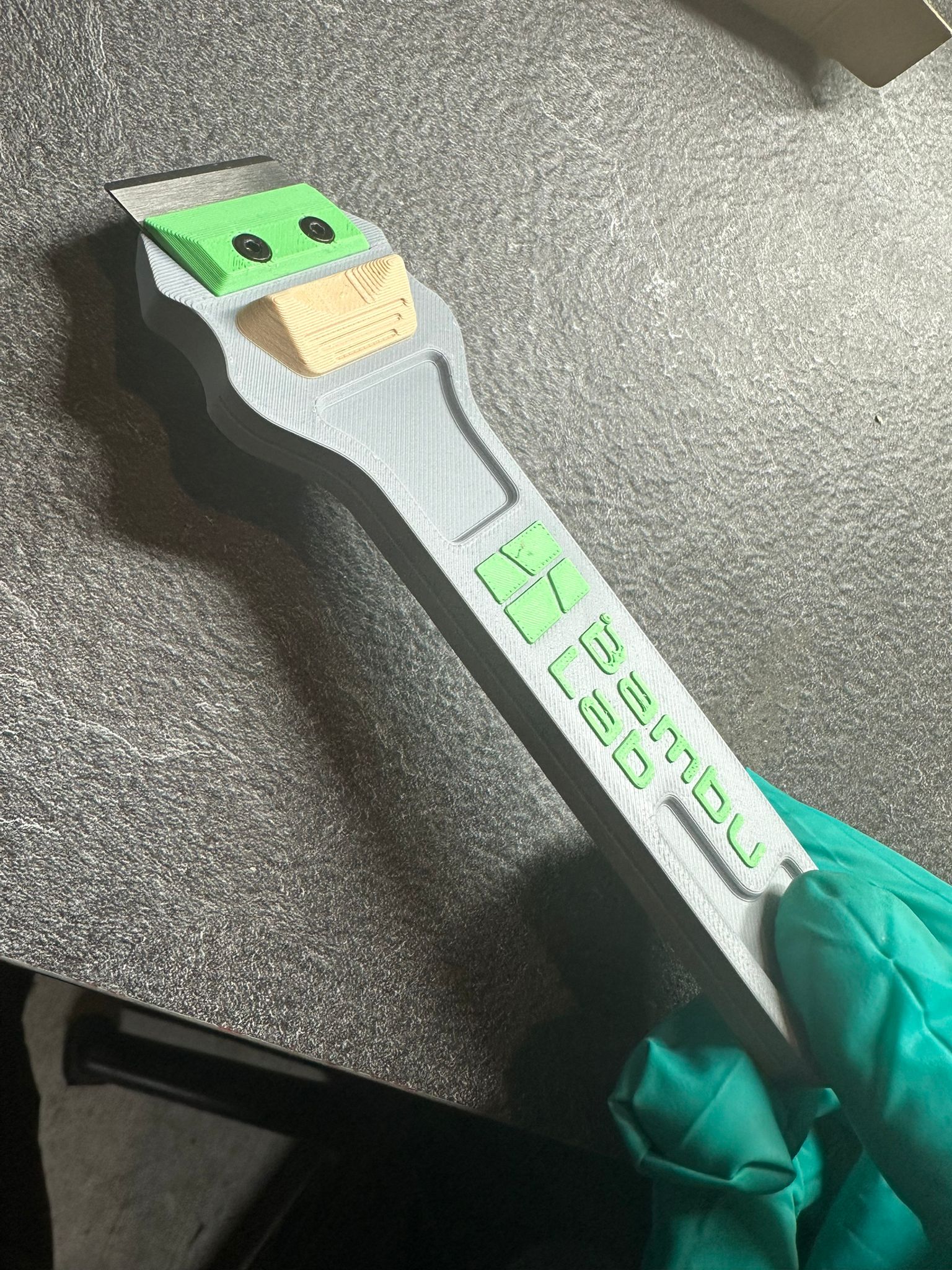

✋ Ergonomic Grip Zone

• optimized thumb pressure pad
• controlled force application
• reduced fatigue during long sessions

🧱 Reinforced Structure

• thick load path from handle to blade
• designed to avoid flex under stress
• built for real mechanical use

🎯 Multi-Material Ready

• optimized for AMS / multi-color printing
• visual + functional separation of zones

🧪 REAL USE PERFORMANCE

Tested on:

• PLA (cold removal)
• PETG (strong adhesion)
• textured plates

Result:

• controlled removal
• reduced slipping
• better precision vs standard scrapers

🧰 WHAT YOU CAN BUILD WITH THIS

This is just the beginning.

Planned / possible heads:

• wide blade
• flexible blade
• detail scraper
• hook tool
• plastic-safe version

👉 this is a system, not a single tool

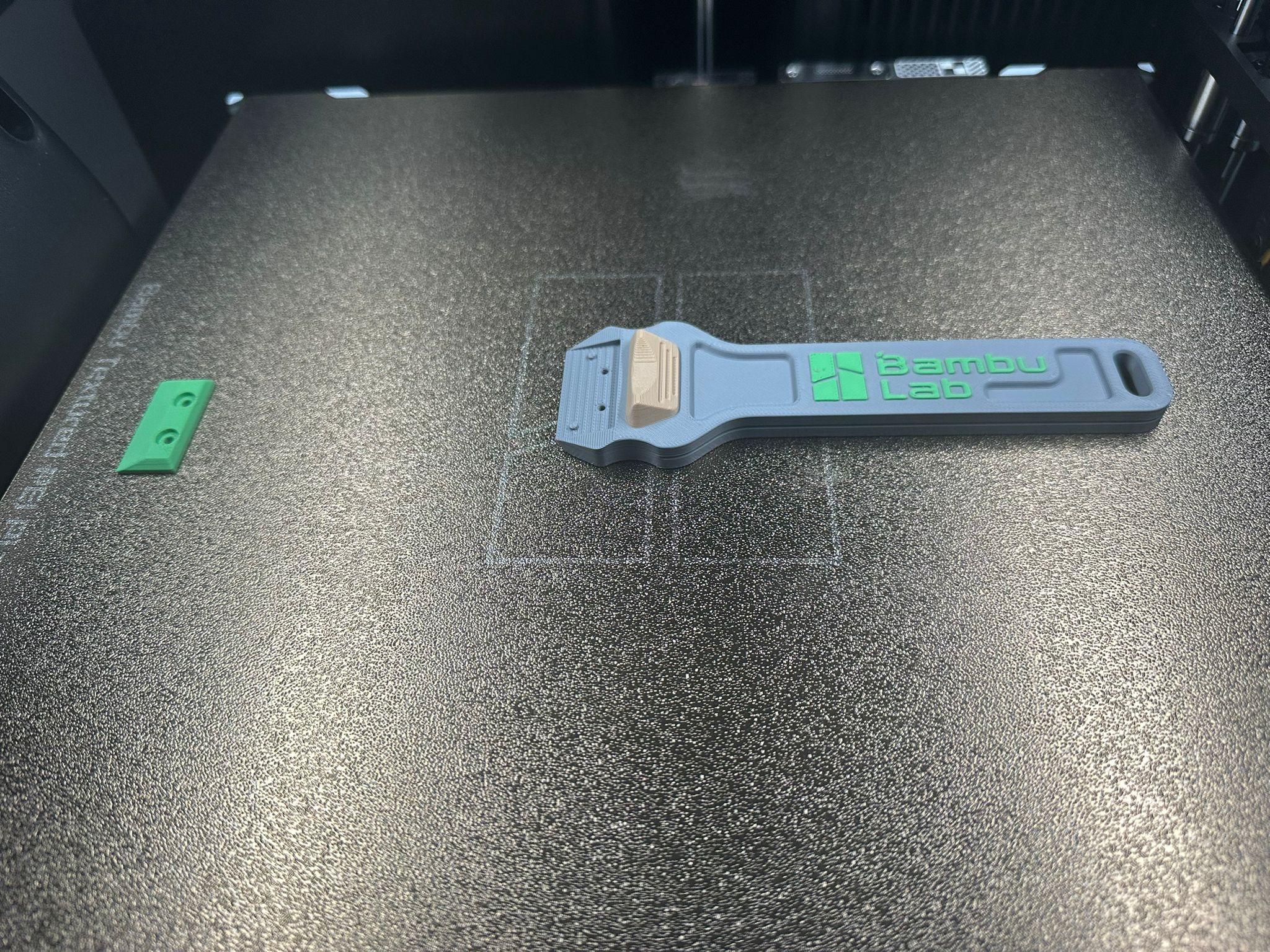

🖨️ PRINT SETTINGS

Recommended:

• Layer height: 0.2
• Walls: 4–5
• Infill: 30–50% (Gyroid)
• Material: PETG / ABS / PA-CF

⚠️ For maximum strength:
Print with layers aligned along the handle axis.

🔩 HARDWARE

• standard scraper blade
• 2x screws (included in kit or easy to source)

🎯 COMPATIBILITY

• Bambu Lab printers
• textured plates
• smooth plates

⚠️ DISCLAIMER (SMART)

• Always scrape at a low angle
• Do not apply excessive force
• Designed for controlled removal, not impact

💬 COMMUNITY

If you print it:

• share your setup
• show your variant
• suggest new heads

Best ideas will be developed.

Designed to be used. Built to work. Not just another scraper.
