Gridfinity Stackable H2S Tray

Gridfinity 4×4 H2S Maintenance Tray

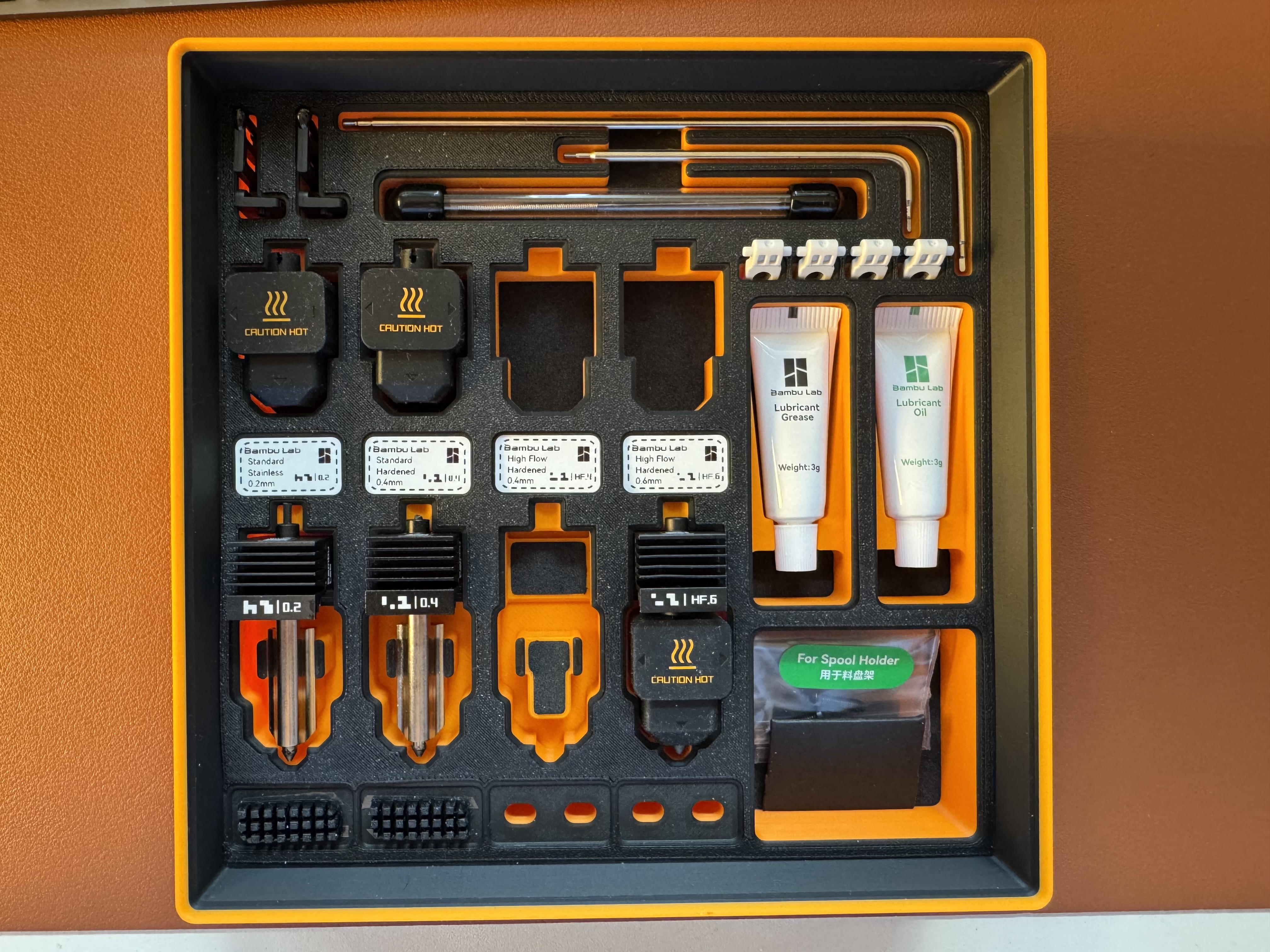

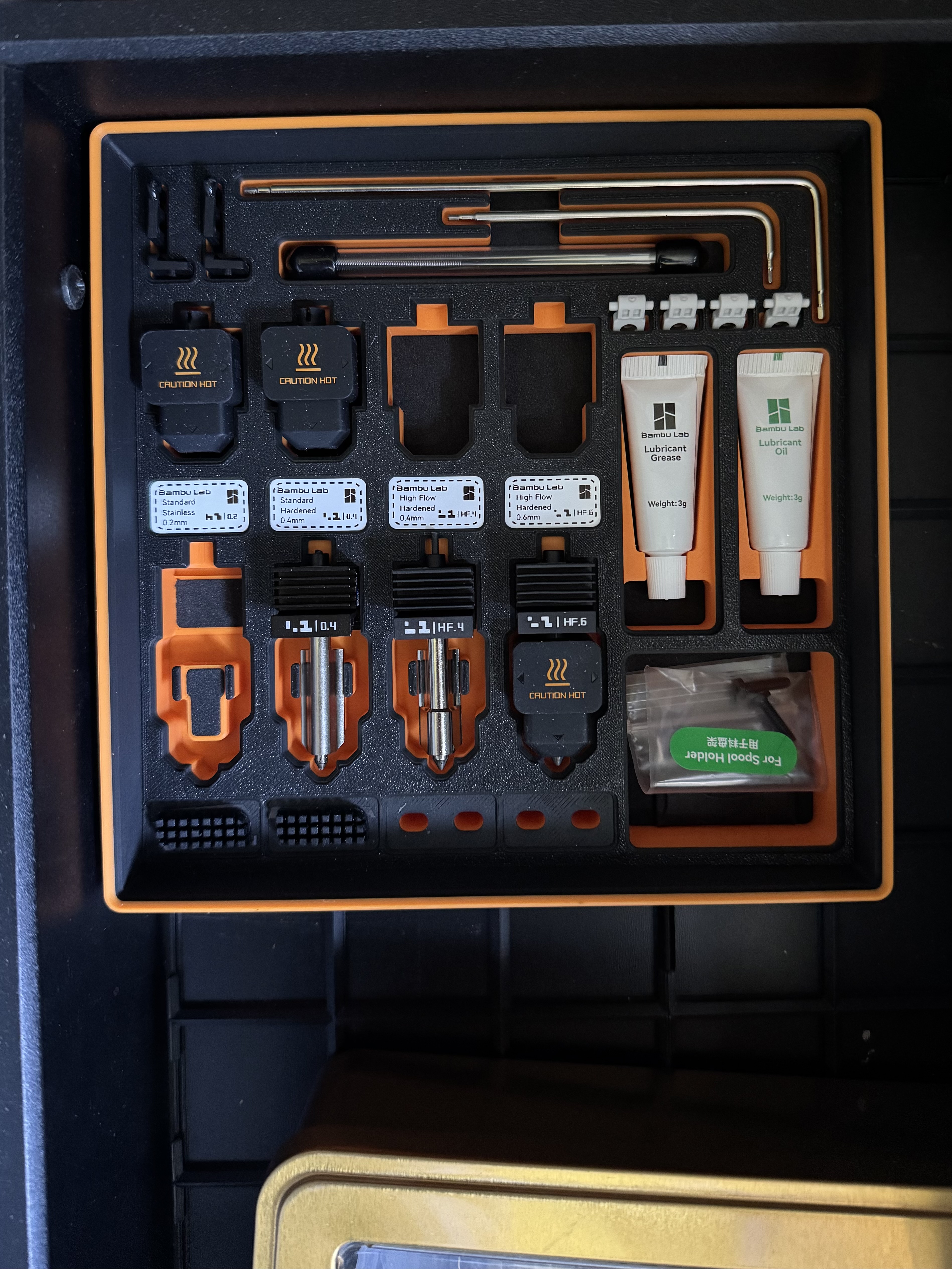

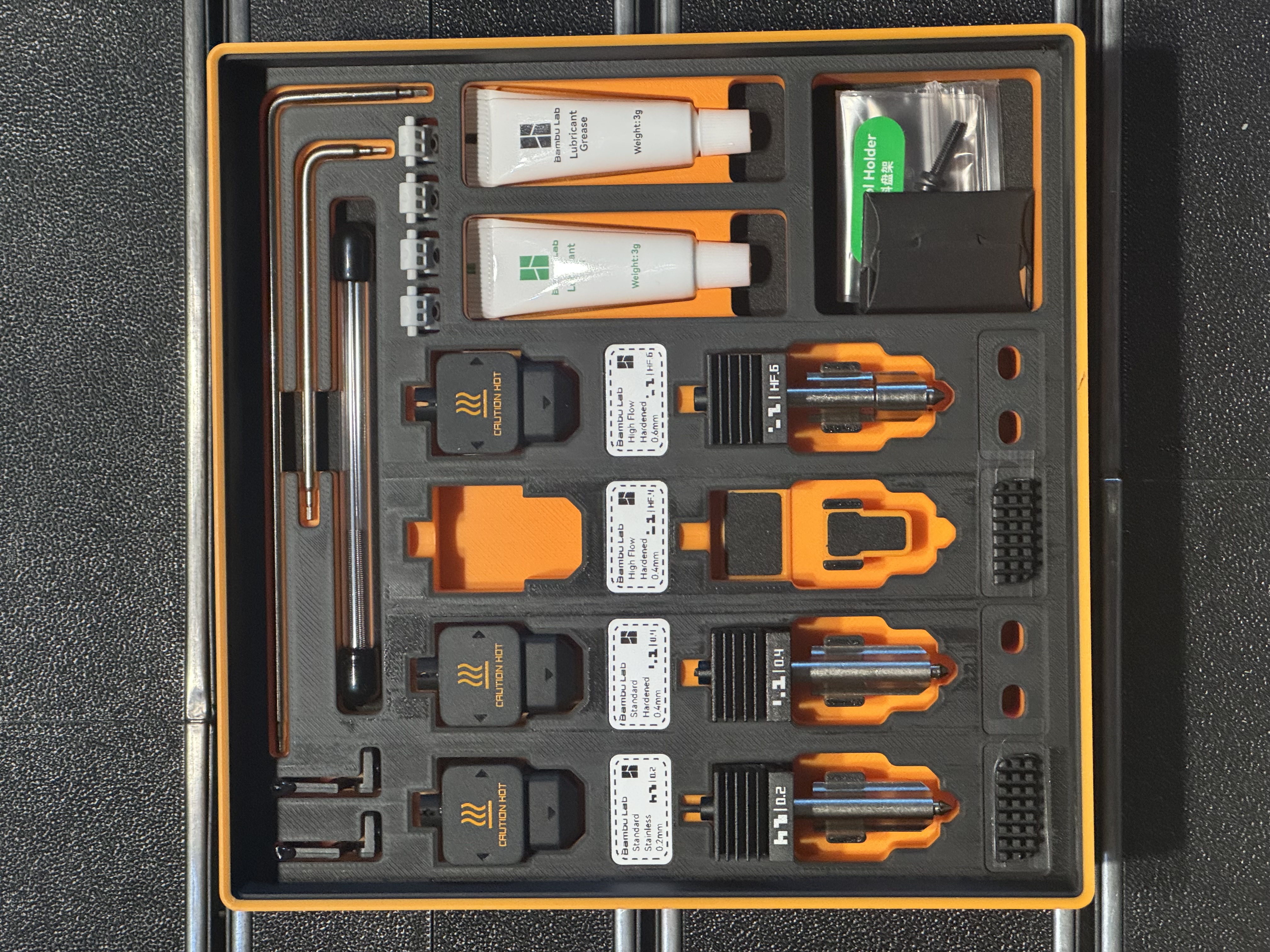

Compact 4×4 Gridfinity tray for H2S nozzle maintenance. 45.7 mm tall (6U including the lip). There is no one on Makerworld for H2s since the wiping is different to the one on the h2D and all of them are made for H2D. Stores hotends, silicone socks, wiping pads, wiper strips, blades, oil/grease, keys, and small spare parts. Includes label-ready zones, EVA foam bottoms, and a premium-looking inner finish.

Footprint	4×4 Gridfinity	Height	45.7 mm = 6U including lip
Main purpose	Nozzles, tools, consumables, keys	Extra feature	Label-ready + EVA foam + premium inner finish

Item	Qty / Size	Notes
Nozzle unclogging tool	1	Dedicated slot
Wiping pads	4	Dedicated storage
Wiper strips	2	Backing liner may need a slight trim
Blades	4	Easy-access storage
Oil / grease	2	Small consumable slot
Hotends / nozzles	4	Fit with or without silicone socks
Extra silicone socks	4	Separate compartment
Auxiliary pocket	Approx. 4 × 4 × 1.5 cm	For screws or small spare parts
Allen keys	2	Easy-access storage

Key design points

Designed around real H2S accessories, not generic storage.
Niimbot-ready label zones for 12 × 22 mm labels.
Labels can also be made with the H2S using print-and-cut. (Word template as an alternative)
EVA foam bottom inserts reduce noise, scratches, and contact marks, not mandatory, cut file to be available soon.
Inner visible surface is mirrored/reprinted to use the bed texture for a cleaner finish, not mandatory.
Tested as a two-color print in orange and black with only three color changes.
I am open to feedback and improvement suggestions from the community.
