Description

Do you have wardrobes, cabinets, or cupboards but don't have enough of those shelf support pegs in the size you need them?

I've had on a number of occasions the need for a few of shelf support pegs but couldn't get the right ones. Either they were too small or too big.

Sure, you can drive around and eventually find some. Or you can buy them online but then you need to buy them in packs of 50 or more. But if you have a 3D printer, you can make them yourself for just a fraction of the cost, only in numbers you need and in no time at all.

This is a fully parametric shelf support peg design, made to fit into peg holes with a 50 mm diameter and a 70 mm depth. If your peg hole is larger, smaller, deeper, or shallower, you can easily adjust the dimensions in the configuration to suit your needs.

You can also adjust the width and depth of the holder to increase the support area for the shelf if you have larger shelves.

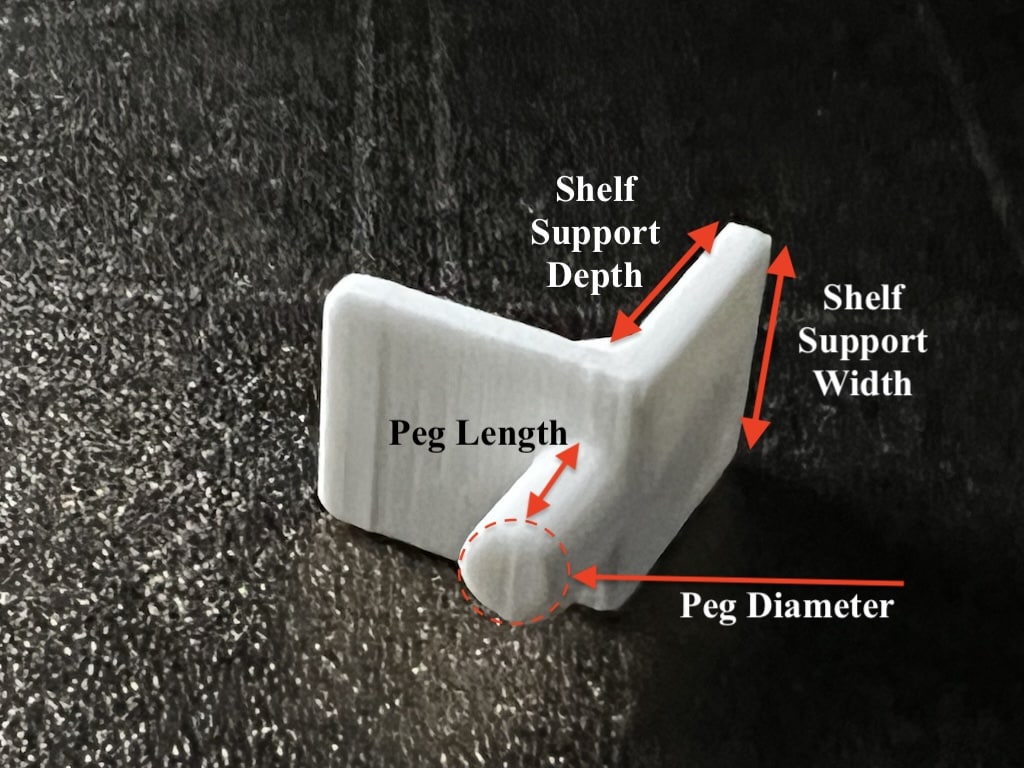

You can adjust the following parameter
Shelf support depth: 10 mm to 15 mm Shelf support width: 10 mm to 50 mm Peg Diameter: 4.7 mm to 8.0 mm Peg Length: 5.0 mm to 12.0 mm

It's a simple little print, but a great way to help you out if you need support for your cupboard and wardrobe shelves.
