This is the case of a BC-250 computer.


It was printed with bambulab A1 printer and PLA pilament, and there is no deformation due to temperature until now.

The GPU temperature is maintained at approximately 70 degrees.

Below is a description of the parts used.

The front cover and both side covers are detachable using magnetic magnets. The size of the magnet is 10×2 mm.

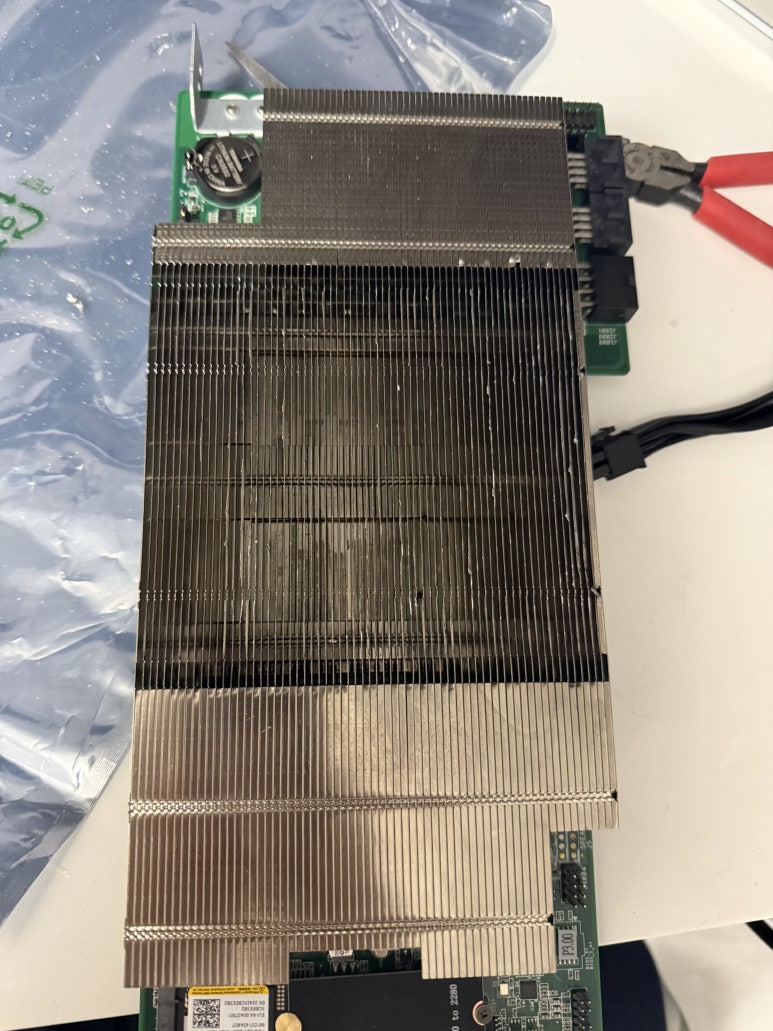

After removing the center part of the heat sink of BC-250, the cooling fan was installed.
(120mm, intake air)

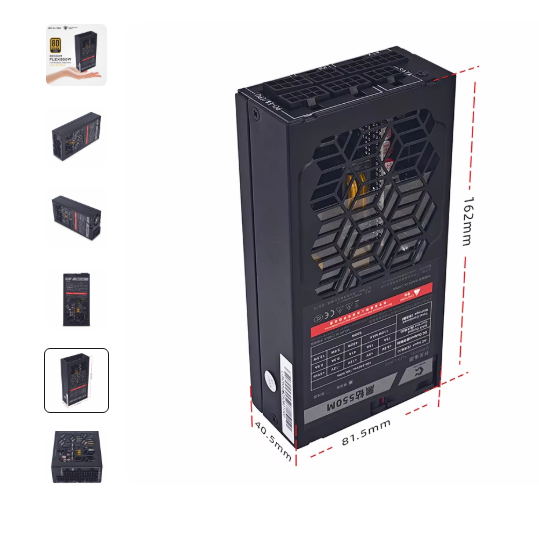

The PSU used the FLEX 500W product.
(https://ko.aliexpress.com/item/1005009609601844.html?spm=a2g0o.order_list.order_list_main.5.4dee140fF9Kny1&gatewayAdapt=glo2kor)



The front power-switch specification is 22mm.

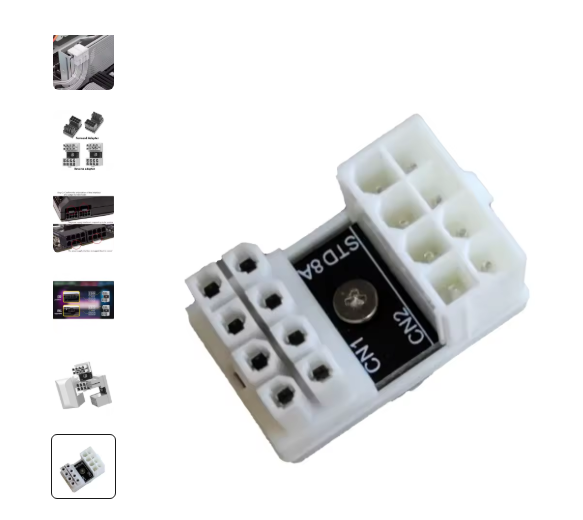

This transformation gender will help with the production.
(https://ko.aliexpress.com/item/1005007355417616.html?spm=a2g0o.order_list.order_list_main.34.BC-250 This is the case of a computer.

You need instantaneous glue when assembling.

Please use it well.

Thank you.
