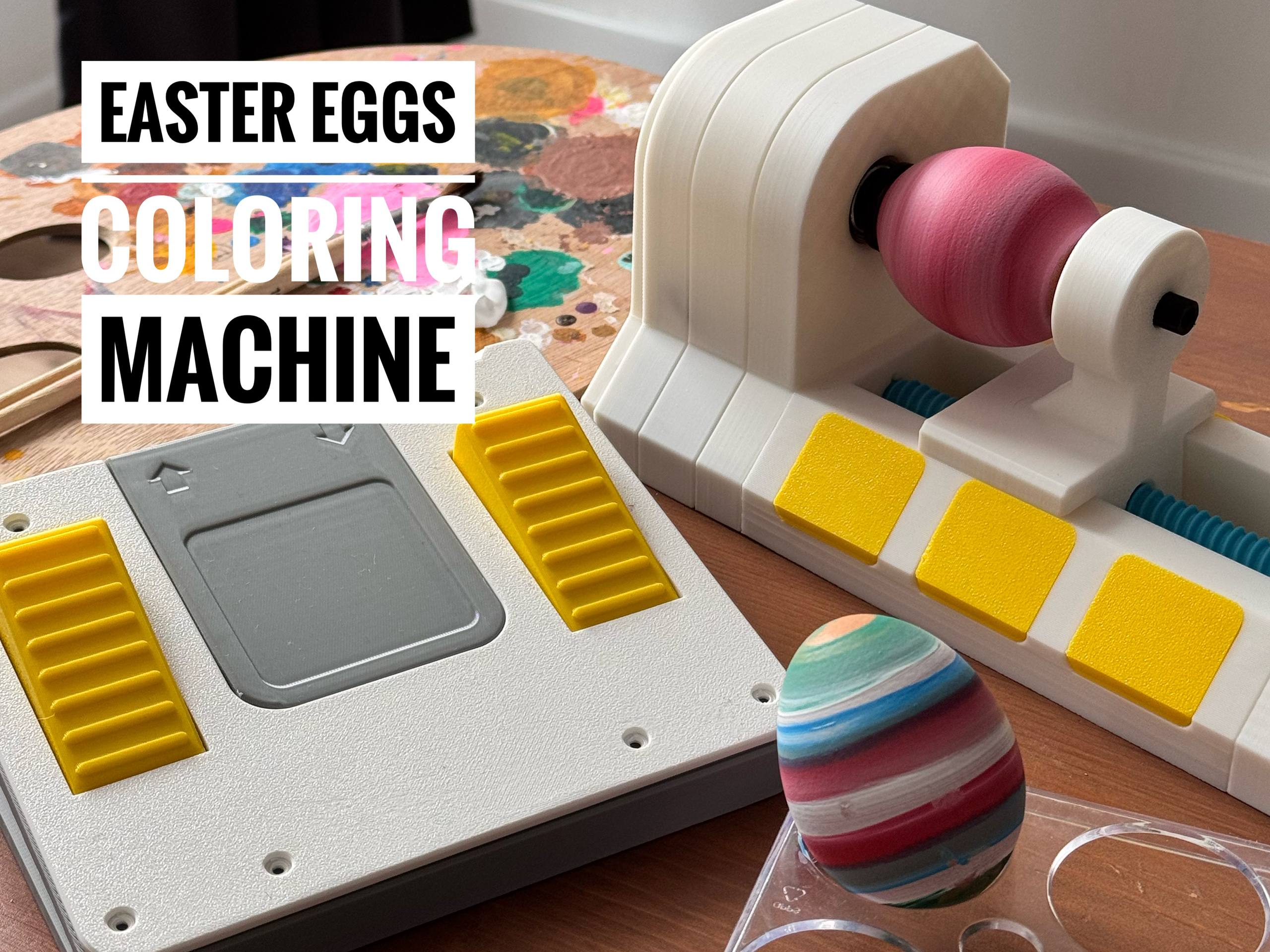

Decorating Easter eggs can be not only fun but also simple. I designed an Easter egg dyeing machine using the CyberBrick kit in a creative and accessible way. Just attach the egg and step on the pedal to spin the wheel. By combining different colors and speeds, you can achieve unique effects from smooth gradients to custom patterns.

The machine consists of two separate parts that communicate wirelessly through the CyberBrick controller and receiver modules. The pedal lets you control the motor in both directions, keeping your hands free so you can focus entirely on decorating your eggs.

Components

• 3d Printable
  • Coloring machine
    • Machine base
    • Slidign jaw
    • Screw
    • Handle
    • Screw to handle connector
    • Vise lock
    • CyberBrick modules case
    • CyberBrick modules case cover
    • Insert caps x6
    • Gearbox case
    • TPU Jaws for eggs
  • Pedal
    • Pedal base
    • Pedal top cover
    • Pedal button x2
    • CyberBrick modules cover
    • Joystick hook insert x2
• Hardware
  • Coloring machine
    • M3x30 screw- x8
    • M3 nut - x8
    • M2.5 hex cap screws from CyberBrick kit

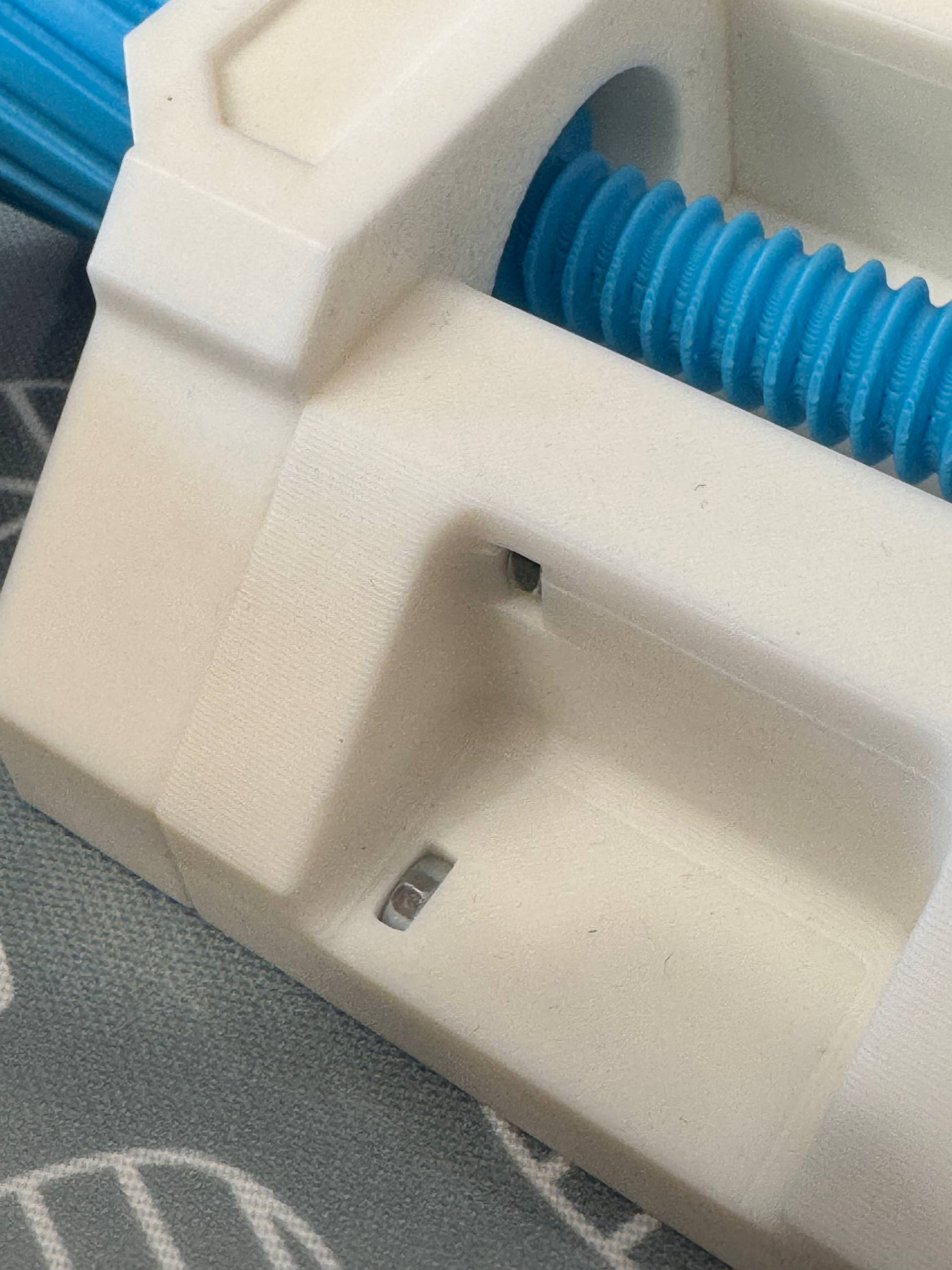

    • 2x4 magnets - x3

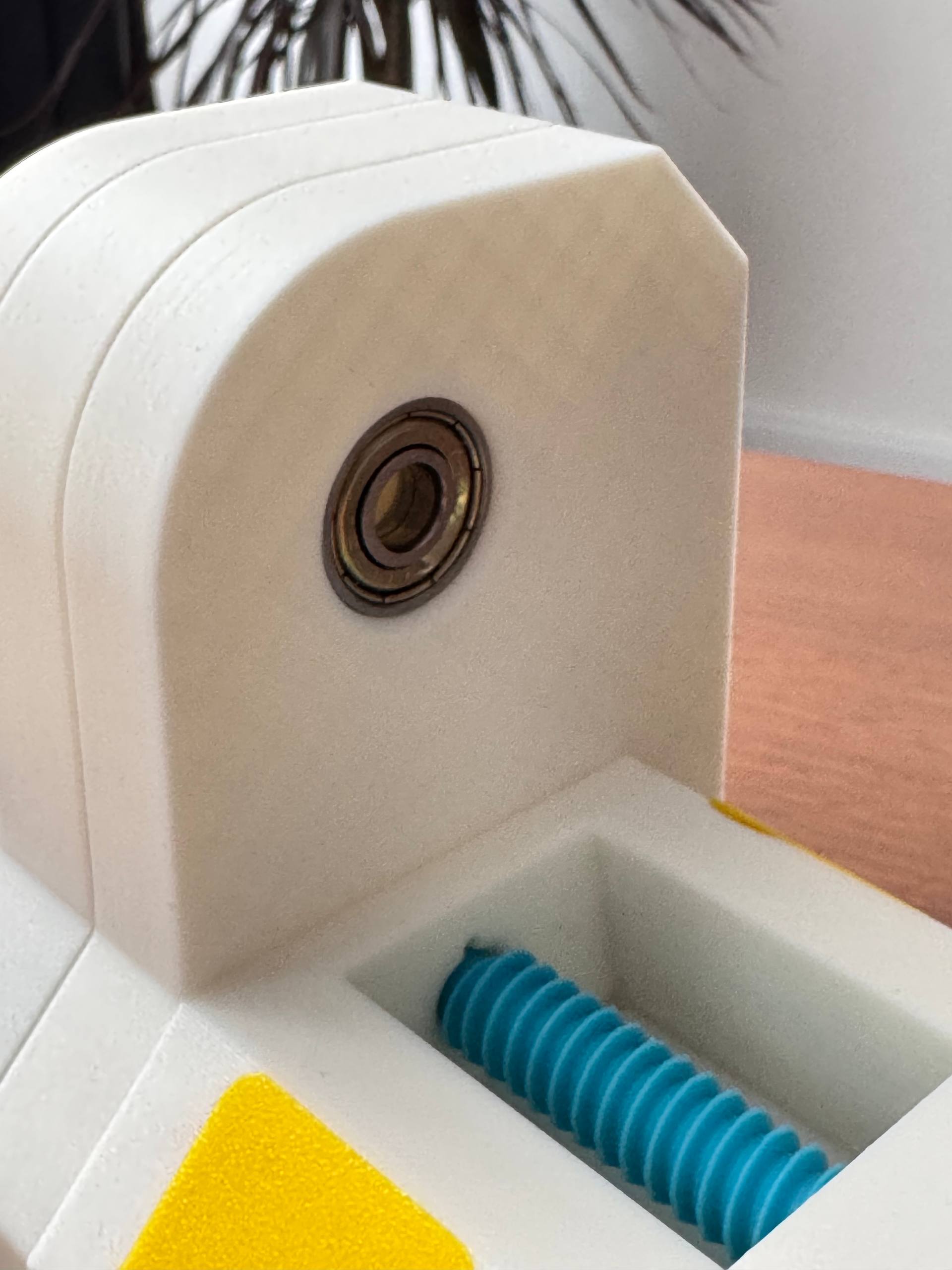

    • 22x7x8mm bearings - x2
  • Pedal
    • M2.5 hex cap screws from CyberBrick kit
    • 8mm Springs from CyberBrick kit x2
• CyberBrick  components

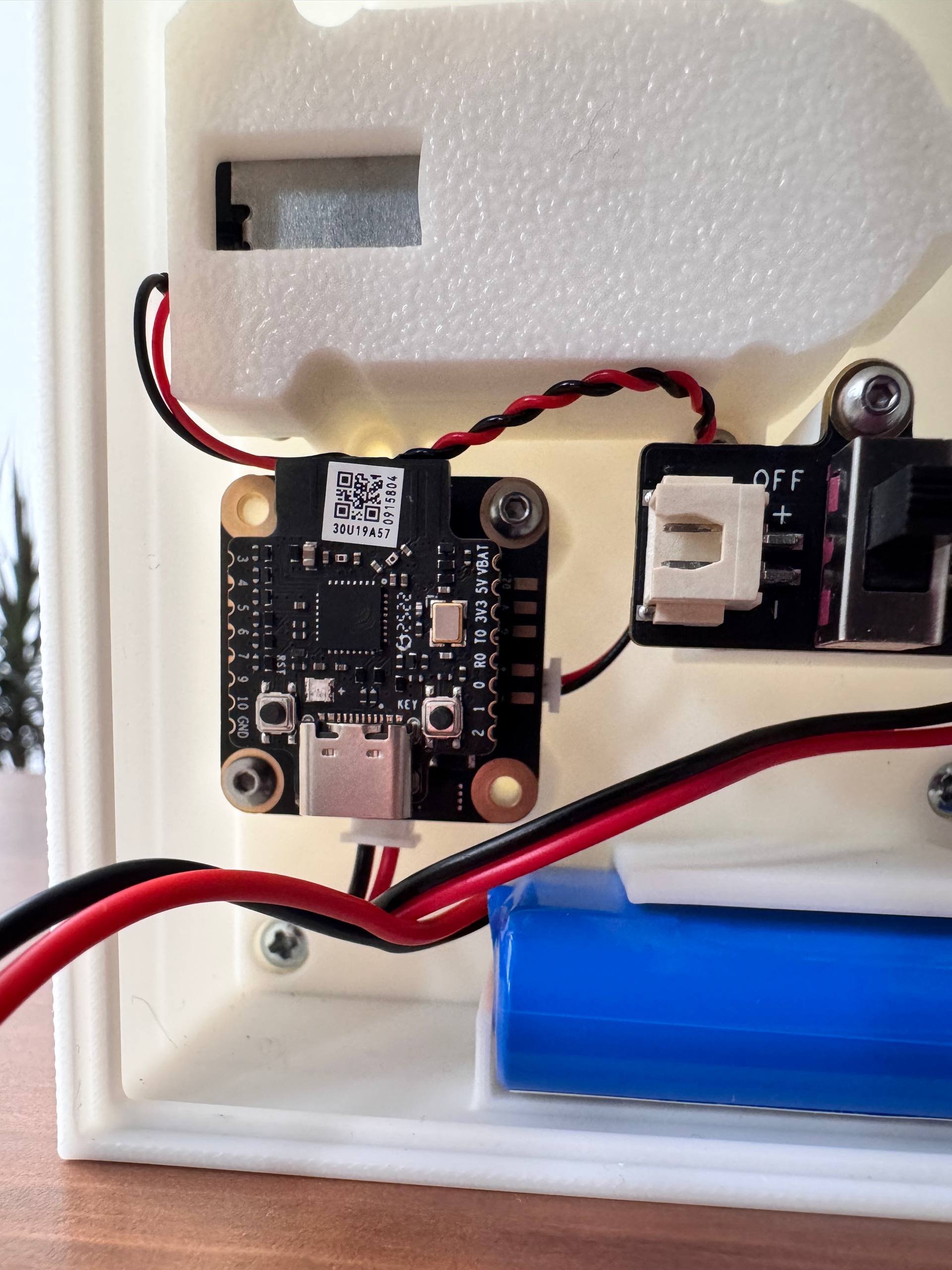

  • Coloring machine
    • Remote Control Receiver Shield
    • Power Switch Module with 2Pin XH2.54 Connector
    • Dual-Axis Joystick Module with 3Pin SH1.0 Connectors
    • 14500 7.4V 800mAh Li-ion Battery
    • 030 Micro DC Motor with SH1.0
    • 1:48 Single-axis Plastic Reduction Gear Kit
  • Pedal
    • Remote Control Transmitter Shield
    • Power Switch Module with 2Pin XH2.54 Connector
    • Dual-Axis Joystick Module with 3Pin SH1.0 Connectors
    • 14500 7.4V 800mAh Li-ion Battery

Assembly

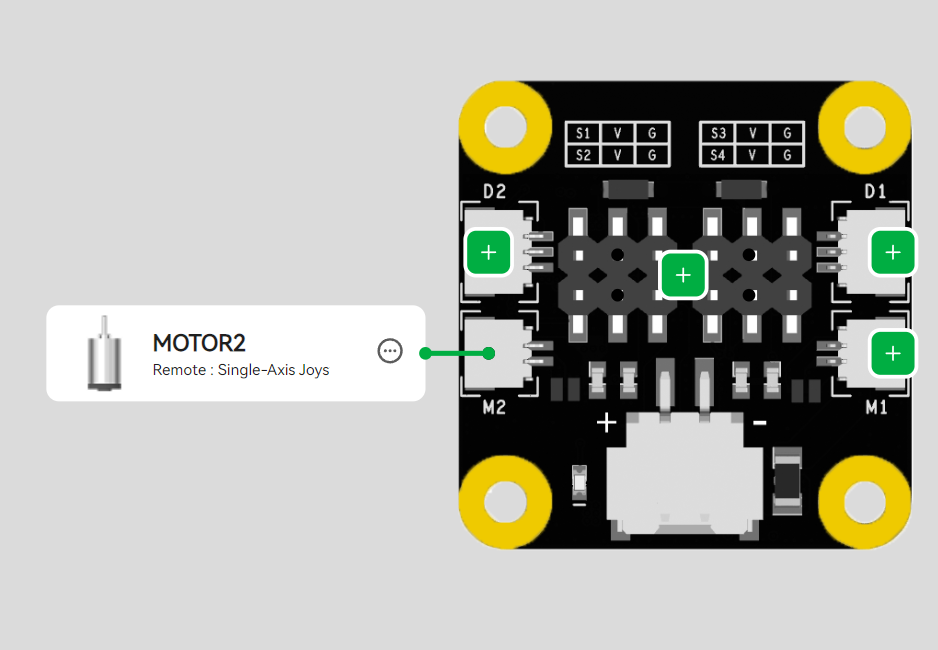

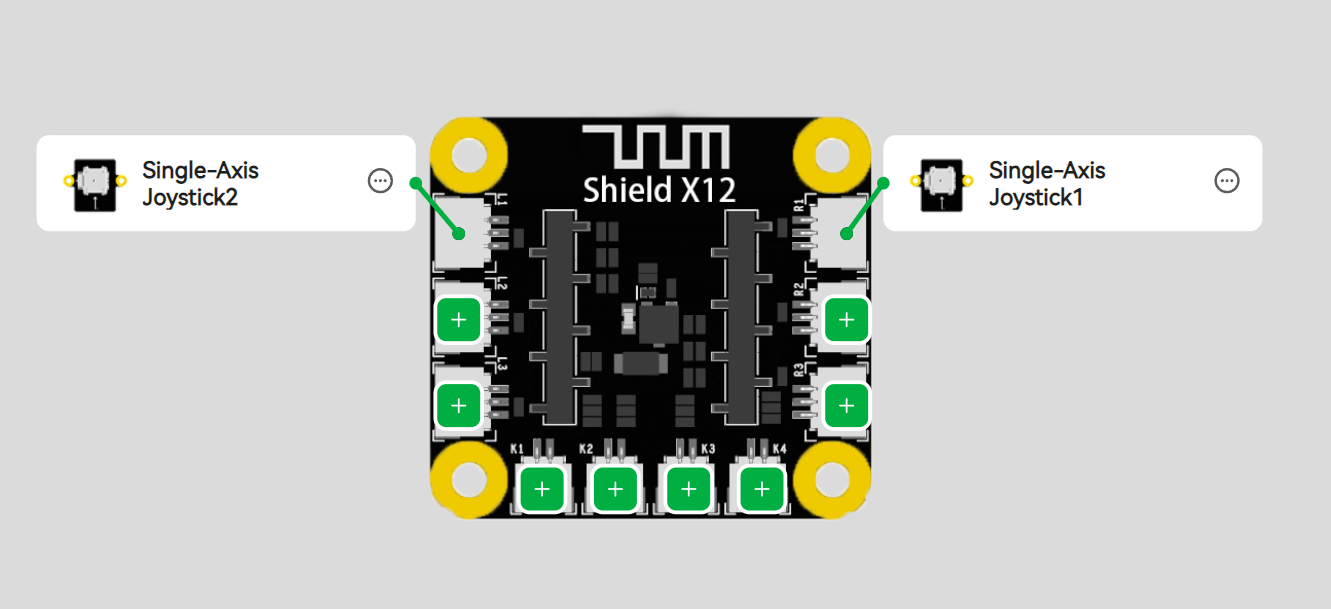

CyberBrick modules connecting schema

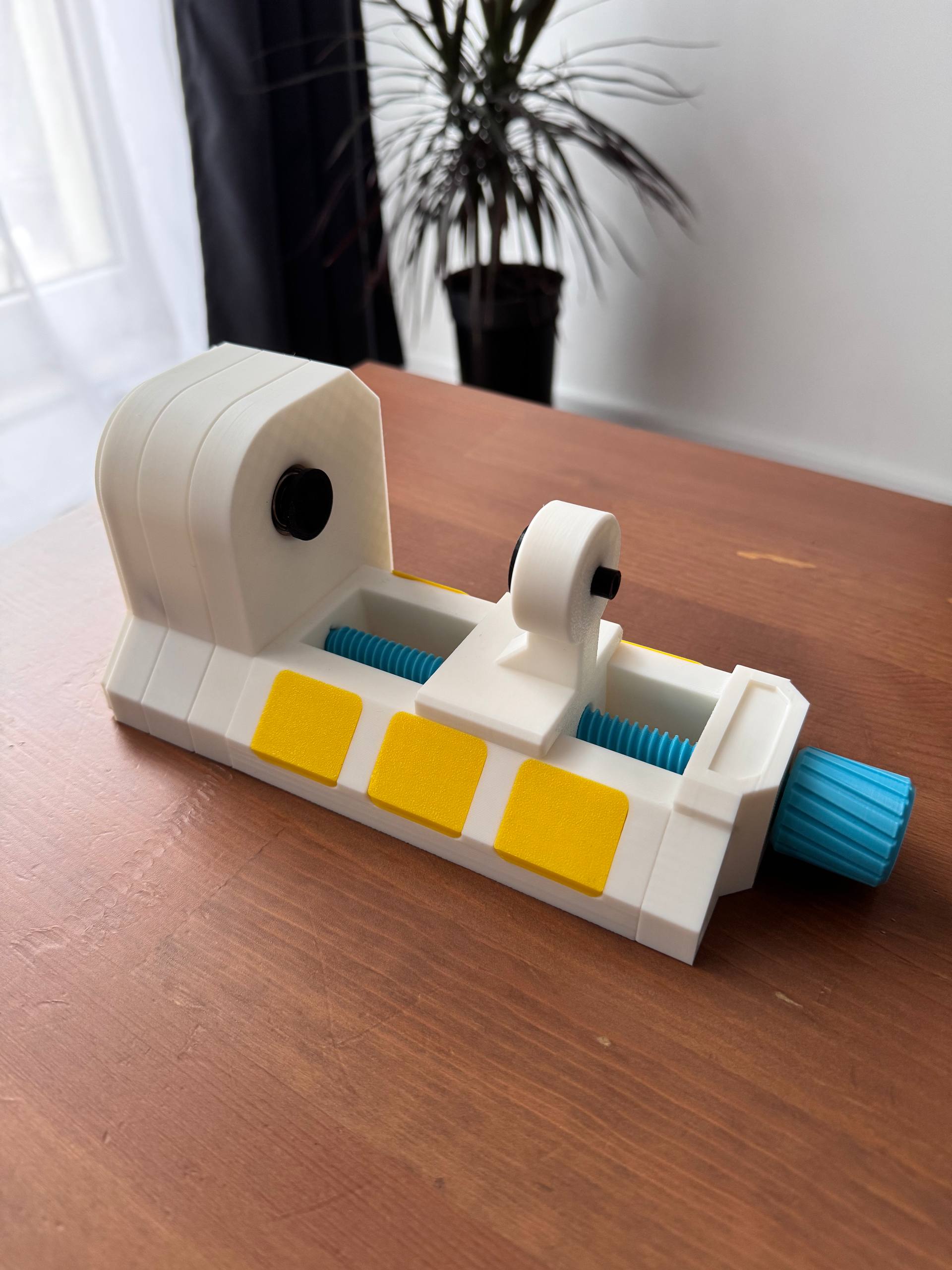

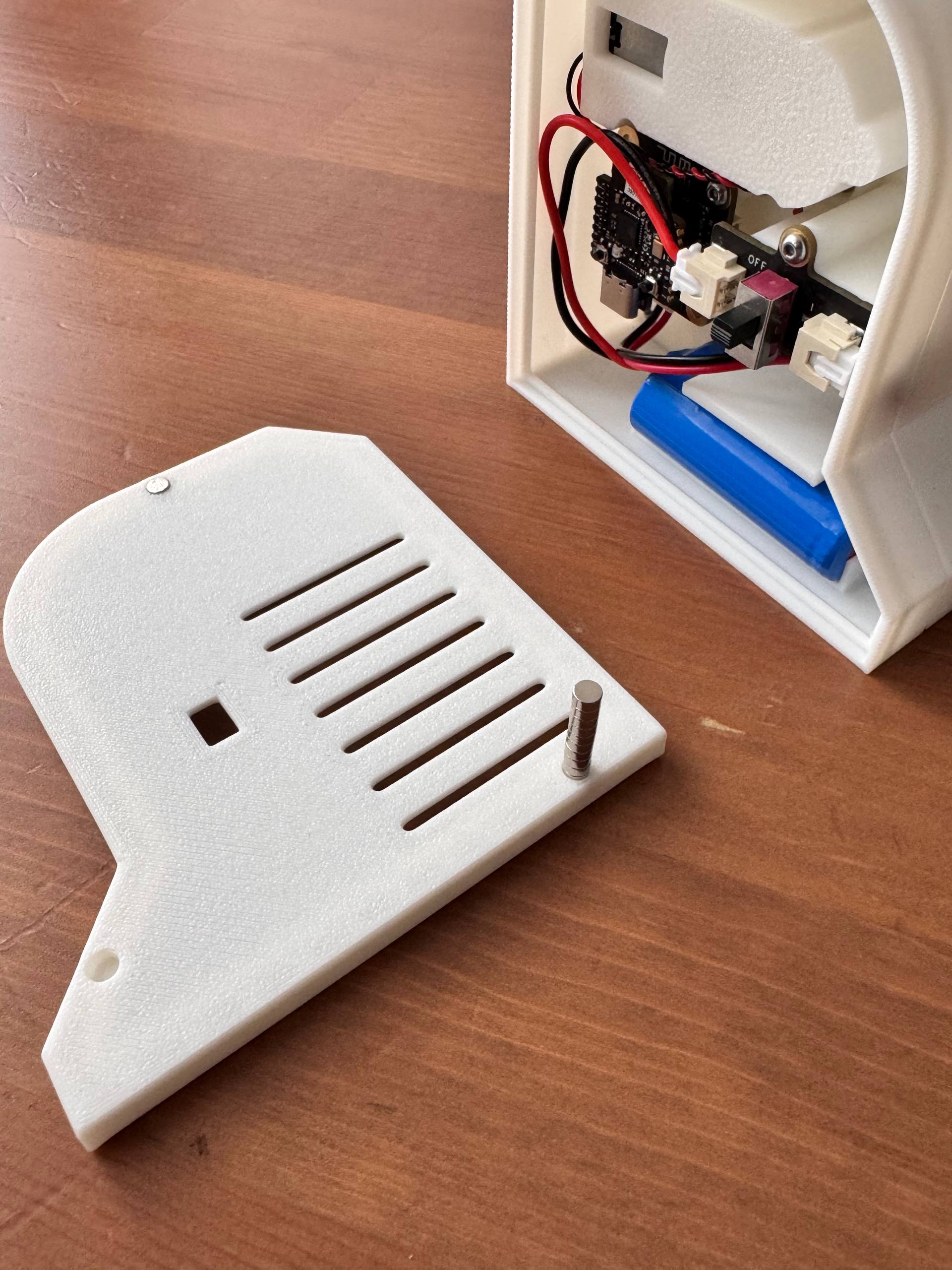

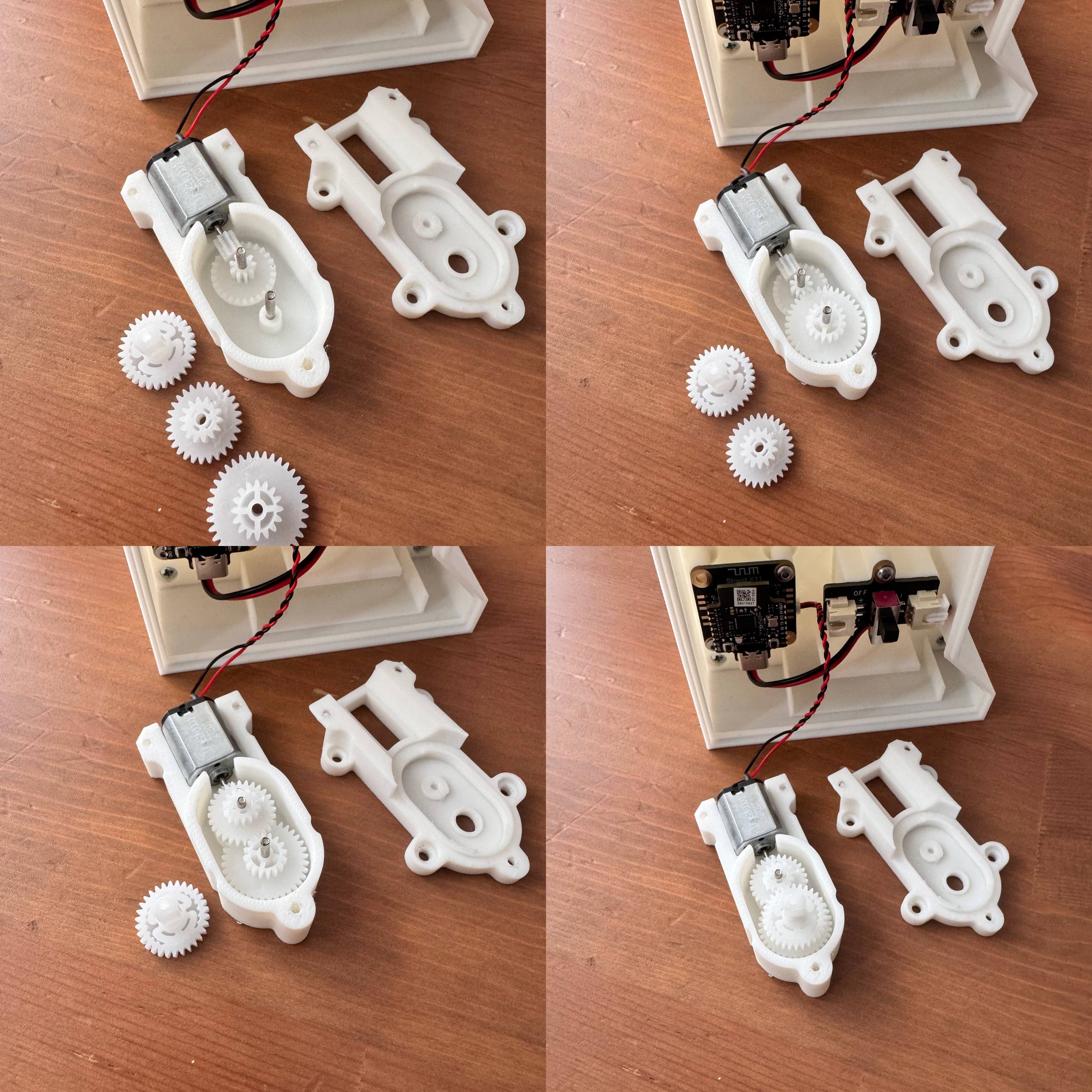

Coloring machine

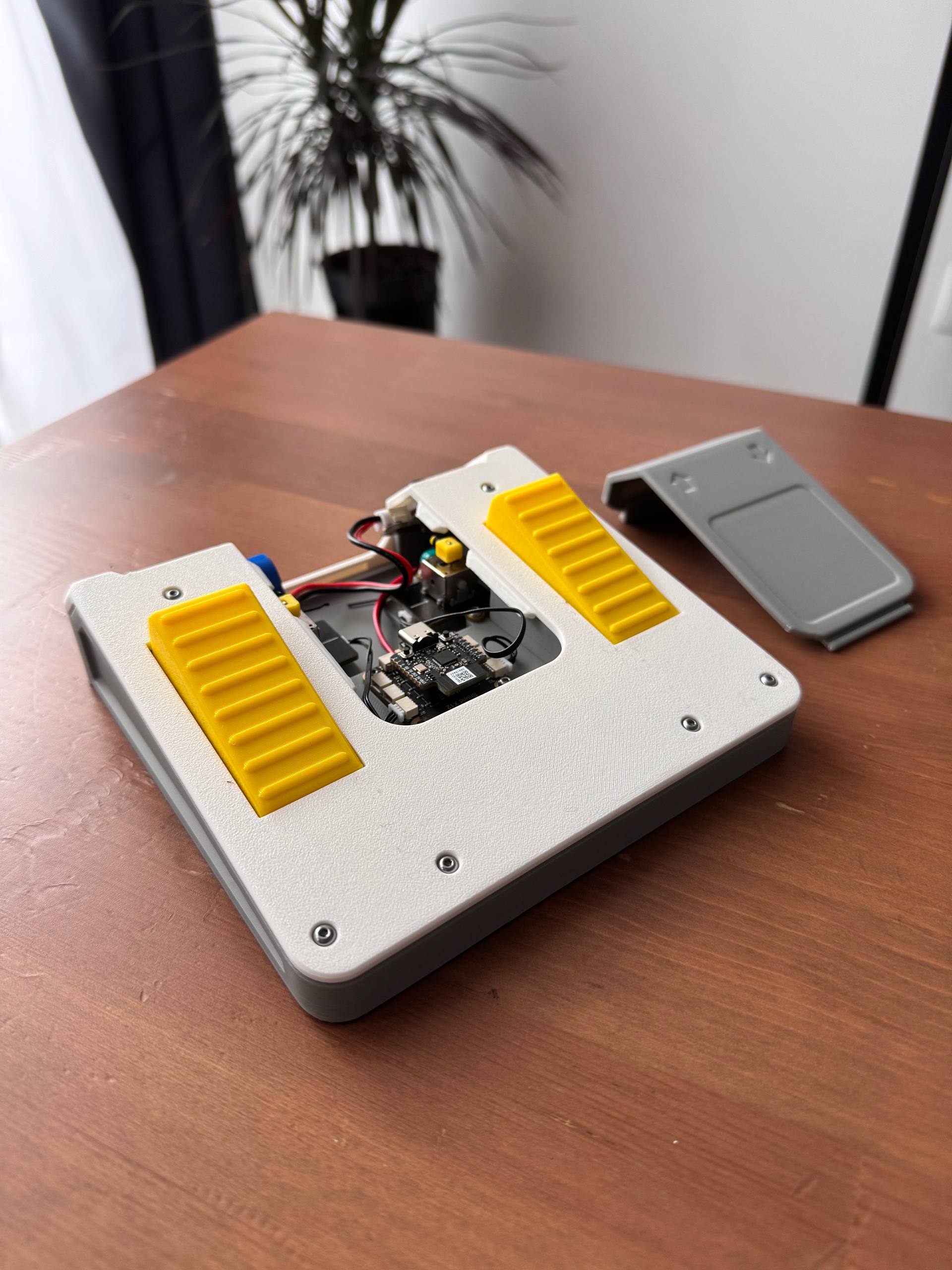

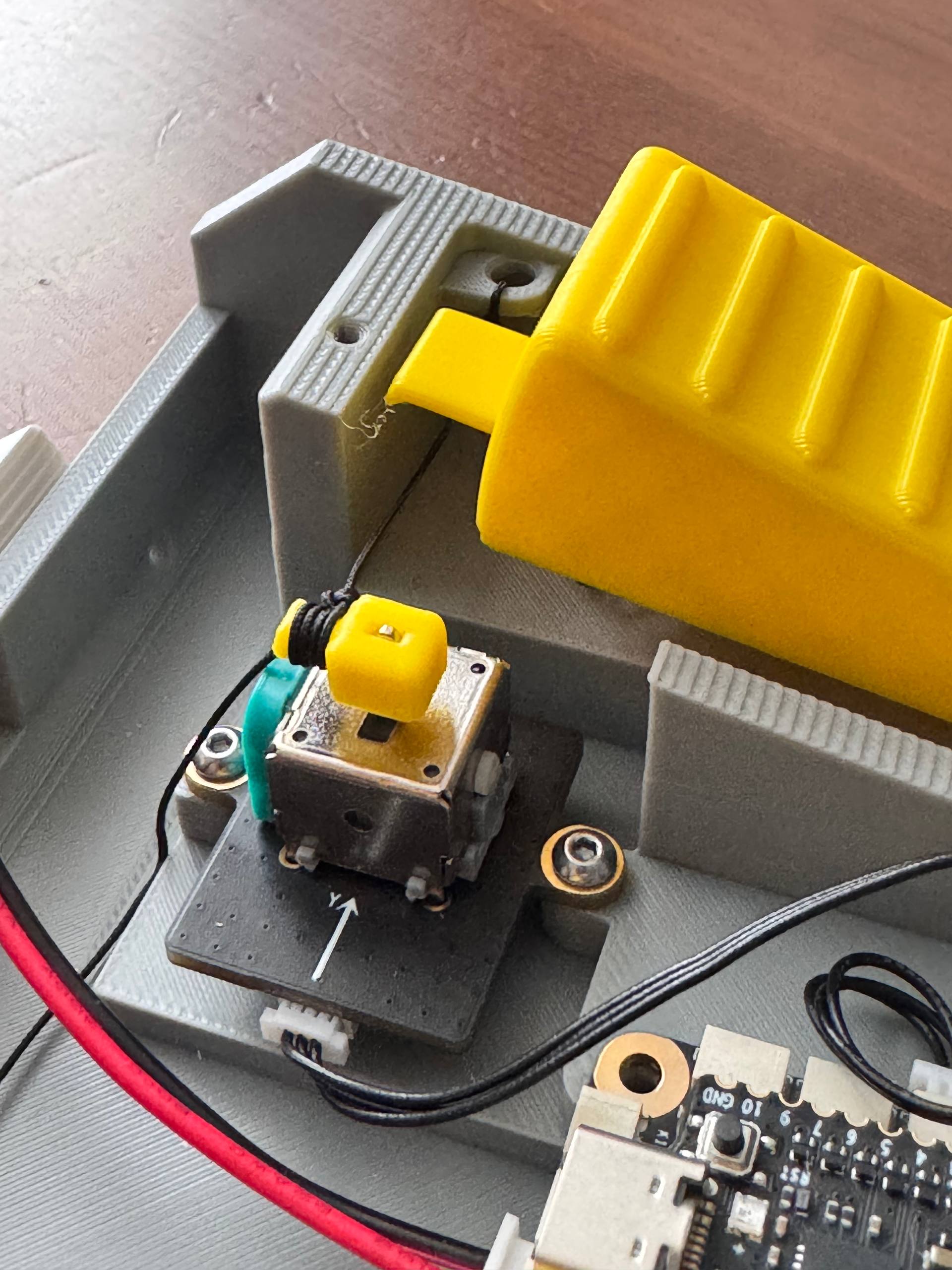

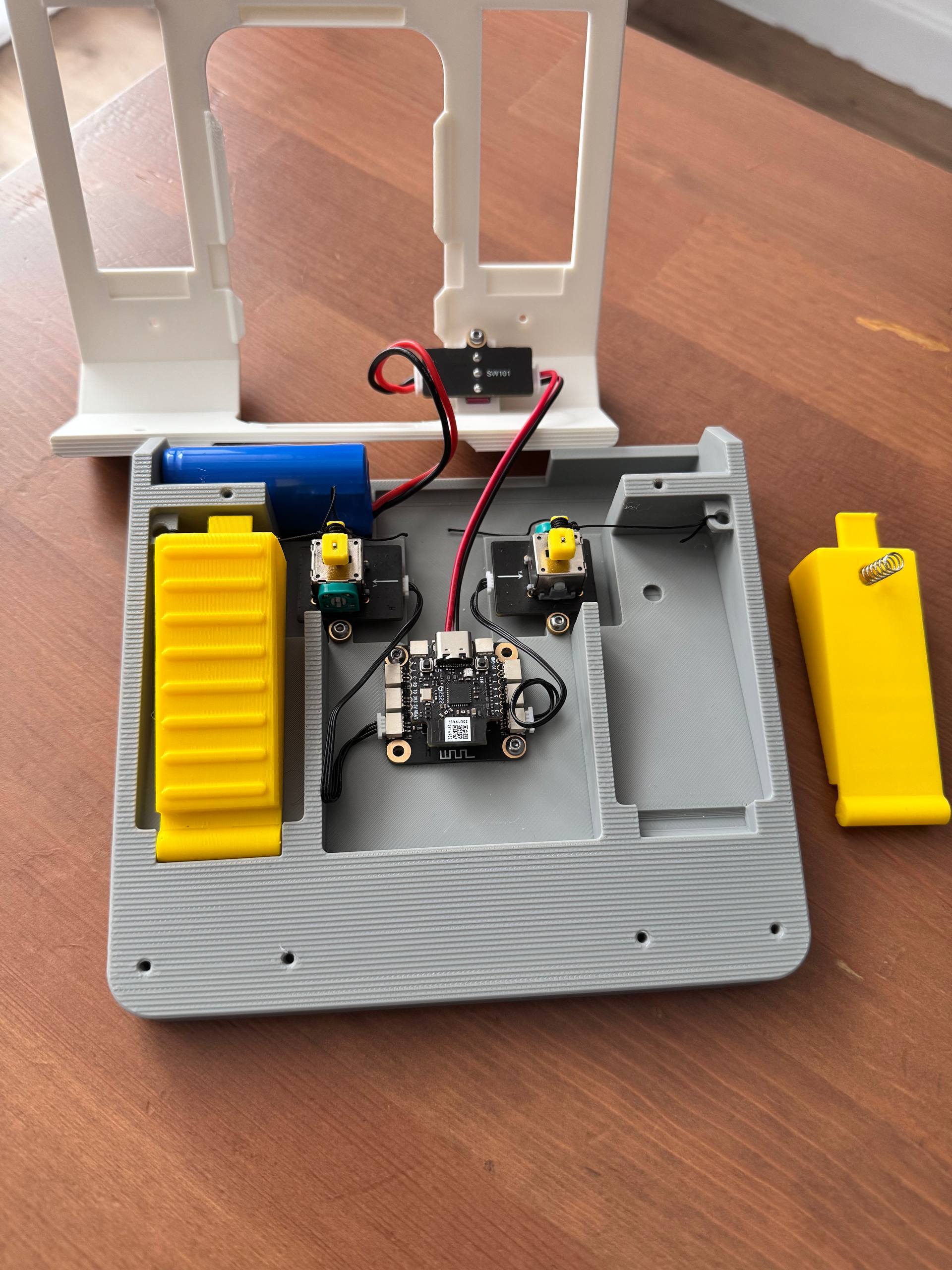

Pedal
