Parametric Hypocycloid Reducer Generator (OpenSCAD)

Description: This is a fully customizable parametric OpenSCAD generator for a hypocycloid reducer. It is designed specifically for 3D printing and mechanical integration, allowing you to easily create compact and high-torque gear reductions.

Gear Ratio Calculation: Use the following formulas based on your Customizer inputs: Ratio = pins - 1

Fully Parametric: Easily adjust the number of pins, eccentricity, wall thicknesses, and shaft diameters using the Customizer.

3D Printing Optimized: Fine-tune clearances (tolerance, rotor_cover_gap, assemble_gap) to perfectly match your printer's capabilities. Toggle the disassemble checkbox to lay out all parts flat on the build plate for easy slicing and exporting.

Animation Ready: Turn off disassemble to preview the mechanical movement and gear meshing in real-time.

A customizable rotating handle has been added to the design, making manual operation and testing much easier without the need for external tools.

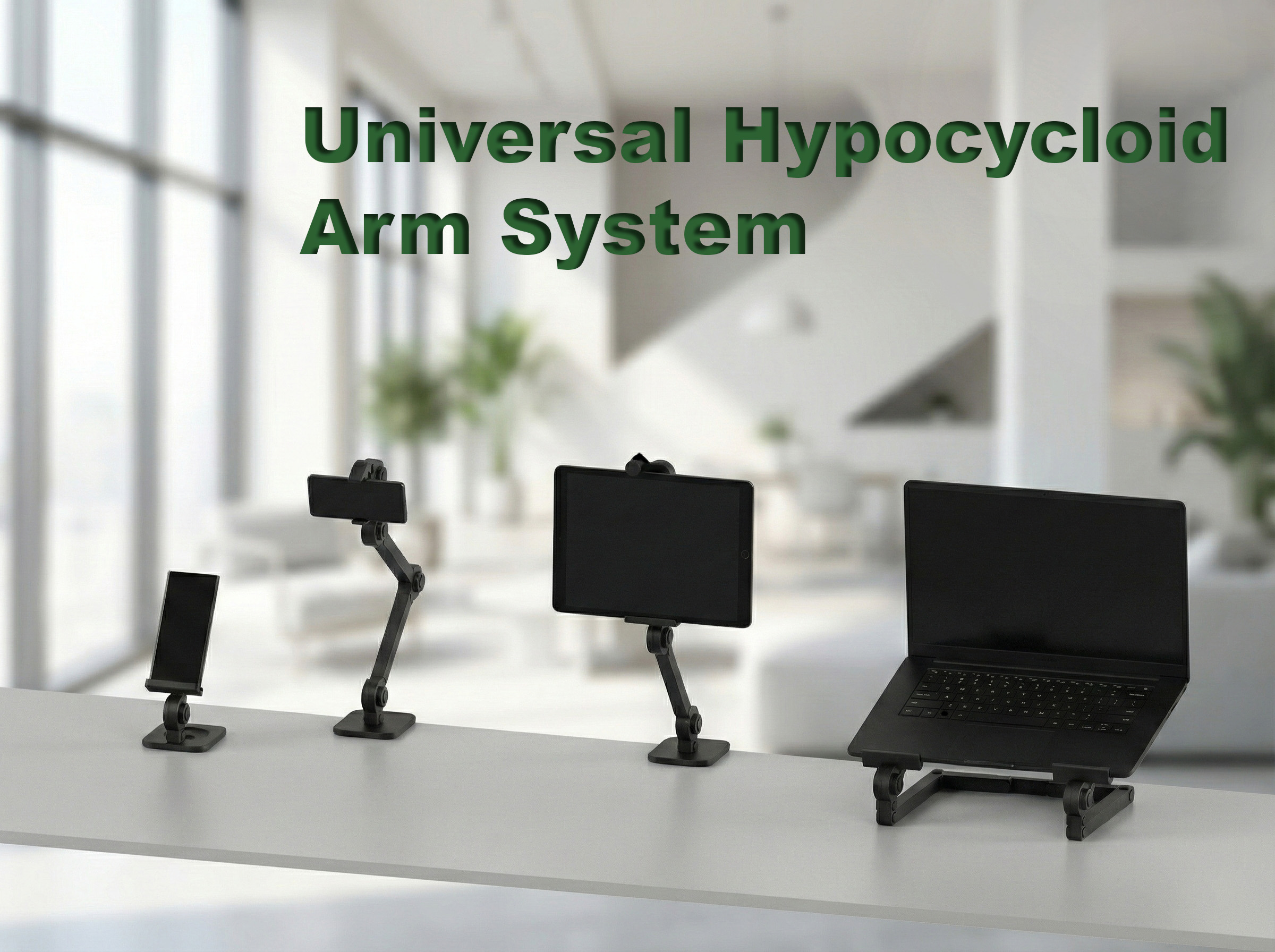

You can see this reducer in action in my Universal Arm System project:

[https://makerworld.com/en/models/2464719-universal-arm-system-phone-tablet-laptop-holder#profileId-2705946](https://makerworld.com/en/models/2464719-universal-arm-system-phone-tablet-laptop-holder#profileId-2705946)
