🐝 HoneyBee's Parametric Universal Display Stand

The HoneyBee's Parametric Universal Display Stand is a sleek, minimalist, and fully customizable holder designed to showcase almost anything. From thin photos to heavy stone plaques, this parametric model adjusts perfectly to the dimensions of your object.

🌟 One Stand, Endless Uses

Whether it’s for your desk, kitchen, or living room, this stand handles it all:

Stone & Slate: Heavy slate plaques or memorial stones.

Art & Photos: Decorative tiles, framed pictures, or loose photos.

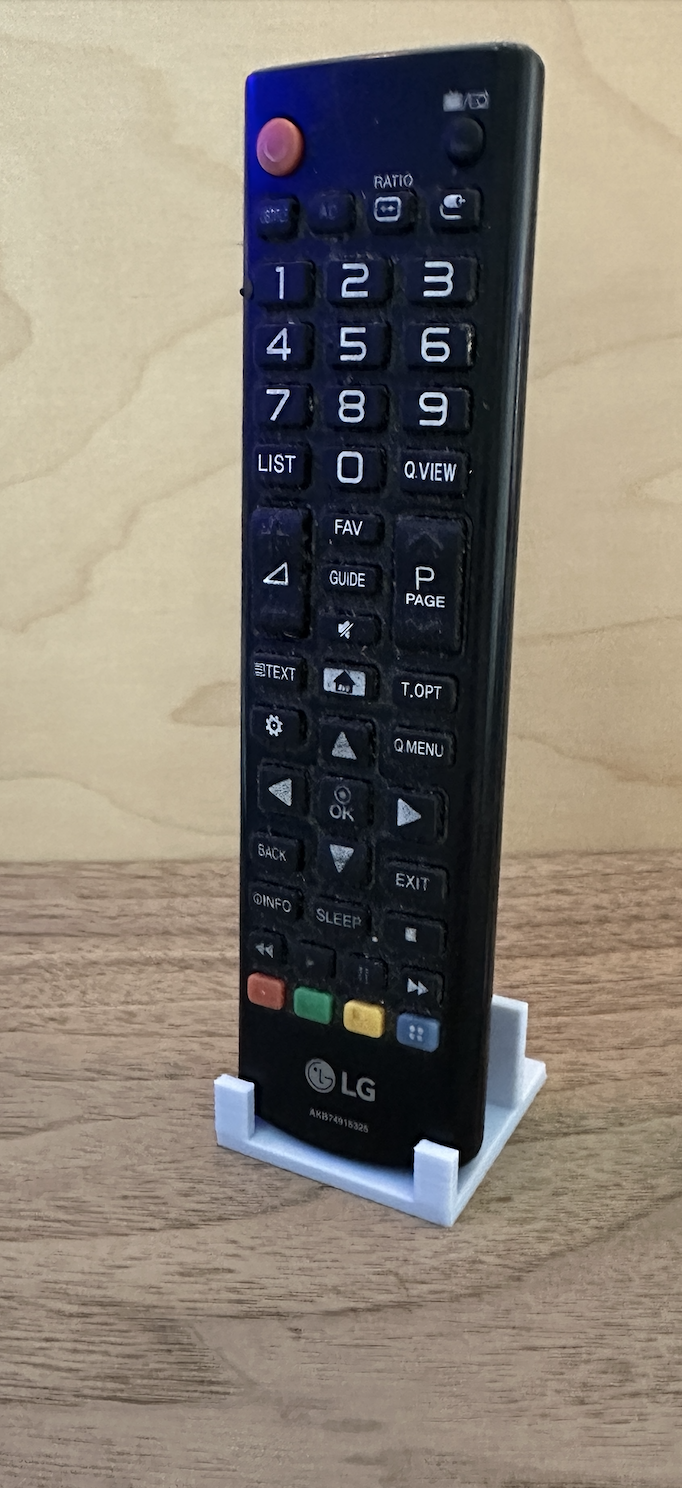

Electronics: Your smartphone, small tablets, or even remote controls.

Office: Business cards, envelopes, or desk organizers.

Home Decor: Small plates, coasters, and handmade ceramics.

🛠 How to Create Your Custom Version

1. Click the "Customize" button on the top right of this page.
2. Adjust the settings below to match your object.
3. Click "Generate" in the generator to create your unique 3D model.
4. Download your custom STL and start printing!

📖 Setting Guide

• Tile Thickness: Enter the EXACT thickness of your object. The model automatically adds 1mm clearance for a perfect fit.
• Width: The total horizontal span of the holder.
• Base Length: The depth of the footprint (increases stability for taller items).
• Height Front: How high the front hooks reach.
• Height Back: The height of the rear support wall.
• Leg Width: The width of the individual front supports.

💡 Pro Tip: Front Style Options

You can change the entire look of the holder by playing with the leg_width:

• Split Legs (Default): Use a small value (e.g., 7mm) for two elegant corner supports. Perfect for photos and tiles.
• Solid Front Wall: Set the leg_width to exactly HALF of the total width (e.g., if width is 100, set leg_width to 50). This creates a continuous wall, ideal for business cards or remotes.

🖨 Recommended Print Settings

• Orientation: Print flat on the base plate.
• Supports: None needed! The 10° tilt is designed for easy printing.
• Infill: 15-20% (Gyroid or Grid recommended).
• Wall Loops: 3 for extra durability.
