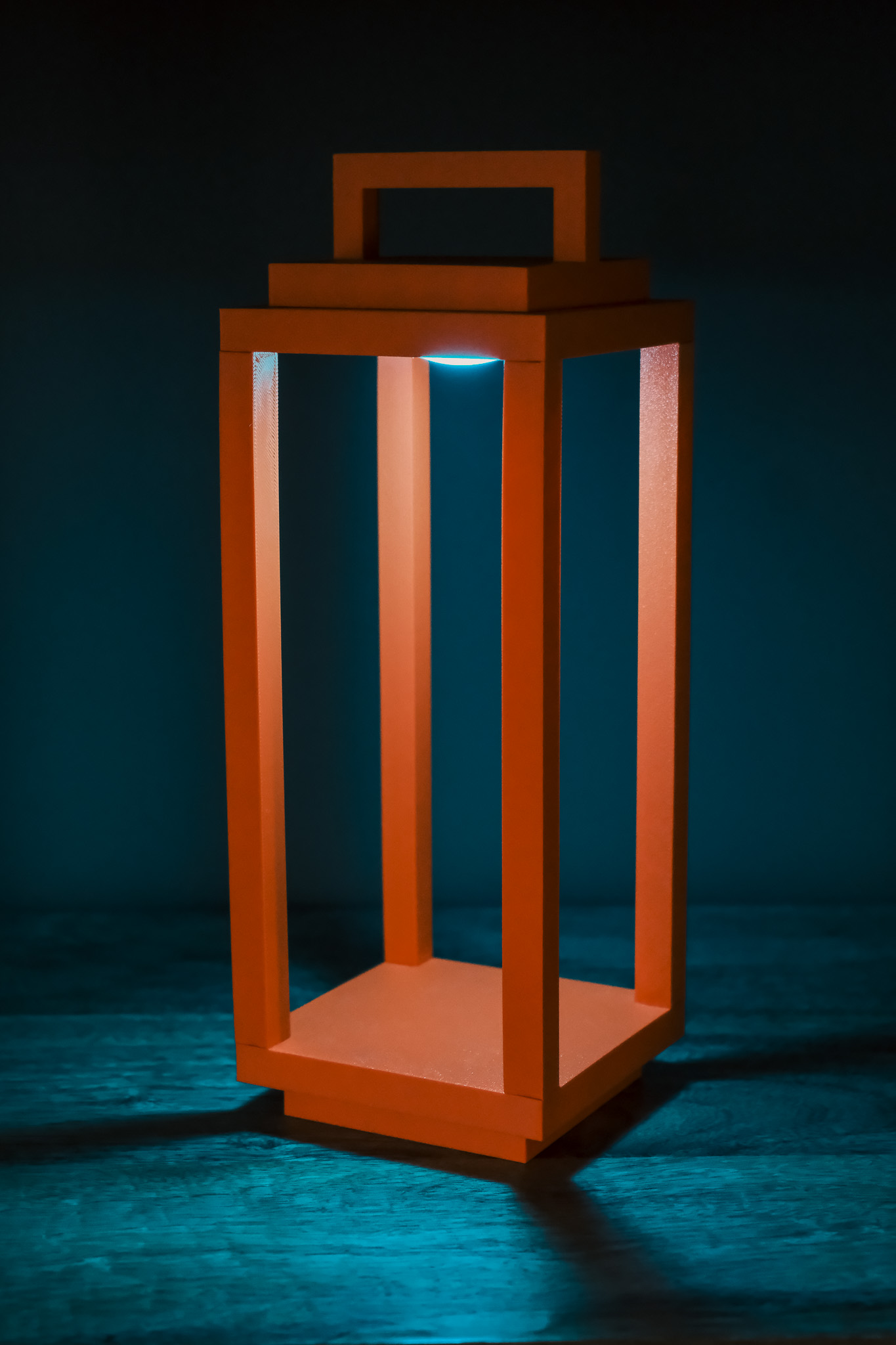

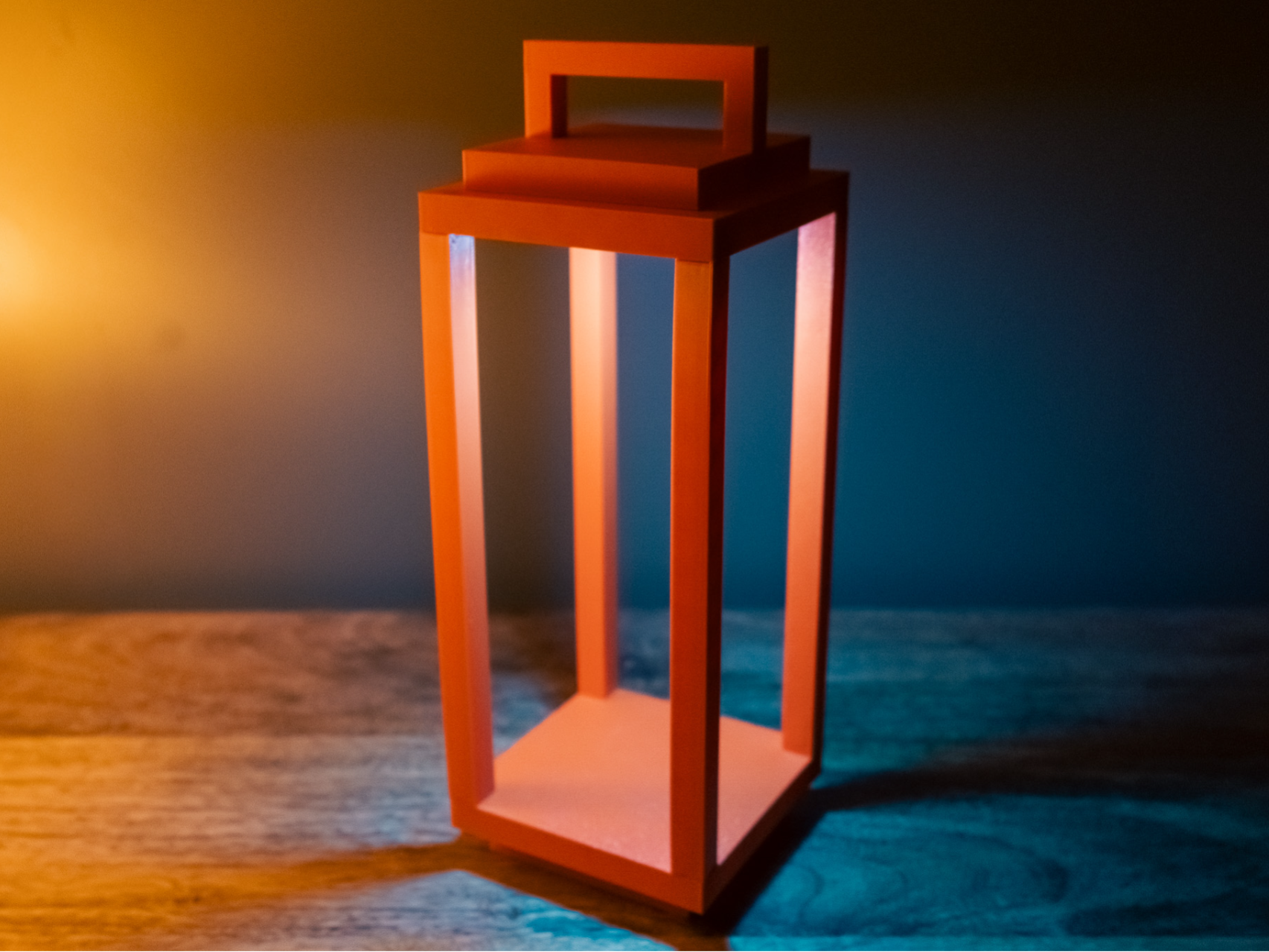

A modern lantern designed for ambient lighting in any room or outdoor patio. This model features a magnetic quick-release housing, allowing you to pop the light out instantly for battery swaps or color changes without touching a screwdriver.

The design also includes a hidden storage compartment at the base to keep your remote accessible but out of sight. Optimized for easy printing and a clean look once assembled.

Notes & Assembly Tips

• Magnetic Access: The top light housing is held in place by magnets (requires 8 4x2mm magnets). This allows for easy removal to change batteries in the puck light while keeping the frame securely together. Please mind the polarity of the magnets when installing them. The holes are designed for a press fit, but add a touch of glue if needed, depending on the material.
• Materials: Successfully tested in both PLA and PETG HF. Use PETG for better UV and heat resistance if using it outdoors.
• Hardware: * Designed for the KC007 RGB Light Puck.
  • Uses 4x M3x10 (AA159) screws.
  • Needs 8x 4x2mm magnets.
  • Optional: Sized for M3x5x4 (AB012) heated inserts, though screws can be threaded directly into the plastic.
• Screw Caps: Small caps are included to hide the top screws.
  • Tip: Do not push these in with your fingers. Place them gently, then press the top against a flat surface (like a table) to seat them perfectly flush.
• Remote Storage: The base includes a dedicated slot to hide the standard RGB puck remote.
