Overview

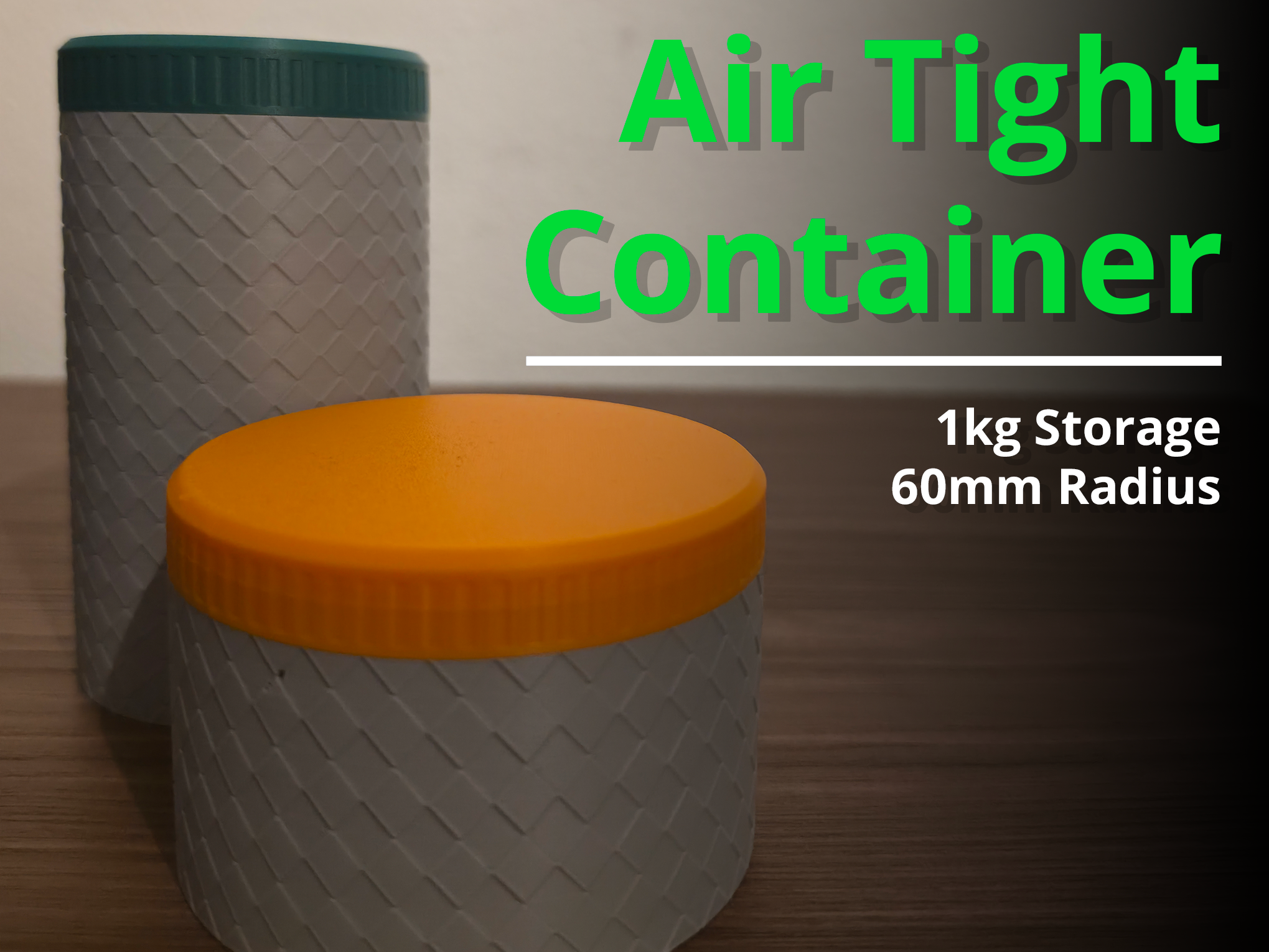

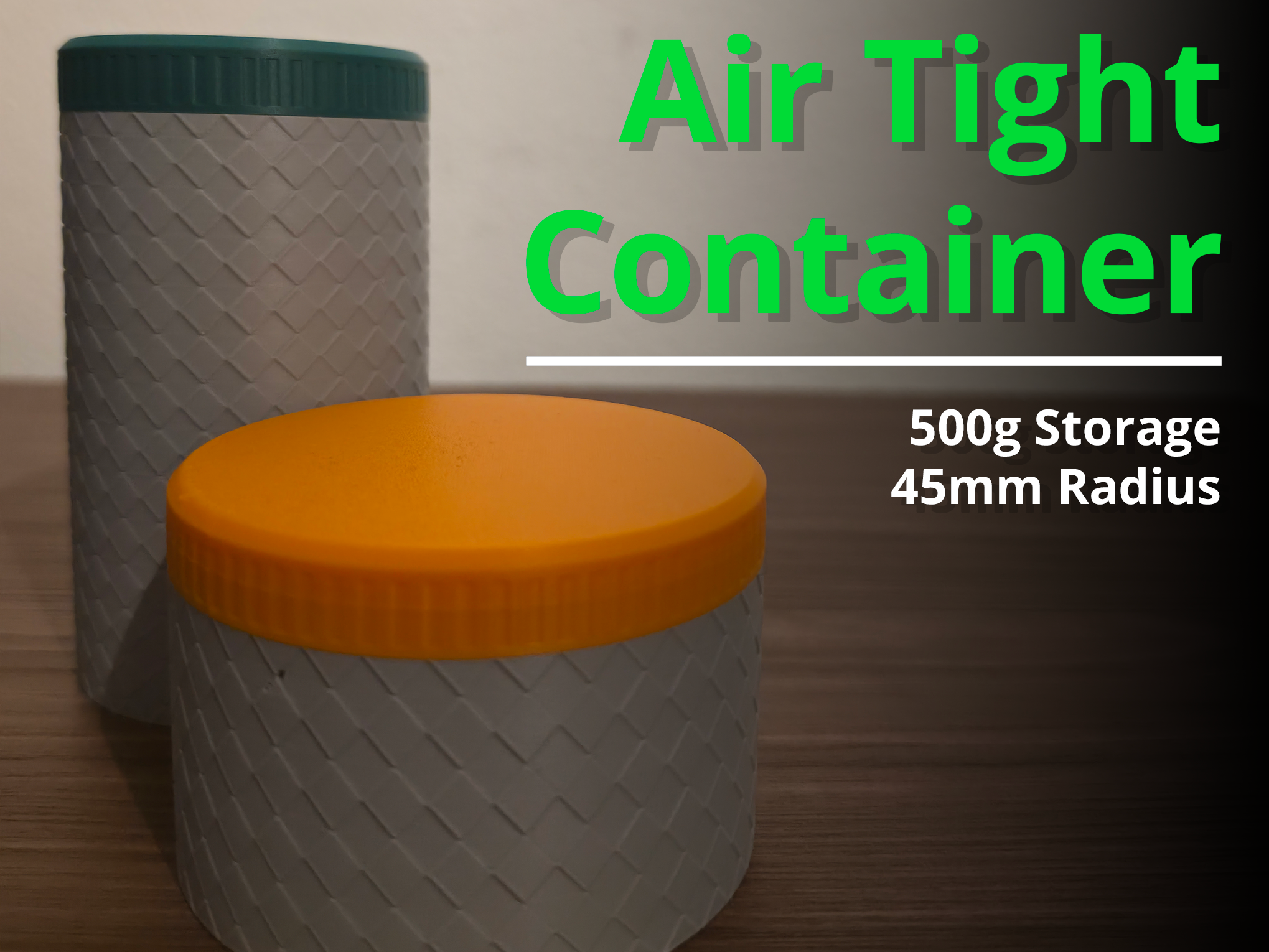

This model is an air tight container that allows for full customizability to your preference. The original use case I made this model for was to store silica beads but you can use it for anything you want.

Features

• Air tight, using a printed TPU ring it ensures full air tightness for anything you want to store.
• Fully customizable, anything you have in your mind that you want can be done with the customizer.
• Double snap, this model uses a double snap turn lock to make sure your lid won't open on accident.
• Custom Text, you are able to change the text on the lid to label your storage containers.
• Advanced Patterns, input a request pattern size and the backend will make sure it always connects perfectly around.

Parameters

In here I will explain what each parameter does and how to use them correctly.

Radius

This is very self exploratory. This is the radius of your container in millimeters.

Weight

This is the amount of weight you need to have the container store. It will use the density parameter for this (More about this is explained there). This parameter is in grams

Density

This is the density of the material you want to store. By default it is using the density of silica (1.22). To calculate this you will need to divide the weight (in grams) by the volume (in ml)

Height

The height of the container. By default this is at 0, when it is that this value it will use the previous two parameters to calculate the best height.

Pattern_Size_Width

The pattern is made out of small diamonds. With this parameter you can change the width of these diamonds in millimeters.

Pattern_Size_Height

The pattern is made out of small diamonds. With this parameter you can change the height of these diamonds in millimeters.

Lid_Pattern_Size

On the side of the container there is a pattern for grip. With this parameter you can modify the width of these grooves in millimeters.

Enable_Pattern

With this one you are able to toggle the pattern on the side of the container. 1 is on while 0 is off

Enable_TPU_ring

When this one is toggled off it will remove the TPU ring. Doing this will make the container not air tight anymore. 1 is on while 0 is off.

Text

This is the text that will be display on top of the lid.

Text_Size

This is the size of the text on top of the lid in millimeters.

BambuLab_Logo

This is another toggle. When toggled on it will have the bambu lab logo on the center of the lid of the container. 1 is on while 0 is off

Hope you all like this design and if you have any ideas please let me know and I would love to add them ❤️
