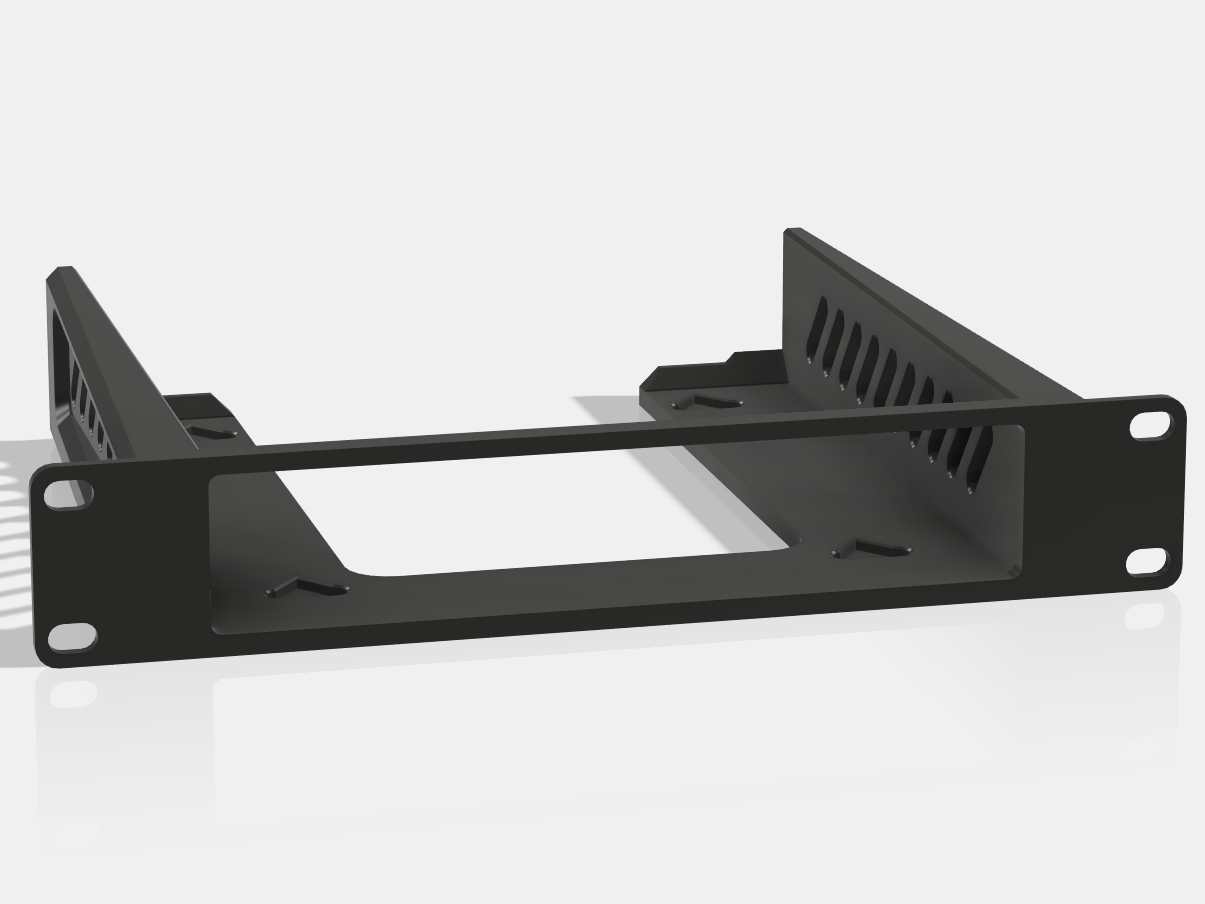

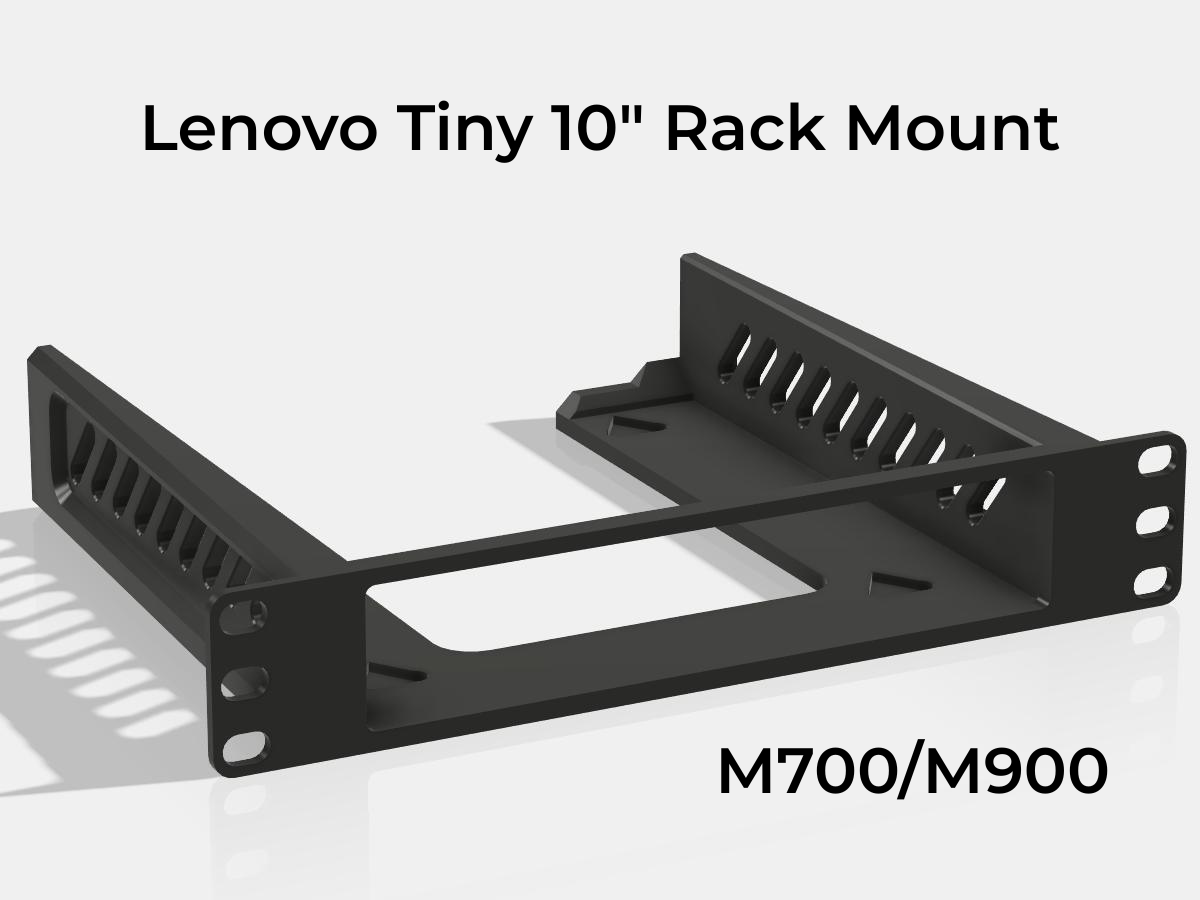

Building out my homelab on a 10" rack — wanted a consistent, clean aesthetic across all my mounts so I designed my own. This one's for the ThinkCentre M700 Tiny.

Compatibility

 Personally tested with M700 Tiny. The M900 and M900x share the same chassis dimensions and rubber feet positions, so they should fit too — but I haven't verified those personally. If you print one, let me know in the comments whether it fits your model!

Note: although many ThinkCentre Tiny models share the same outer dimensions, the rubber feet positions vary between generations. This bracket is designed around the M700/M900/M900x foot layout and will likely not fit other Tiny models such as the M93/M93p, M710, M910q or M720.

• ThinkCentre M700 Tiny ✓ tested
• ThinkCentre M900 Tiny — should fit

• ThinkCentre M900x Tiny — should fit



Print settings

• Material: PETG recommended (or higher) to avoid heat deformation
• Layer height: 0.2mm
• Infill: 10% gyroid or higher for sides
• Front panel: 25% gyroid infill, 4 walls, 4/6 bottom/top layers (modifier included in 3MF)
• Print in any color of your choice

• PETG on smooth PEI: Use a release agent like hairspray/glue to protect your plate and make sure it comes off nicely!



Variants

 3mm and 4mm front panel thickness available as separate plates in the print profile.

Installation

 Slide the ThinkCentre into the bracket and mount to your 10" rack using standard rack screws.

Changelog

5/3/2026

• Reduced amount of mounting holes 6→4
• Made holes smaller 7.5mm→6.5mm since 7.5mm is quite big for M5 screws, so 6.5mm suits well for both. (Tested with KWS and LabRax)
• Added “Updated” profile and renamed old→"Original"
