MODRA Modular System Starter Kit

What is MODRA
MODRA is a snap-lock modular storage system built around a base panel architecture that allows accessories to be mounted, repositioned, and expanded without tools or permanent fixtures.

Build Your Own Modular Wall System
The MODRA Starter Pack is the entry point to the MODRA Modular System — a compact, snap-lock wall organization platform designed for flexible storage and scalable expansion.

This starter configuration provides the essential components required to build a functional organization setup immediately while maintaining full compatibility with all future MODRA accessories.

Starter Pack Includes
The starter pack combines core functional accessories covering the most common storage needs.

1. Base Components

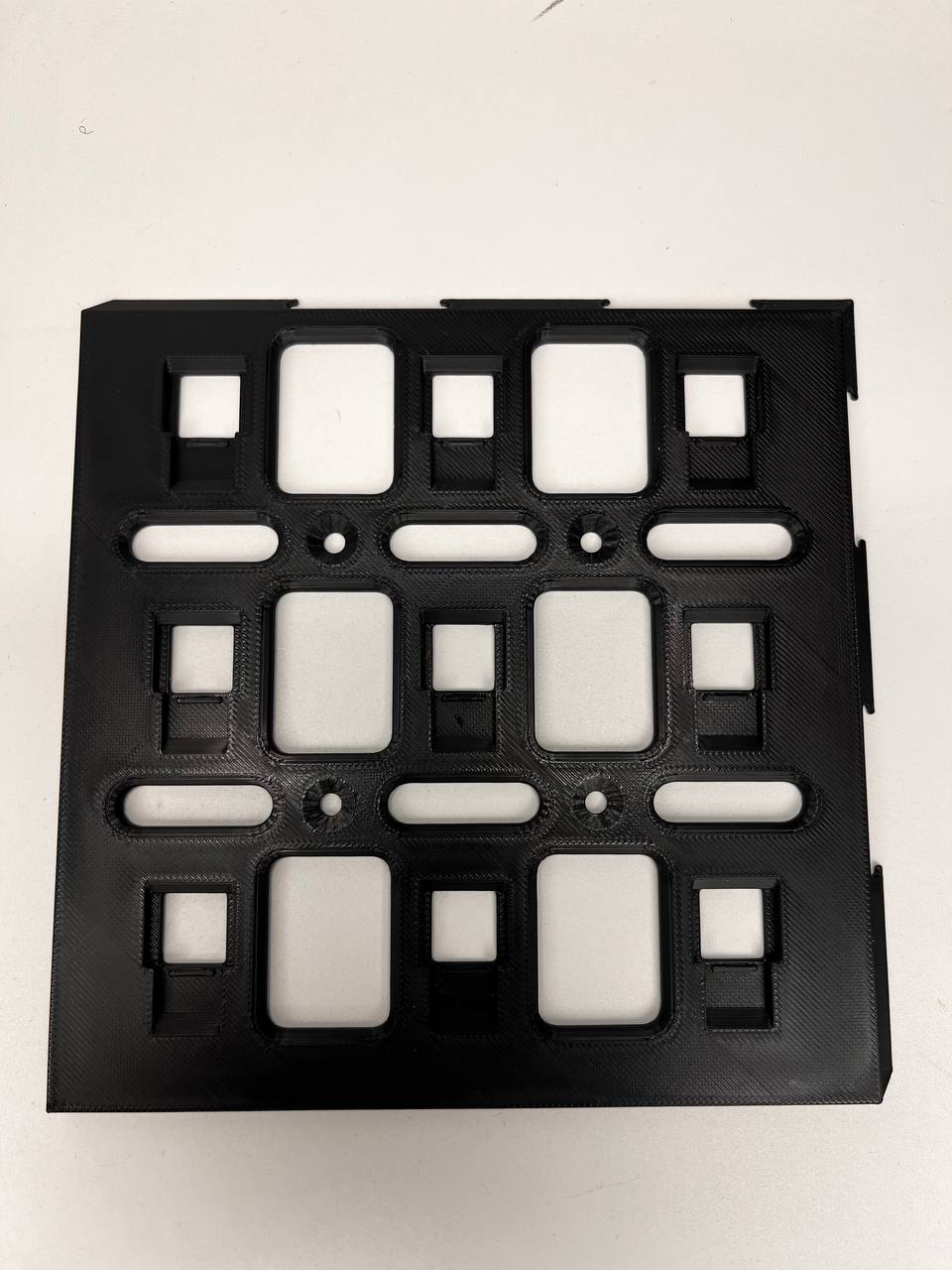

   - MODRA Panel S — 143×143 mm (3×3 locks)
2. Accessories
   - Multi Hook Rail

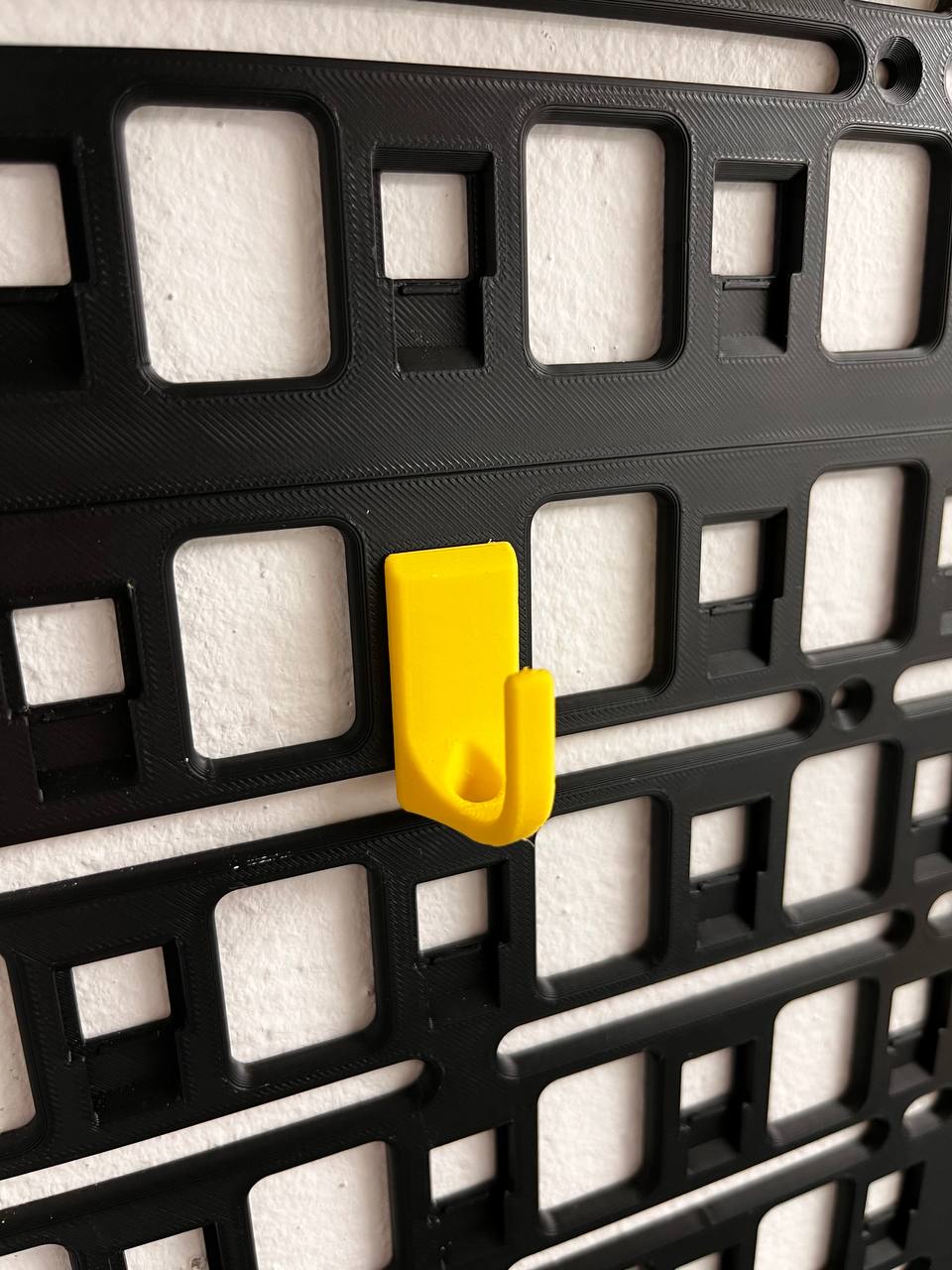

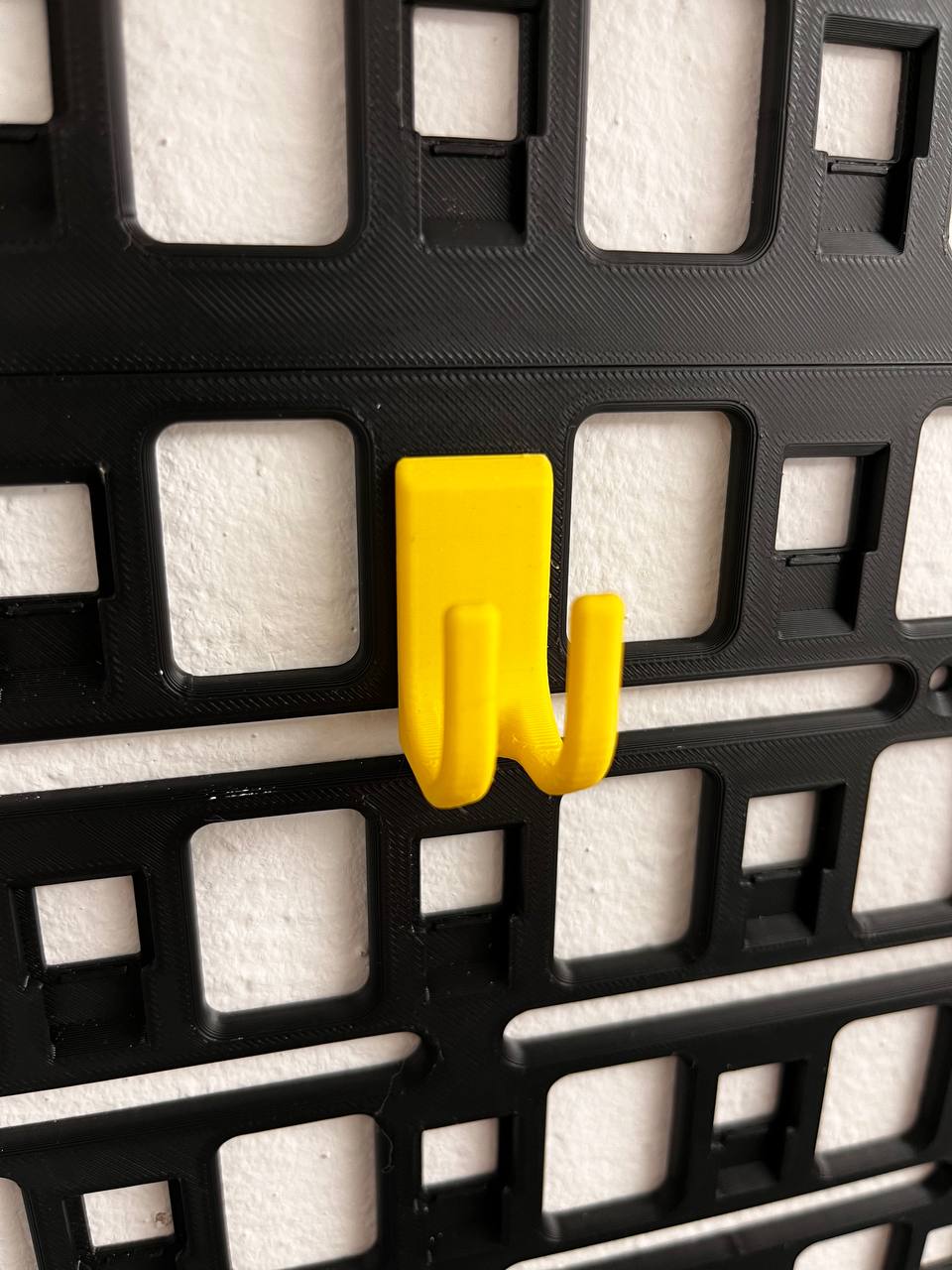

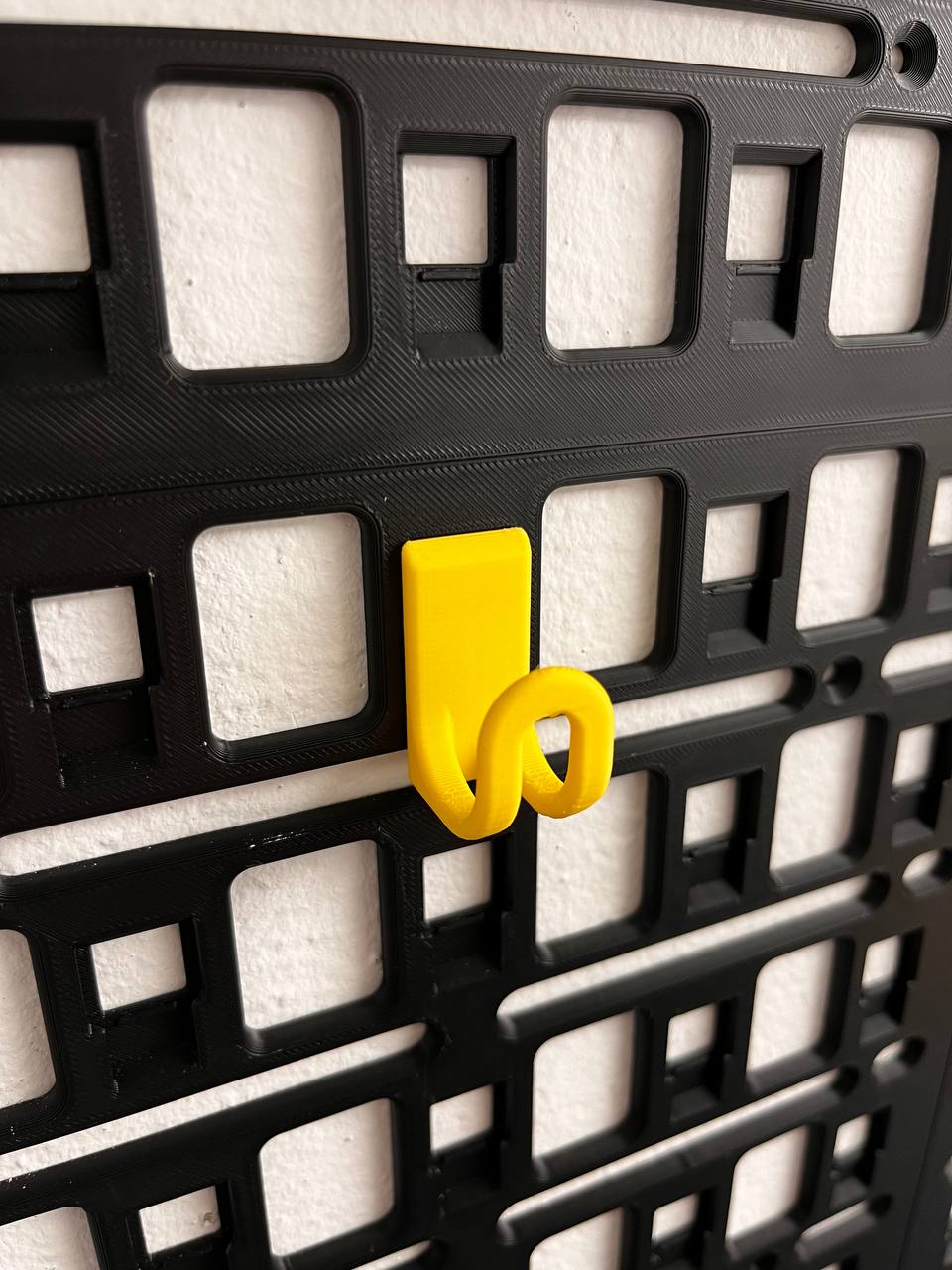

   - Hook Series (3 x assorted sizes)

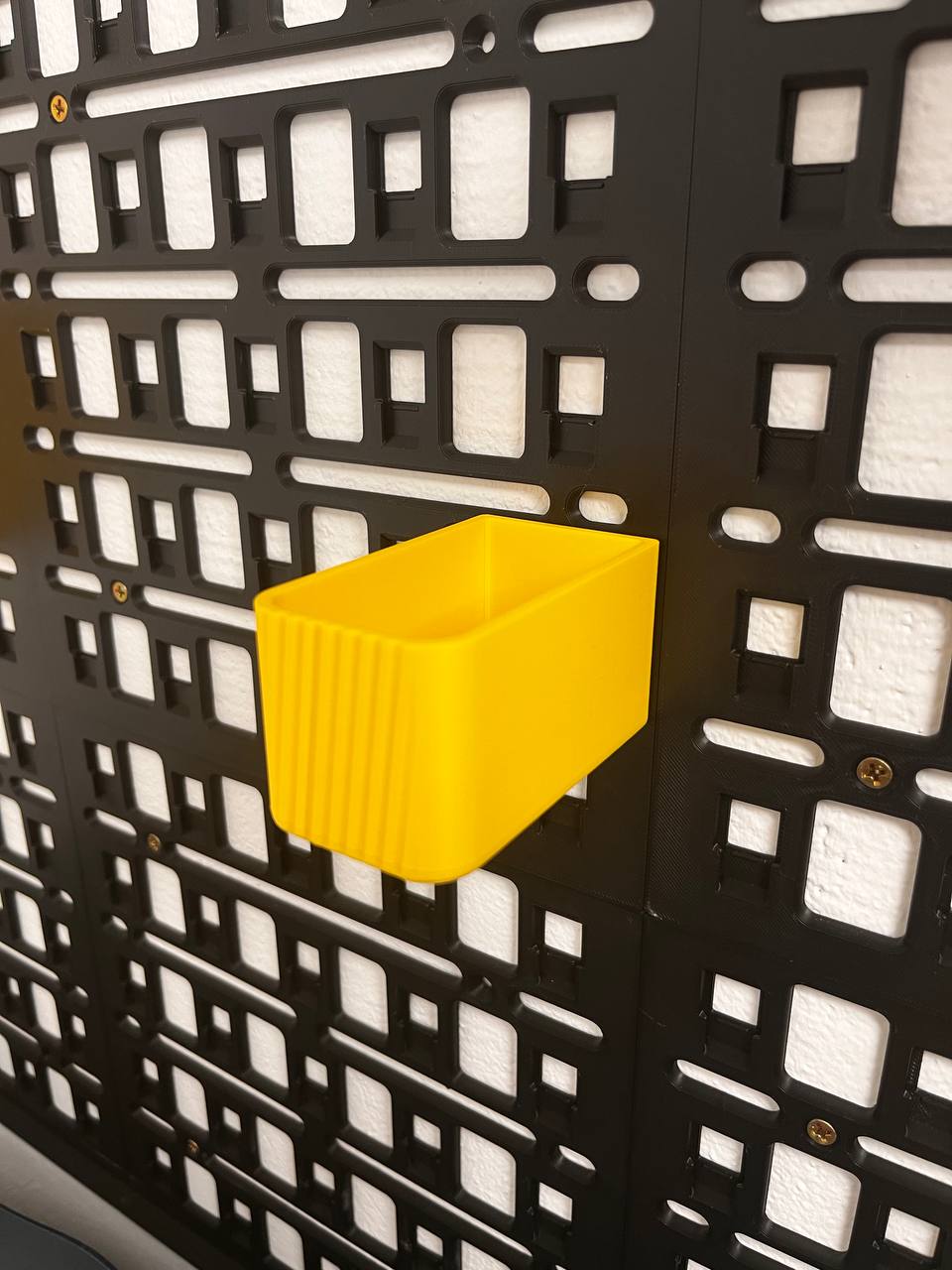

   - 2 x Tray / Storage Box

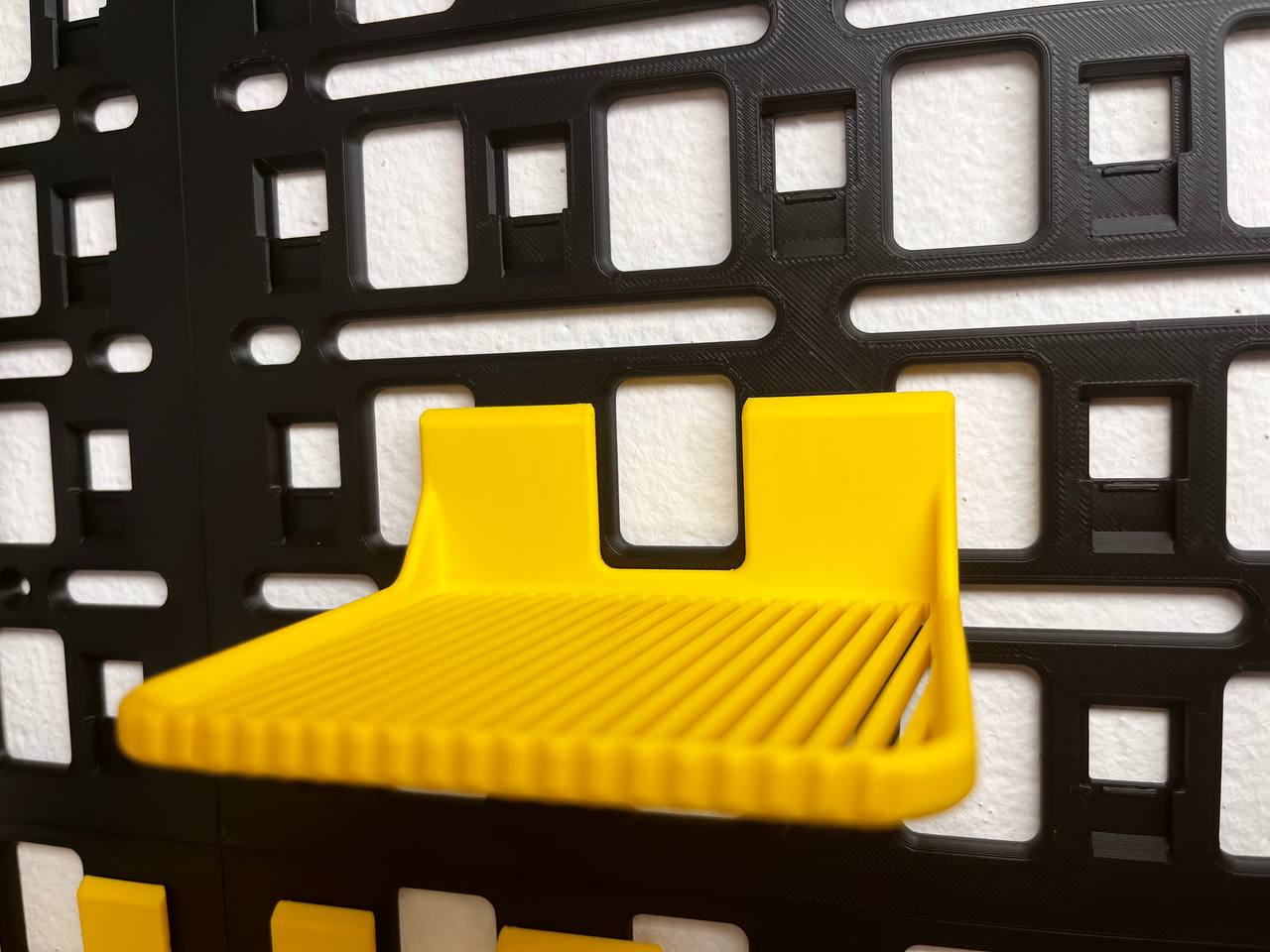

   - Ventilated Shelf

Key Benefits
- Immediate functional setup
- Demonstrates full MODRA ecosystem compatibility
- Covers hanging, storing, and shelf-type use cases
- Modular expansion ready
- Fast snap-lock mounting
- Clean aesthetic layout

 Use Cases
The starter pack is suitable for:
- workshop organization
- desk setups
- kitchen storage
- garage tools
- cable management
- hobby storage
- small parts organization

Design Features
- strong snap-lock interface
- tool-free repositioning
- lightweight but rigid structure
- optimized print orientation
- minimal support requirements
- scalable grid architecture

Mounting guide

1. Start position
The first panel must always be installed in the bottom-left corner.
This panel becomes the reference for the entire layout.

2. Expansion direction
Build the system to the right and upward from the first panel.

3. Panel connection principle
Each new panel mechanically locks into the previous one, which additionally presses the installed panel against the wall.

4. Screws requirement
Because of this interlocking design, installation is typically possible with two screws per panel.

5. Fasteners selection
The exact fastener type and quantity depends on:
• wall material
• accessory weight
• overall system load

6. Recommendation
Use appropriate wall anchors when mounting on drywall, brick, or concrete to ensure safe load capacity.

Print settings(tested):

• Plate infill: Rectilinear!

• PLA/PETG
• Infill:PLA 19% / PETG 15%
• Flow ratio: 0,98
