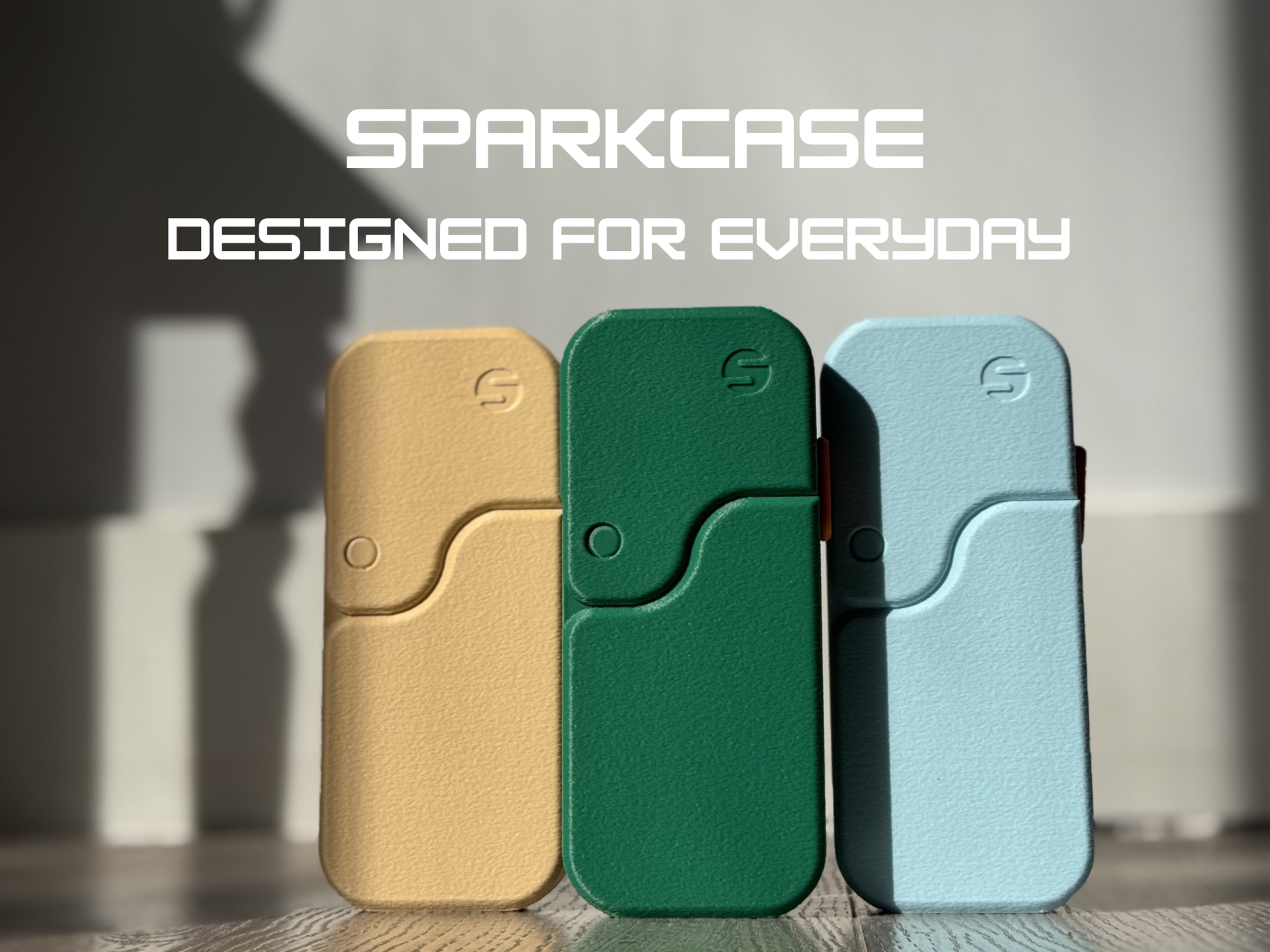

Sparkcase

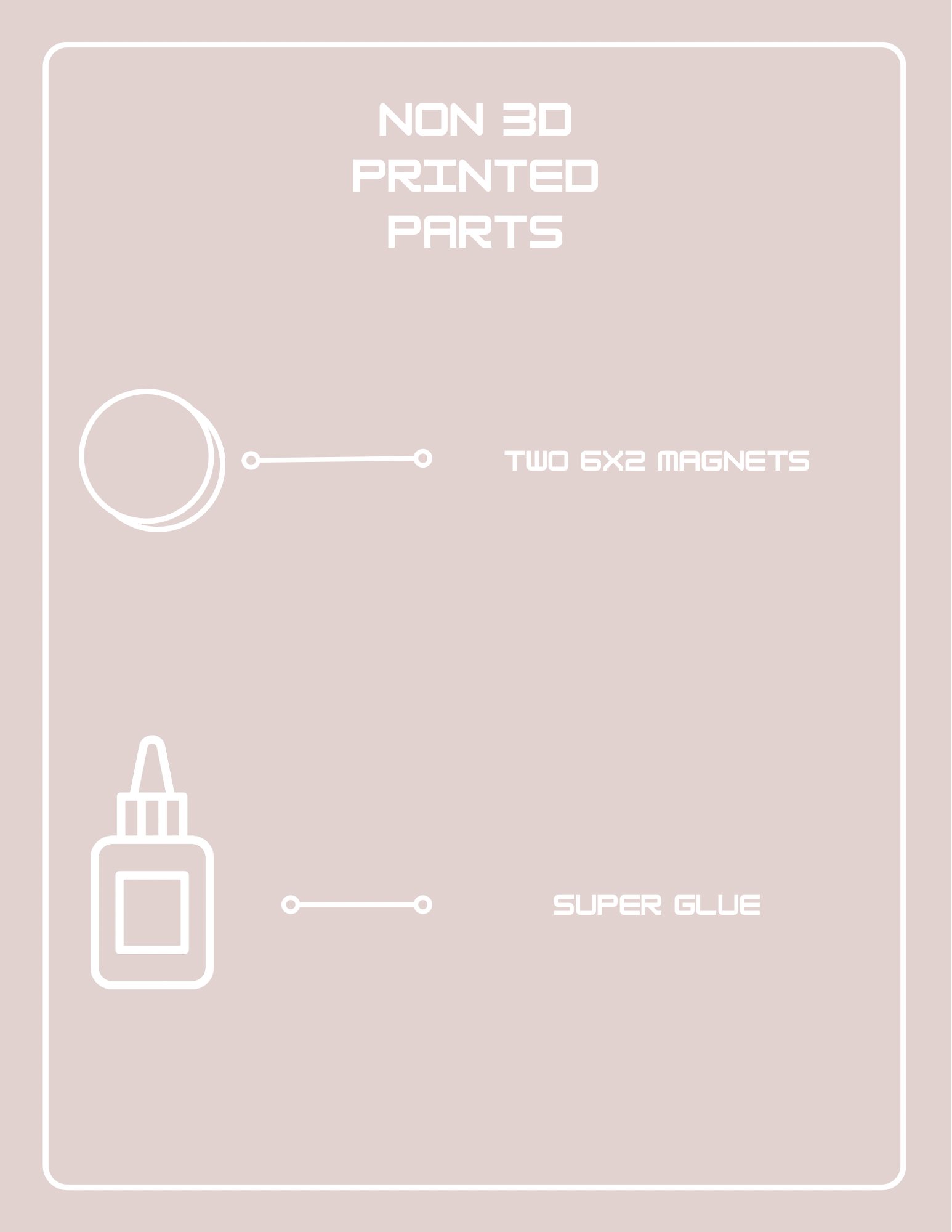

Is a compact and elegant everyday case. You can pack anything from cigarettes to fire tinder, the snap on design with the built-in hinge makes it ideal for those that appreciate simple and clean designs. the only assembly you will need to do is gluing in some magnets and pressing a tab into the switch.

update 5-18-26

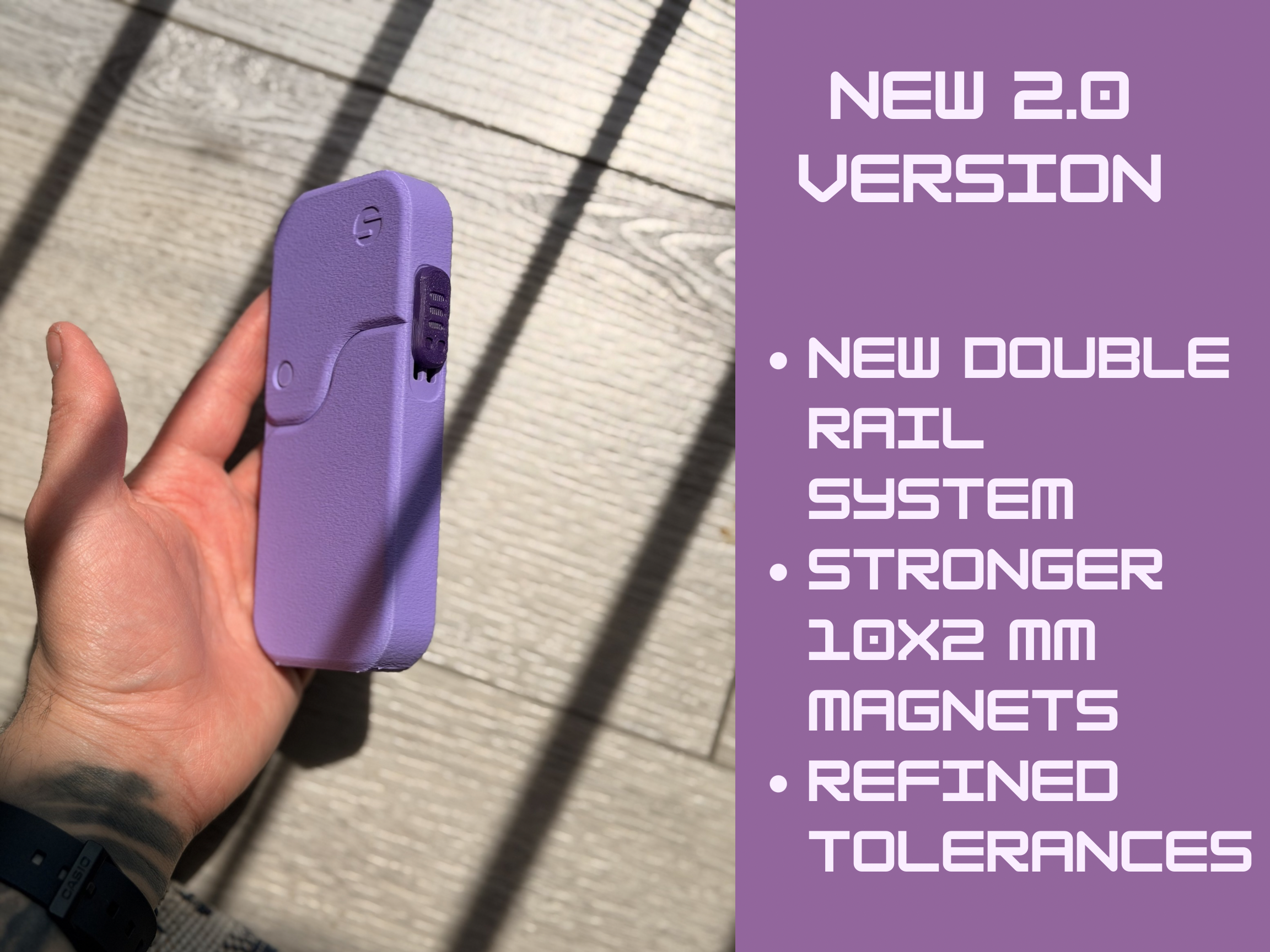

I have added the new 2.0 version to the print profiles.

the new model takes 10X2 mm magnets that are much stronger than the original 6X2 mm ones. The switch system has also changed now with two rods to keep everything more stable. I have also adjusted the tolerances. the assembly remains the same just now the tab you push into the switch has two rods and the larger magnets as well.

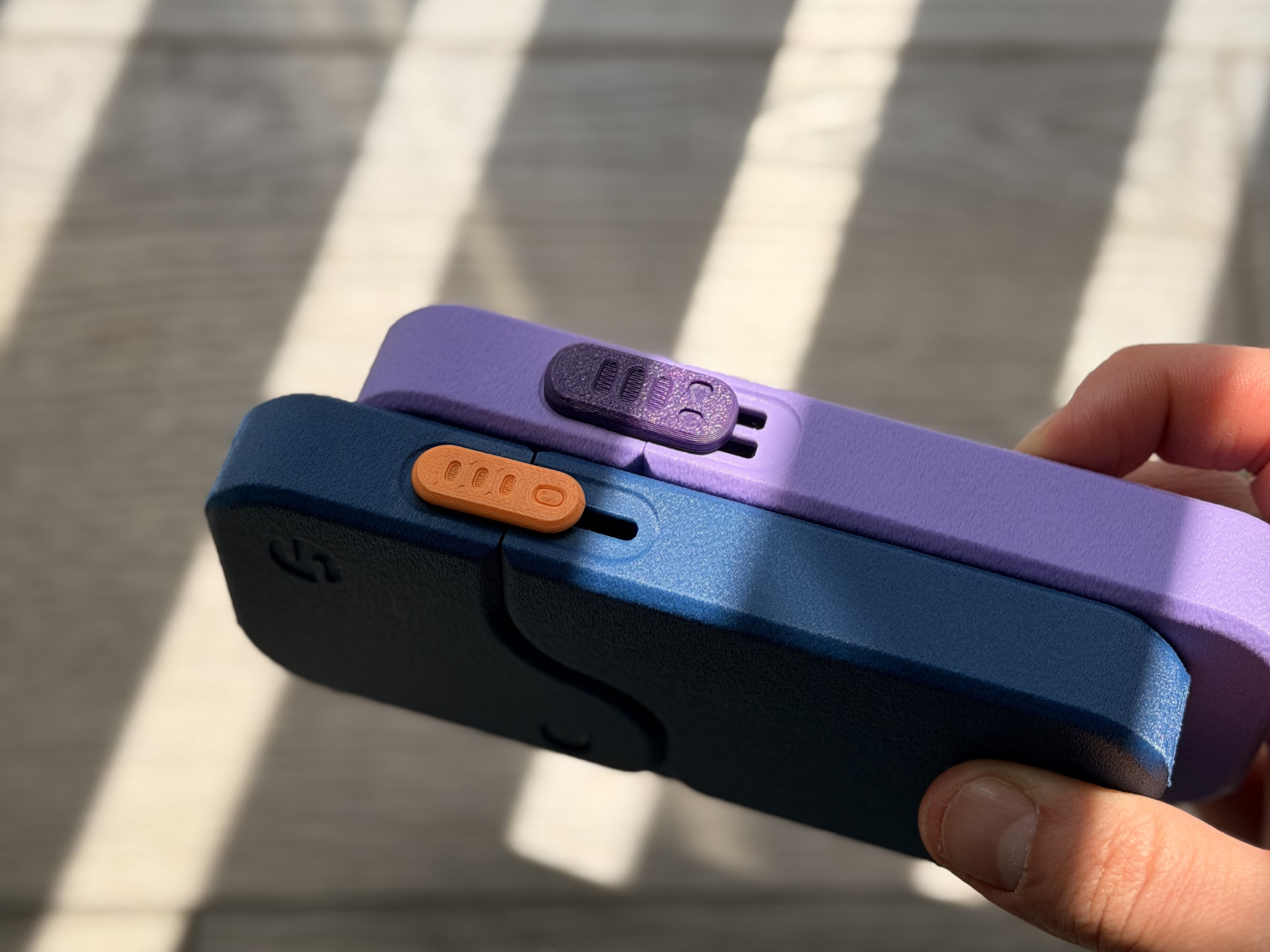

the switch on the new version as you can see is larger and should be more robust

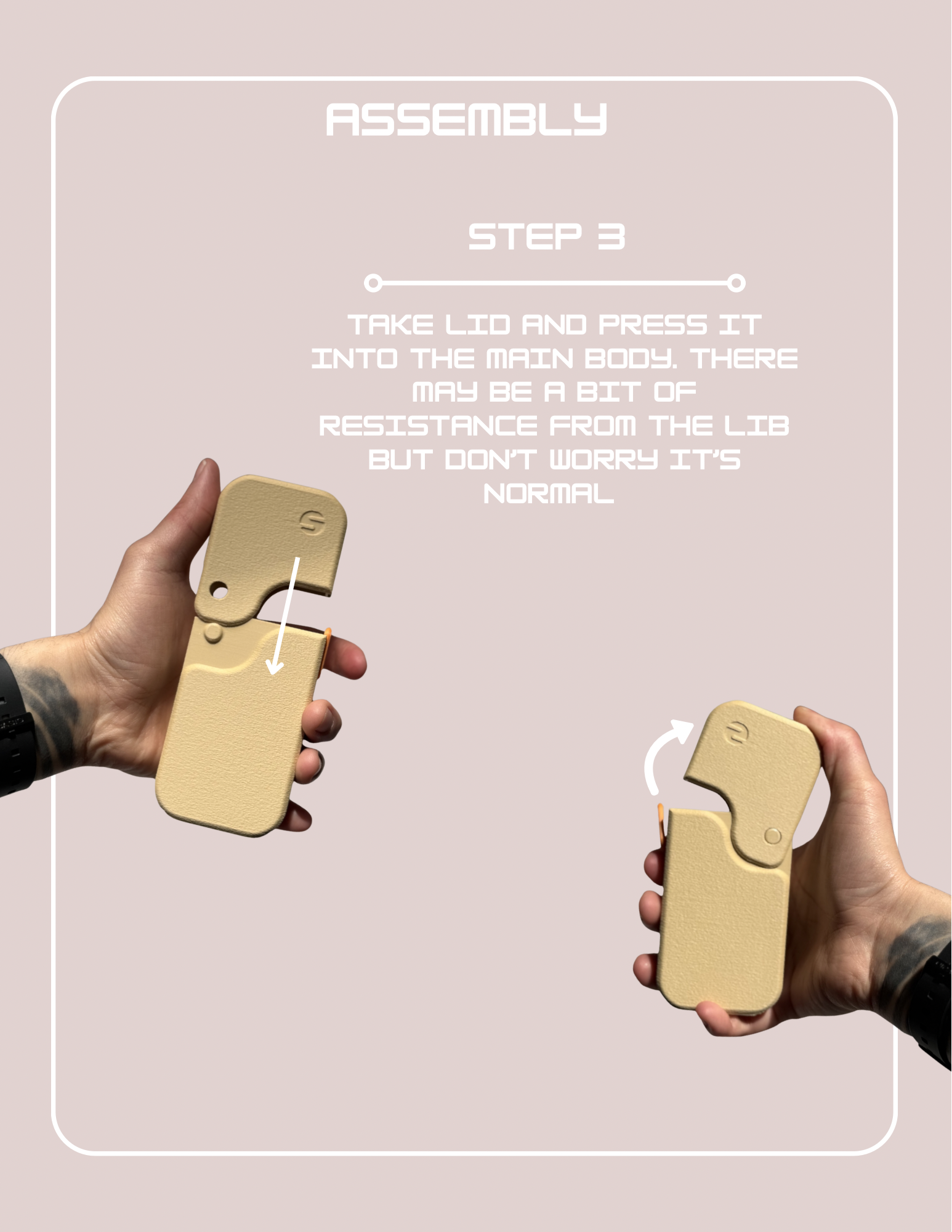

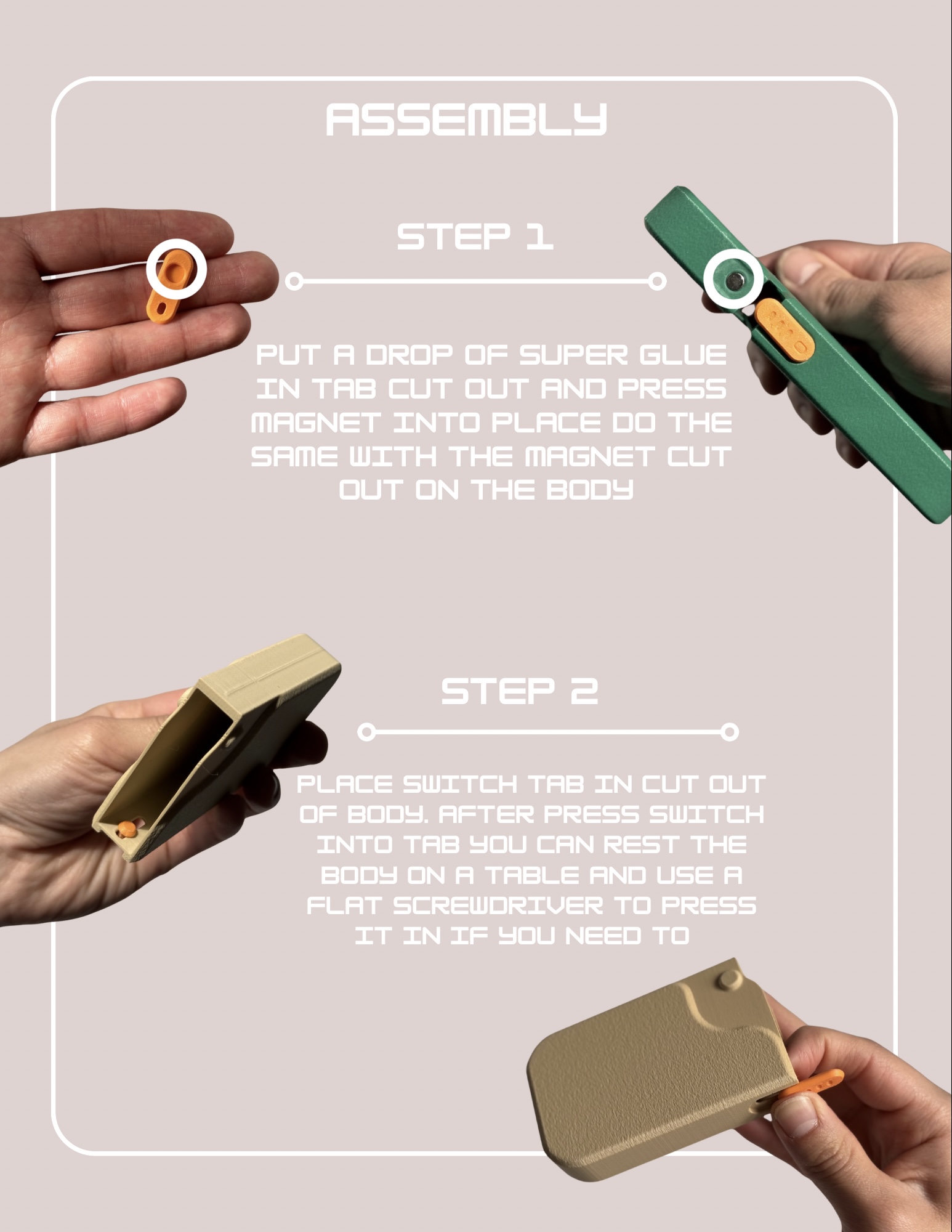

Assembly

Filament

All the filament used was from Bambu lab I printed in PLA basic, PLA Matte, PETG-CF all prints came out great just make sure you dry your filament if you are going to print the case in PETG.

Print instructions

there are supports at the base they should just come right off when the print is done. I wouldn’t recommend printing without since there are some thin walls.
