Ultimate Pegboard Tool Organizer: Stable, Versatile & Minimalist

【极简实战派】全能洞洞板挂钩系列：稳固夹持与多形式悬挂

Overview / 简介

As a structural engineer focusing on precision electronics, I designed this collection for makers who pursue both uncompromising stability and industrial aesthetics. No more wobbly hooks or cluttered boards—just a rock-solid, professional workspace.

作为一名专注于精密电子设计的结构师，我为追求极致稳固与工业美学的 Maker 们打造了这套挂钩。彻底告别廉价挂钩的摇晃感，让你的工作室进入“专业模式”。

Key Features / 核心功能

• 🚀 Ultra-Stable Design / 极度稳固 Precision-fit for standard pegboards. Engineered with zero-tolerance concepts to ensure the hooks stay firmly in place when grabbing or returning tools.

          针对标准洞洞板进行精密适配，采用“零公差”设计理念。取用工具时挂钩稳如泰山，不晃动、不脱落。

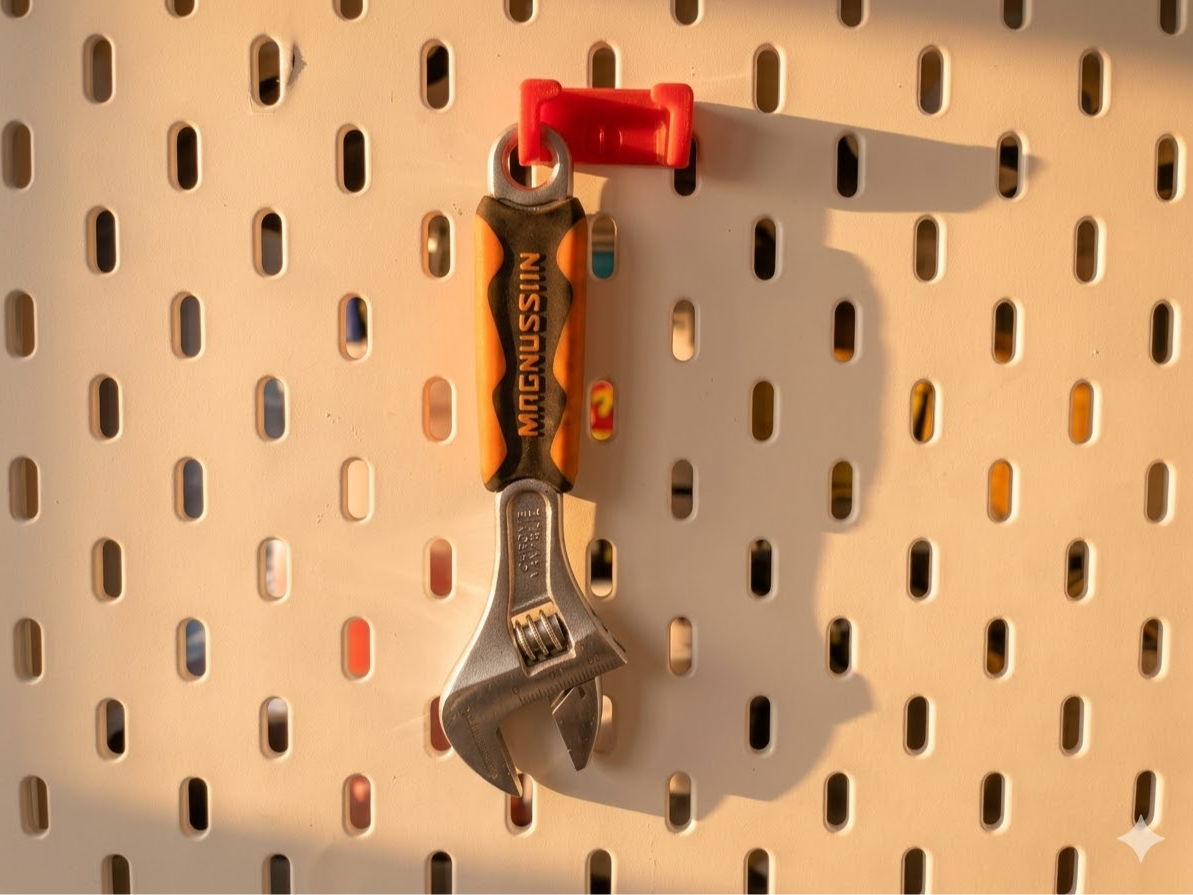

• 🛠️ Multiple Mounting Styles / 挂取形式多样 Includes specialized horizontal holders for flush cutters (e.g., Plato 170) and heavy-duty vertical hooks for adjustable wrenches.

  提供多种针对性设计：包括专为剪钳（如 Plato 170）优化的水平夹持位，以及为活动扳手设计的加重悬挂钩。

• ✨ Minimalist Aesthetic / 美观大方 Clean lines and functional forms inspired by industrial minimalism. Blends perfectly into any modern workshop.

  源自工业简约风的线条设计，功能性强且美观，完美融入现代实验室或工作室环境。

• 💪 Proven Strength / 坚固实用 Reinforced stress points and optimized load-bearing structures ensure long-term durability without creep or deformation.

  强化受力点及承重结构设计，确保挂载重型手动工具长期使用不形变、不疲劳。

• 🌱 100% 3D Printed / 纯粹打印 No screws or extra hardware needed. Zero-support design for easy printing.

  全件 3D 打印，无需额外螺丝，且大部分零件实现免支撑打印。

Print Settings / 打印建议

• Material / 材质: PETG (Highly recommended for long-term load bearing) or PLA+.
• Walls / 墙线: 3-4 Layers (Crucial for hook neck strength / 确保挂钩根部强度的关键).
• Infill / 填充: 25% (Gyroid or Grid).
• Support / 支撑: Designed to be printed with minimal or no supports.

技术亮点与组装说明 (Technical Highlights & Assembly)

• Self-Supporting Structure / 自支撑设计：
  • CN: 采用了创新的一体化“L型自支撑”结构（如图中灰色部分所示），在打印过程中作为悬空部位的基座，打印完成后可轻松通过掰动或切割将其移除，实现完全“免外部支撑”打印。
  • EN: Features an innovative integrated "L-shaped self-supporting" structure (as shown in grey). This serves as the print base for overhanging parts and is designed for clean, tool-free removal after printing, enabling true "no external support" printing.
• DFM Optimization / 可制造性优化：
  • CN: 挂钩根部采用了大 R 角平滑过渡，并在自支撑与本体连接处预留了0.15mm - 0.2mm（基于结构师经验）的易拆除微连接面，平衡了打印成功率与后期清理的便利性。
  • EN: Large fillet radius at the base to distribute stress, with a pre-defined 0.15mm - 0.2mm breakaway connection between the support and the part, optimizing both print success rate and ease of post-processing.

Version History & Support / 更新日志与支持

• V1.0 (2026-03-15): Initial Release. Initial set for flush cutters and wrenches. (首发版本：包含剪钳专用支架及活动扳手挂钩。)
• Roadmap / 计划中: Working on variants for precision screwdrivers, calipers, and electric pens.
• Feedback: As a structural engineer, I die for a 0.1mm tolerance. Feel free to leave a comment if you need a specific tool mount! (正在开发精密螺丝刀、卡尺及电笔适配组件。死磕 0.1mm 公差是我的职业习惯，如果你有特定的工具适配需求，请随时在评论区留言！)
