Do you have card games with paper boxes that ended broken or ripped? Look no further! With this project you can create boxes for any card deck size.

Features

• Generate box, lid and separators for your deck of cards regardless the size.
• Optionally, you can add any number of card separators.
  • Separators are considered on the box dimensions.
• Add a custom logo or text directly on the slicer.

Want to customize yours?

1.Measure your deck height, width and length with all additional content like instructions or chips.

2. Copy my OnShape Project.

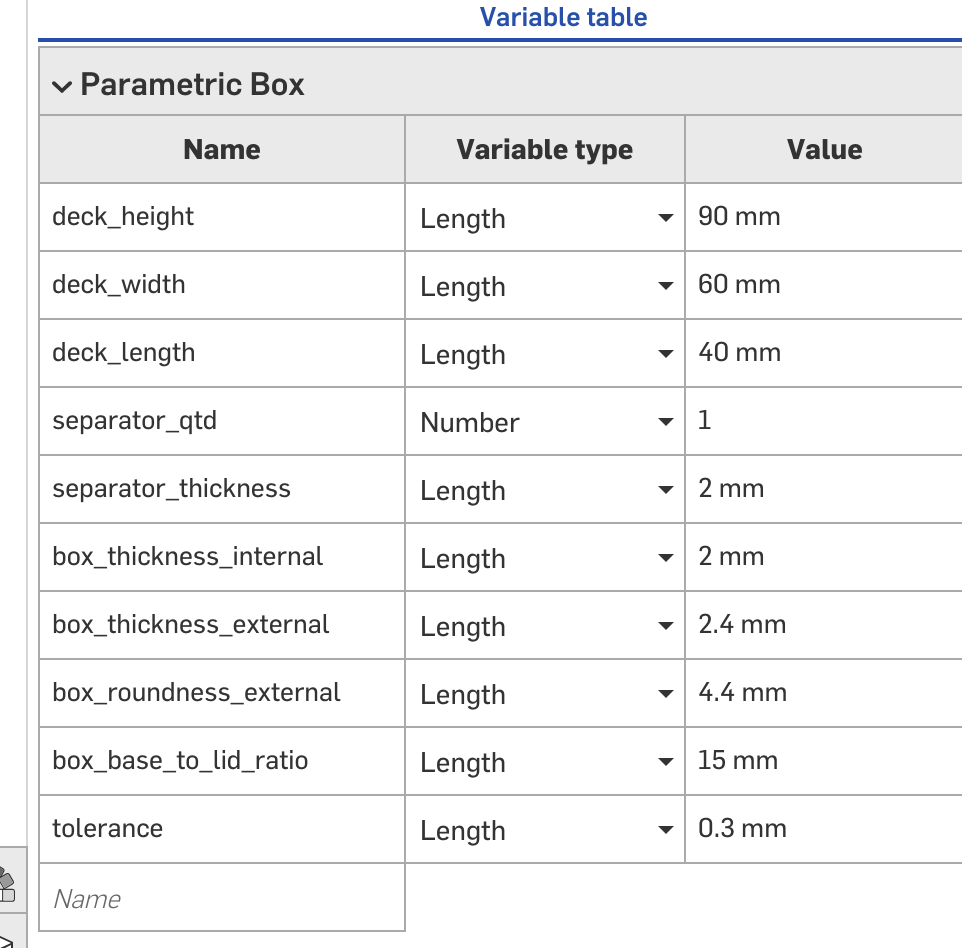

3. Modify the variables deck_height, deck_width and deck_length.

4. Modify the variable separator_qtd to accommodate the number of separators you need, or make it 0 if you don't need it. (the box is resized to add extra space for them)

5. Export as stl and import on your project.

6. Add your custom logos as svgs or custom text to the lid face.

Printing Recommendations

I did print mine with 0.12 high quality preset. The only customization was to paint fuzzy skin on the base with the point distance as 0.2 and skin thickness 0.2 as well.

All my boxes base were printed with Bambu White Marble PLA and some other color for the lid and separators.

Need Help?

Having a hard time customizing it? Add a comment down bellow your deck dimensions, how many separators you need and a link to the logo/text you want I can happily generate one for you.
