Fully articulated Minecraft Stray Skeleton based on the official in-game mob.

• Universal tolerances, compatible with most FDM 3D printers.
• The skeleton accessories are removable and can be easily attached or removed.
• Can be printed using AMS or similar multicolor systems to achieve a finish closer to the in-game mob (optional).

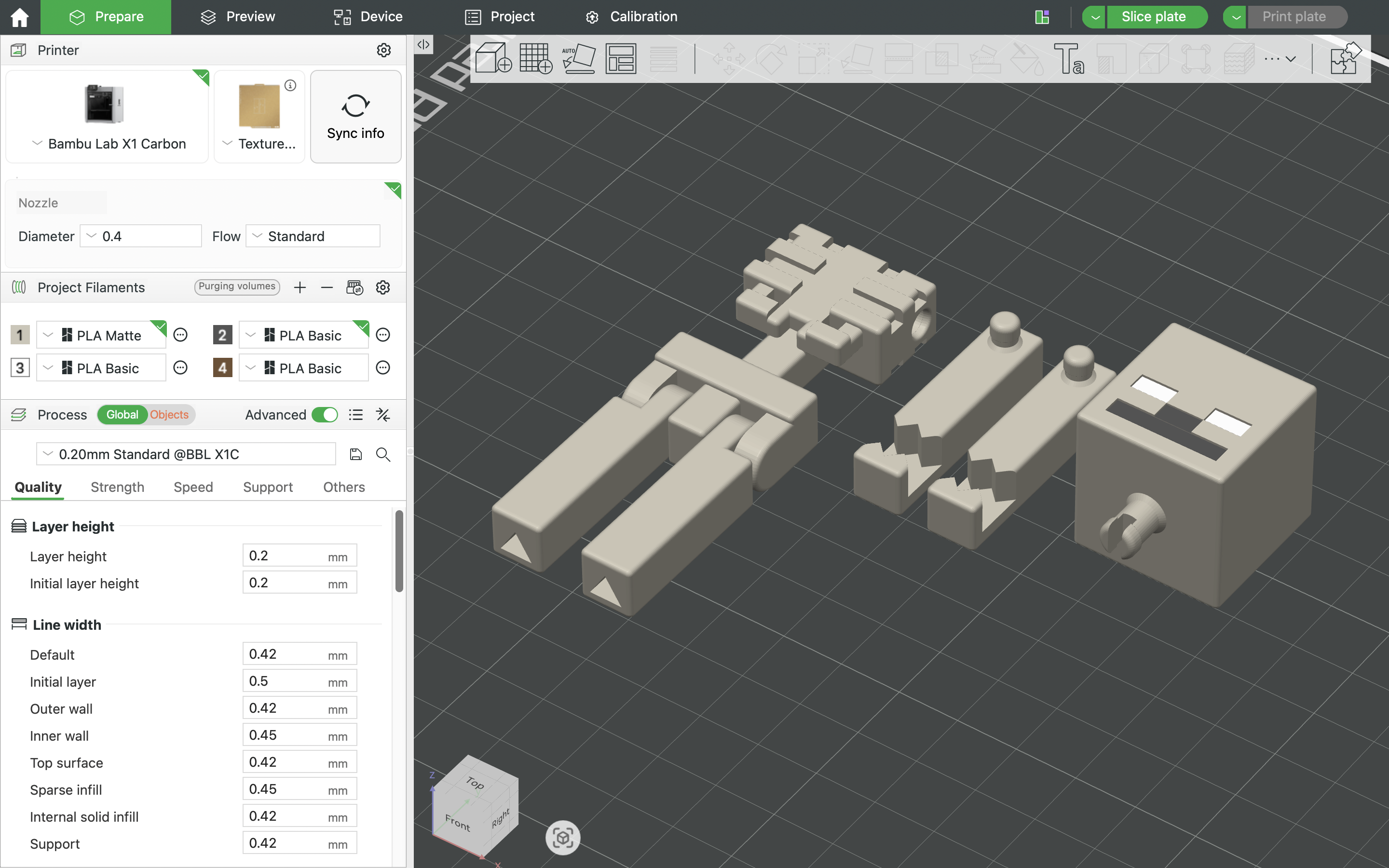

Important: If you are not using my print profile and you are slicing the parts yourself, remember that the Body piece must be printed together with the pieces Left leg and Right leg, as shown in the image below. All other parts of the Stray Skeleton should be printed separately.

Assembly Instructions

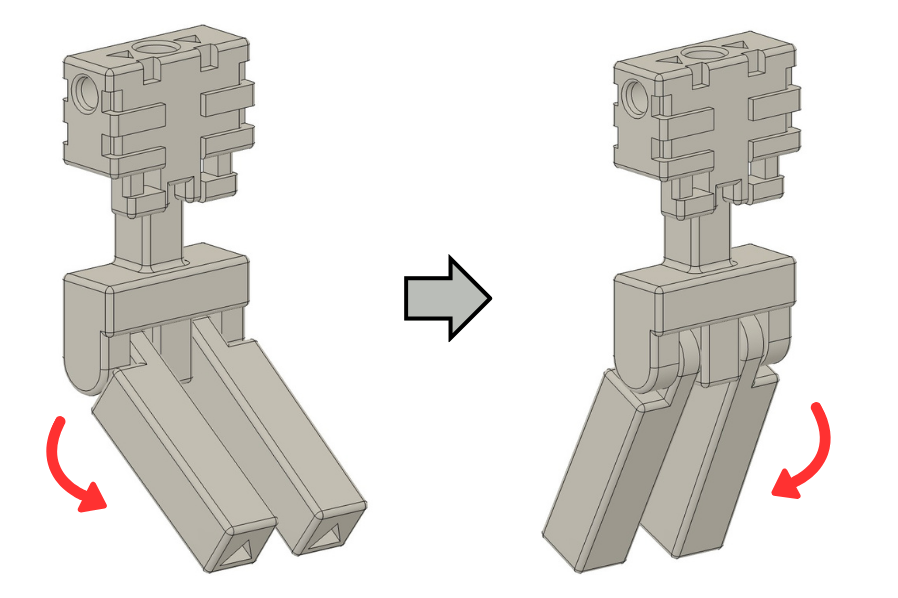

1. Carefully bend the skeleton legs forward and backward to loosen them from the body piece.



2. Insert the tabs of the Body cover piece into the holes on the top of the body piece, applying gentle pressure.

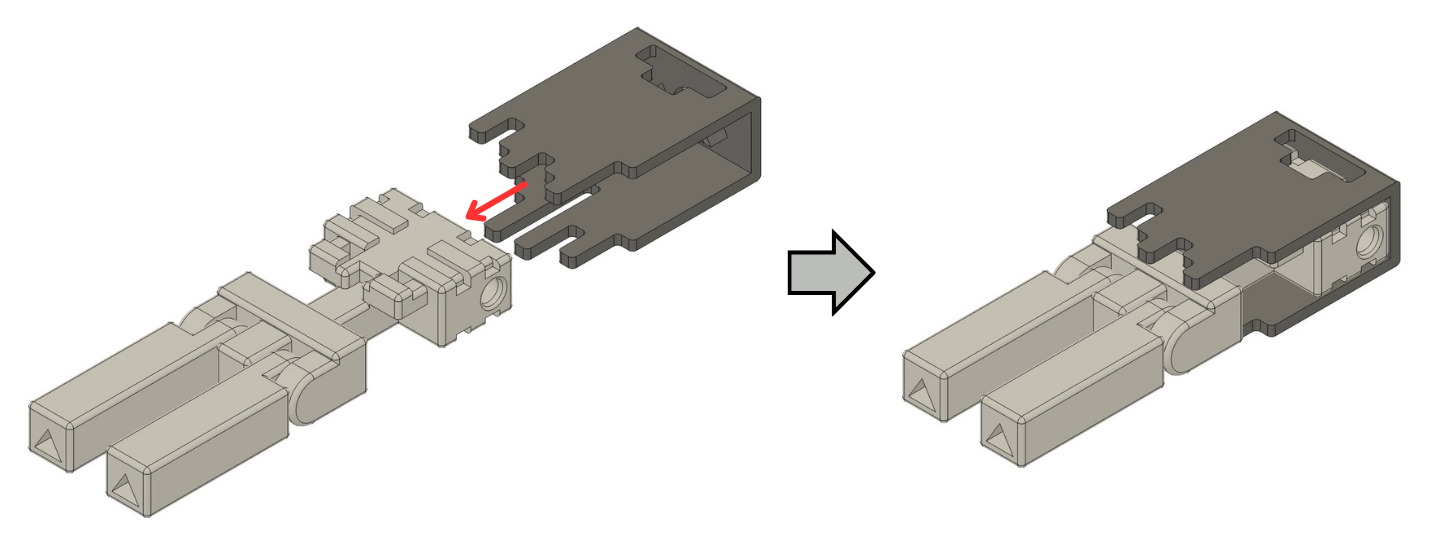

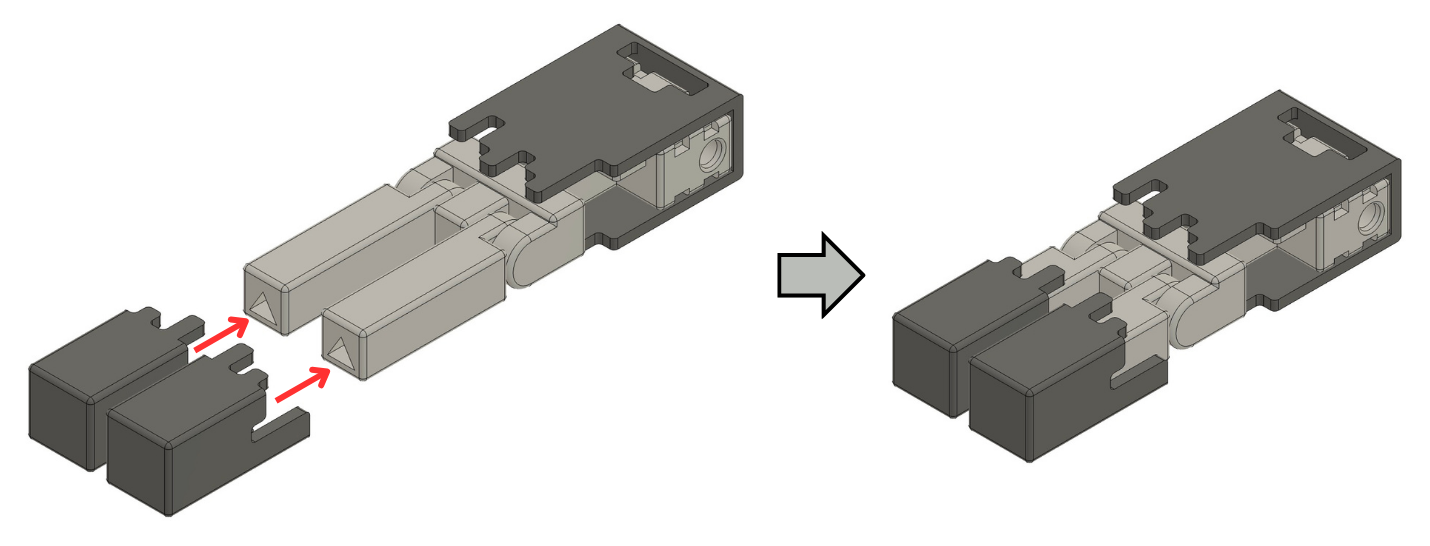

3. Insert the tabs of the Right leg cover and Left leg cover pieces into the holes at the bottom of both skeleton legs, applying gentle pressure.

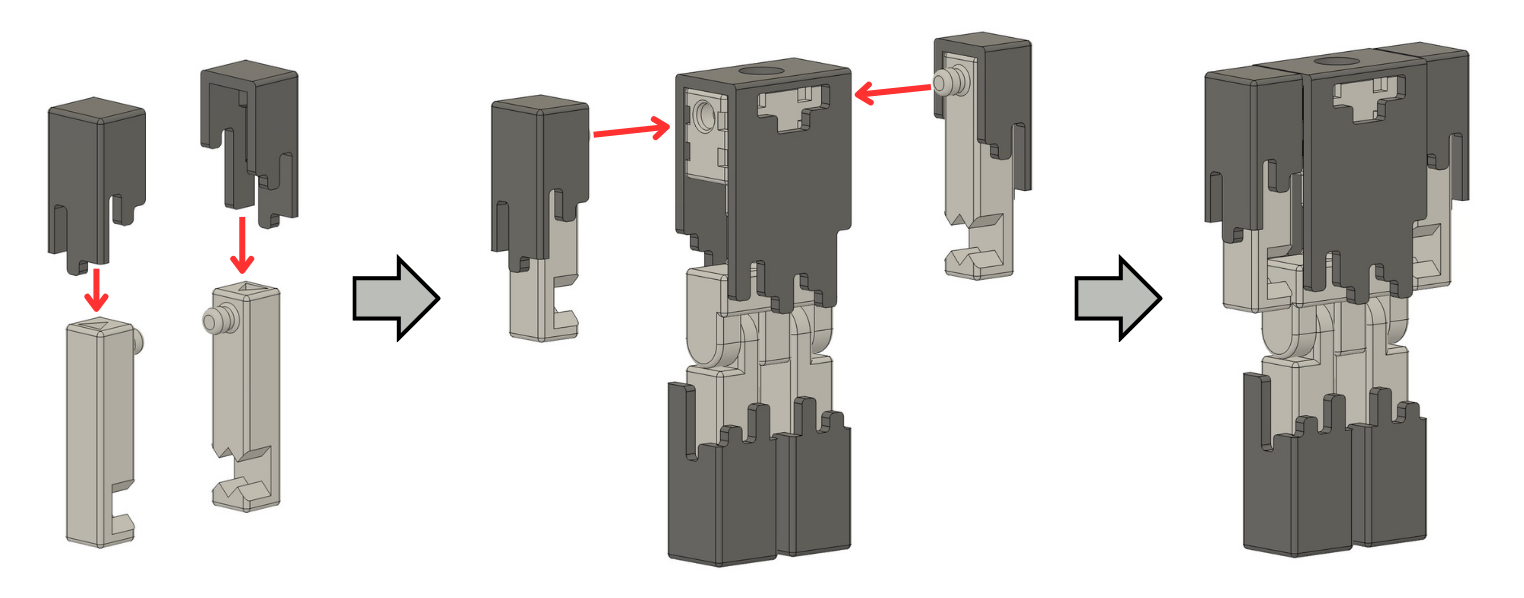

4. Insert the tabs of the Right arm cover and Left arm cover pieces into the holes at the top of both skeleton arms, applying gentle pressure. Then insert the tabs of both arms into the side holes of the skeleton body with light pressure.

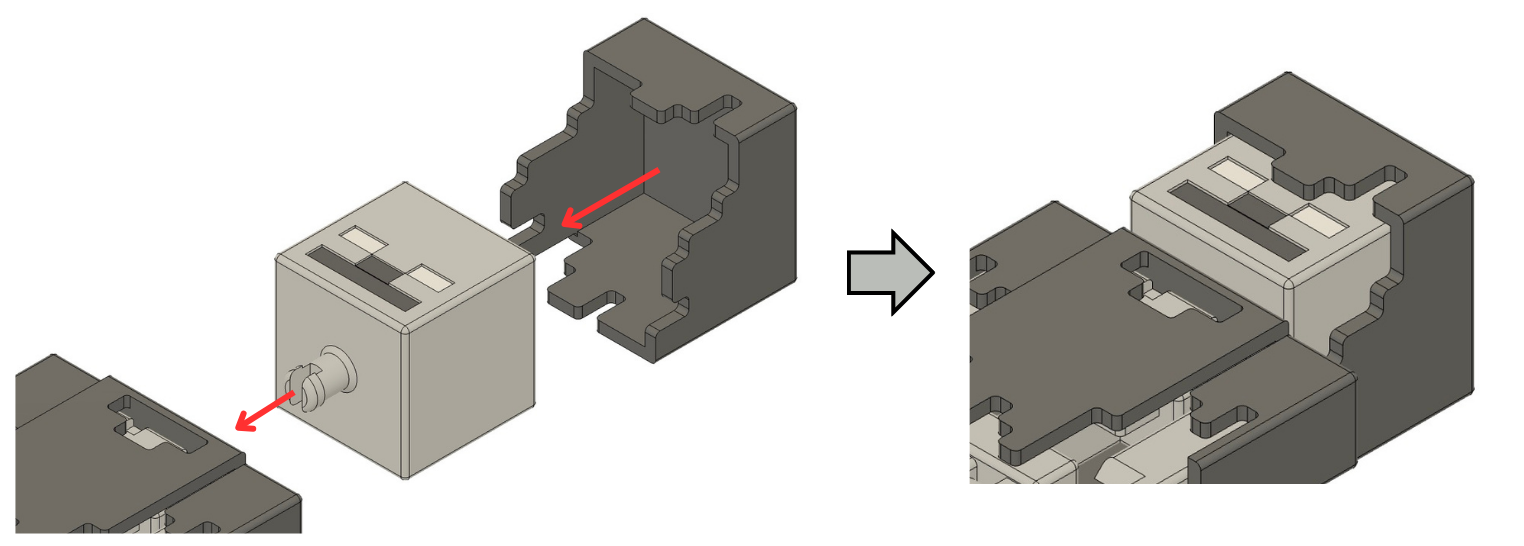

5. Press-fit the helmet onto the skeleton’s head. Then insert the tab on the bottom of the head into the hole on the top of the body with gentle pressure.

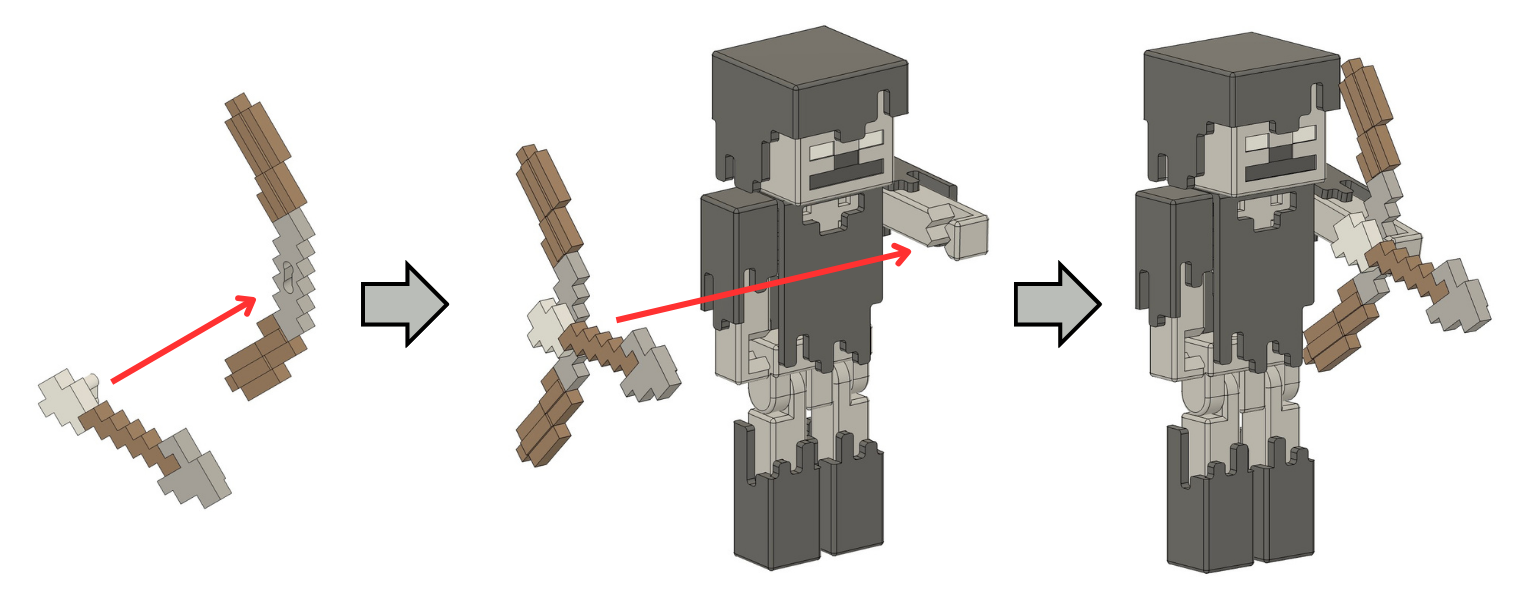

6. Press-fit the Arrow tab into the hole in the Bow. Then insert the bow into either of the slots on the skeleton arms.

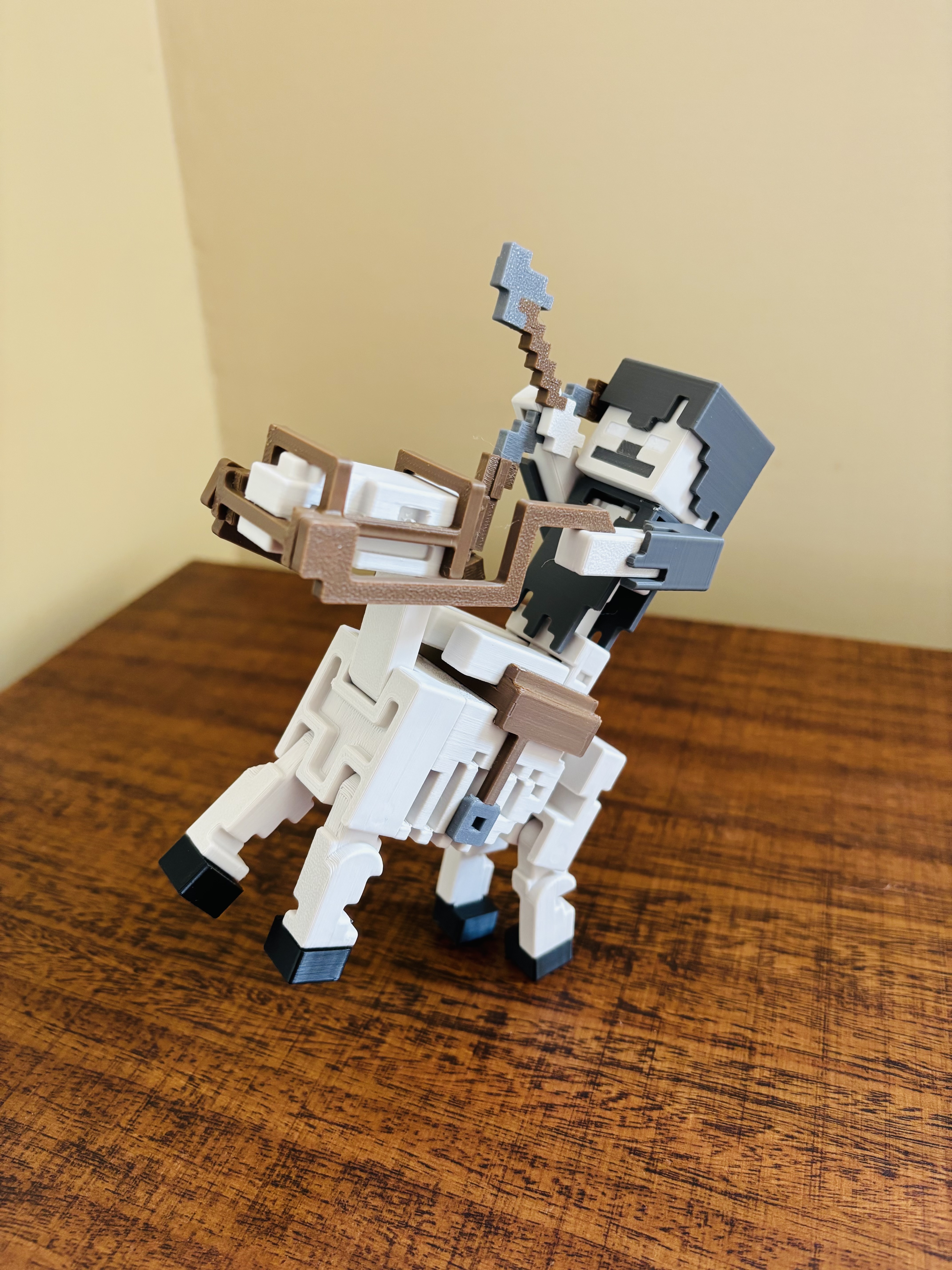

Check that all joints move correctly and smoothly — now it’s time to have fun! This skeleton is also compatible with the articulated Minecraft Skeleton Horse. Check it out here: [https://makerworld.com/en/models/2456358-minecraft-skeleton-horse-rider-articulated#profileId-2697037](https://makerworld.com/en/models/2456358-minecraft-skeleton-horse-rider-articulated#profileId-2697037)
