Borders and Barrier Sets for Scalextric Classic and Sport Track.

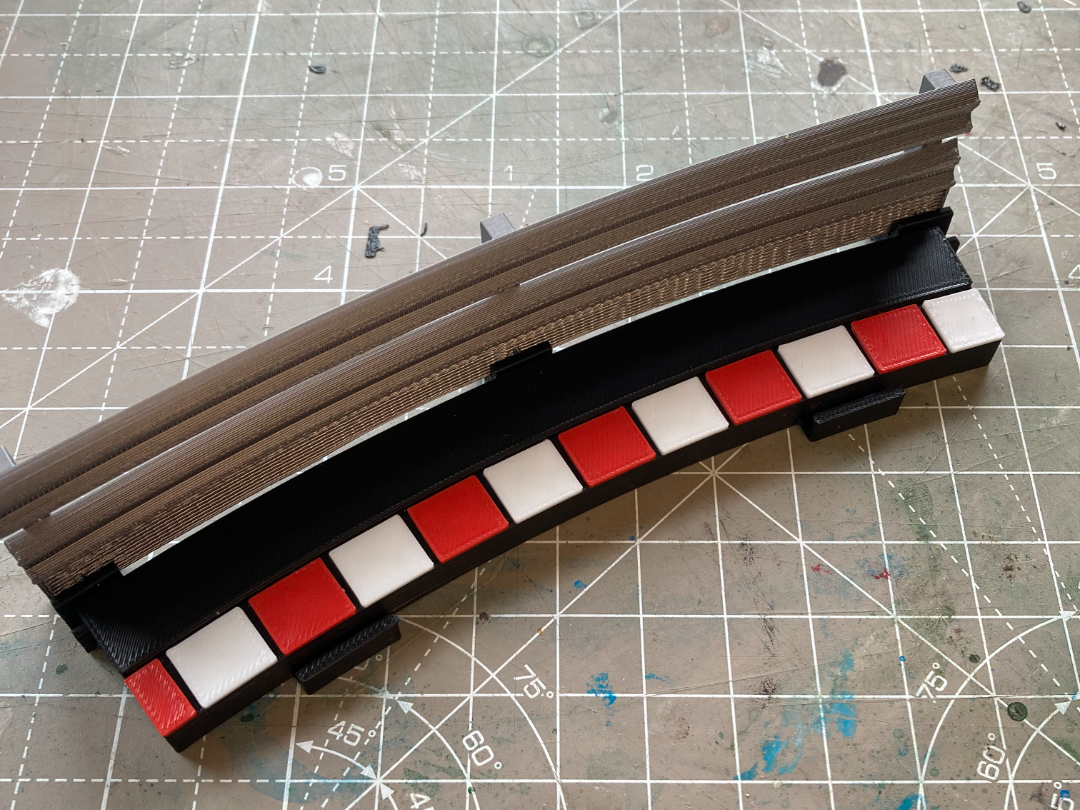

Due to my tight layout, I found the stock borders are too wide in most areas and so I have devised two sets of narrower borders to line the track. Also adding barriers and clips that can be used either with existing sport barriers or print your own barriers.

Borders

Half Straight, Radius 1 inner and outer, Radius 2 inner and outer, Sport Elevated Cross Over

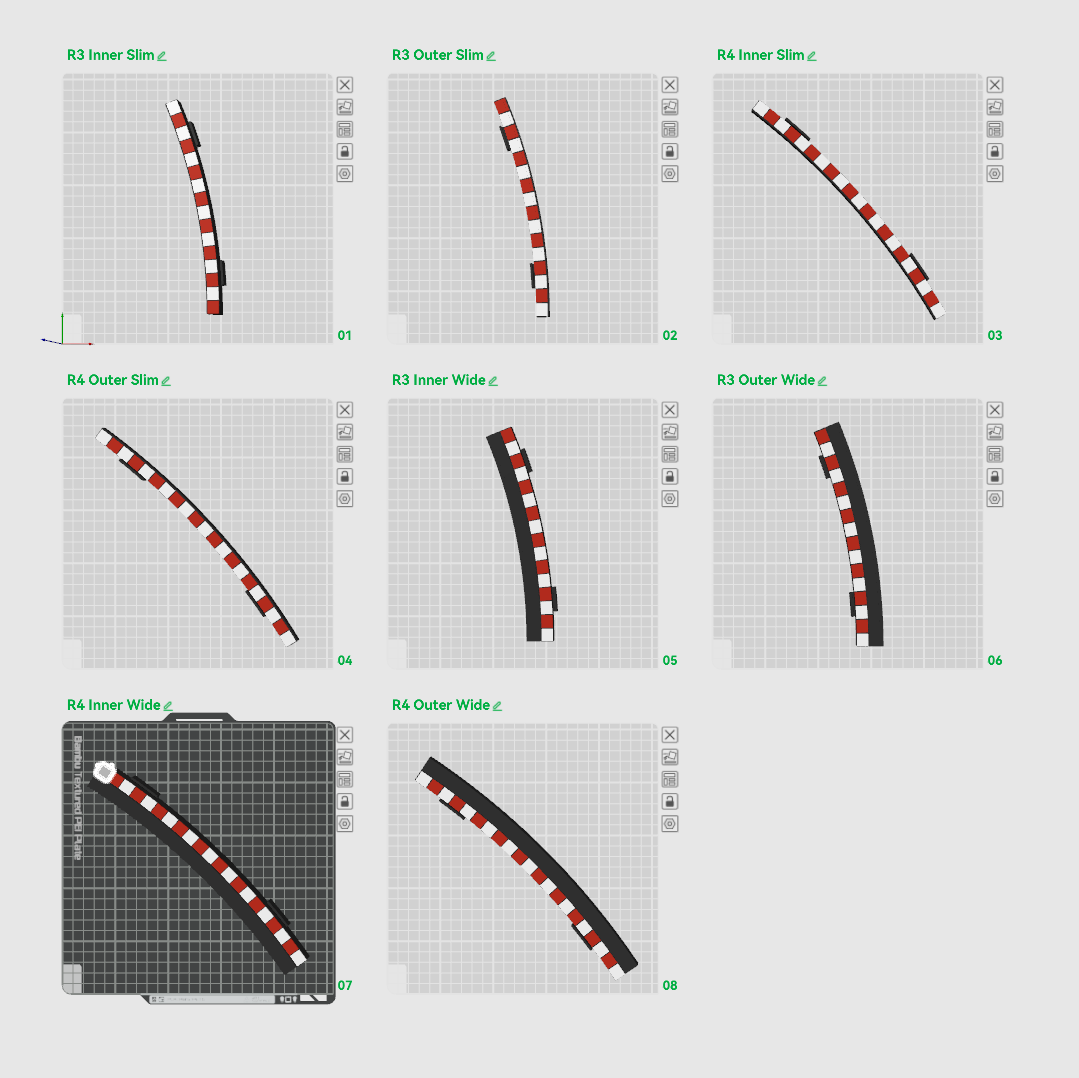

***New - Qtr straights added to allow offset along straights, R3 & R4 Inner and Outer added***

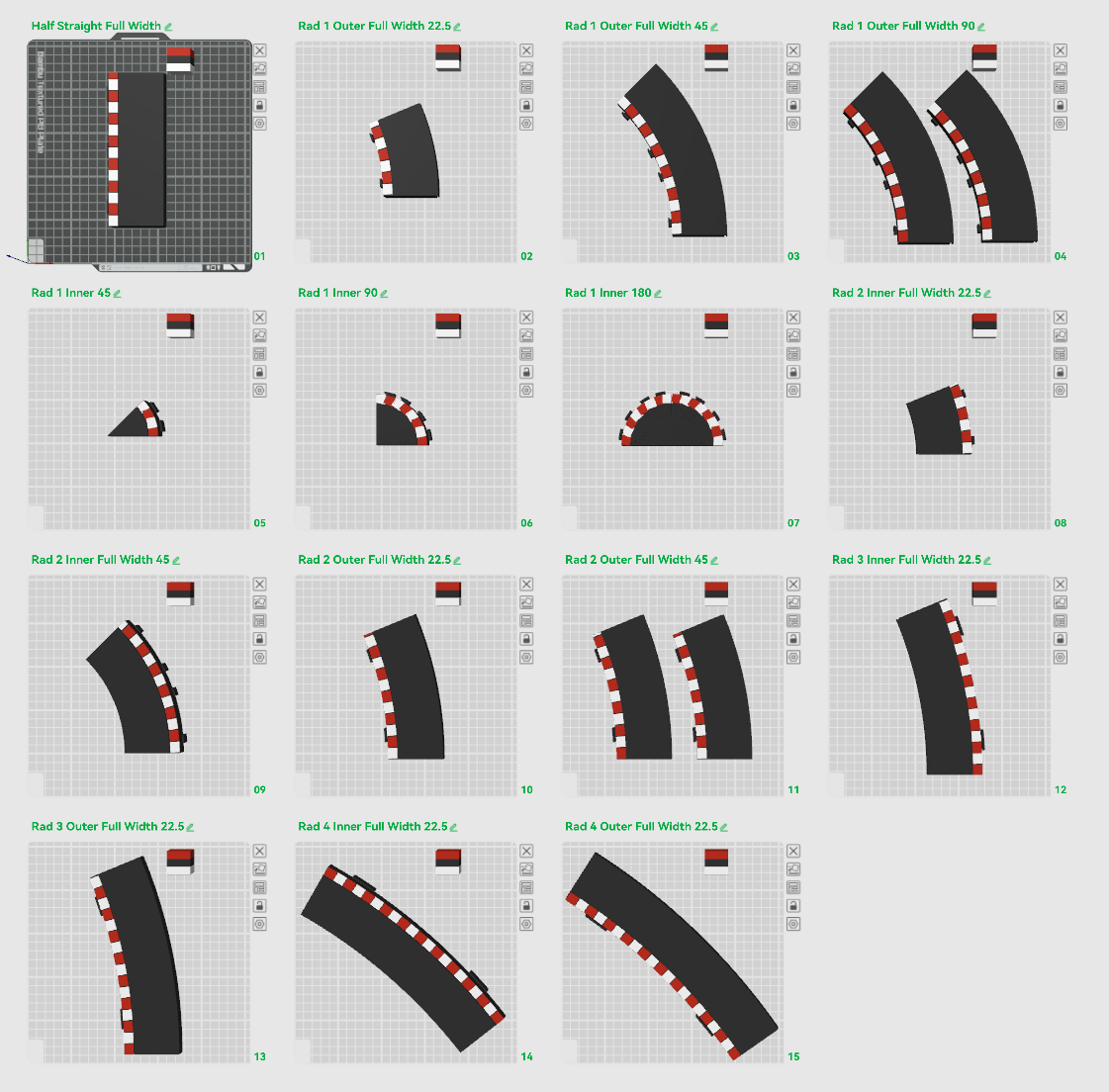

***New New - Full Width 63mm R1 - R4 and 175mm straight***

• Wide = 25mm wide from the track edge
• Slim = 11.8mm wide from the track edge
• Very Slim (White line only) = 7.5mm wide
• Full width = 63mm to match generic

Barriers and Fencing

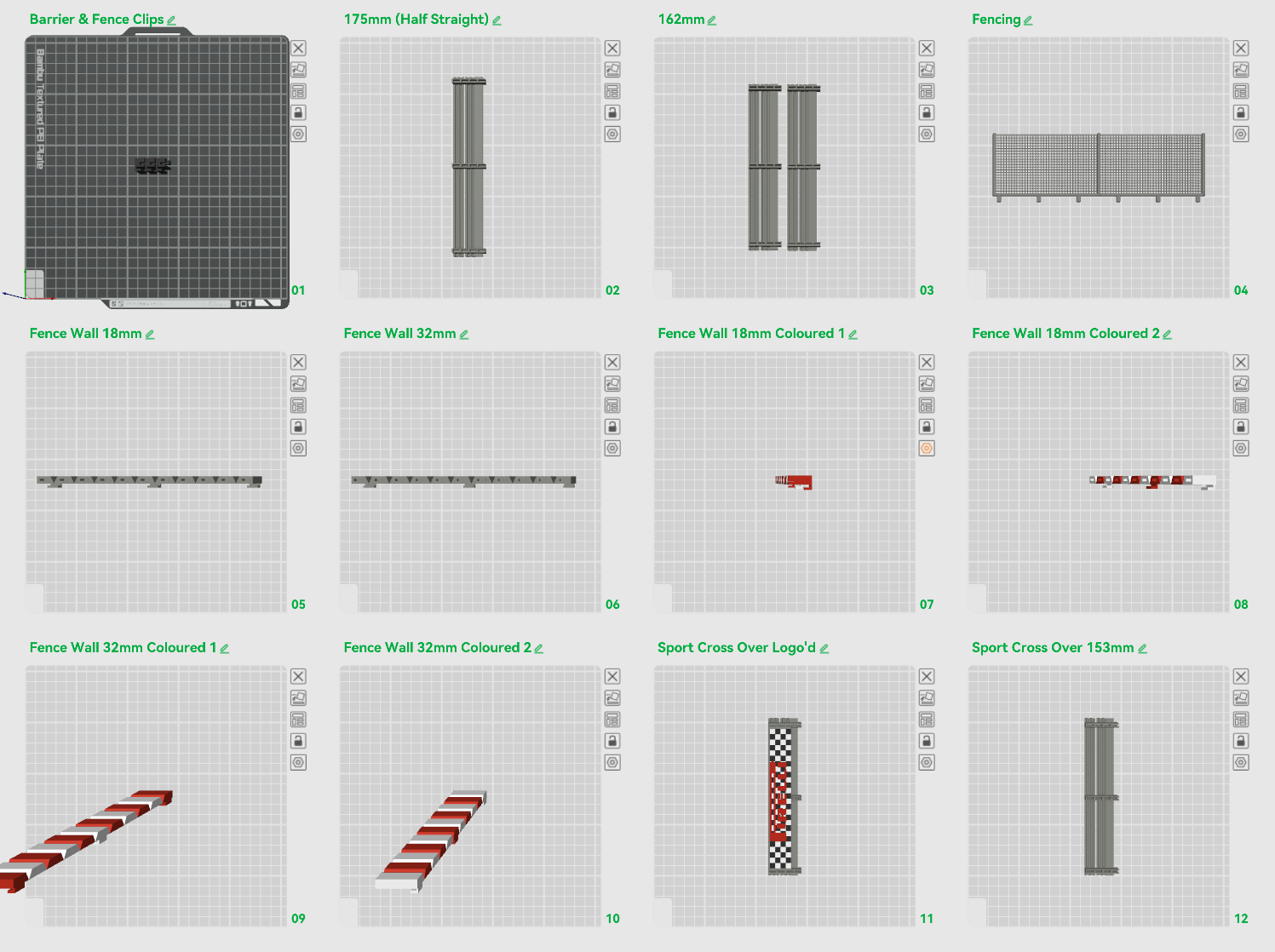

175mm & 162mm barriers in same style as sport barriers, barrier clips to use with printed barriers or sport barriers, fencing and alternate height walls

• Fits Scalextric Classic and Sport track 1/32 scale
• Classic and Sport barriers fit to the outside edge as per fitment to track, or use the printed barriers or fencing and clips in this collection
• Change the red/white border colour order or the main body colour easily in BS by alternating the body colours

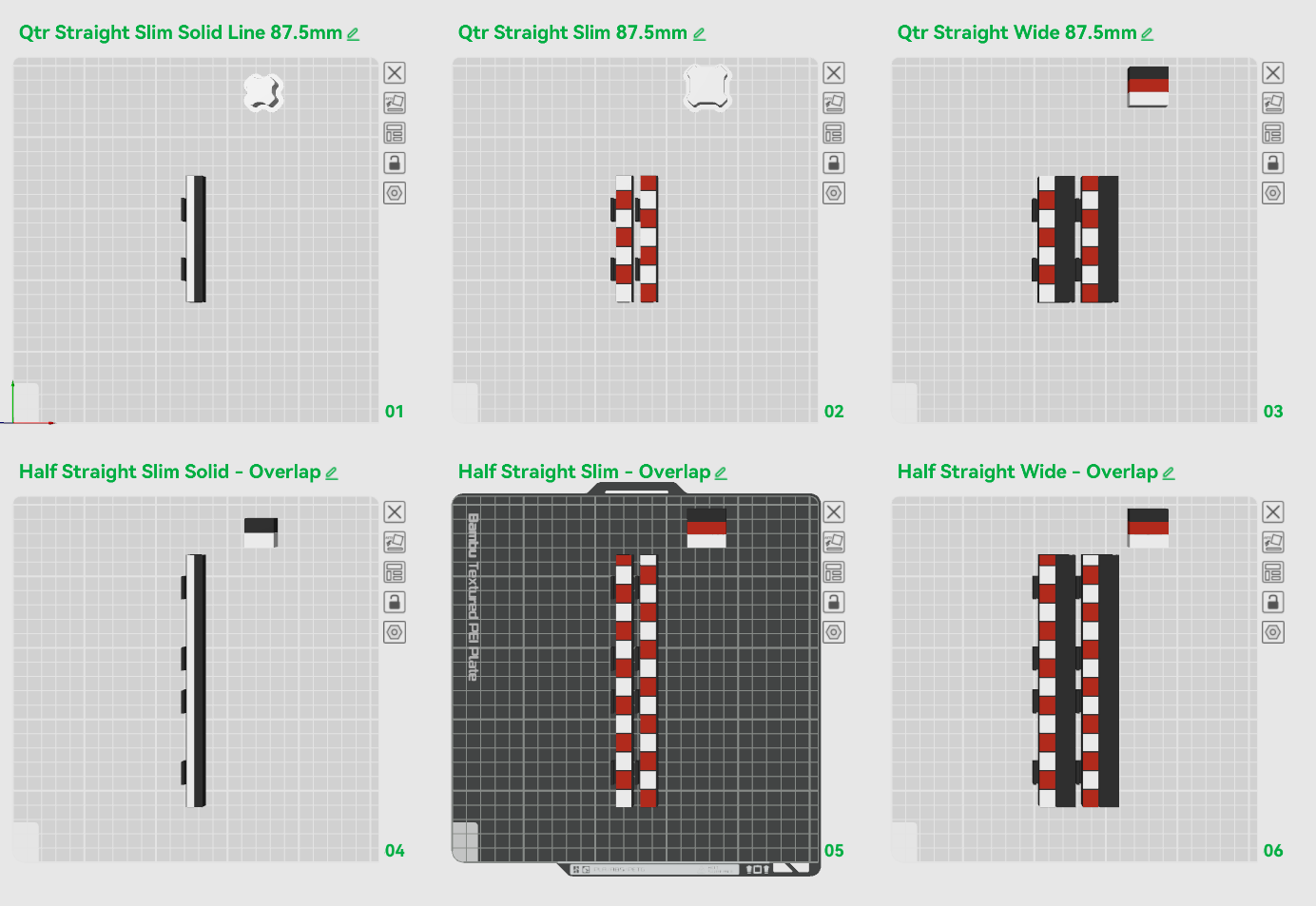

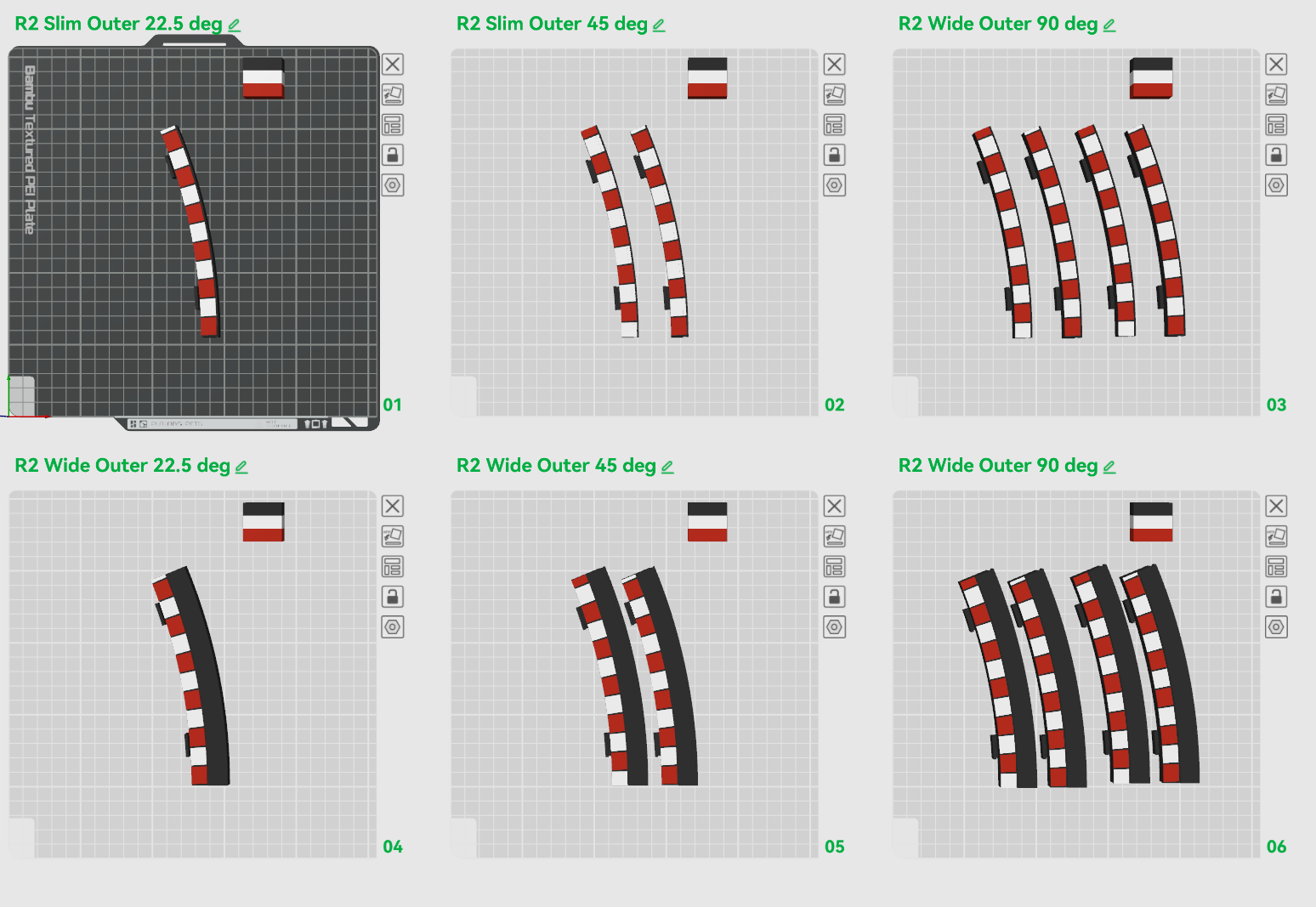

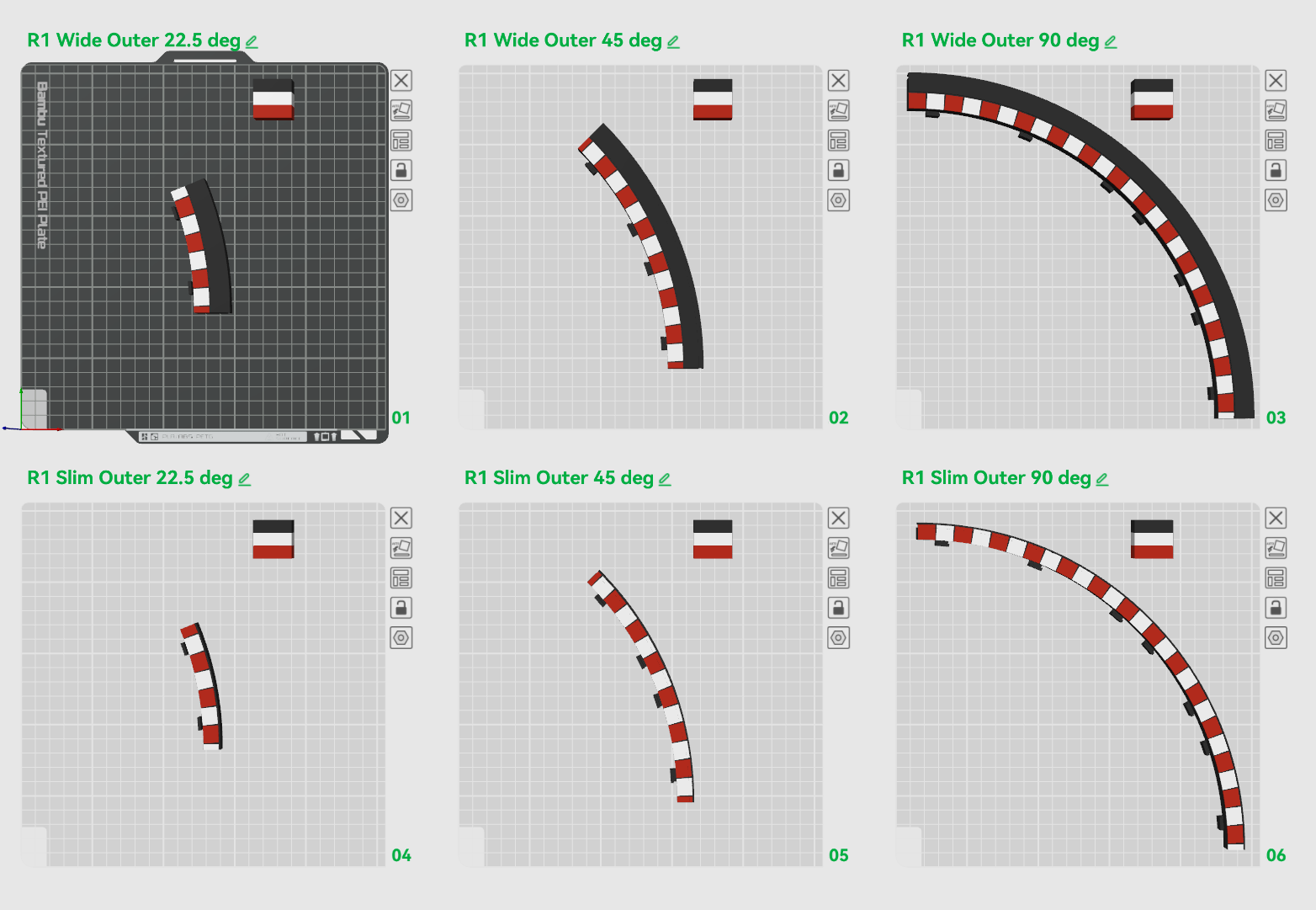

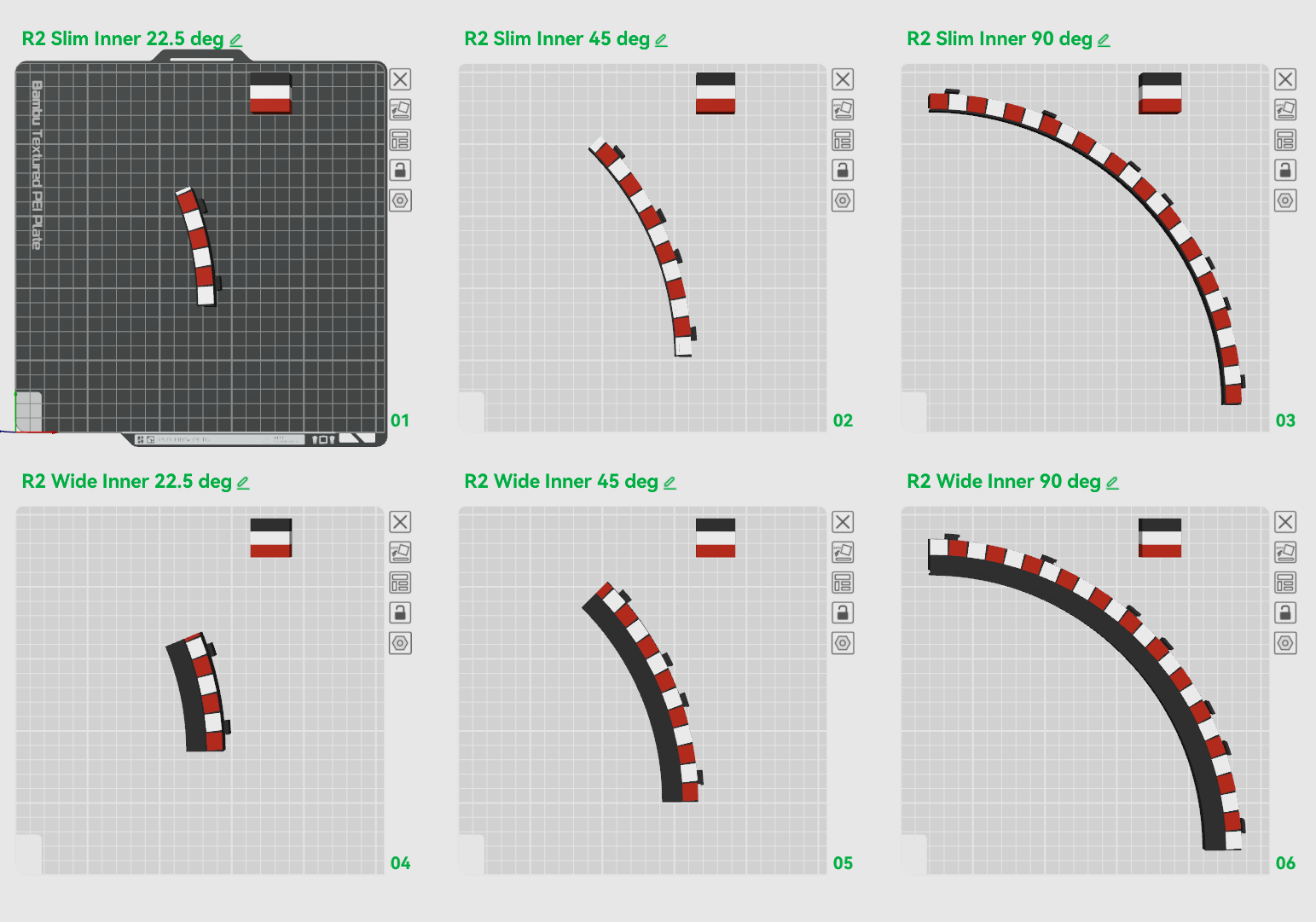

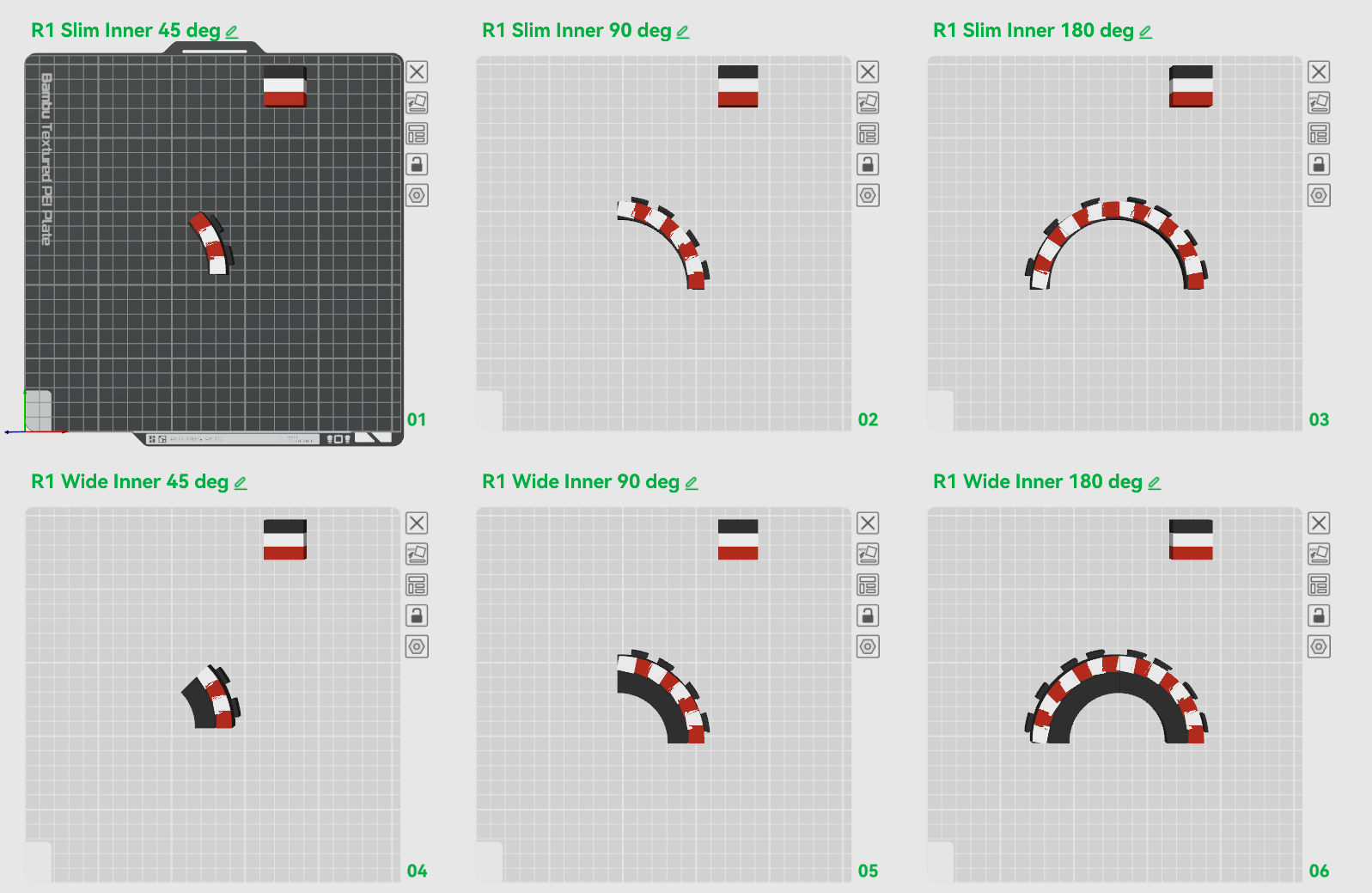

Attached is a profile on all the pieces available.  It also shows a combined plate with sliced result.

Printed in PLA with an AMS (although can be single colour and painted). Barriers and fencing printed in PETG.

Best opened in Bamboo Studio as combinations can be made of all items by cloning or adding to a project. Any colour changes can also be easily made. Print times vary per piece so dont be put off by the profile times shown here as this includes all individual pieces. Combine pieces into one plate for best output.

Snug support to elevated areas on the outer edge of the borders and within the barrier clips; ensure to remove these before use.

All drawn in Fusion Personal so not for commercial use
