Hexagonal Modular Benchy Shelf

Showcase your growing fleet of Benchies with this modular hexagonal display shelf.

This honeycomb-style wall organizer is designed to hold standard 3DBenchy prints, turning your color tests and filament samples into a decorative wall display. Each hexagonal cell perfectly fits one Benchy and highlights the color and finish of the filament.

The shelf is fully modular: print multiple pieces and assemble them to create displays of any size. The honeycomb structure keeps the design lightweight while remaining rigid and visually clean.

Perfect for makers who print a lot of Benchies and want a stylish way to store or display them.

Features

• Designed specifically for 3DBenchy

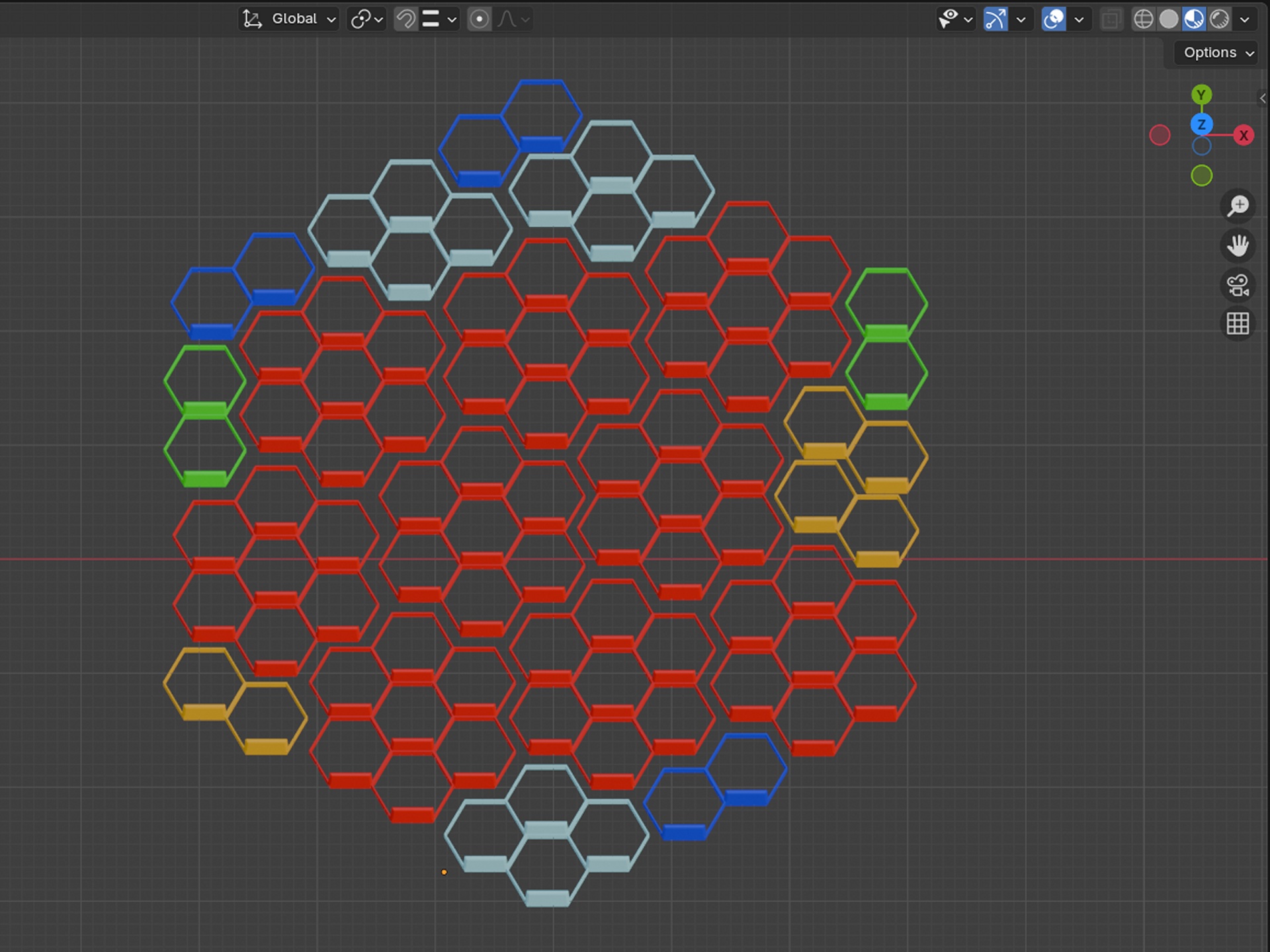

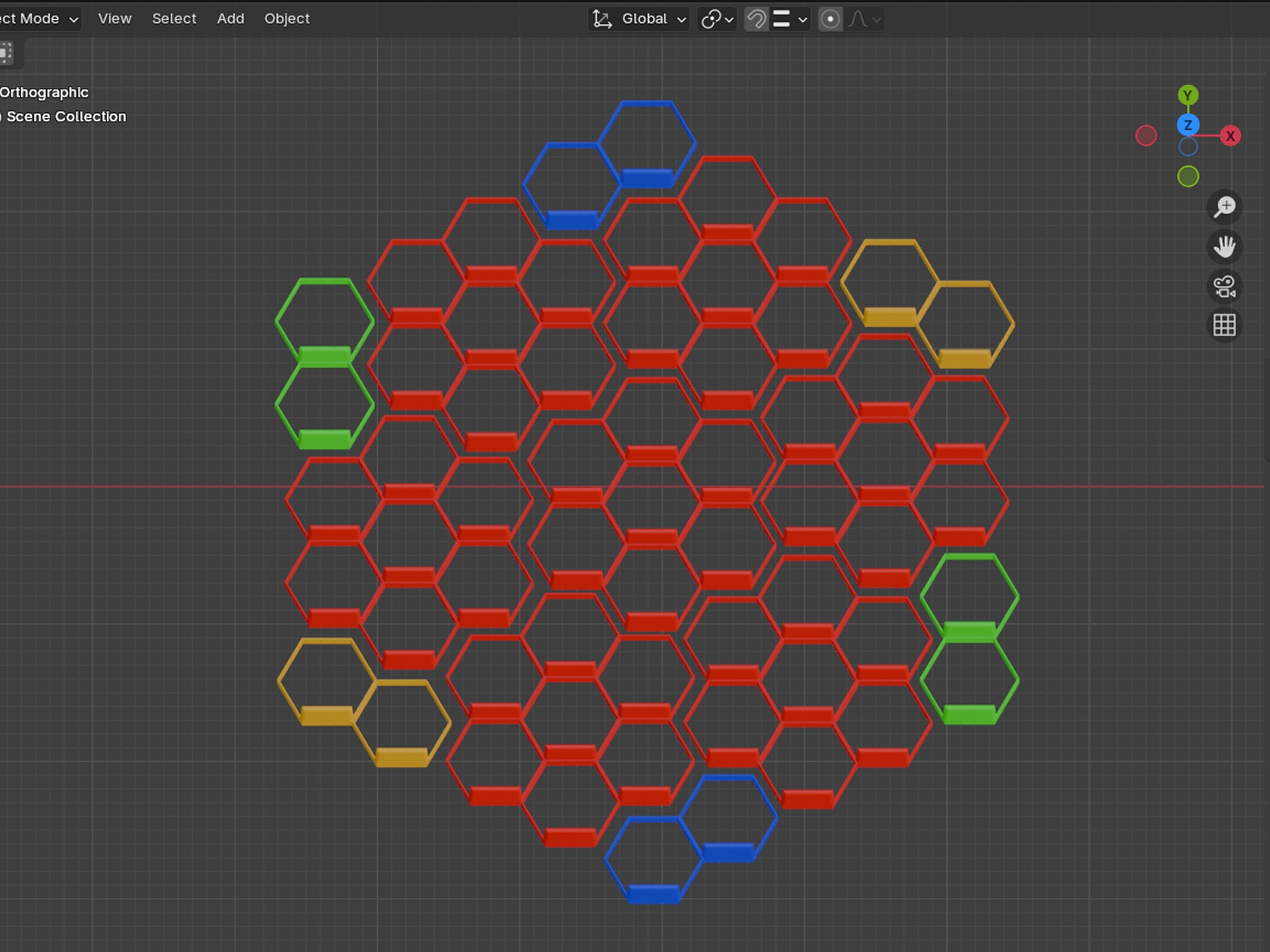

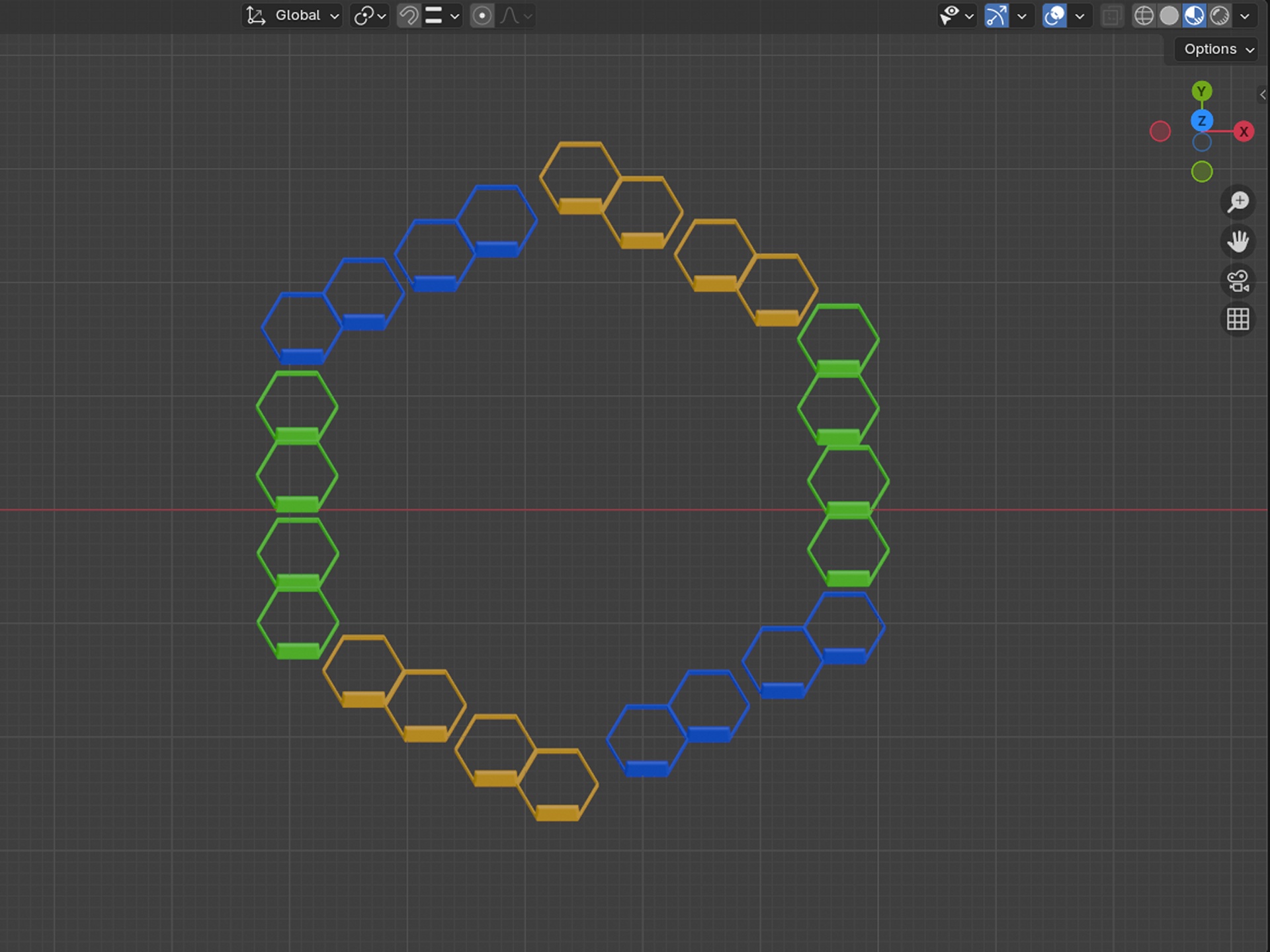

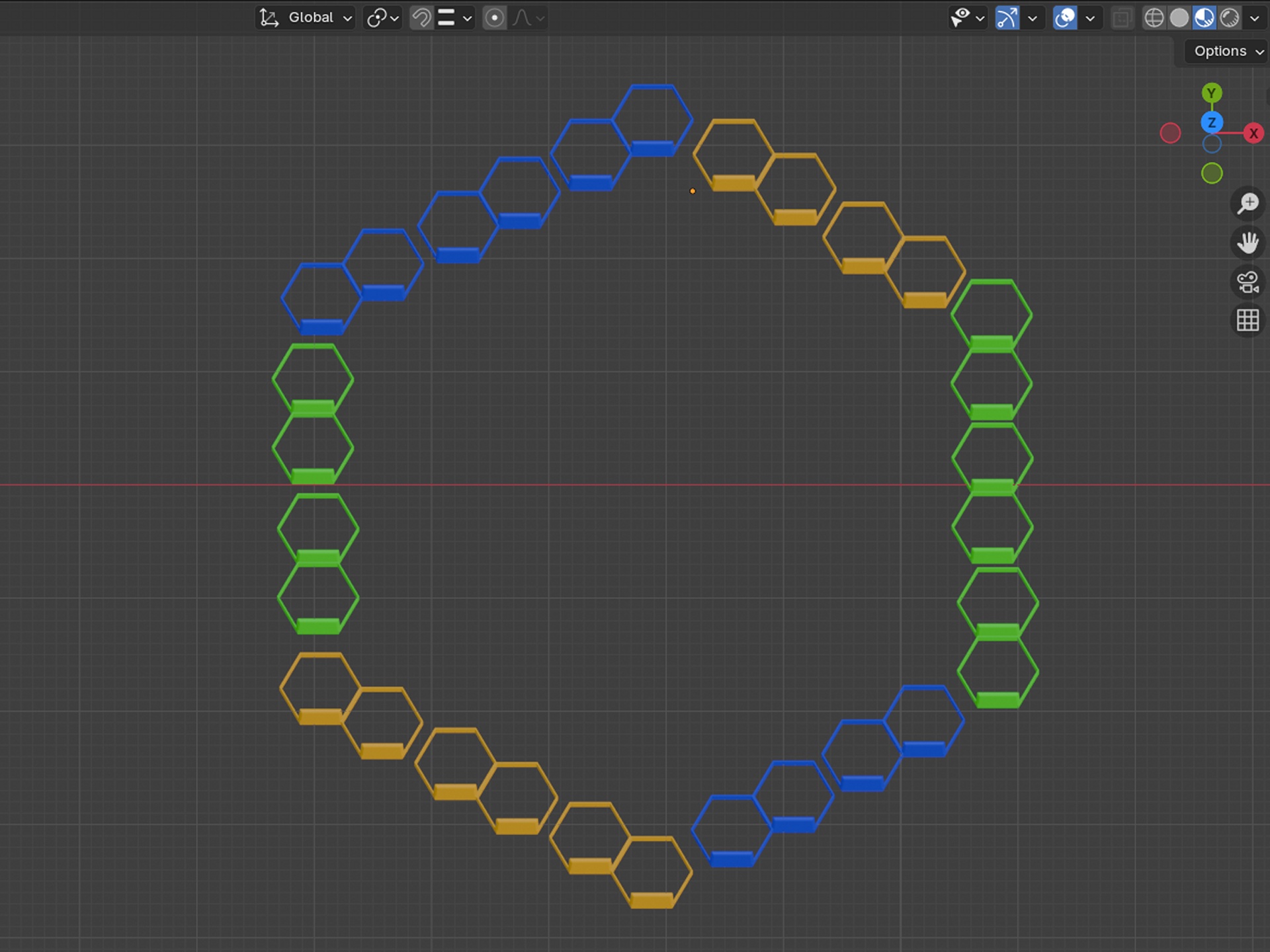

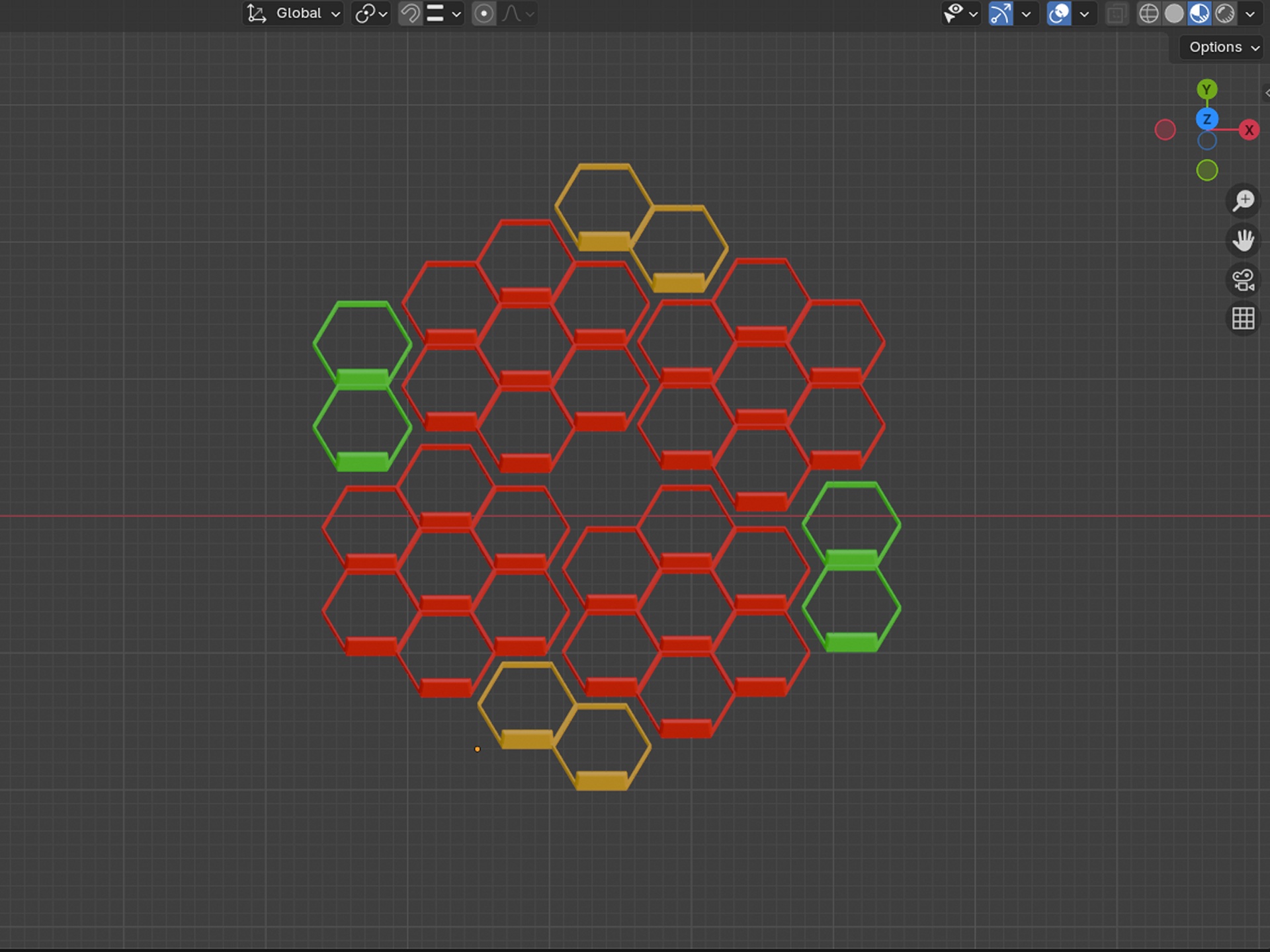

• Modular hexagonal system – expand the display as your collection grows
• Clean honeycomb aesthetic
• Ideal for filament color collections
• Wall mountable

Turn your test prints into a colorful piece of wall art.

Customization in Bambu Studio

The hexagon modules are designed as groups of objects in Bambu Studio, allowing you to easily customize the shelf before printing. By simply deleting specific objects, you can enable or disable certain features depending on how you want to assemble the wall.

Module-level options

• Individual screw holes can be removed if you do not want wall mounting points on a specific module.
• Top alignment pins can be removed when a module sits at the top of the structure and does not need to connect to another hexagon above.

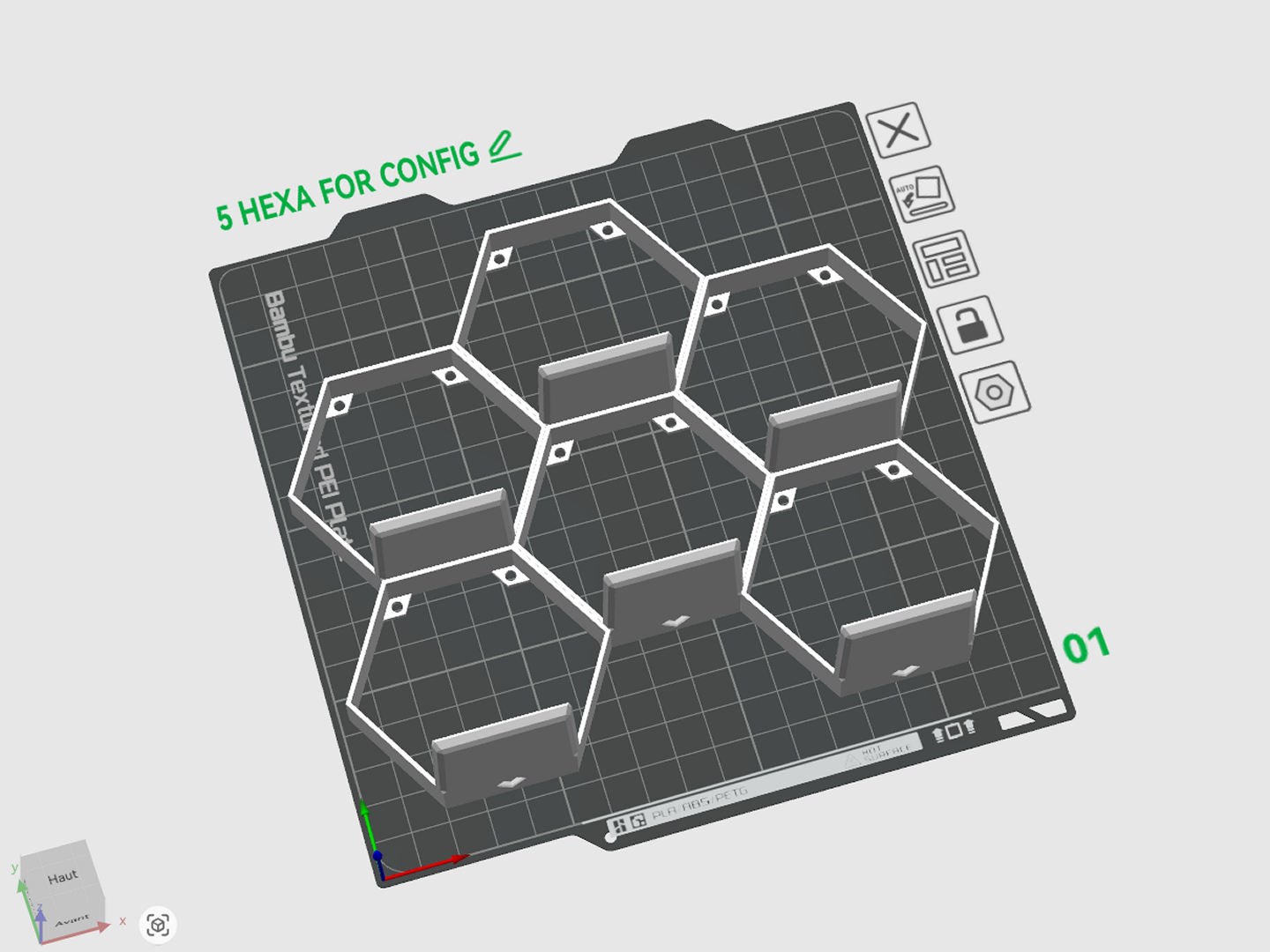

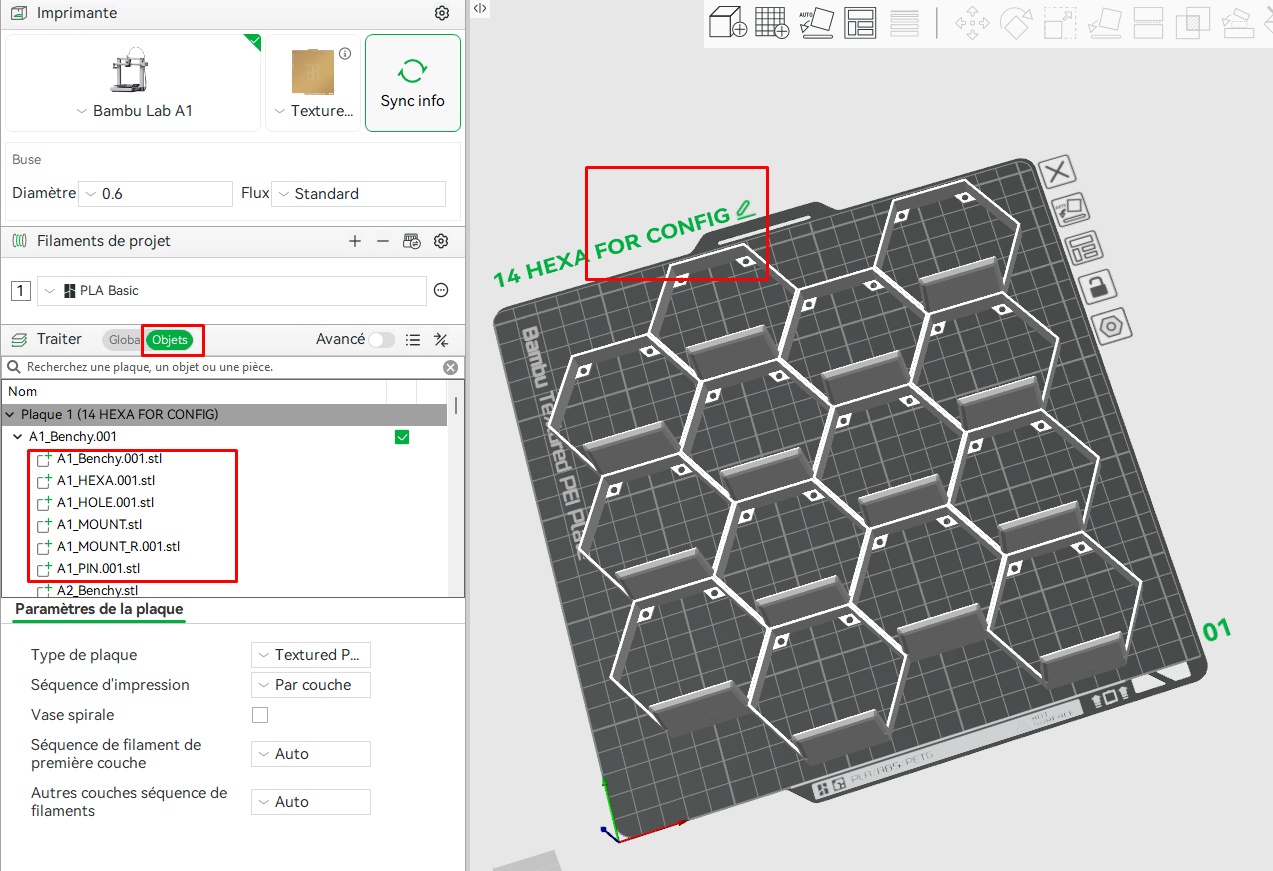

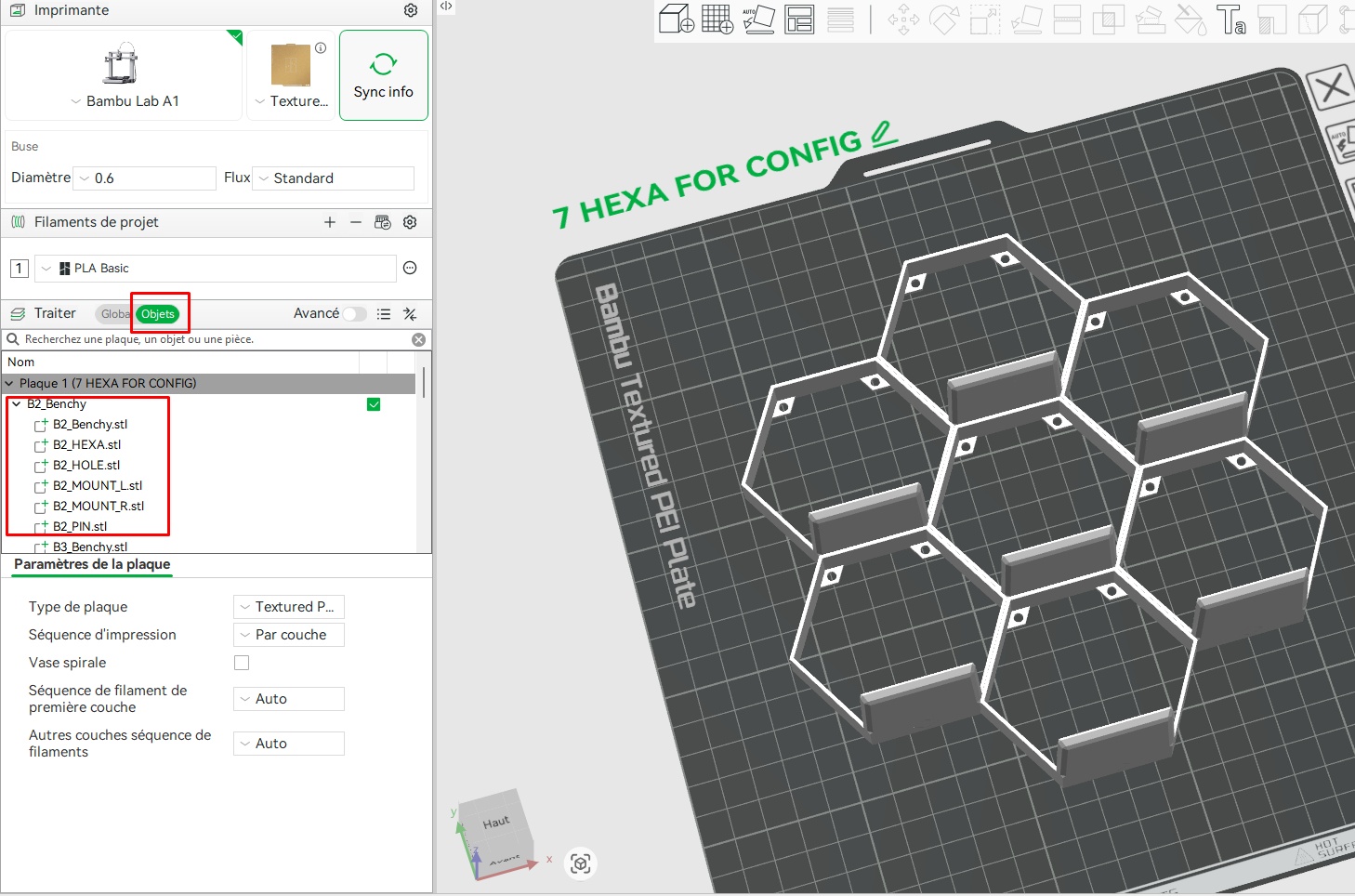

Two additional profiles (7-hexagon module and 14-hexagon module) are provided and are fully configurable using the same system.

Hexagon-level options

Each individual hexagon contains optional elements that can be removed:

• MOUNT L / MOUNT R – screw holes for fixing the hexagon to the wall
• PIN – alignment pins on the top side used to connect to the hexagon above
• HOLE – alignment holes on the bottom side that receive the pins from the hexagon below
• BENCHY – recessed pocket for placing a Benchy (flat by default in this profile)

This object-based system makes it easy to adapt the shelf to your wall layout and mounting preferences directly inside Bambu Studio.
