This is a remix of the original Model by 3Dimensions on Printables optimiced for Bambu Lab.

Features:

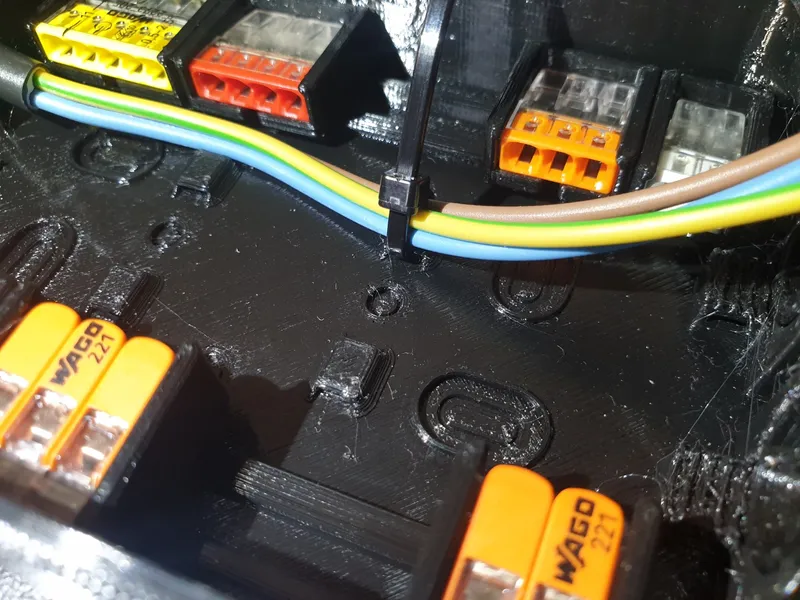

Fix your cables with zip ties:

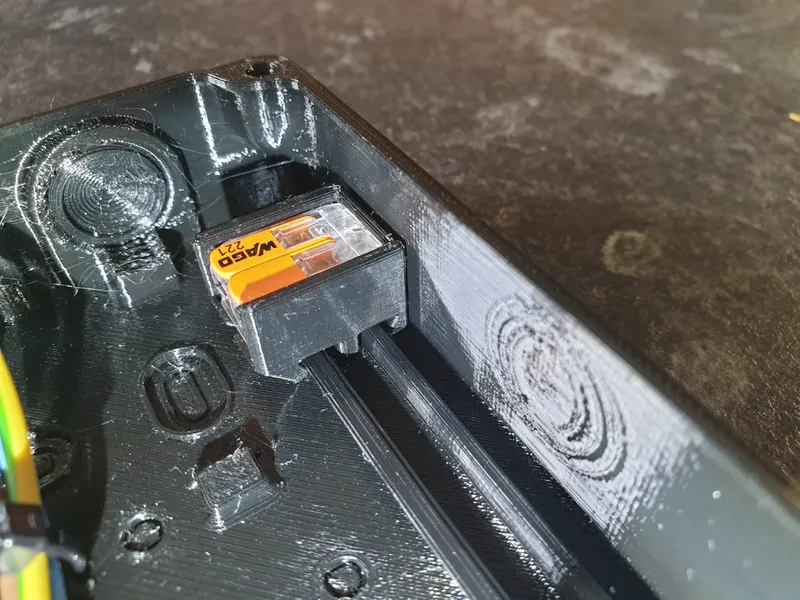

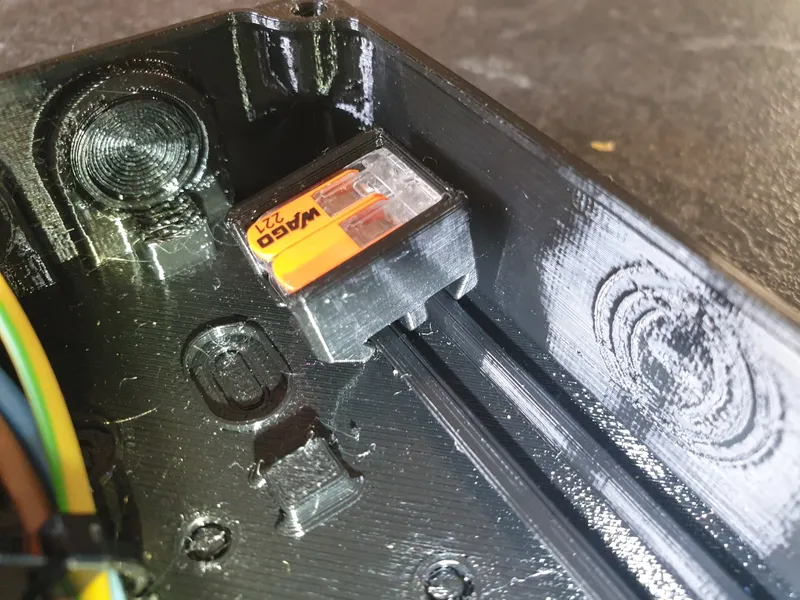

Clip different WAGO Inserts in a rail:

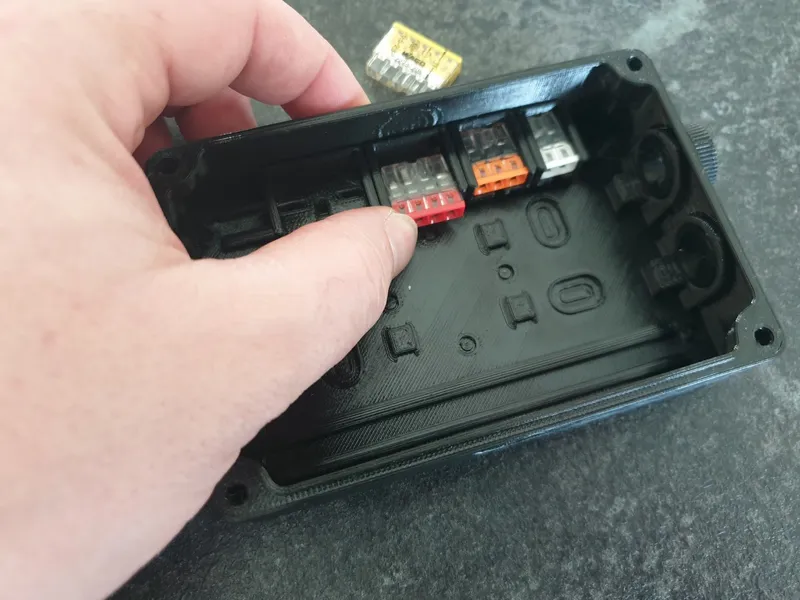

To mount the Wago inserts, they are clipped onto the rail. The Wago terminals can also be clipped in before or afterwards.

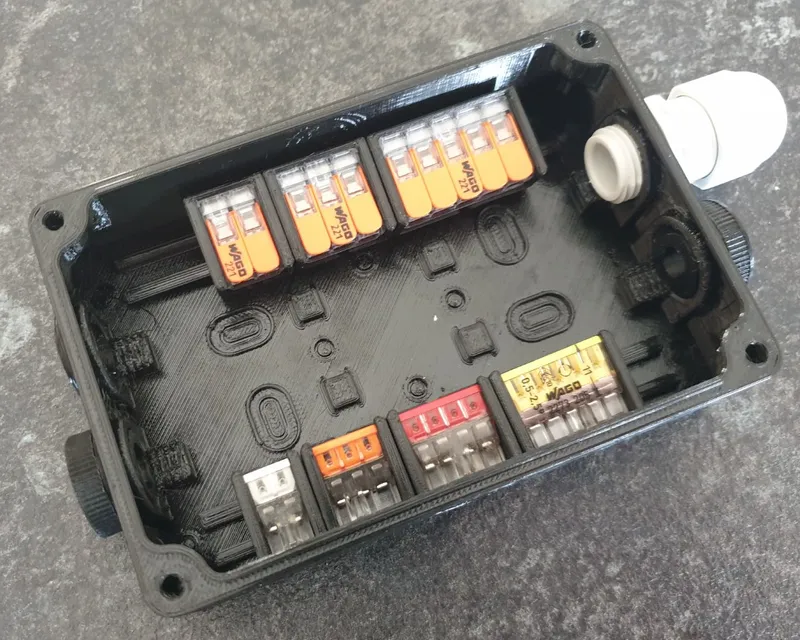

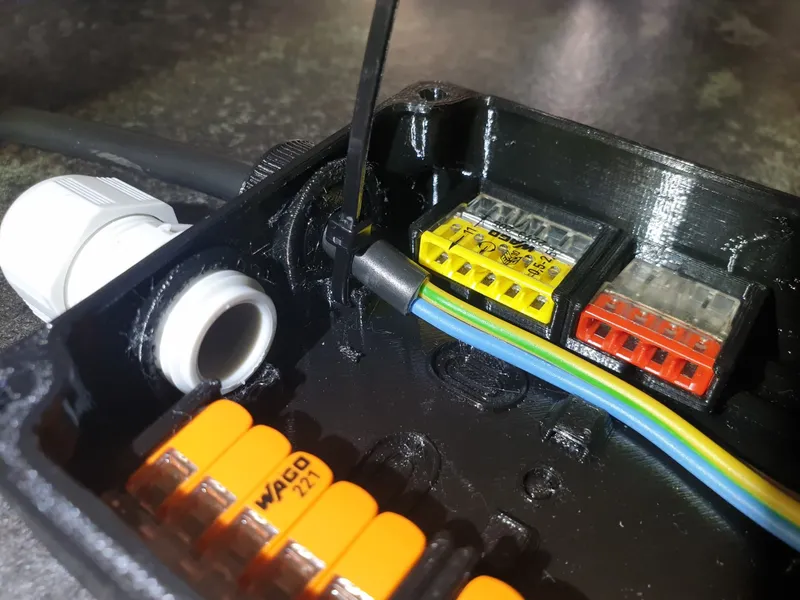

Add various cable glands and accessories:

Inserts:

• WAGO 2273-202
• WAGO 2273-203
• WAGO 2273-204
• WAGO 2273-205
• WAGO 221-412
• WAGO 221-413
• WAGO 221-415

Choose your lid:

• Lid 80x60, with screws
• Lid 80x80, with screws
• Lid 120x80, with screws
• Lid 120x120, with screws
• Lid 80x60, clip on
• Lid 80x80, clip on
• Lid 120x80, clip on
• Lid 120x120, clip on

Example: Lid 80x60, with screws
Example: Lid 80x60, clip on

Box Variants 80x80:

Box Variants 120x80:

Box Variants 80x60:

Box Variants 120x120:

Print Settings:

• See the different examples in download section, especially for orientation
• I used PETG, PLA will work too
• 0,2mm layer heigt
• 0,4mm nozzle
• 15% infill
• no supports needed

Miscellaneous:

• Electrical work may only be carried out by trained electricians.
• Does not represent a certified junction box according to VDE or similar standards.
• Use at your own risk.
