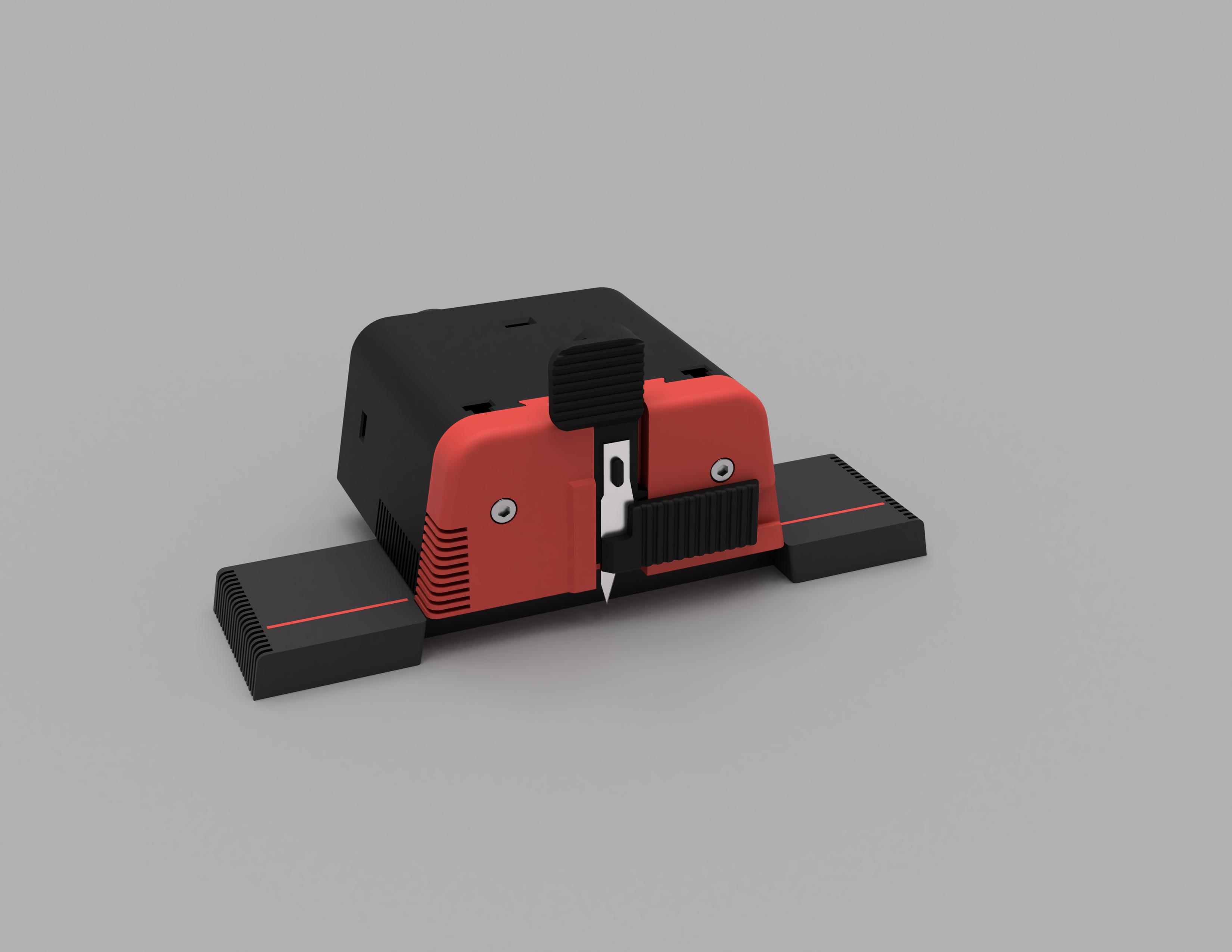

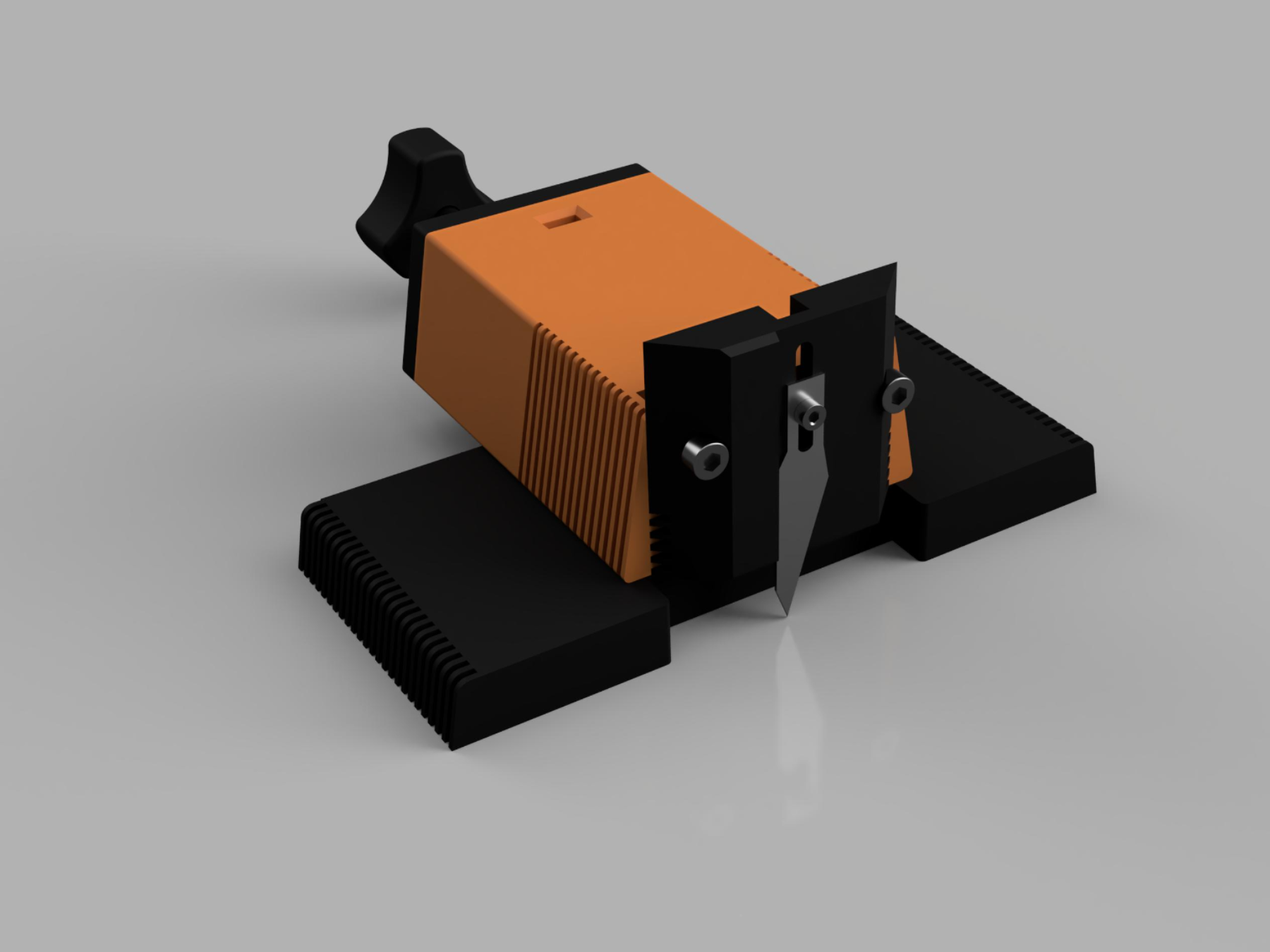

Hi! I designed this balsa stripper to cut materials precisely. You can cut 20 mm in width and slide the blade to cut different thicknesses.
Check the file here: [https://a360.co/4bw1ixy](https://a360.co/4bw1ixy)
BOM:
2 x Socket Head Screw M3 x 0.5 mm Thread Size, 10 mm Long
3 x Socket Head Screw M3 x 0.5 mm Thread Size, 12 mm Long
5 x Hex Nut M3 x 0.5 mm Thread Size
1 x Hex Nut M2.5 x 0.45 mm Thread Size
1 x Hex Nut M5 x 0.8 mm Thread Size
1 x Nylon-Insert Locknut M5 x 0.8 mm Thread, 8 mm Wide, 5 mm High
1 x Hex Head Screw, M5 x 0.8 mm Thread, 80-100 mm Long
Check here the bigger version: [https://a360.co/4tugFfM](https://a360.co/4tugFfM)
2 x Socket Head Screw M3 x 0.5 mm Thread Size, 12 mm Long
3 x Socket Head Screw M3 x 0.5 mm Thread Size, 16 mm Long
5 x Hex Nut M3 x 0.5 mm Thread Size
1 x Hex Nut M2.5 x 0.45 mm Thread Size
1 x Hex Nut M5 x 0.8 mm Thread Size
1 x Nylon-Insert Locknut M5 x 0.8 mm Thread, 8 mm Wide, 5 mm High
1 x Hex Head Screw, M5 x 0.8 mm Thread, 80-100 mm Long
Assembly instructions
