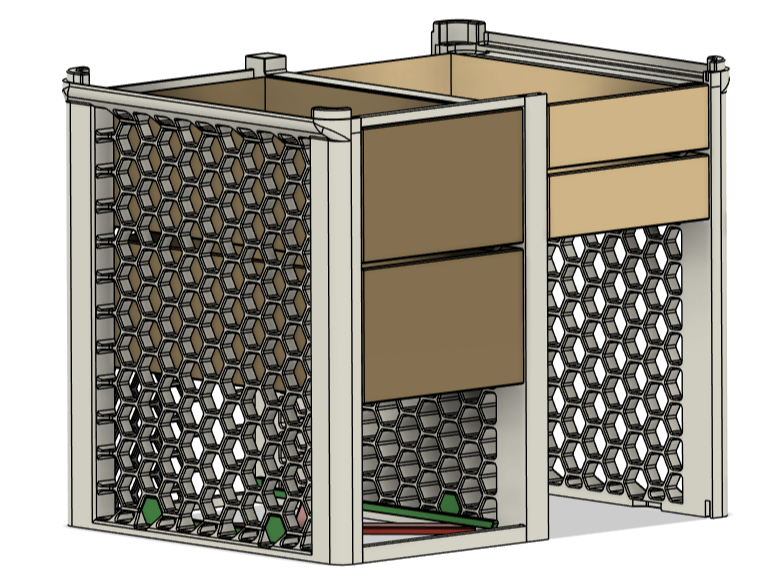

🔧 AMS STAND Series

Modular drawer stand for Bambu Lab AMS 2 Pro

Redesigned from the original concept by PS11-Print to improve rigidity and modularity.

⚠️ Compatibility

✔ AMS 2 Pro
❌ AMS 1

🧱 Concept

A modular stand designed to:

• support the AMS
• add storage drawers
• adjust the stand height
• expand the system using ADD modules

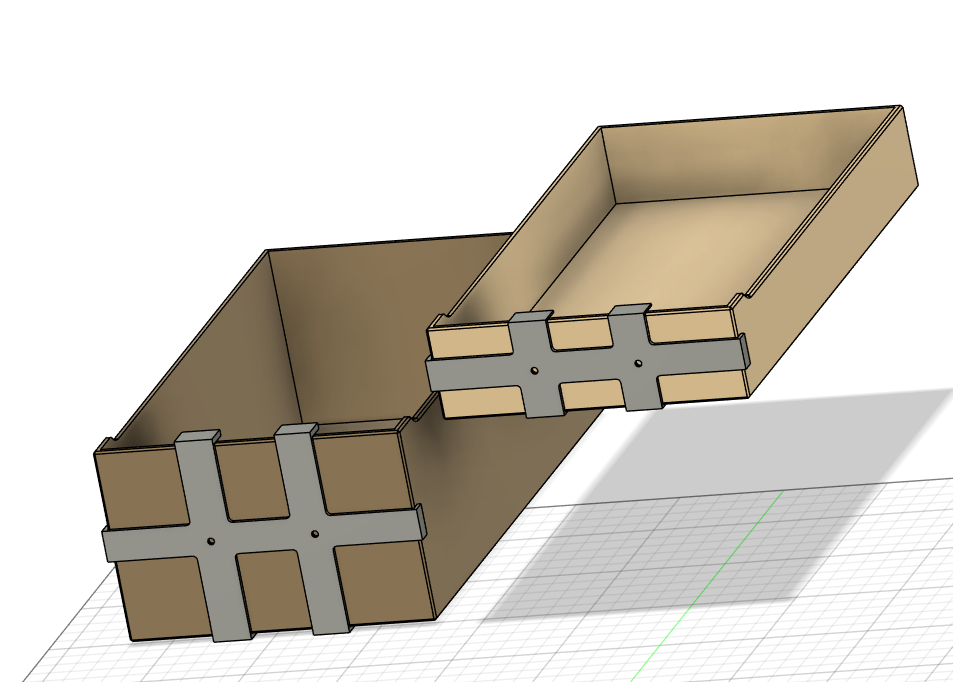

🗄️ Drawers

Columns use vertical slots:

• Standard drawer → 1 slot
• Large drawer → 2 slots

Drawers can be freely combined within the available slots.

📦 Versions

LITE
4 slots — compact

PLUS
8 slots — balanced storage and size.

MAX
12 slots — maximum storage capacity.


🧩 Modularity

Two types of modules:

AMS STAND
Main support for the AMS.

ADD modules
Extensions placed underneath to increase height and storage capacity.

Available versions: ADD LITE and ADD PLUS.

🧢 Top Cover

Allows finishing a stack of modules or creating a drawer cabinet without AMS.

🛠️ Printing

Recommended settings:

• 3 perimeters
• 10–15% gyroid infill
• PLA or PETG
• minimal supports

📌 Notes

• each drawer requires its own slides
• plan the drawer layout before printing
• gluing modules is recommended for maximum rigidity

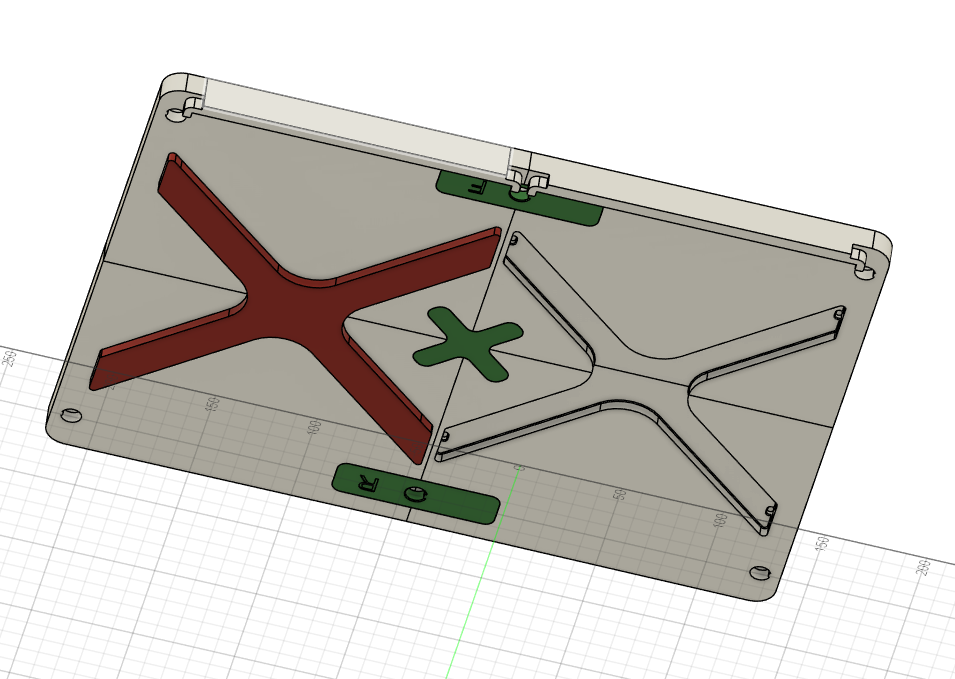

• use the drill template for installing handles
