Have you ever had a friend for so long, that your common interests that brought you together in the first place started to vanish and after that you are not really the same. Then some day you finish a game knowing it is the last thing keeping yourselves from drifting apart. That was “Room 3” to me. That's why I decided to design one of its assets as a memorial.

Assembly

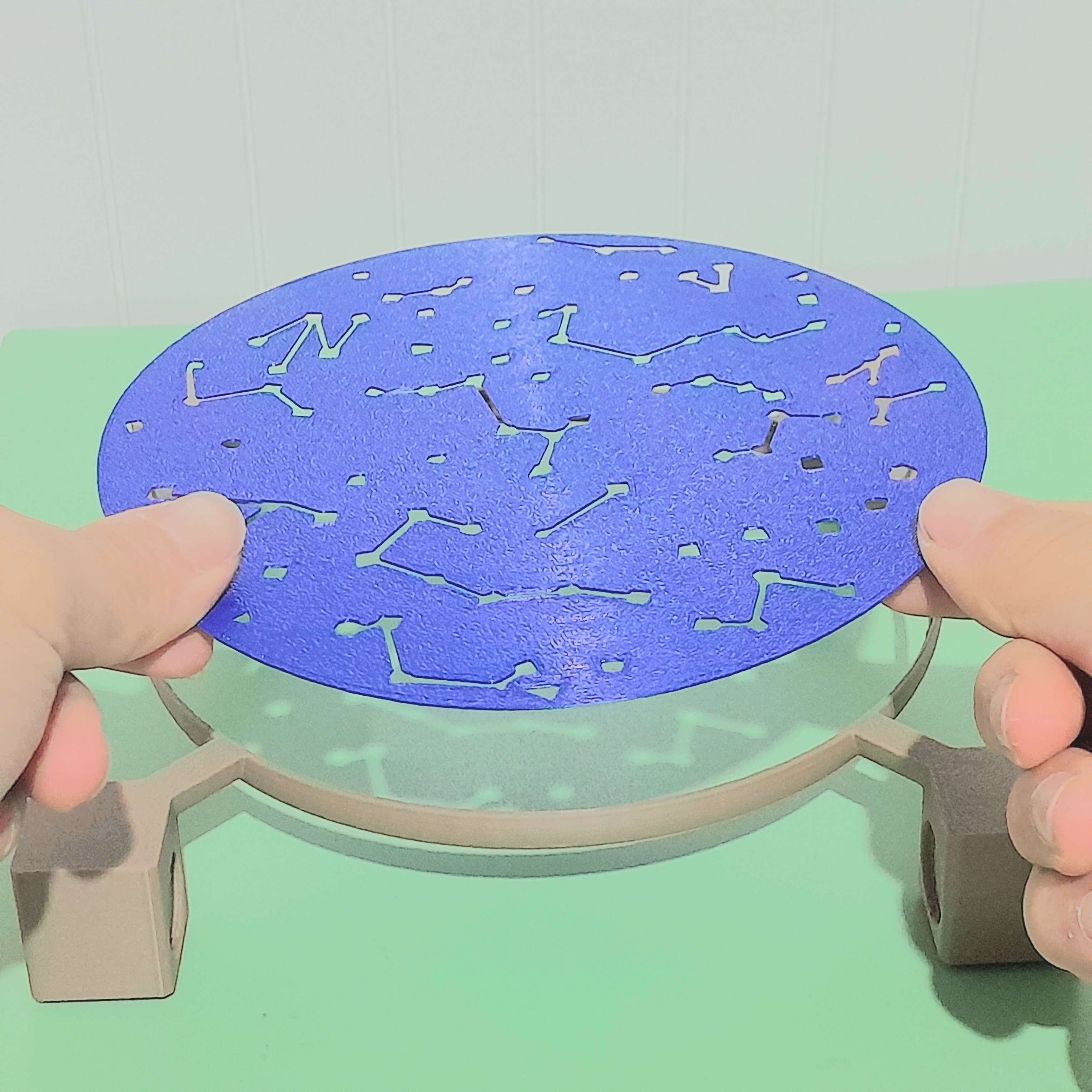

1. Put the blue disc inside of the brown frame from below. Make sure that during The final stage face with the archimedian curve is facing up.

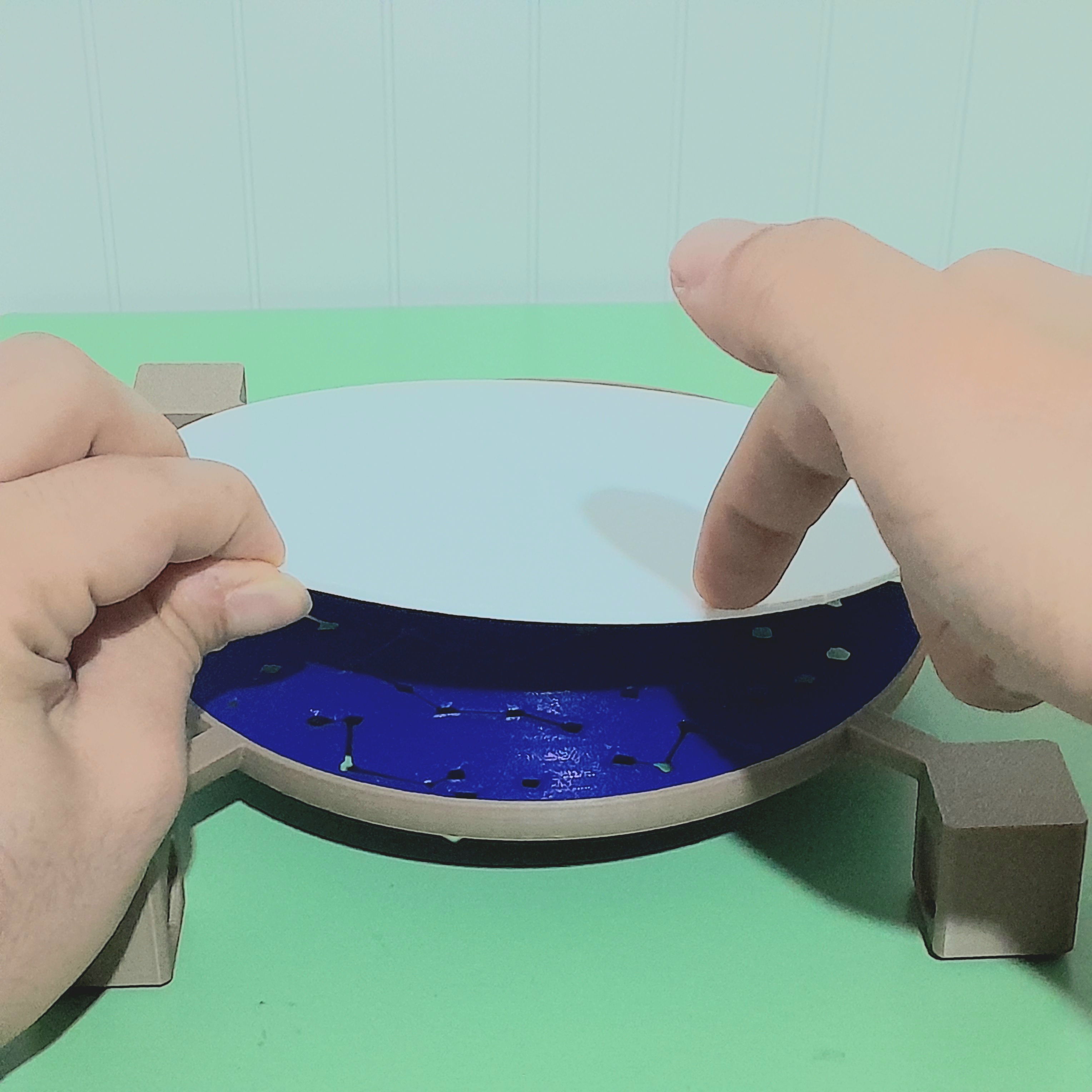

   2. Use the white disc to cover the back. There are 5 dents on the disc and 5 indents on the frame as guides.

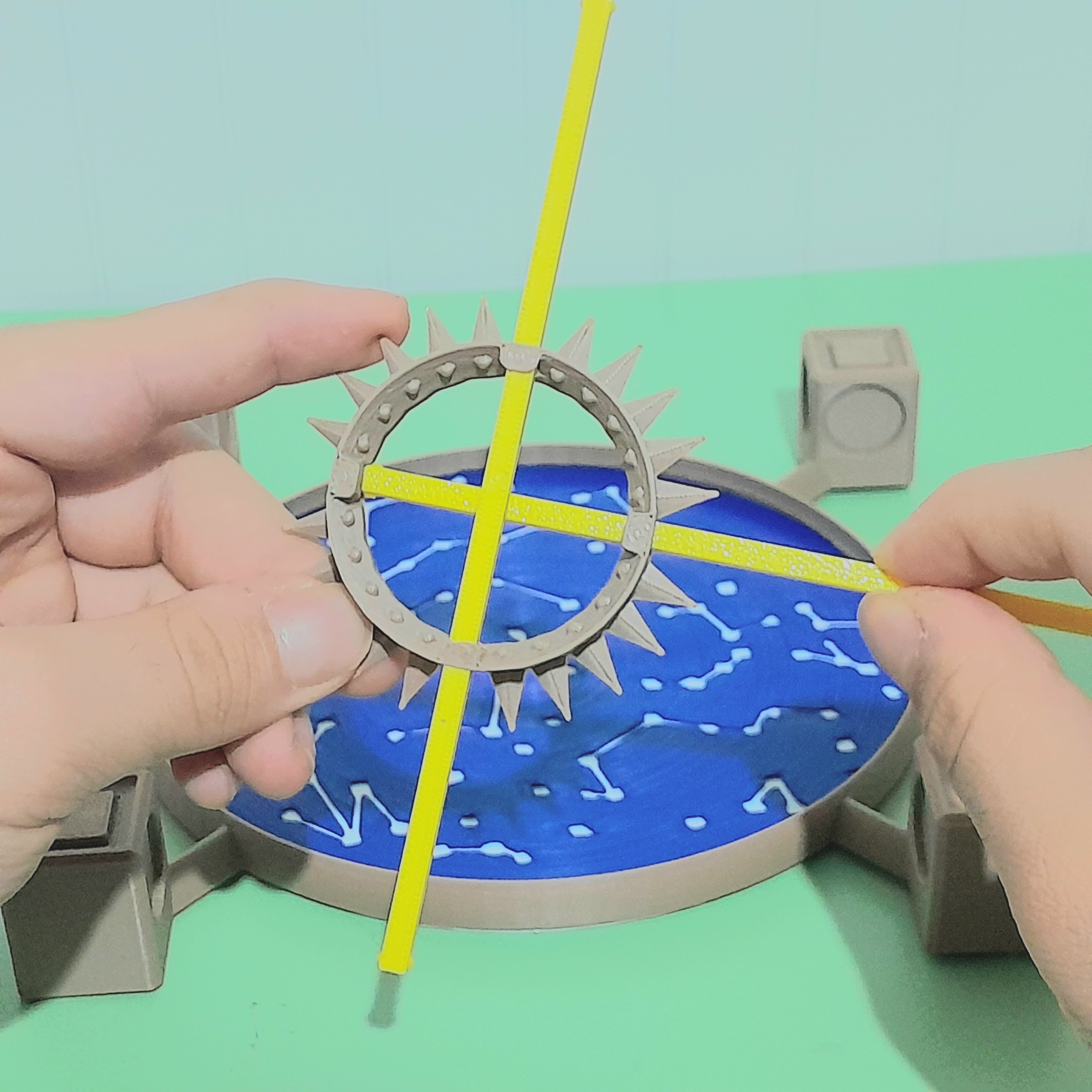

   3. The brown circle has two openings perpendicular to eachother. Pile the beams through each hole until the circle is between the two ends. Dented sides should be perpendicular to the bootom of the circle.

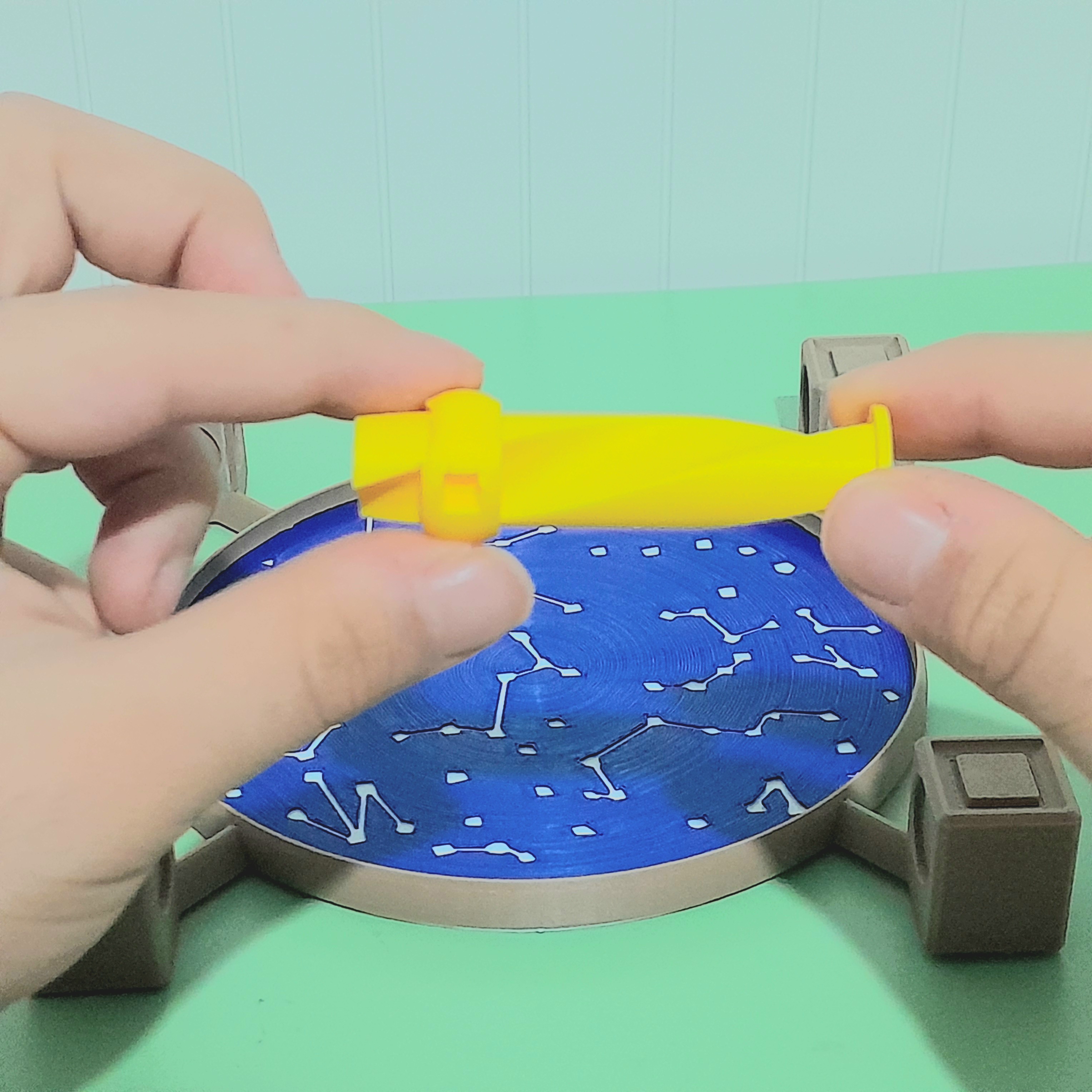

   4. Take one yellow ring and slide it into a yellow swirl. Repeat this step 4 times. (Top sides of the rings may come loose and stringy. Cut those parts with a filament cutter for smooth movement)

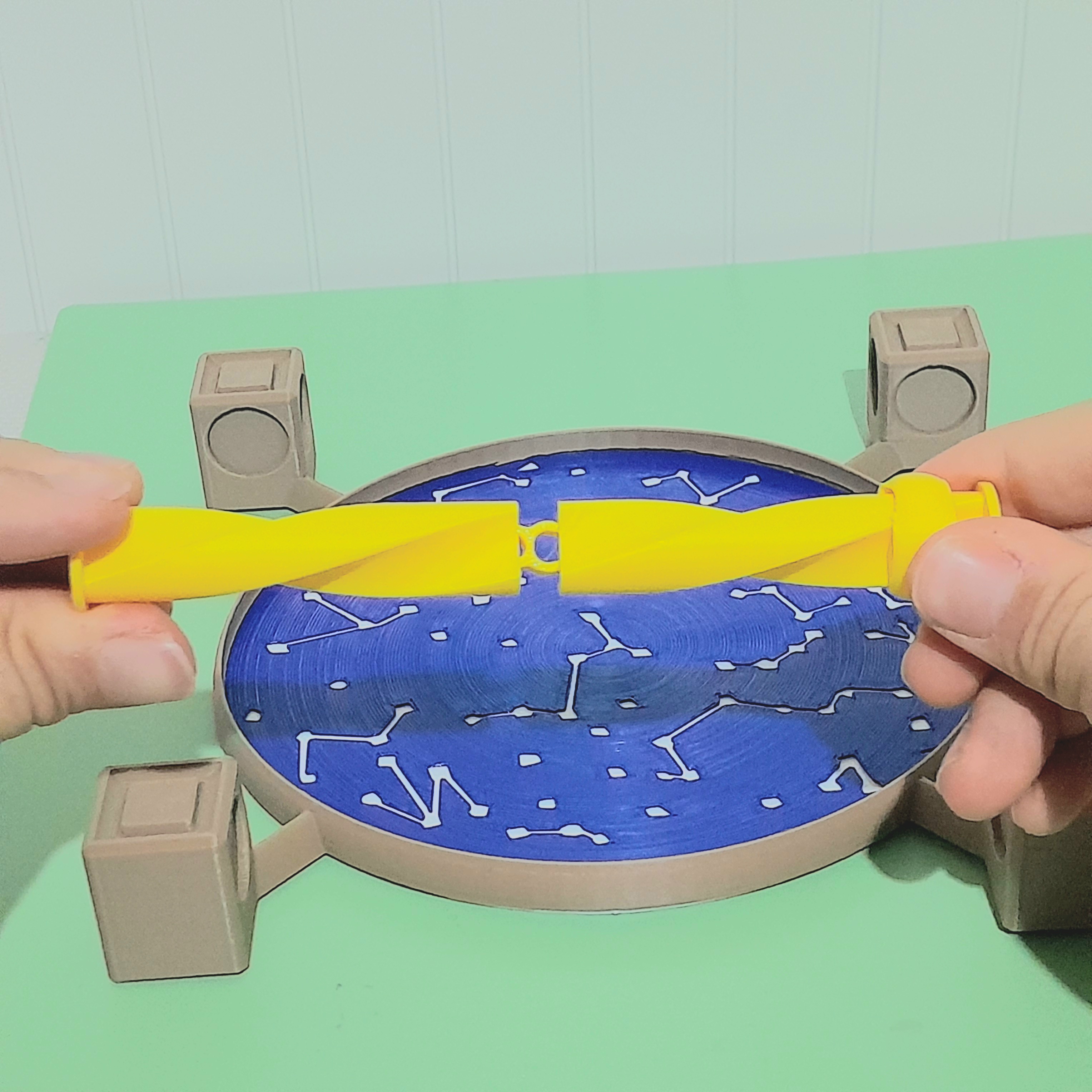

   5. Connect an empty swirl and a swirl w/ a ring in it, with a yellow clip. Repeat this step 4 times.

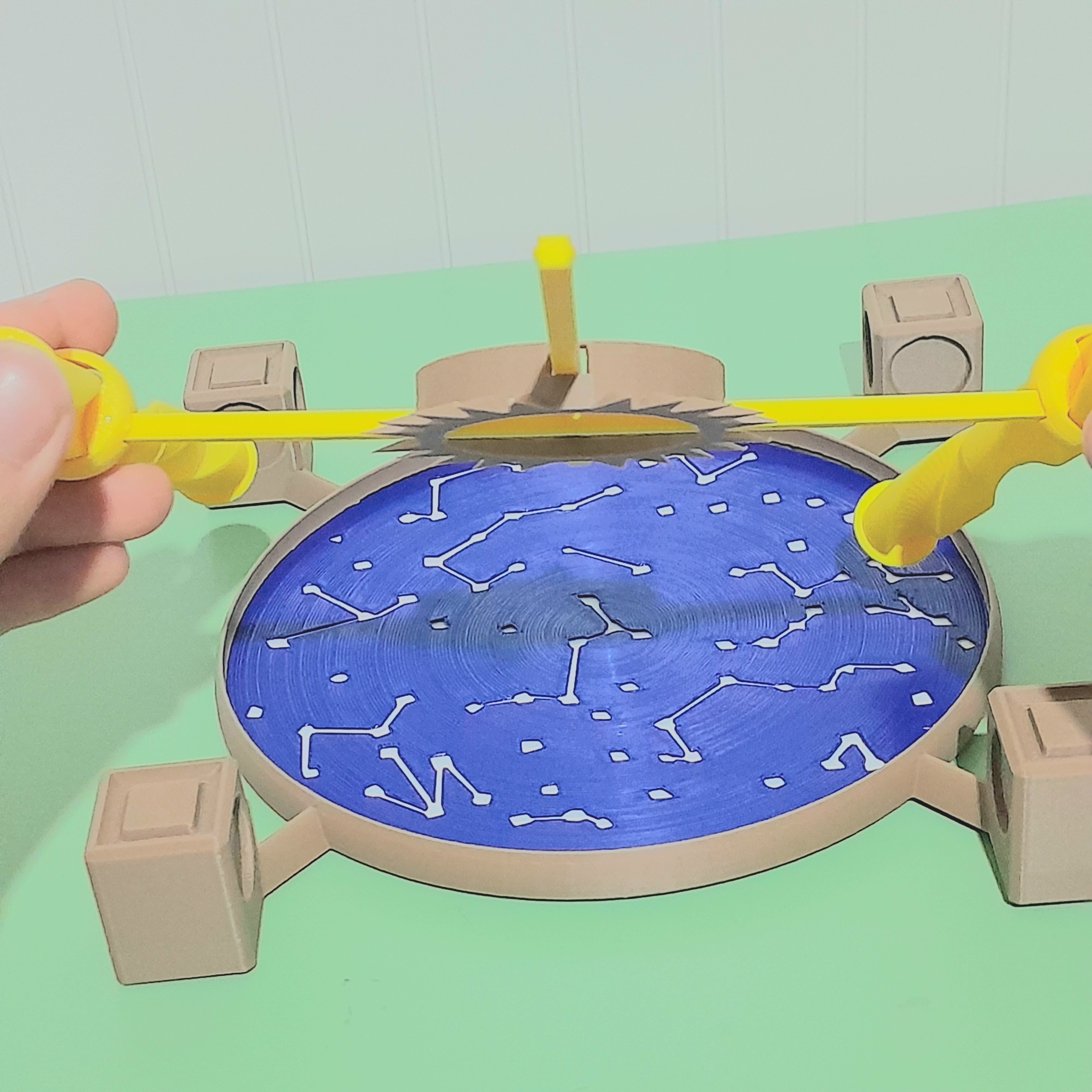

   6. Clip two rings to the bottom beam, in a way that puts the beam in the lower half of the ring.



   7. Clip two more rings to the top beam, in a way that puts the beam in the upper half of the ring.

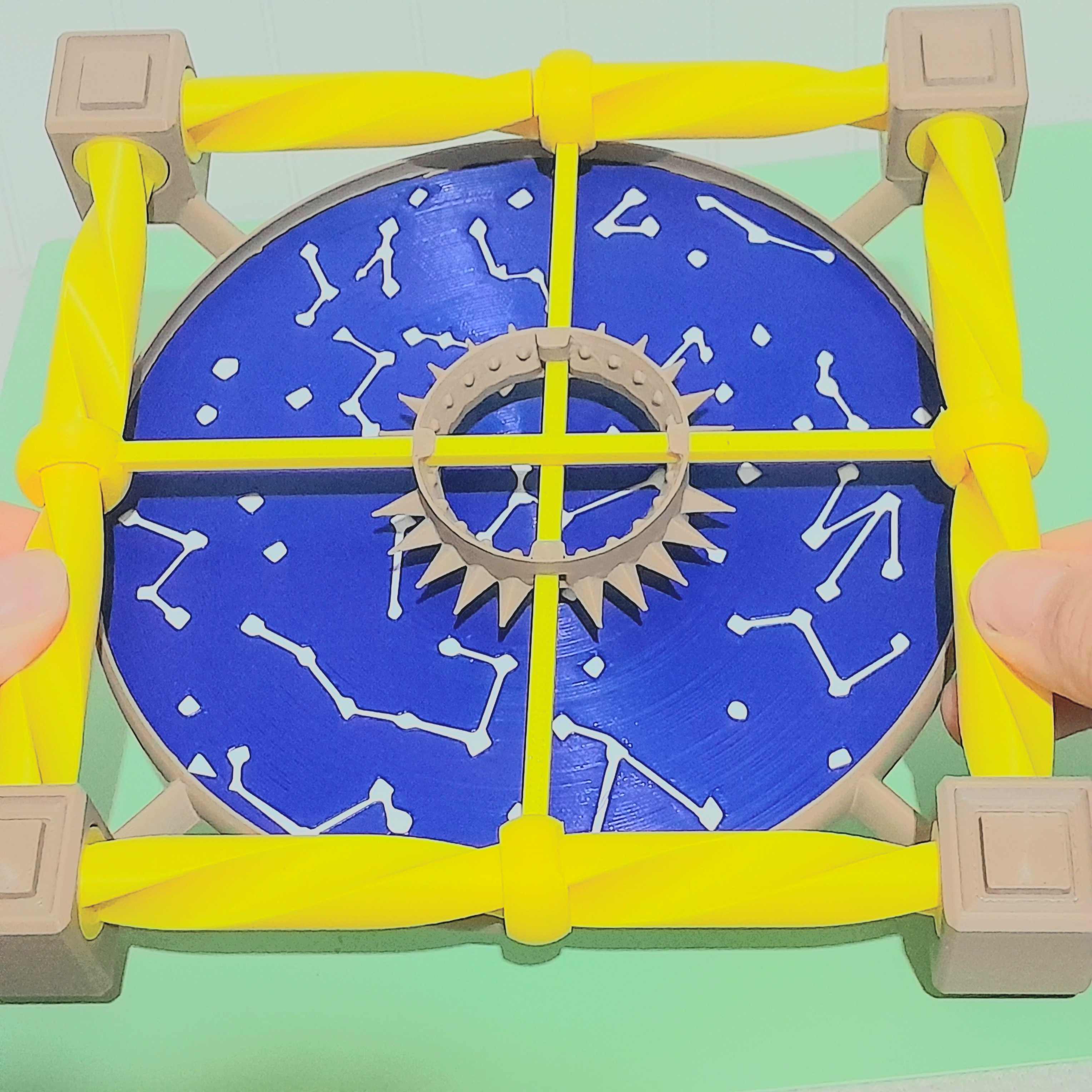

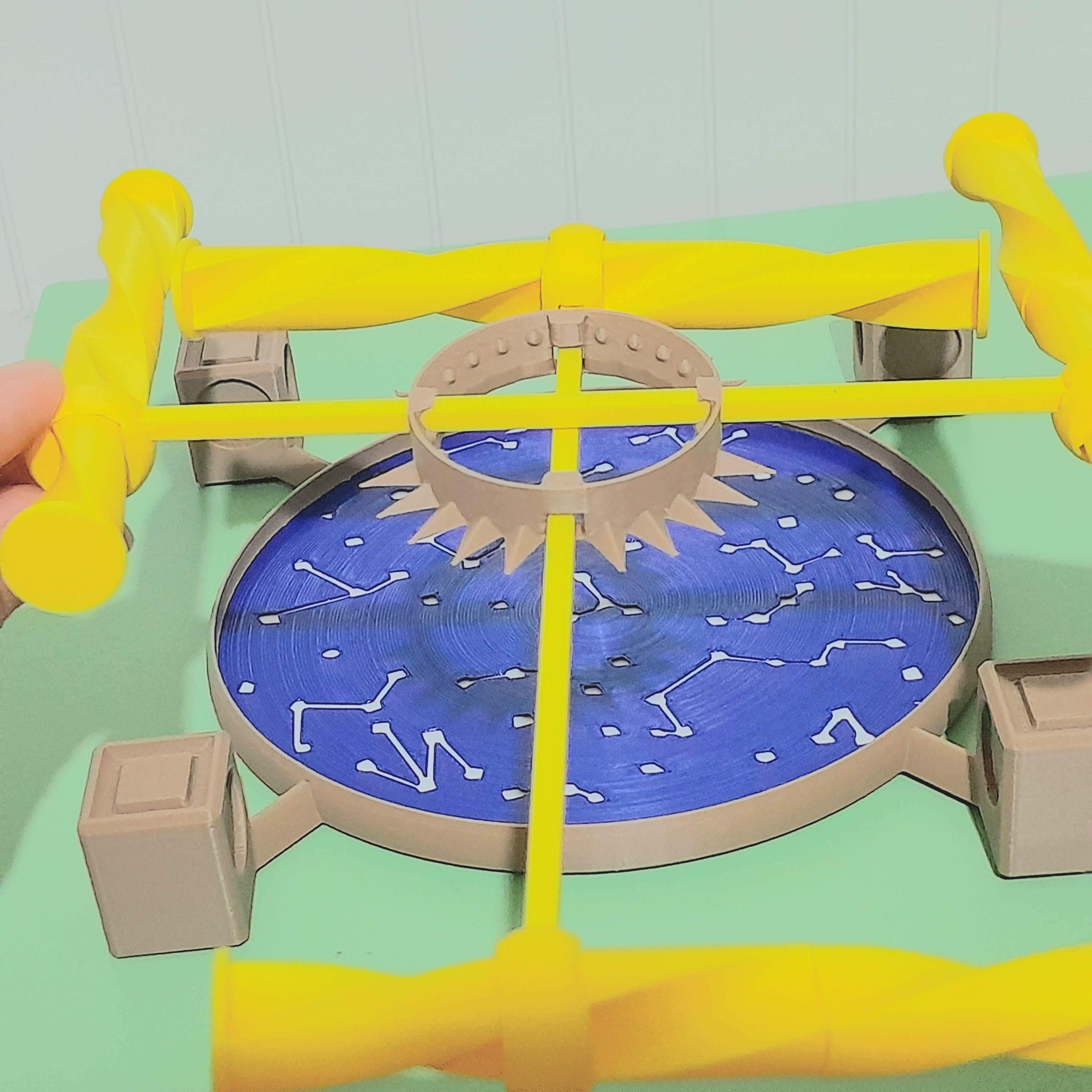

   8. Assemble the two sections. The frame should have enough flex for it to be quite easy.

Printing Guide

Recommended colors: Dark blue, white, yellow, brown

gyroid%5

Top surface: Archimedian curve

Bottom surface: Archimedian curve

Also try to merge the same parts and select “print by object” instead of “print by layer”.
