Generate a custom picture frame with optional screw hangers.

The print includes depth-configurable clips in the back to hold either just the picture, or a full glass + backplate enclosure.

If you do need a backplate, I got you covered: Parametric honeycomb panel with optional supports.

Instructions

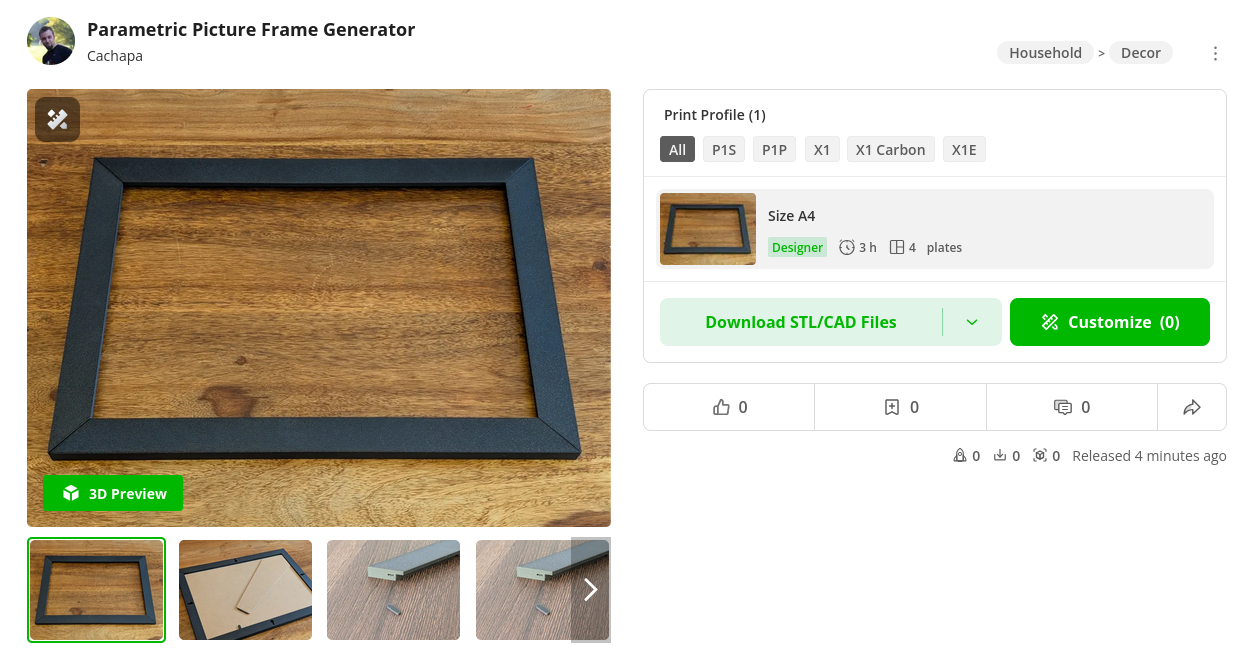

Tap the “Customize” button above:

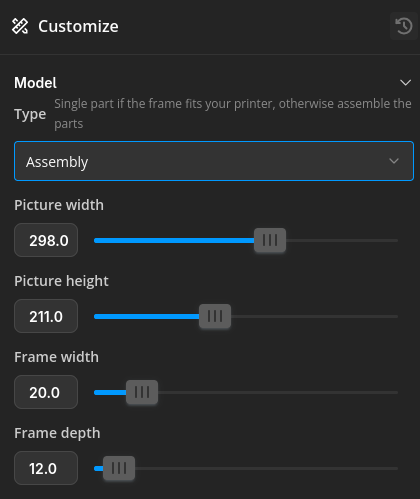

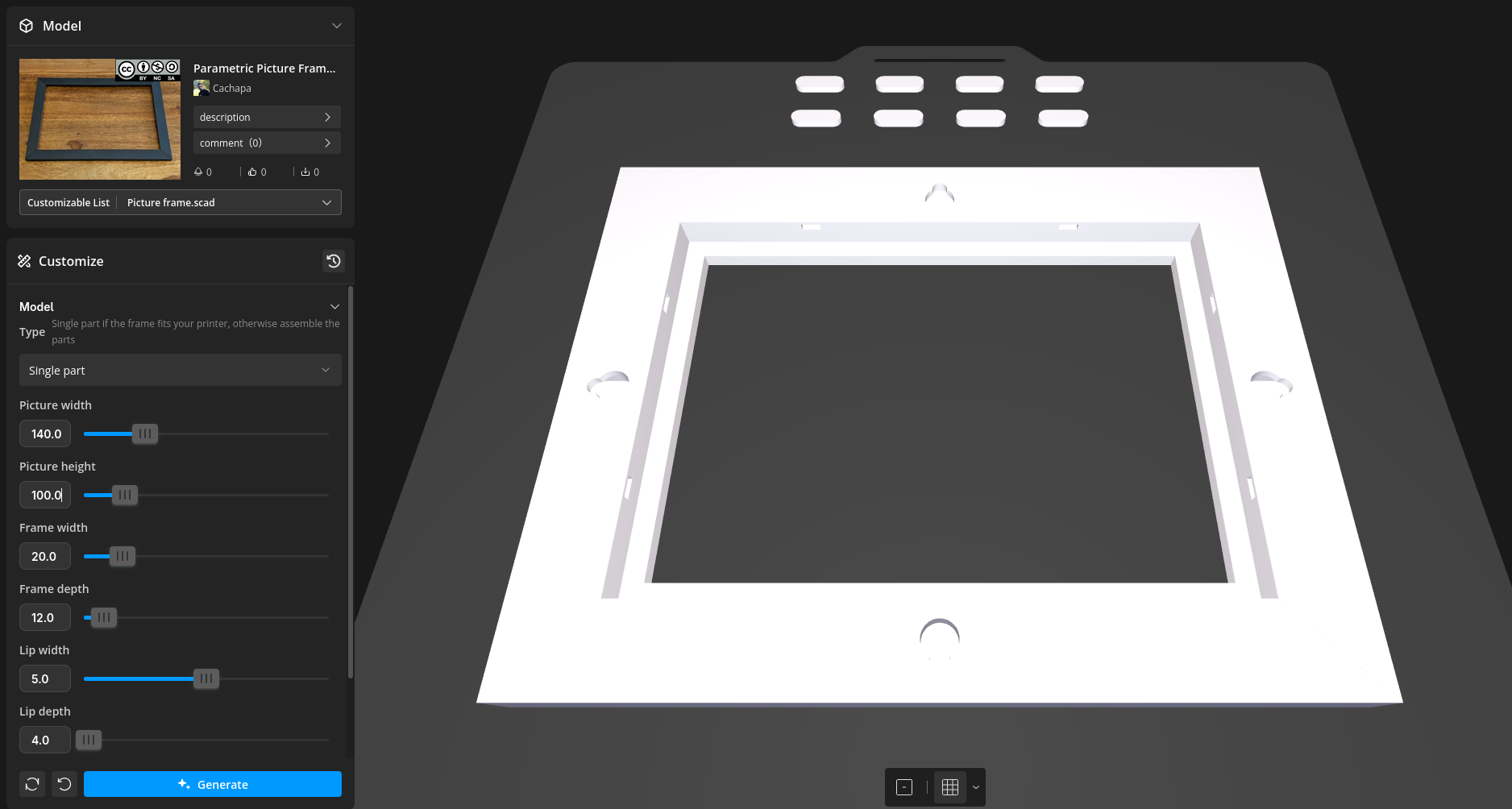

Play around with the settings on the left side to your preference:

Printing

If your frame fits your printer simply print it in one part by selecting the Single part option:

Assembly for large frames

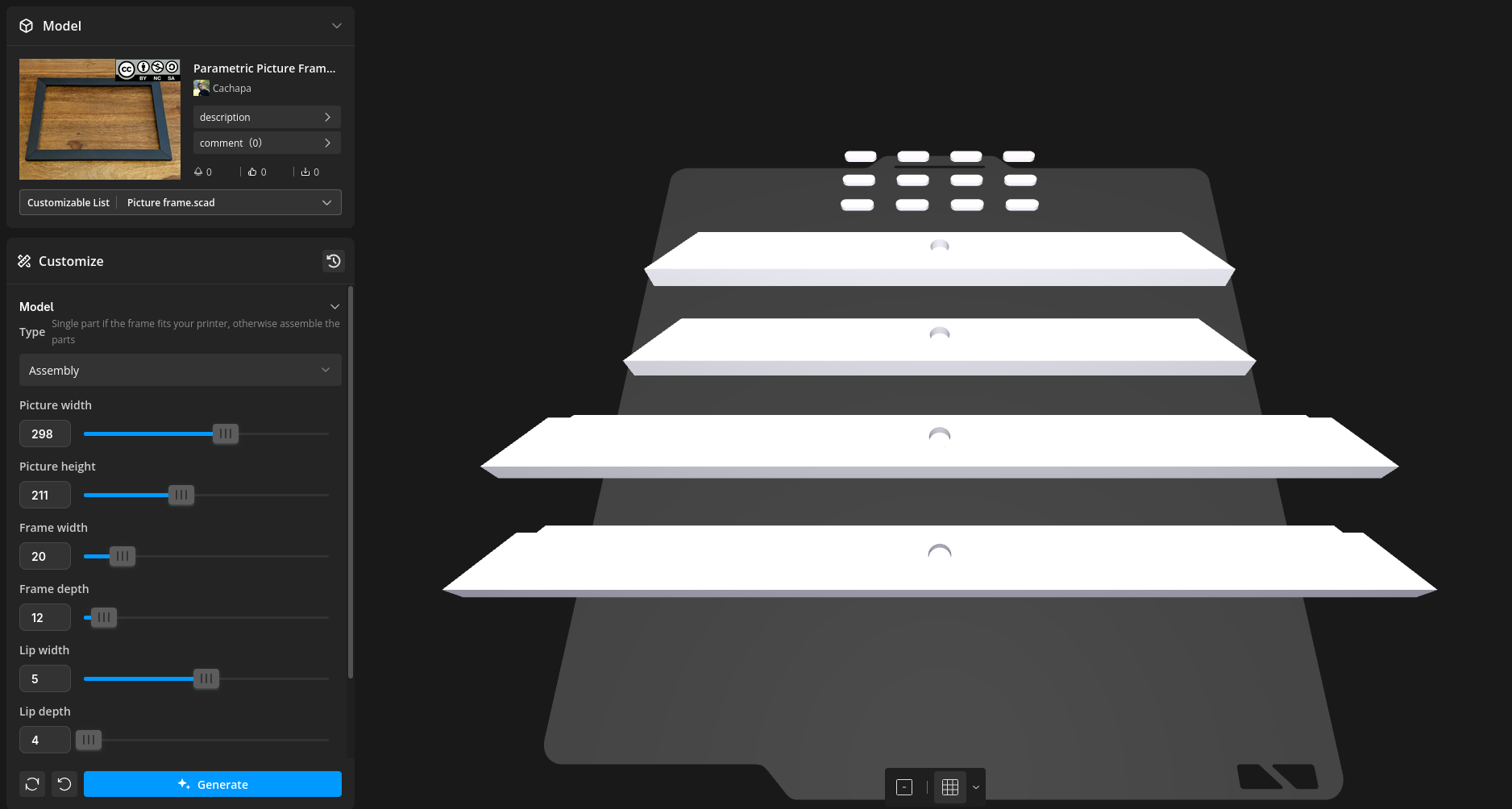

If your frame is too large to fit your printer, you can generate an Assembly model:

This will allow printing up to ~30cm frame sides on a standard 256x256mm printer bed which allows for A4 paper sizes.

Larger frames may be possible by angling the frame vertically though this would require a lot of support generation.

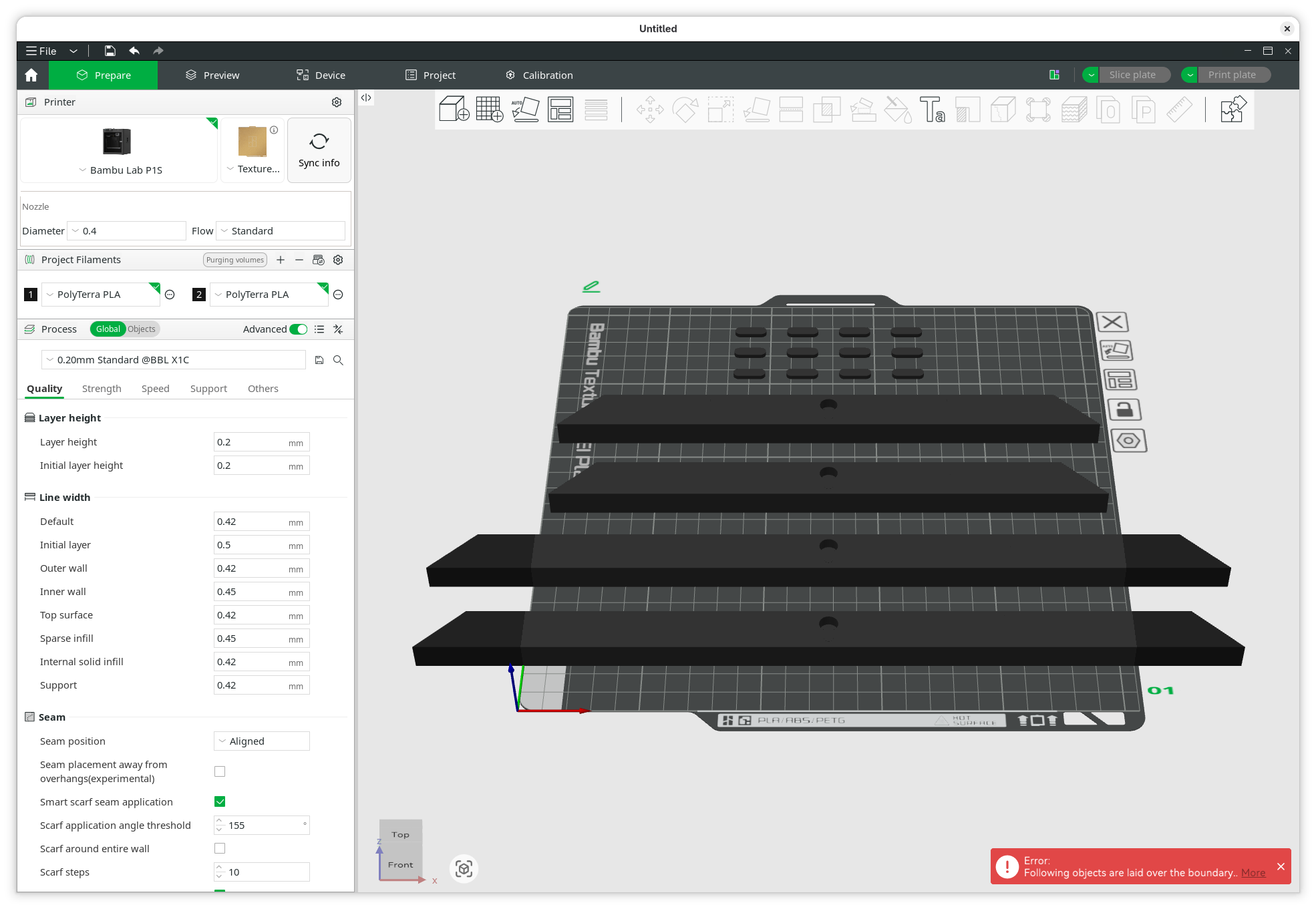

Once you have generated the model, import it into Bambu Studio:

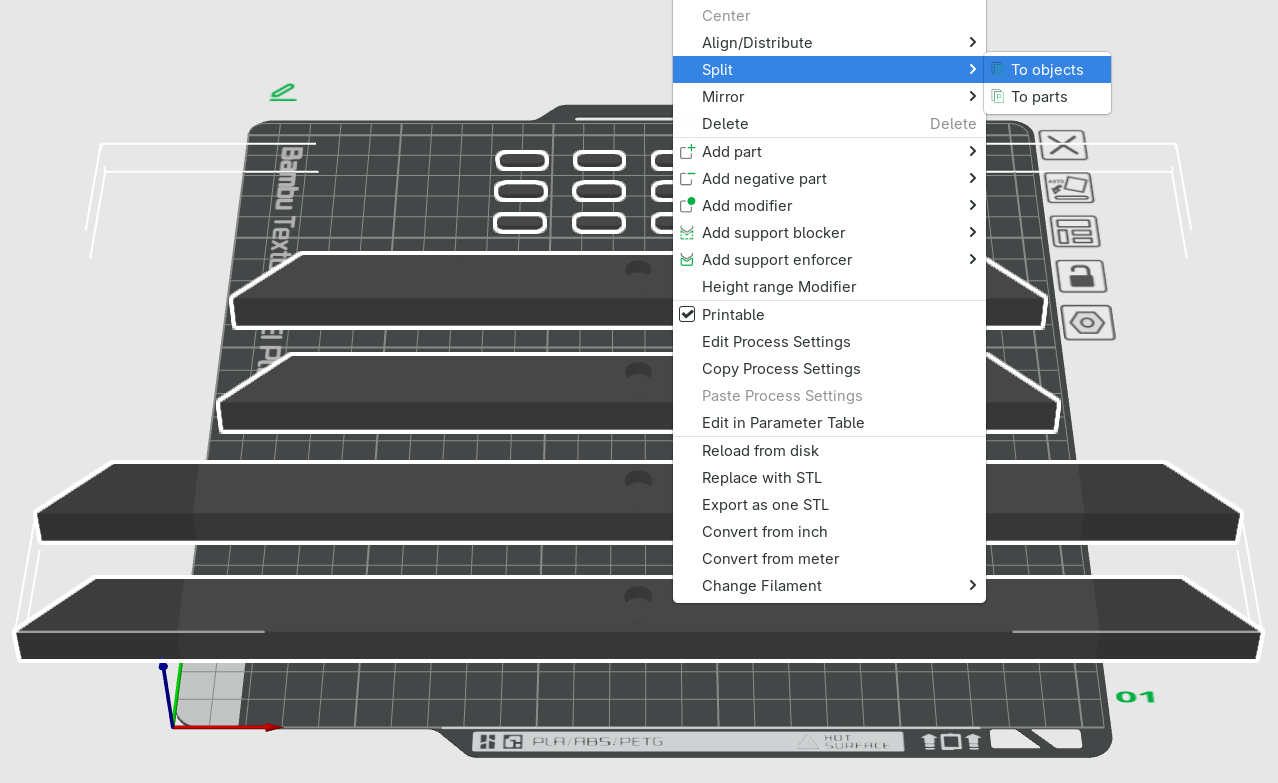

Right-click the model to split it into objects:

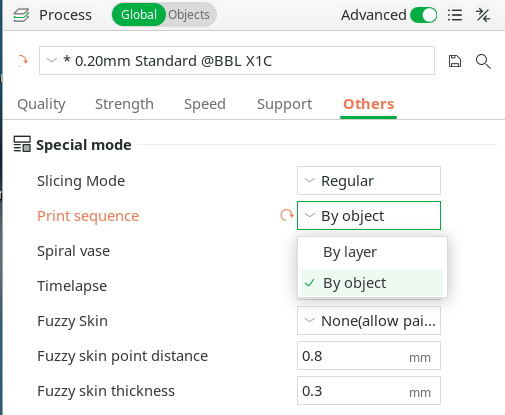

Optional: on the left side select Print sequence → By object to avoid the printer head moving between parts:

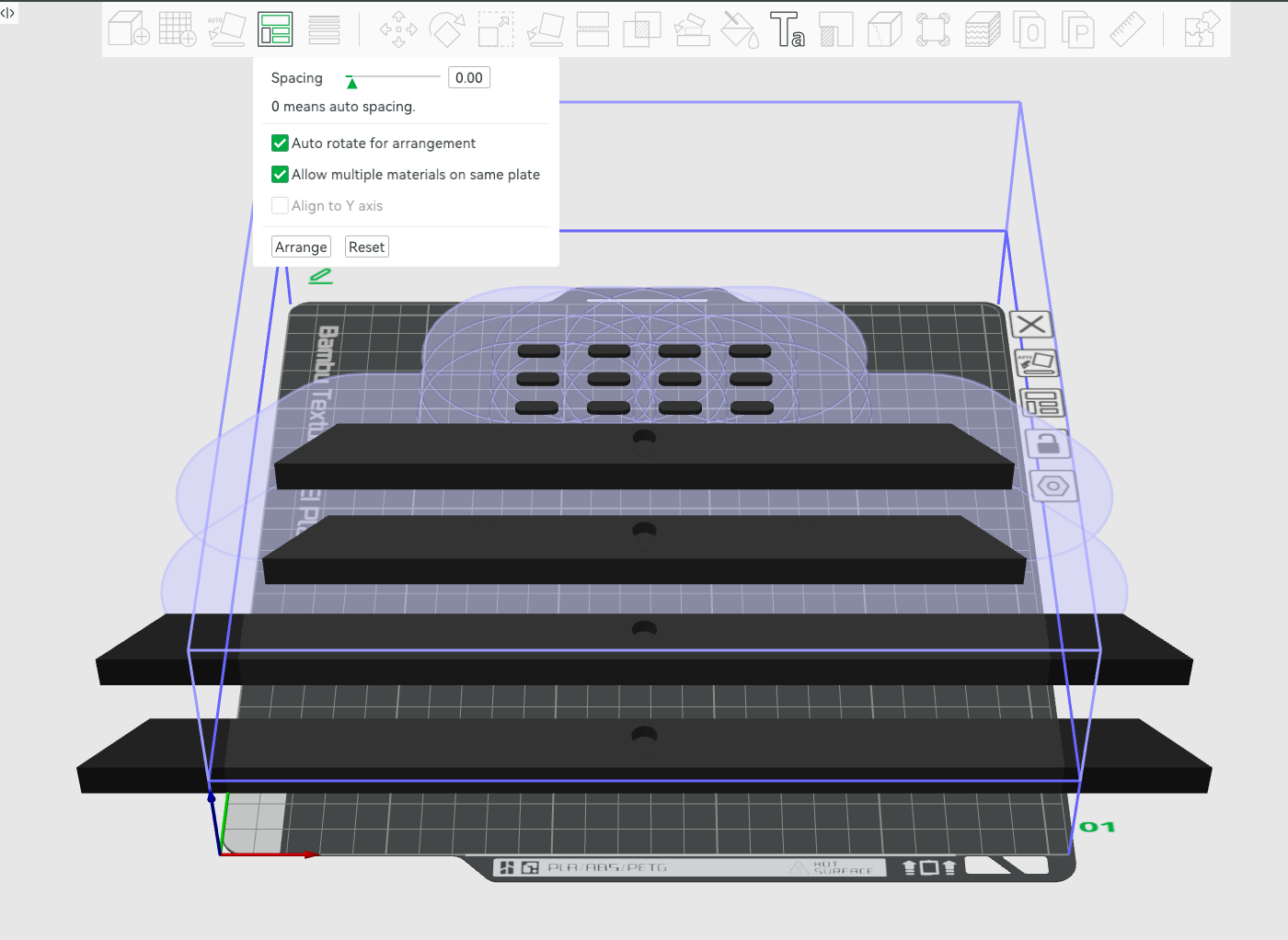

Use the Arrange objects tool to auto-fit all parts in your build plates.

Make sure to select the “Auto rotate” option:

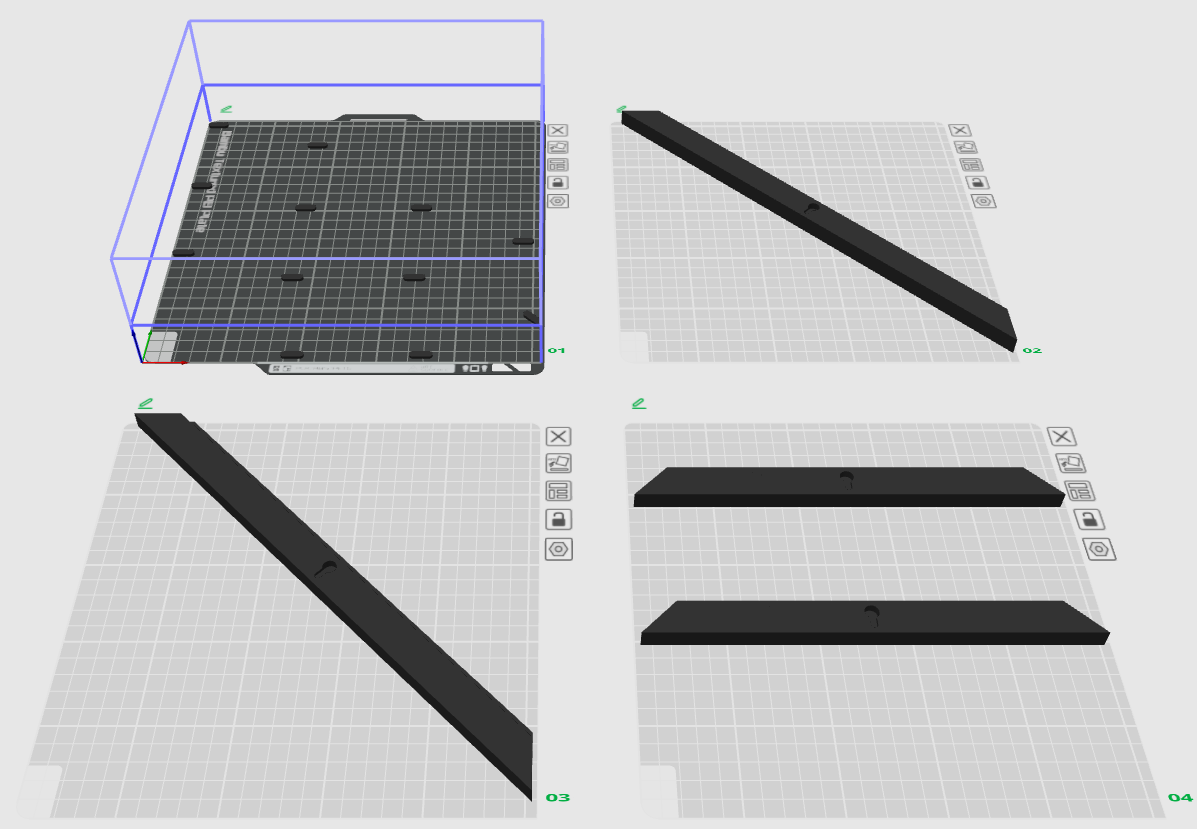

If this works correctly you should get all your parts neatly organized in separate plates:

Assembly

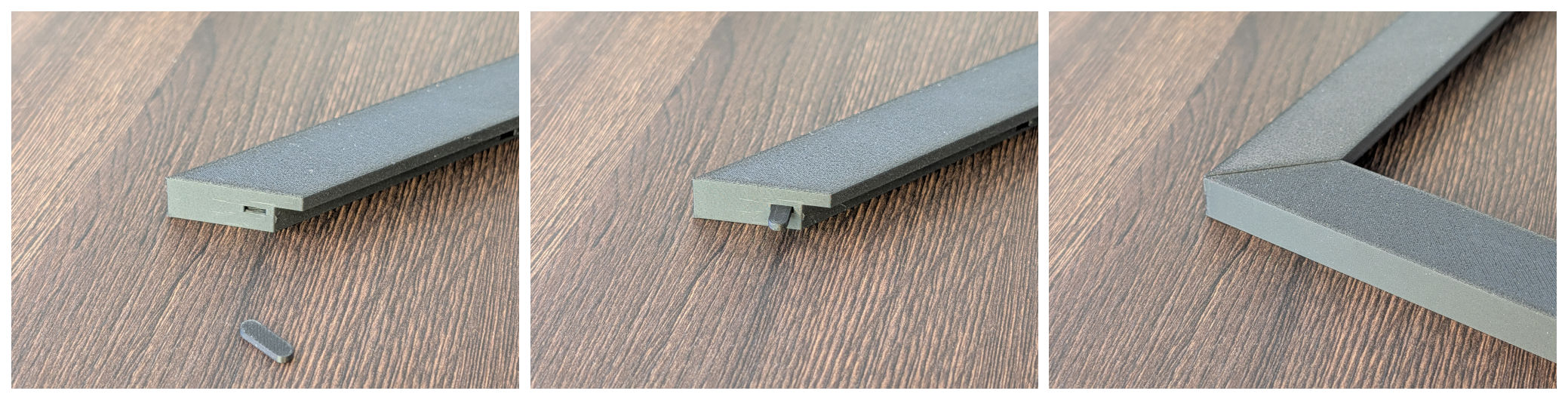

Once printed, you can use the included clips to align the parts together at the corners. Glue may be necessary if it's a loose fit.

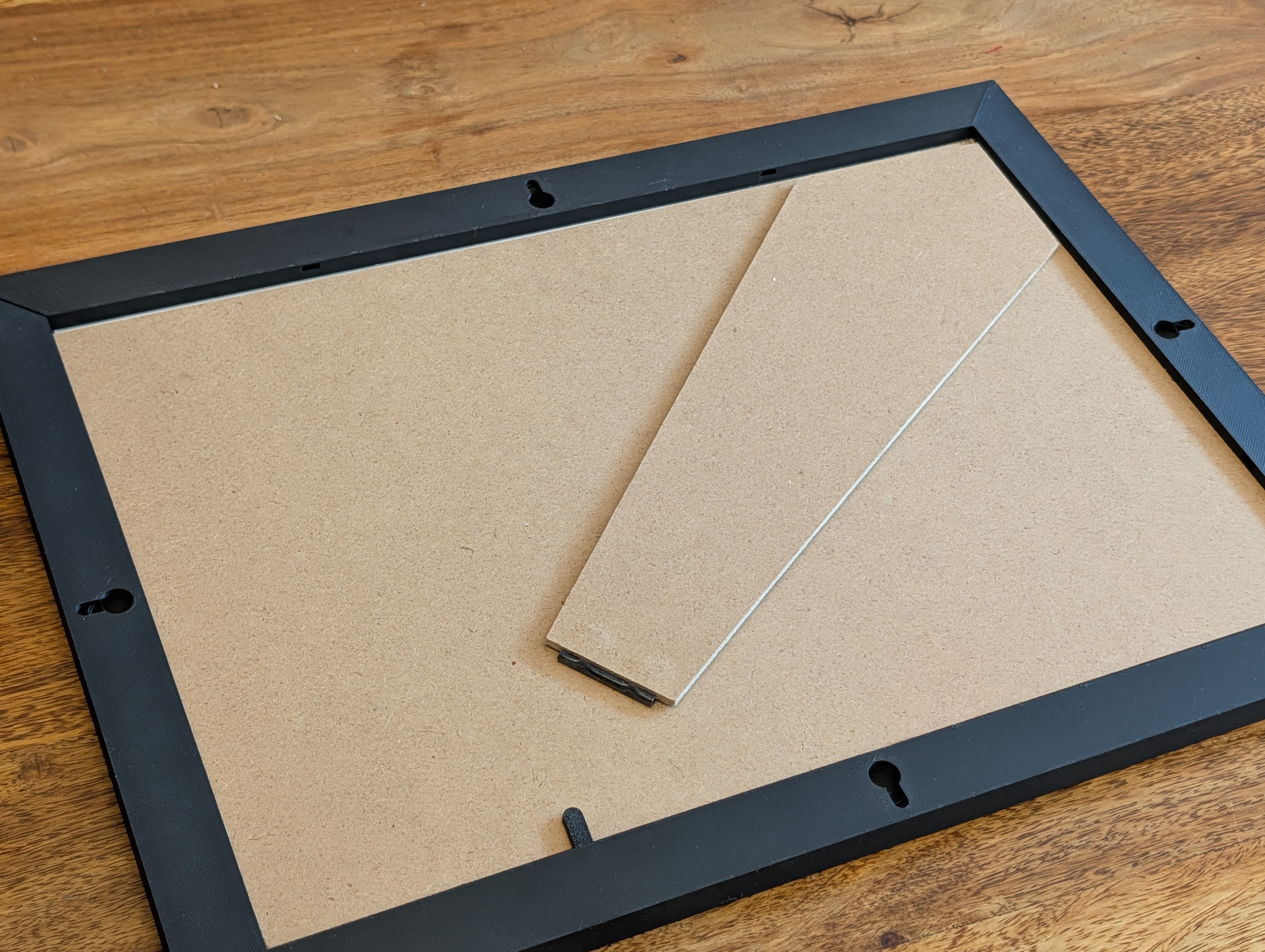

Then simply drop your picture in the frame and use the leftover clips to hold it in place:
