Modelo 3D Composable Trophy – Modular Award System por ALoR no MakerWorld

Descrição

Design your own award with this fully composable trophy system.

Each part is printed separately and then assembled, so you can mix stems, cups and plaques to create the perfect combination for your event.



Perfect for sports events, running races, gaming tournaments, school competitions, or any custom award ceremony.



Print, compose, celebrate. 🏆

Dimensions

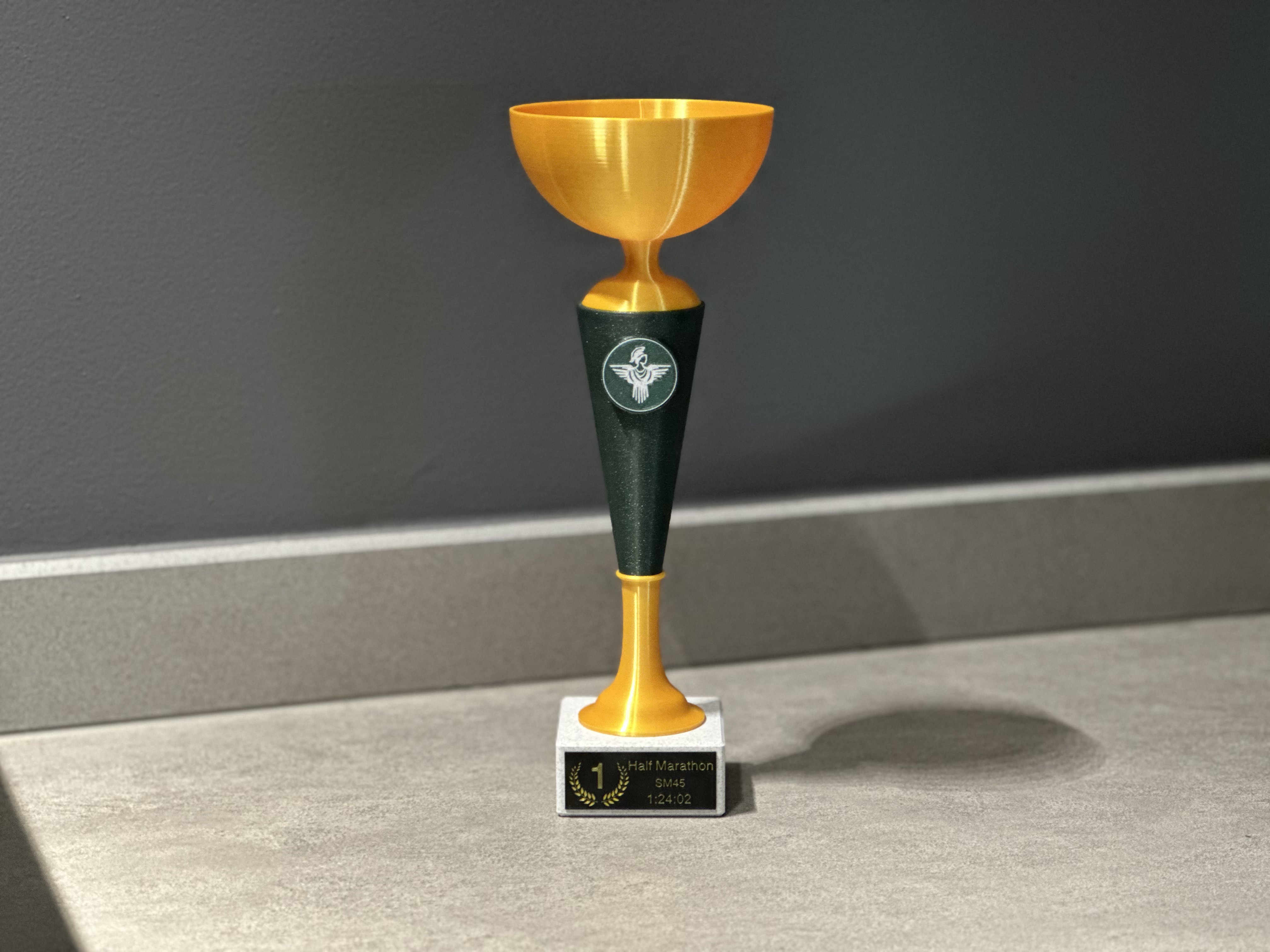

  • 🥇 1st place: 27 cm tall (taller than most standard print volumes — designed to be printed in modular sections)

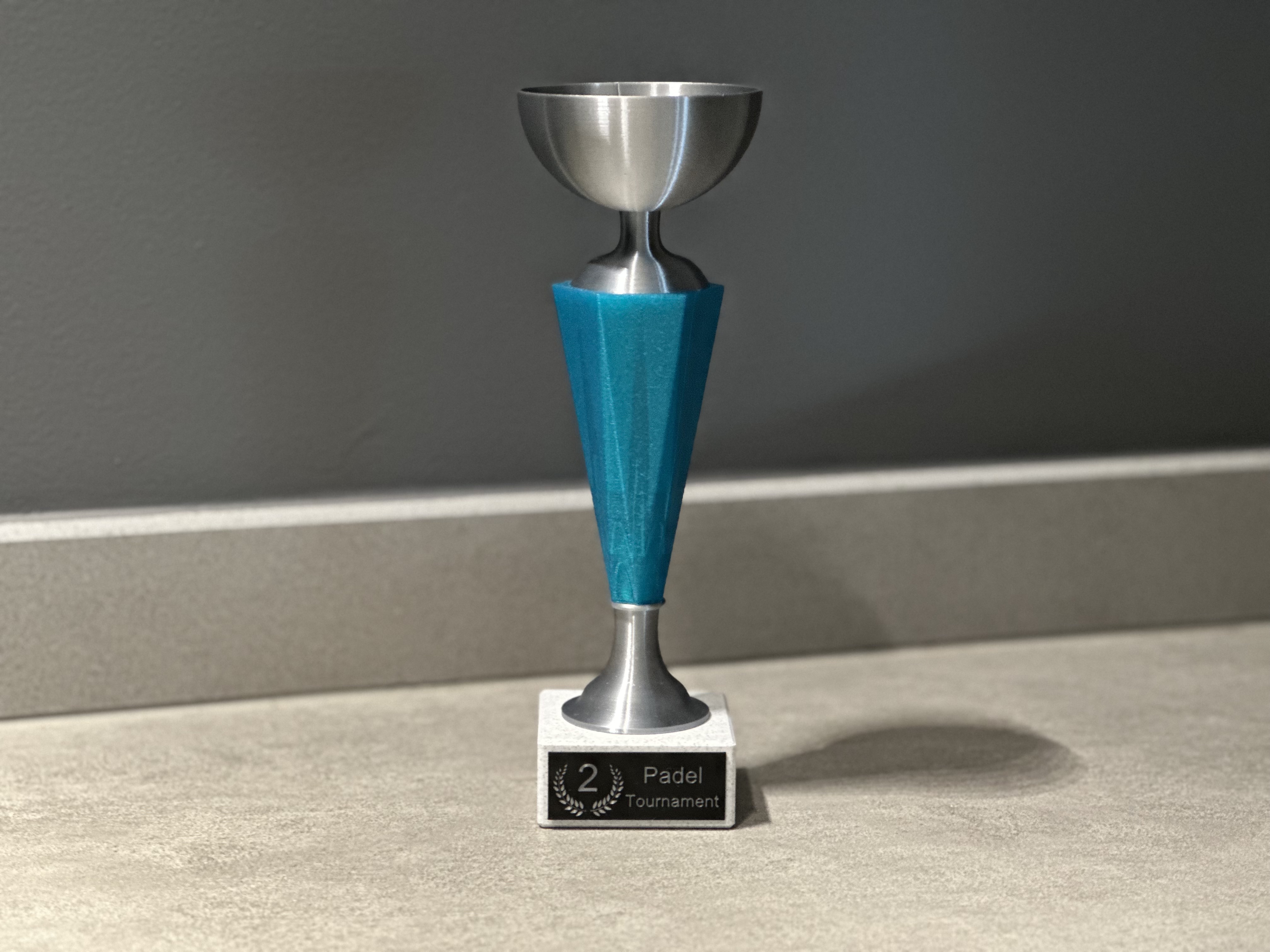

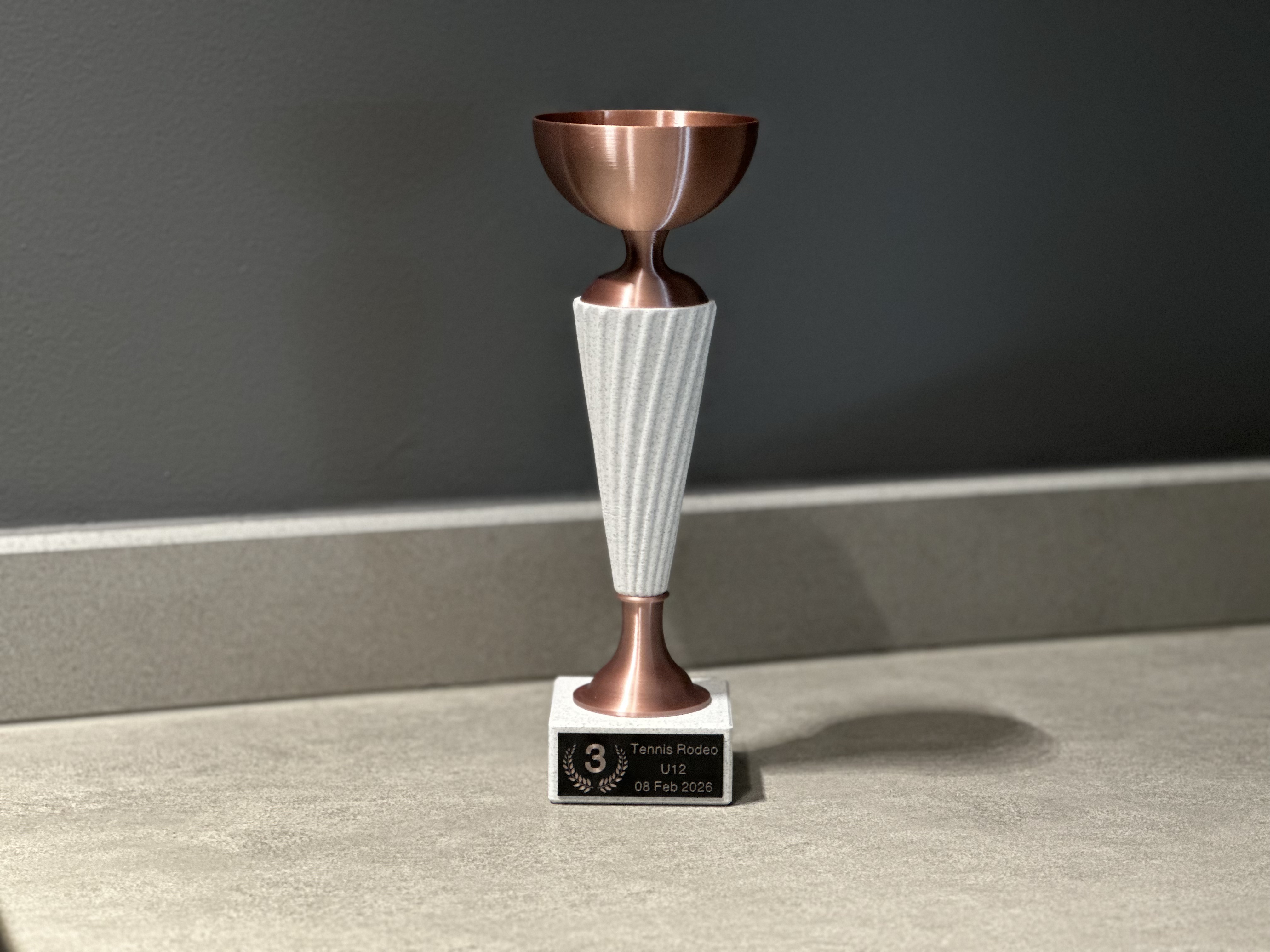

  • 🥈🥉 2nd & 3rd place: 24 cm tall

 Customization Options

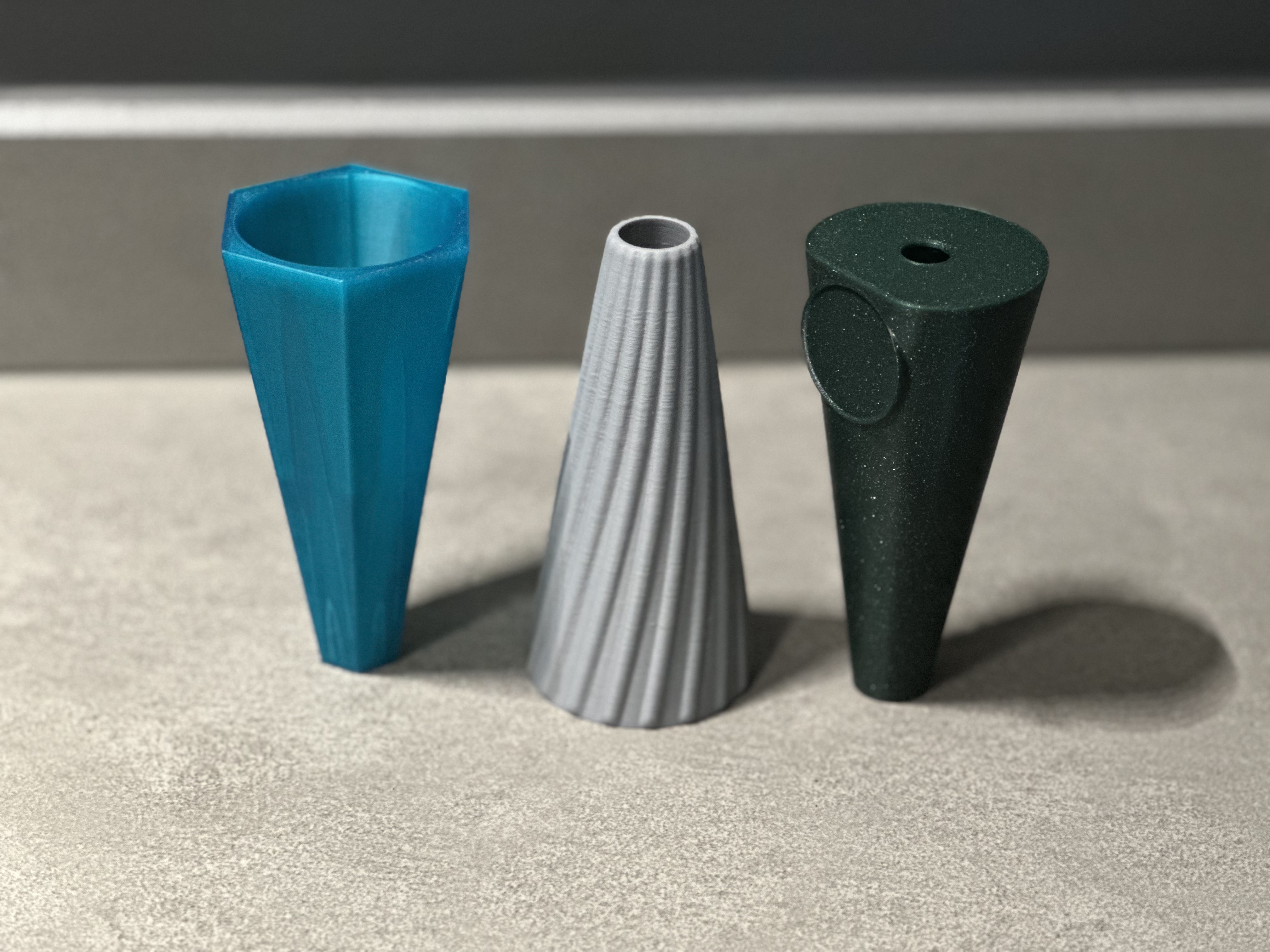

  • 7 different stems available in the “alternative stems” print profile

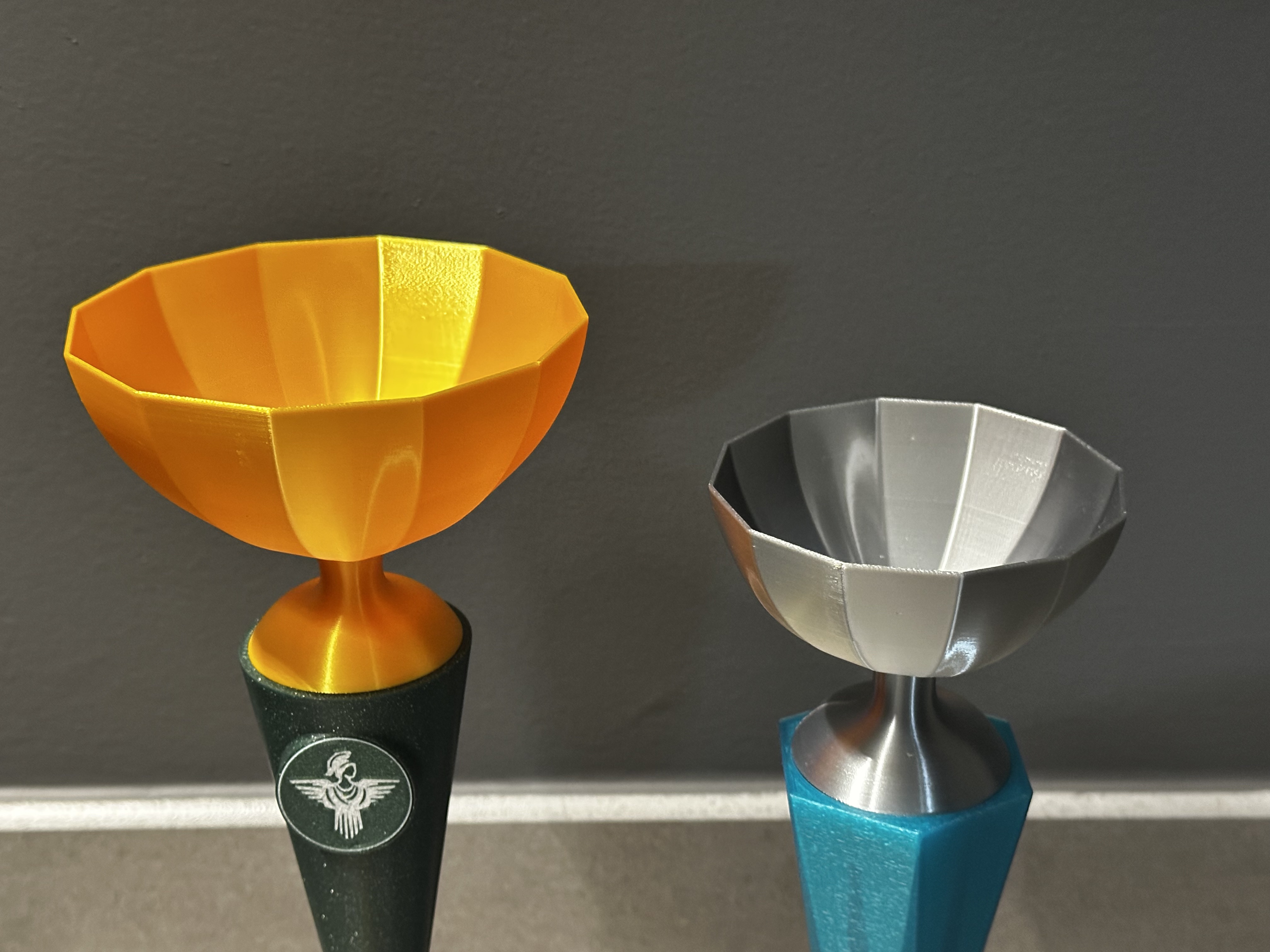

  • Alternative Dodecagon Cups in their separated print profile

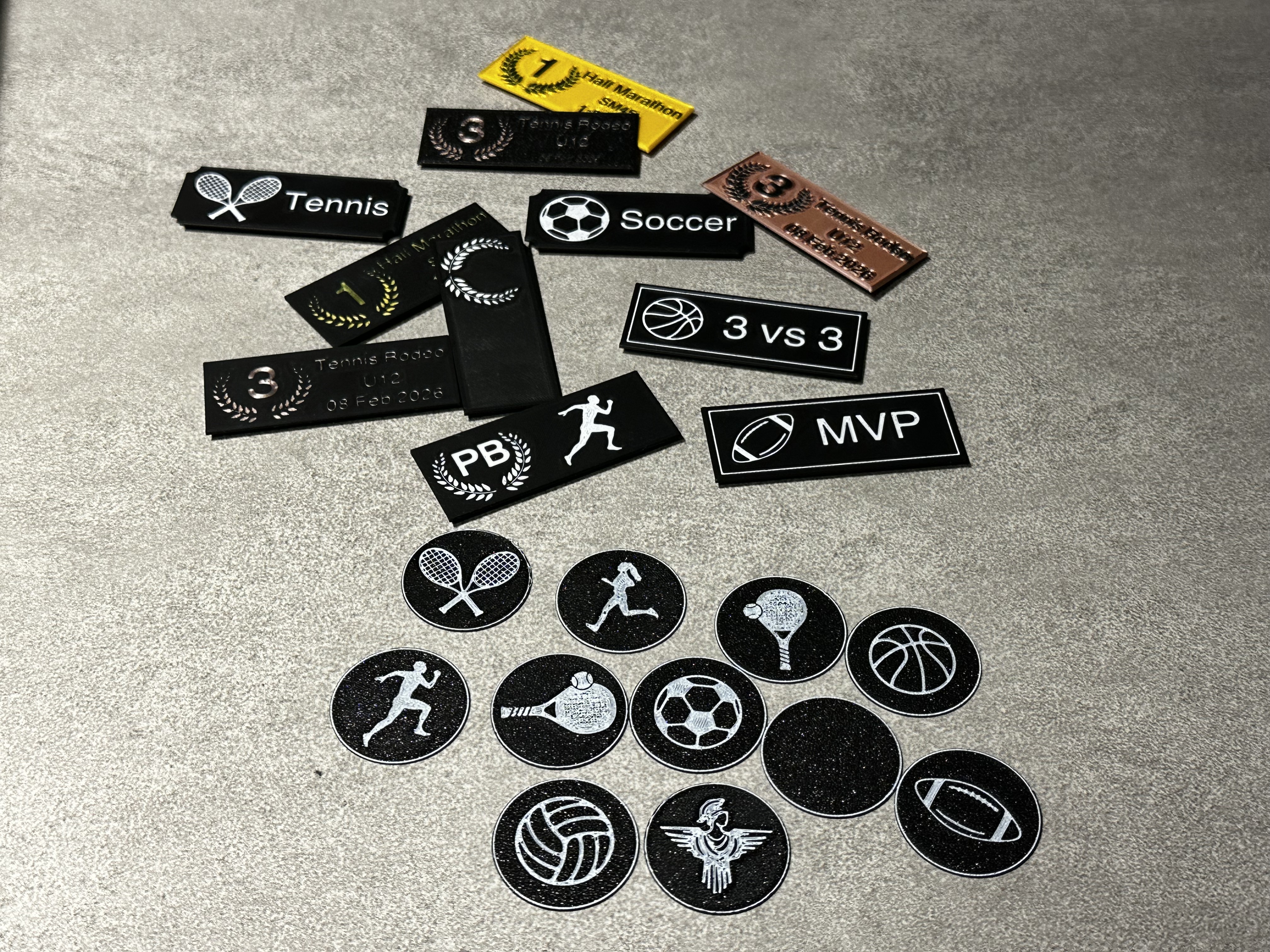

  • Various sports plaques and tags available in the “plaques” print profile
  • You can easily create custom plaques with your own text (just modify the text in Bambu Studio)
  • You can use different colors for each part of the trophy

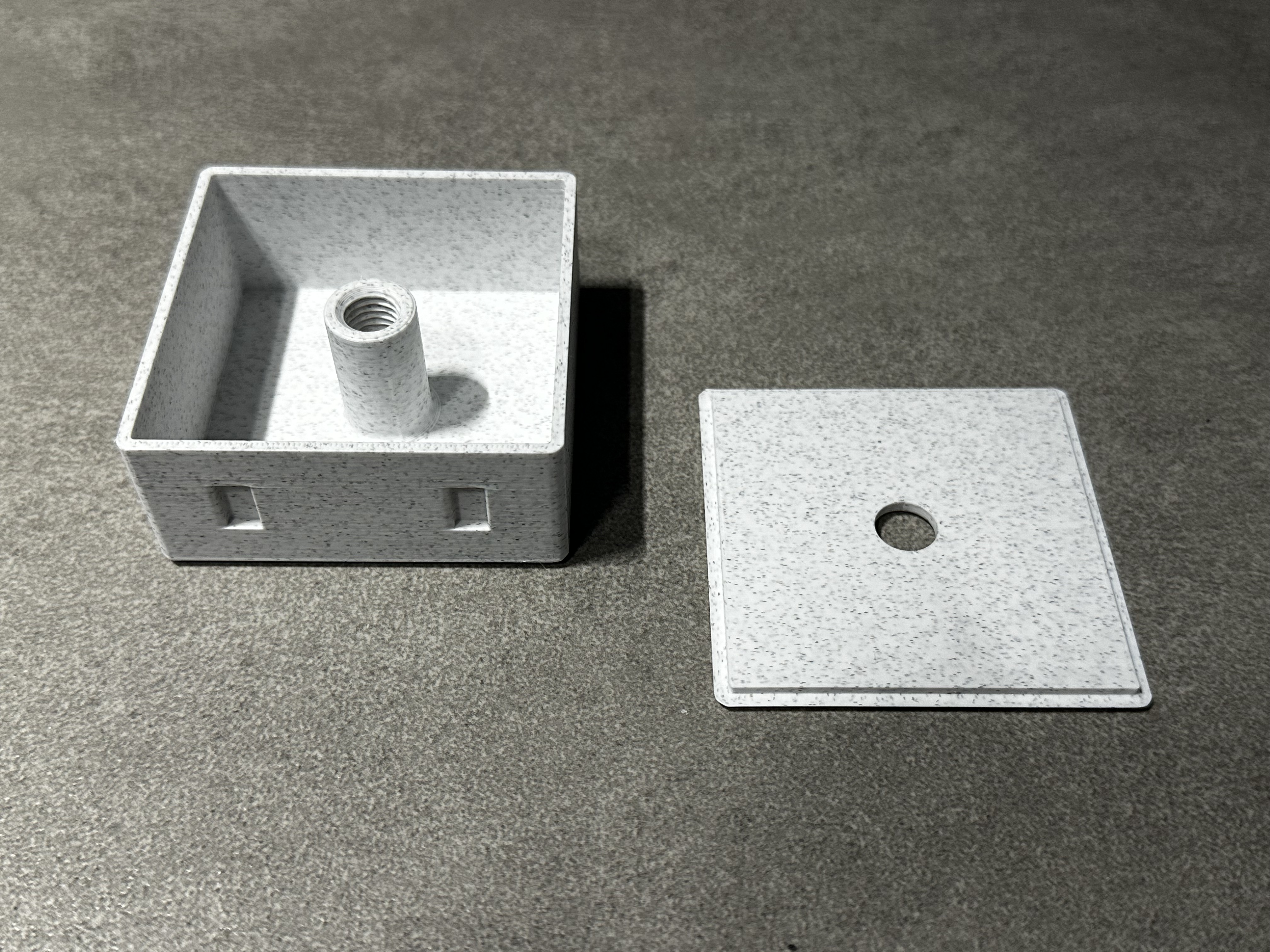

  • Use the Heavy Base print profile to achieve the appropriate weight for a trophy.

Print Recommendations

  • Print plaques and tags with a 0.2 mm nozzle on a Smooth PEI Plate for sharper text and cleaner details
  • Every part is optimized to enhance the shiny silk metal effect, giving the trophies a premium metallic appearance straight off the printer

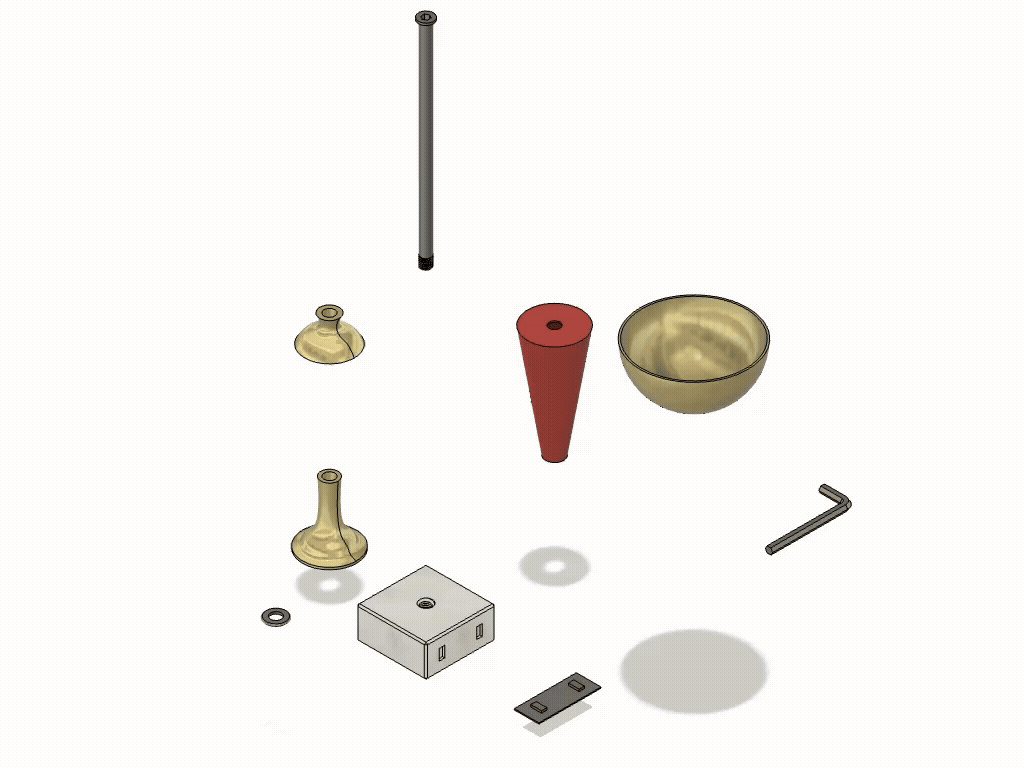

Assembly Instructions

  • The internal rod is mounted using an M8 Allen key. Don’t have one? A printable Allen key is included in the print profiles
  • The tag on the 1st stem must be glued to the stem
  • The plaque should be glued to the base for better results
  • Follow the video below:
  • If you printed the Heavy Base, you can fill it with sand or lead spheres to make it weight almost 500gr / 1 pound
  • Once filled, you can use epoxy to secure them to the base enclosure

Project History

2025-12-15: Initial idea

2025-12 / 2026-01: Trial and Errors (a lot of failed test prints)

2026-03-04: First release on Makerworld of the composable system

2026-03-07: Added the DodecaCups

2026-03-12: Created a Voronoi version of the trophy

2026-03-17: Added the Heavy (fillable) Base print profile



… other ideas in the work, stay tuned
