🔄 28 June 2026 - Update

• The model has evolved to V4 and addresses an issue with hidden overhangs that could cause spaghetti.
• Special thanks to @Jors218, who was kind enough to identify this issue and bring it to my attention. It is much appreciated.

🔄 22 May 2026 - Updates!

• New Portable Case Available: here

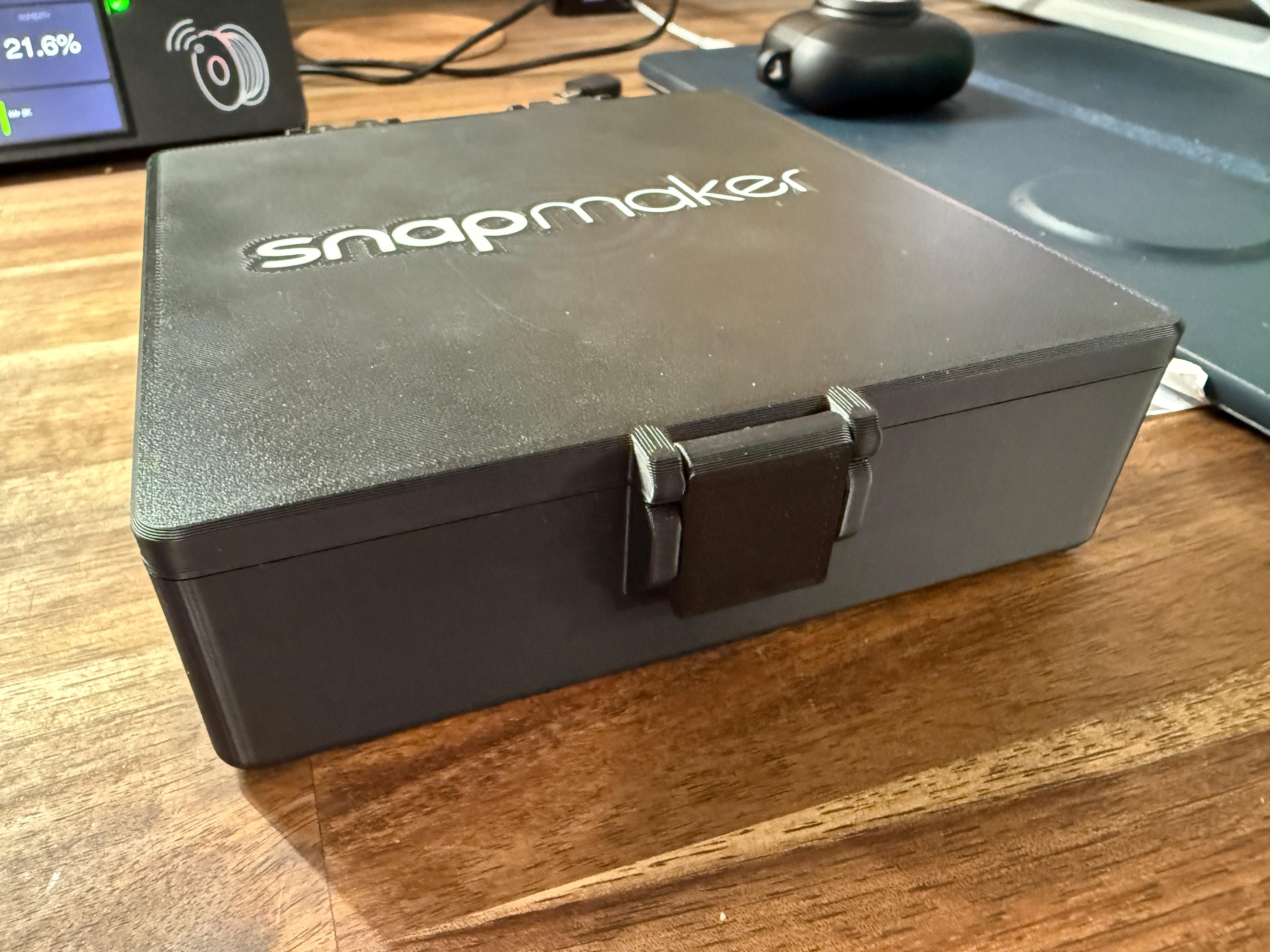

Want to take your Gridfinity bin with you? Want to store it aside and keep it protected from dust? I’ve got you covered.

A new portable case is now available, specially designed for this model !

• The model has also been updated to avoid confusion between nozzle versions, along with other improvements such as support for slicers beyond Bambu Studio.

======================================

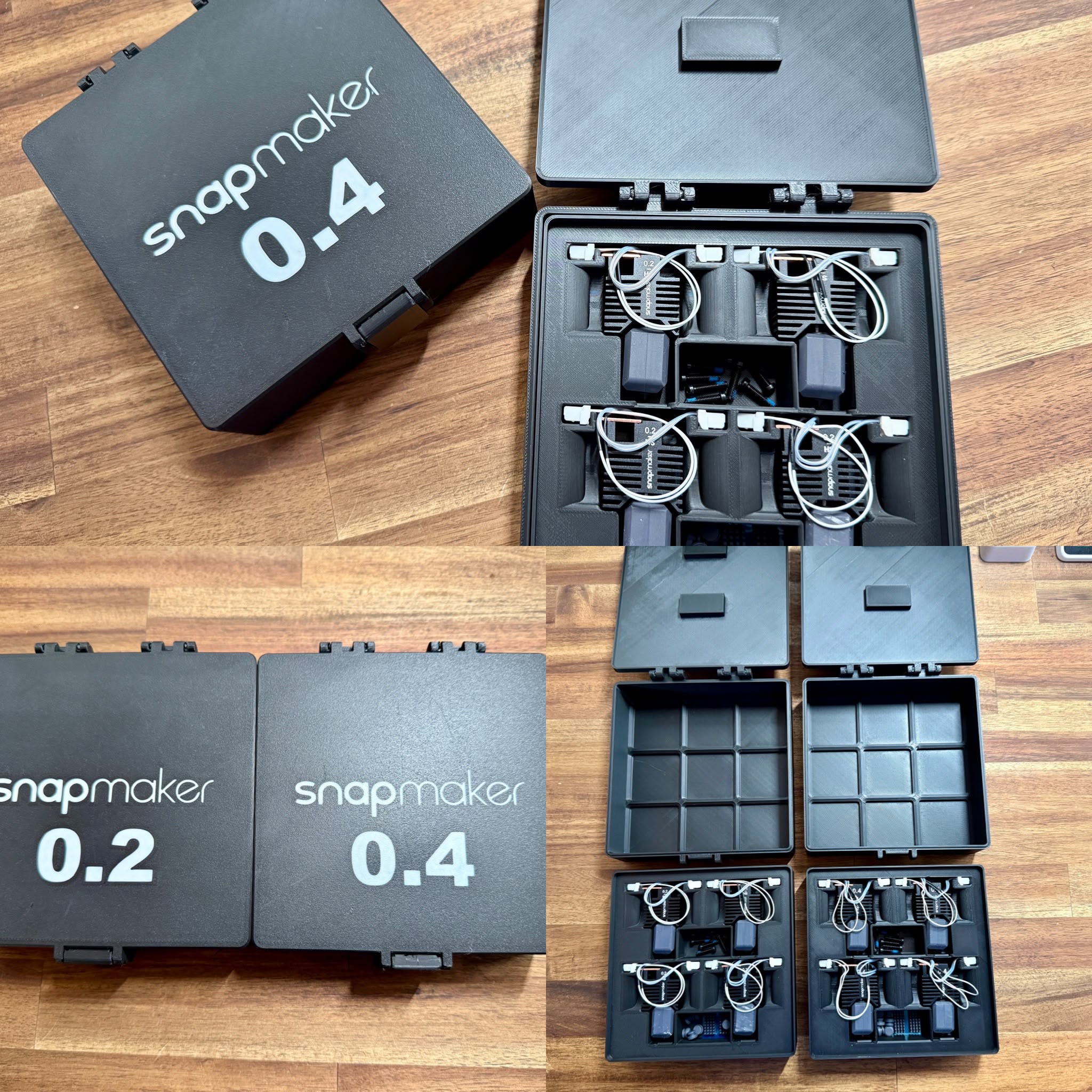

🔧 Snapmaker U1 Nozzle Gridfinity Case (3×3)

This is a remix of the “Snapmaker U1 4-Nozzle Storage Case” from @user_4180415242.

Instead of a traditional storage box, this version is designed as a 3×3 Gridfinity case, making it ideal for organising your tools while keeping your nozzles easily accessible — without needing a bulky toolbox.

It allows you to store:

• Up to 4 nozzles
• Bolts
• Nozzle pads
• Nozzle buttons
• Stack them !
• Or box them too !! here

Two additional compartments are included for storing extra parts.

There are 2 plates included. Each plate has a different version of the tab holders.

• Plate 1: For non-hardened nozzles with wider cavities. The model has the larger tabs.
• Plate 2: For hardened nozzles with smaller cavities. The model has smaller tabs.

🖨️ Printing Notes

The printing profile prioritises quality over speed.

• Base layer height: 0.20 mm
• Configured with variable layer height for smoother curves and better-defined shapes
