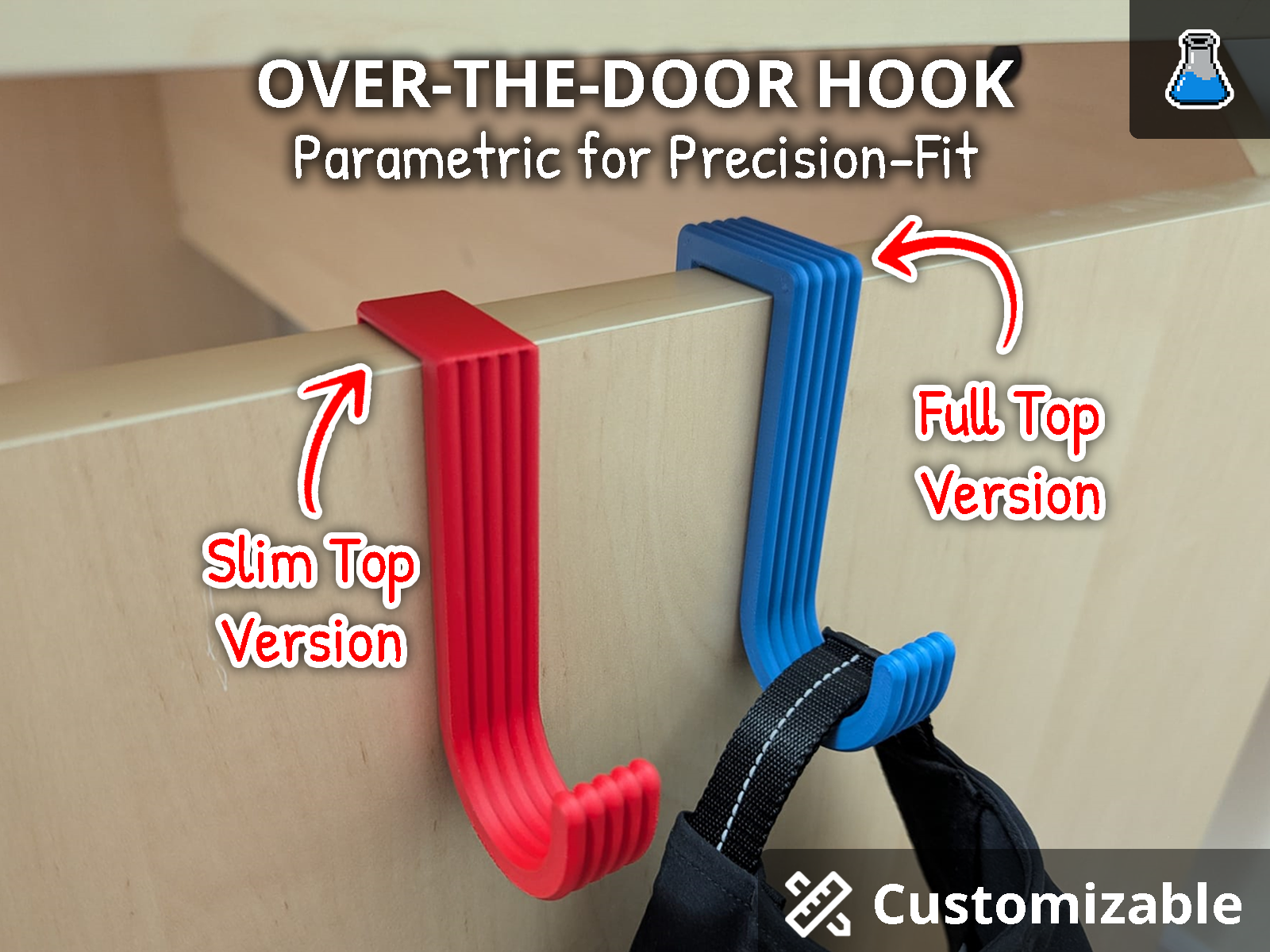

The Perfect-Fit Parametric Over-the-Door Hook

I built this because "close enough" isn't good enough for 3D printing. Tired of hooks that angle downward or slip? Use the MakerWorld Customizer to generate a profile that matches your door’s geometry perfectly. I’ve included common presets for 20mm, 26mm, 36mm, and 45mm to get you started.

⚠️ Important:  This model must be opened in MakerWorld to be customized. Customization is not compatible with Handy App or Bambu Studio at this time. [https://makerworld.com/en/models/2465982-customizable-over-the-door-hook#profileId-2707022](https://makerworld.com/en/models/2465982-customizable-over-the-door-hook#profileId-2707022)

Features

• Fully customizable – Door Thickness, Hook Thickness, Hook Length, Hook Diameter, etc.
• Easy MakerWorld parameters – sliders and dropdowns make customization quick and beginner‑friendly. Auto adjusting plate length and width.
• Zero-Wobble Design: Tailor the width to your door for a snug, secure mount.
• Slim-Profile Bridge: Engineered to stay slim enough for doors and cabinets to close properly.
• Full-Thickness Geometry: Built for structural integrity and a premium look.

Specifications

• Hook Length: 100mm (customizable)
• Hook Diameter: 50mm (customizable)
• Hook Thickness: 8mm (customizable)
• Over-the-Door Thickness: 2.2mm (customizable)
• Clearance: 0.2mm (customizable)
• Hook Width: 20mm (Not customizable due to the rib design)

Support Me!

Customization and Printing Guide

1. Go to the MakerWorld and find the model.
   [https://makerworld.com/en/models/2465982-customizable-over-the-door-hook#profileId-2707022](https://makerworld.com/en/models/2465982-customizable-over-the-door-hook#profileId-2707022)

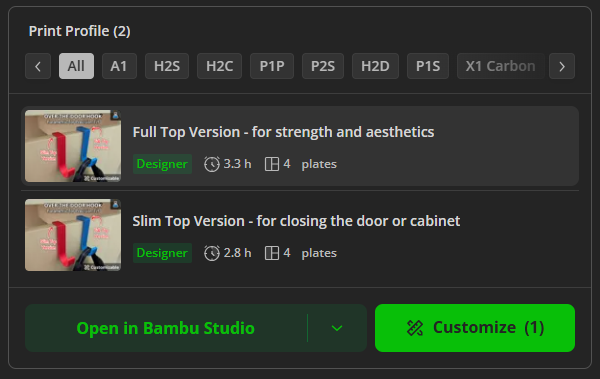

2. Select “Customize”.

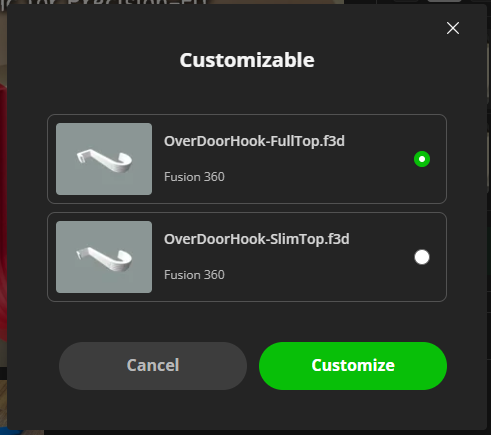

3. When present with the pop-up, select the model and select “Customize”.

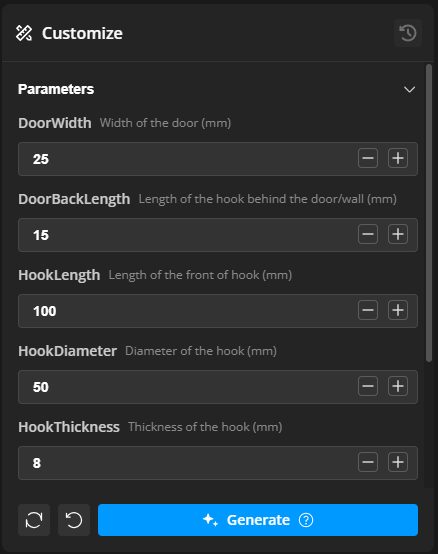

4. Customize the design using the parameters on the bottom left. Press the “Generate” button to preview your design.




5. Once you are happy with the design select Download on the top right corner and download the design as a .3mf file. 5. Open the .3mf file in Bambu Studio.

Suggested Slicer Settings

• Quality > Only one wall on first layer : Selected
• Strength > Wall loops: 4
• Strength > Sparse infill density: 20%
• Strength > Sparse infill pattern: Gyroid

Credits / Licensing

• Design by PixelFanLabs – With a curious mind, integrity, and your hands in the soil, you can create anything.
• Fonts – All fonts used in this project are provided by MakerWorld’s shared library and are safe for use.
• License –  All Rights Reserved
  • Personal Use Only: You may print this for your own use.
  • No Redistribution: Do not re-upload or distribute these digital files on any other platform.
  • No Derivatives: Modification of this design—including the removal of the engraved PixelFanLabs signature—is strictly prohibited.
