🚀 UPDATE: V2 Customizer-Fix (Inlay Corners) A massive thank you for the incredible support and feedback on this model! I’ve just updated the OpenSCAD code to V2: The inlay corners now automatically and precisely adapt to the chosen outer radius of the box. No more overlapping, just a perfect fit! Use the Customizer right here on this page to generate your refined version.

PLEASE NOTE: No programming skills are required to use this tool! You can easily adjust all dimensions, radii, and options using simple, intuitive sliders within the MakerWorld Customizer.

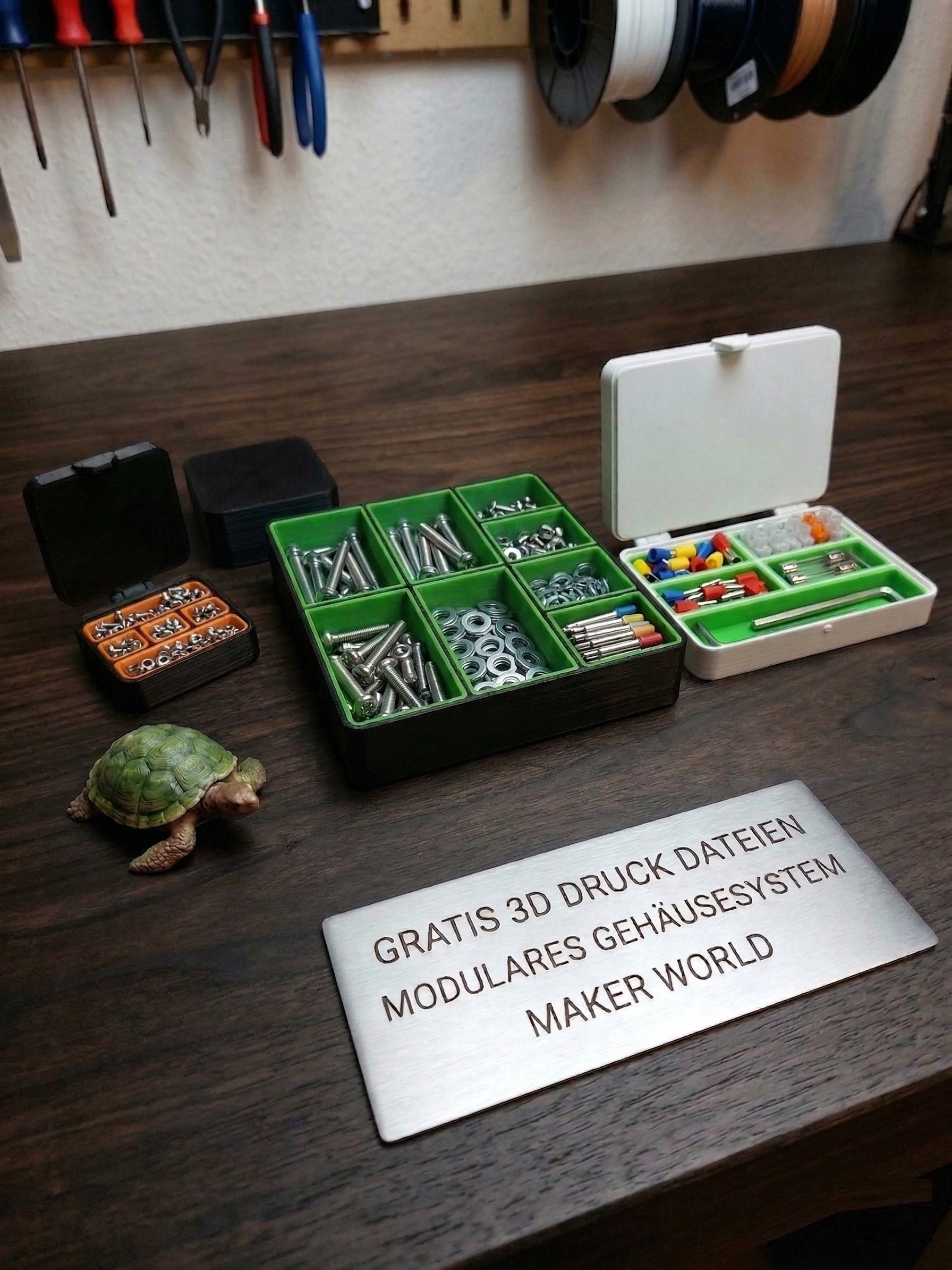

🛠️ Modular Pro-Grid Box Organizer

Designed for Hassle-Free Printing: This modular box is 100% Support-Free and requires Zero Hardware. No messy supports to remove, no screws to buy. Just print, snap, and organize!

Customize your storage – Exactly the way you need it!

Stop squeezing your gear into boxes that don't fit. With the Modular Pro-Grid Box Organizer, you design your own storage space. Whether it's for electronics, screws, hobby supplies, or EDC – this system adapts to your needs, not the other way around.

✨ Model Highlights

• 📏 Revolutionary Zone Control: Thanks to the 3-zone logic, you can completely customize the box layout. Want 33% small compartments and 66% open storage? Just move the slider!

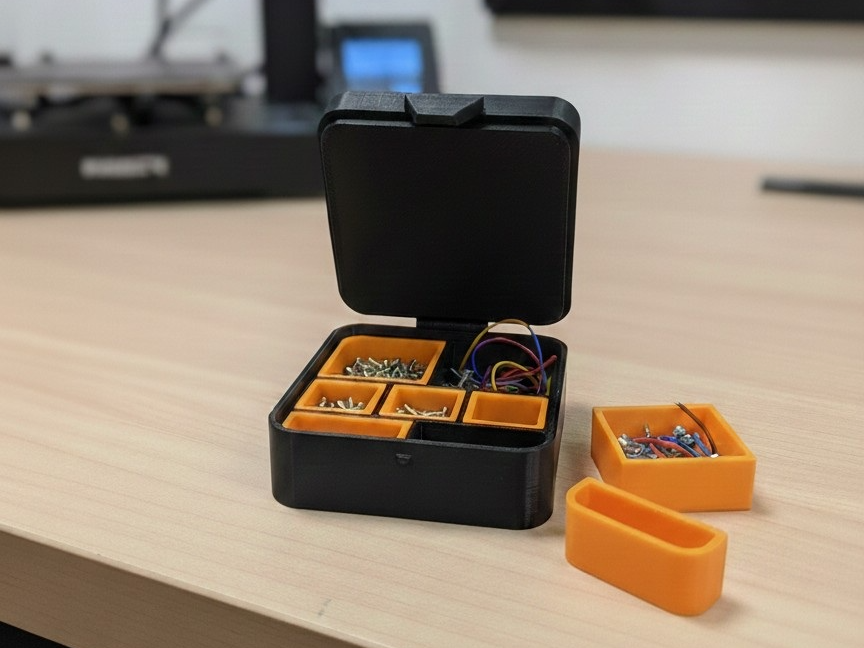

• 🧩 Intelligent Inlays: The system automatically generates a perfectly fitting, removable tray for every single compartment. Keep your small parts organized and ready at your workspace.
• 🛠️ True 0-100% Flexibility: You can completely deactivate zones (0%) or stretch a single zone to the full size of the box (100%). Maximum freedom in the Customizer!
• 🖨️ Print-Ready (No Supports): The design is optimized for FDM printing. No supports are required, saving you time and material.
• 🔒 Rugged & Secure:
  • Stable, integrated hinges.
  • Precise ball-joint closure (1mm snap) for a secure hold.

  • Adjustable outer radius for your individual look.



• 🖥️ How to use the Customizer (For Beginners):
• Never used the MakerWorld Customizer before? It's incredibly easy:
• Click the "Customize" button at the top of this page.
• Play around with the sliders.
• Click the "Generate" button and wait a few seconds for the model to build.
• Click "Download" and choose your format:
  • Highly Recommended: Select .3mf so you can easily assign colors for your AMS in the slicer!
  • Select .stl for single-color prints.
• Open the downloaded file in Bambu Studio (or your preferred slicer), double-check your settings, and hit print!

🚀 How to Create Your Box

1. Select Dimensions: Choose width, depth, and height (Min. 12mm box / 8mm lid).
2. Define Layout: Use the ratio sliders for Zone 1 & 2. Zone 3 adjusts automatically.
3. Set Grid: Determine columns and rows for each zone individually.
4. Print & Organize!

🖨️ Optimized Print Profile (Recommended Settings)

This model was specifically developed for support-free printing. For a durable and mechanically strong box, I recommend the following configuration:

1. Walls & Stability (Crucial!)
   • Wall Loops: 3 - 4
     • Why? The hinges and the locking mechanism derive their strength from the wall lines. With 4 walls, the box is nearly indestructible.
   • Top/Bottom Layers: 4 - 5
     • Ensures a smooth surface and a completely opaque bottom.
2. Infill
   • Density: 15% - 20%
   • Pattern: Gyroid or Grid
     • Gyroid is ideal as it provides multi-directional stability and reduces vibrations.
3. Material
   • PETG: Recommended
   • Supports: NONE (Disabled)
     • The model is designed so that all overhangs (including hinge holes) print perfectly without support.
4. Layer Height & Speed
   • Layer Height: 0.20 mm (Standard)
   • First Layer: 0.20 mm
     • Ensure good bed adhesion to prevent warping on large boxes.

💡 Pro Tips for Assembly

• The Hinge Axis: No screws needed! Simply use a piece of 1.75mm filament. Slide it through the holes and cut it with 1-2 mm of excess on each side.
• Filament Trick: Carefully heat the ends of the filament with a lighter and press them flat against the hinge. This permanently secures the axis.
• Adjusting Fit: If the 1.75mm filament is too tight, you can slightly increase the hinge hole diameter in the Customizer.
• Tolerances: If the inlays fit too tightly, increase the Inlay_Tolerance value in the Customizer by 0.05 mm and regenerate the inlays.
