Gridfinity Heat Insert Solder Tip Holder

Never lose your Heat Insert Solder Tips again with this Gridfinity holder.

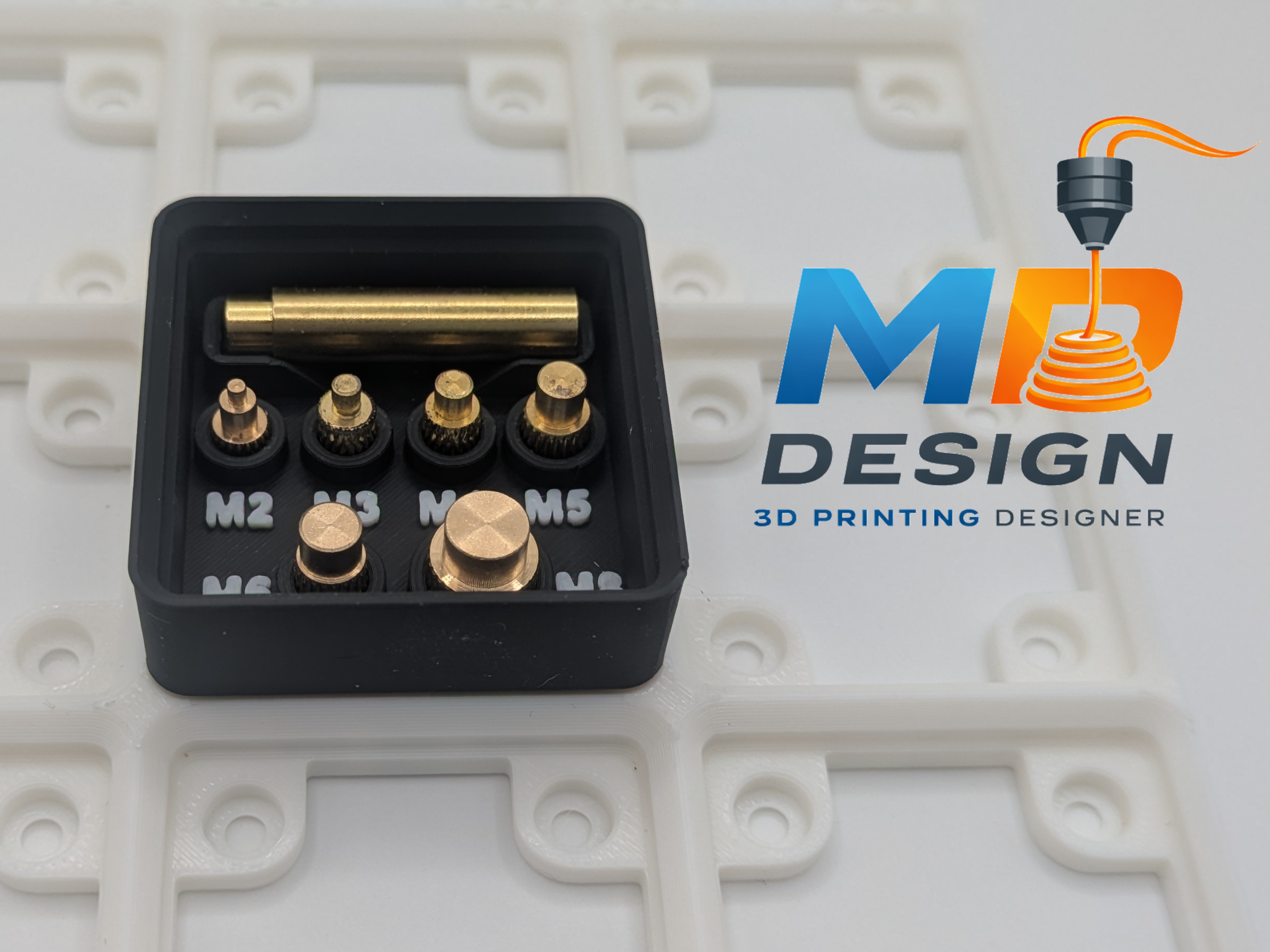

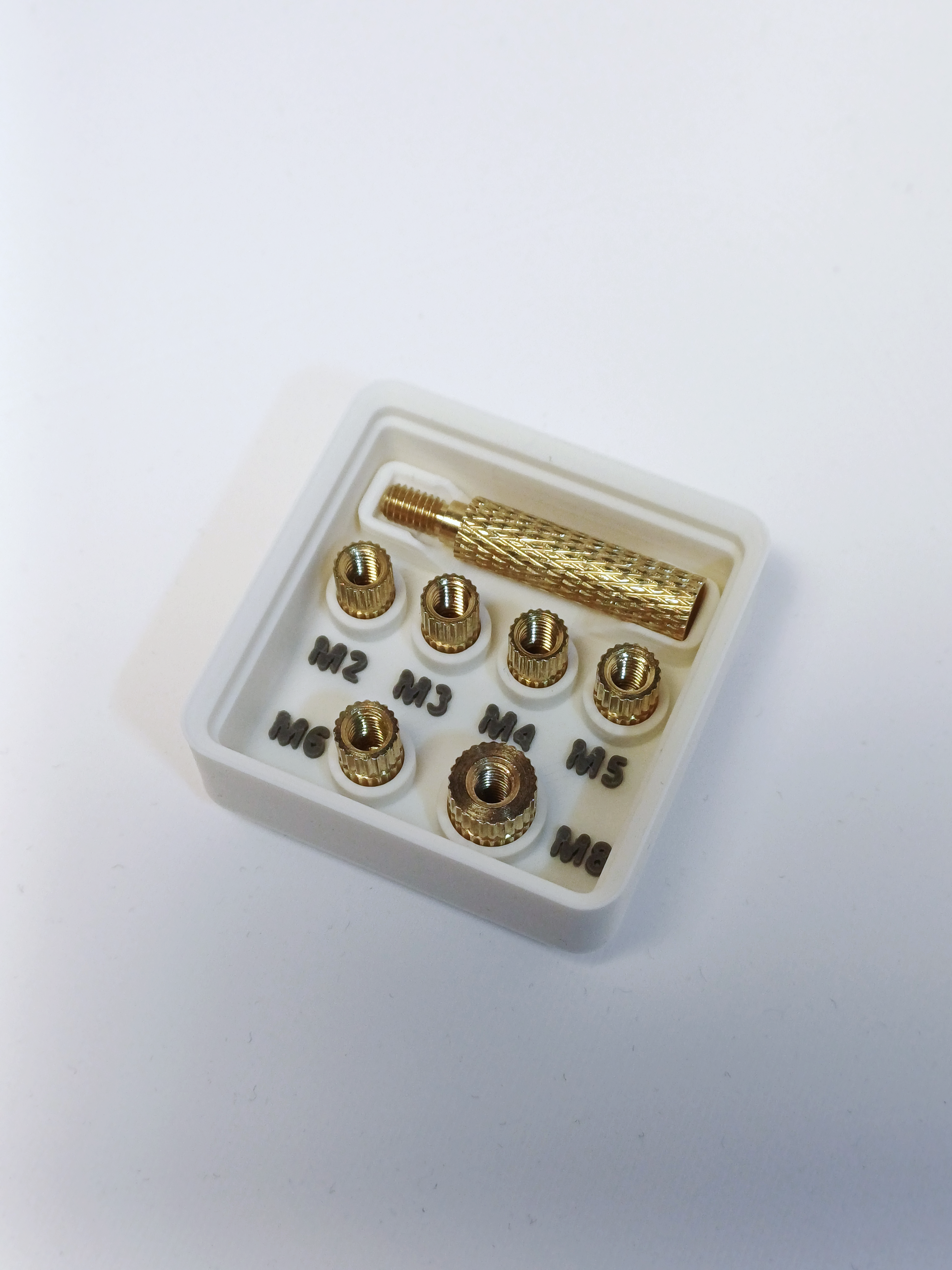

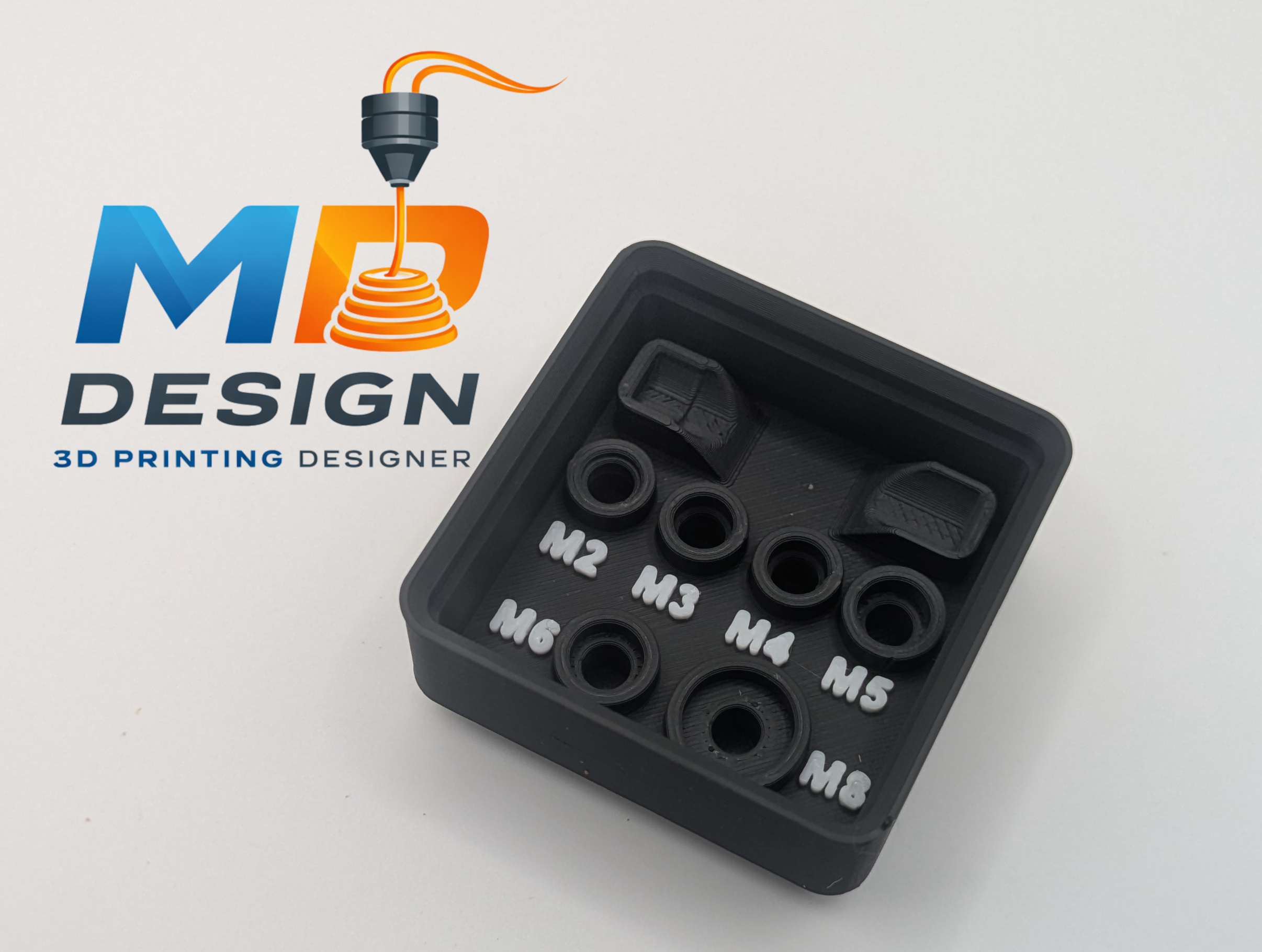

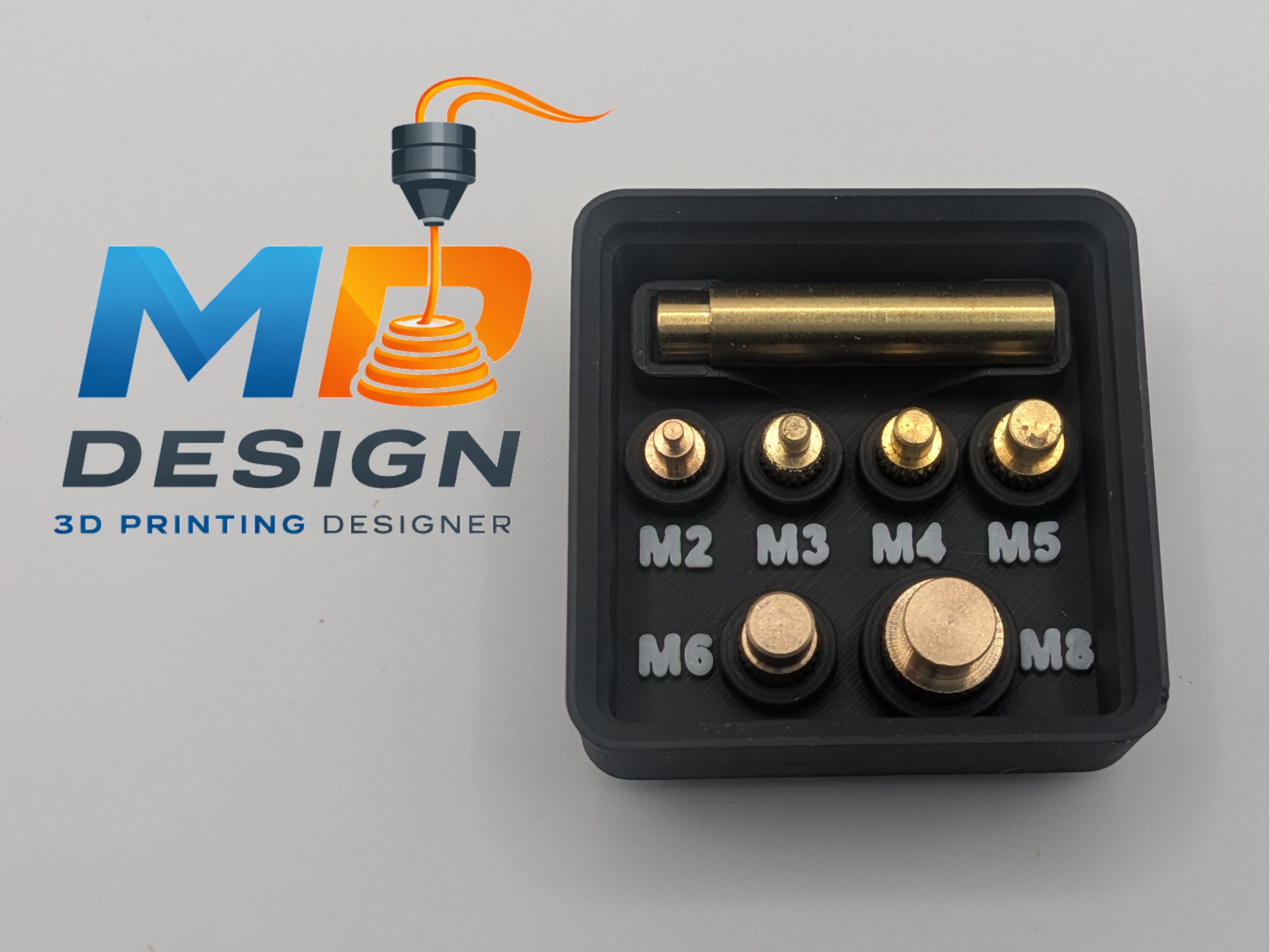

The size of the holder is 1x1 2U. Three different version are available: Without magnets at the base, for 6x2mm and for 6x3mm magnets:

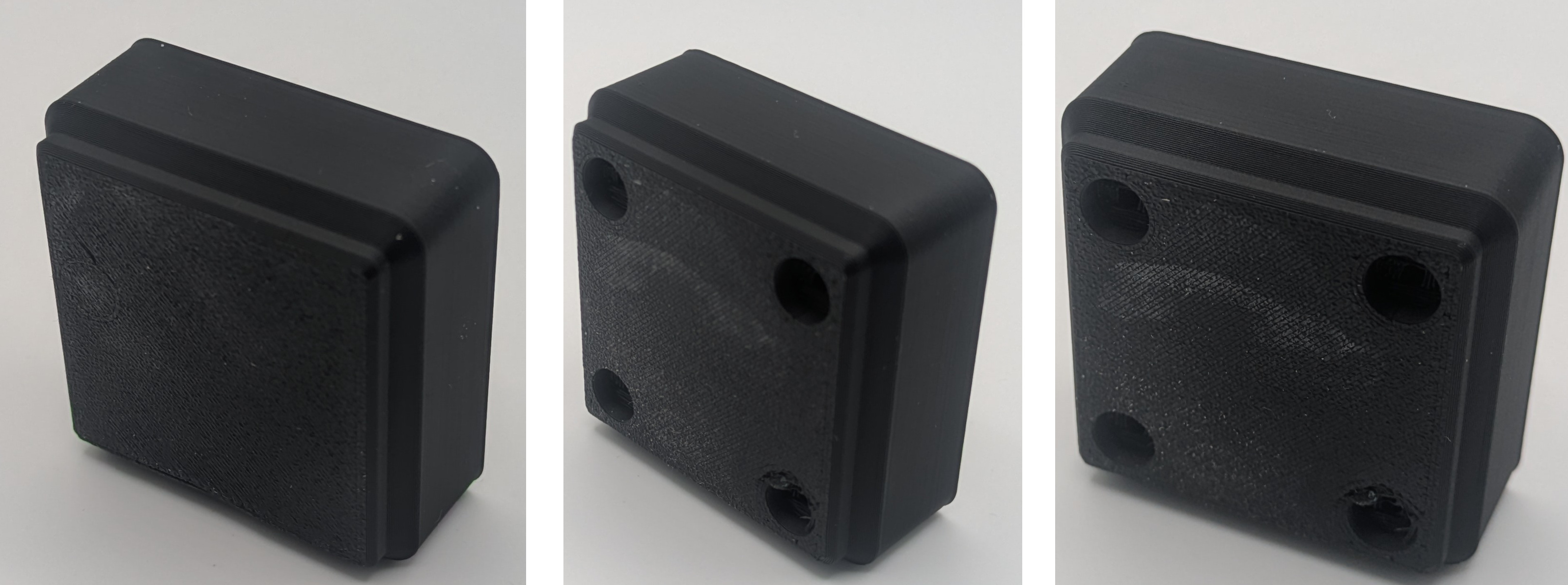

Version without magnets (left), for 6x2mm magnets (middle) and for 6x3mm magnets (right).

This holder was designed for a set of tips available at Aliexpress (Link). Please check with below dimensions if this holder fits for the heat insert tips that you have:

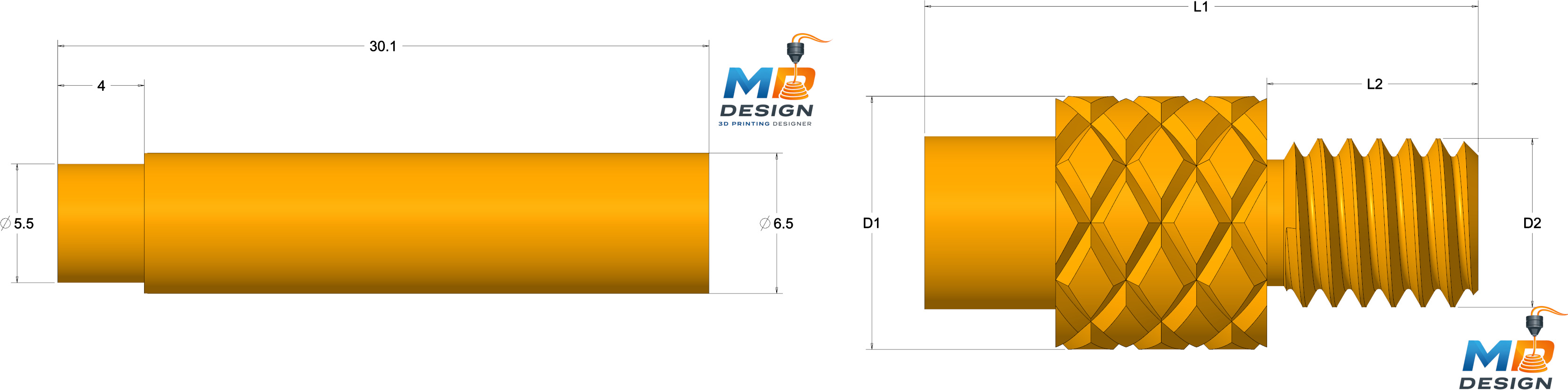

Sizes for Heat Insert Solder Tips Adapter (left) and Heat Insert Solder Tips (right)

Size	L1 [mm]	L2 [mm]	D1 [mm]	D2 [mm]
M2	11.9	5	5	M4
M3	13.1	5	5	M4
M4	13.1	5	5	M4
M5	13.1	5	6	M4
M6	13.1	5	6	M4
M8	13.1	5	9	M4

In theory, only diameters D1 and D2 need to match the size stated above. Longer lengths would mean that the holder is not stackable anymore, but will not influence the fit of the tips in the holder.

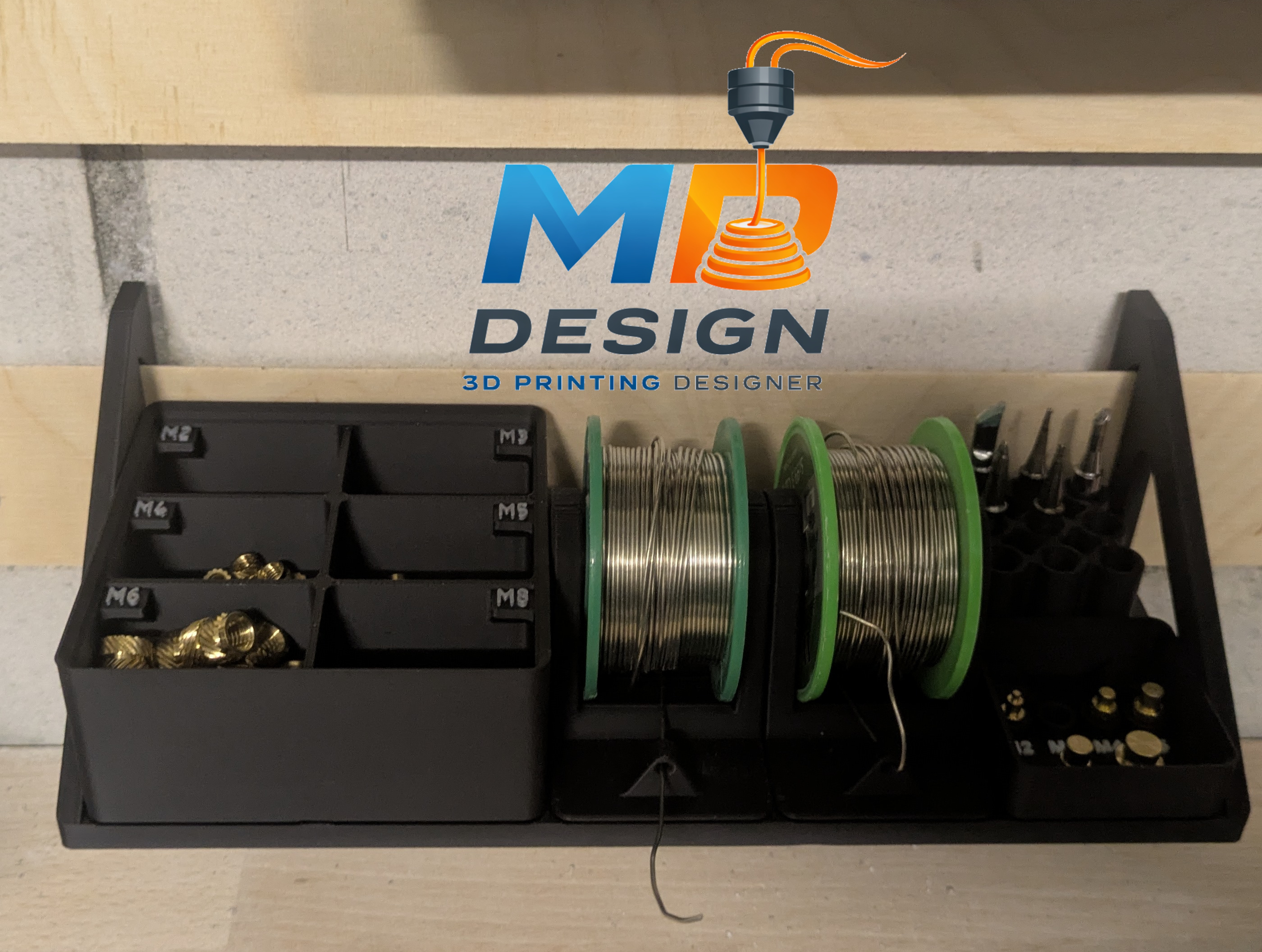

This model is part of my solder accessories shelf. The other models can be found here: French Cleat Solder Shelf
