🛡️ HELiX Tactical – "EDC CONTAINER Tango" (ColorCode Edition)

Organize. Protect. Identify. The "Tango" series is the next evolution of our rugged storage line. Designed for a slimmer, more tactical profile, these containers feature the brand-new ColorCode System for instant gear identification and a integrated Lanyard Hole for secure attachment. 🎖️🚀

🎨 New: ColorCode Identification System

Every "Tango" container features a precision-engineered groove on the exterior.

• Visual Indexing: Snap on a 3D-printed TPU Color Ring to identify contents at a glance (e.g., Red for Medical, Blue for Tech, Green for Survival). 🌈
• Tactical Grip: The TPU ring adds an extra layer of non-slip texture for operation in wet conditions. 🧤✨
• Customizable: Swap colors anytime to adapt to your changing mission requirements.

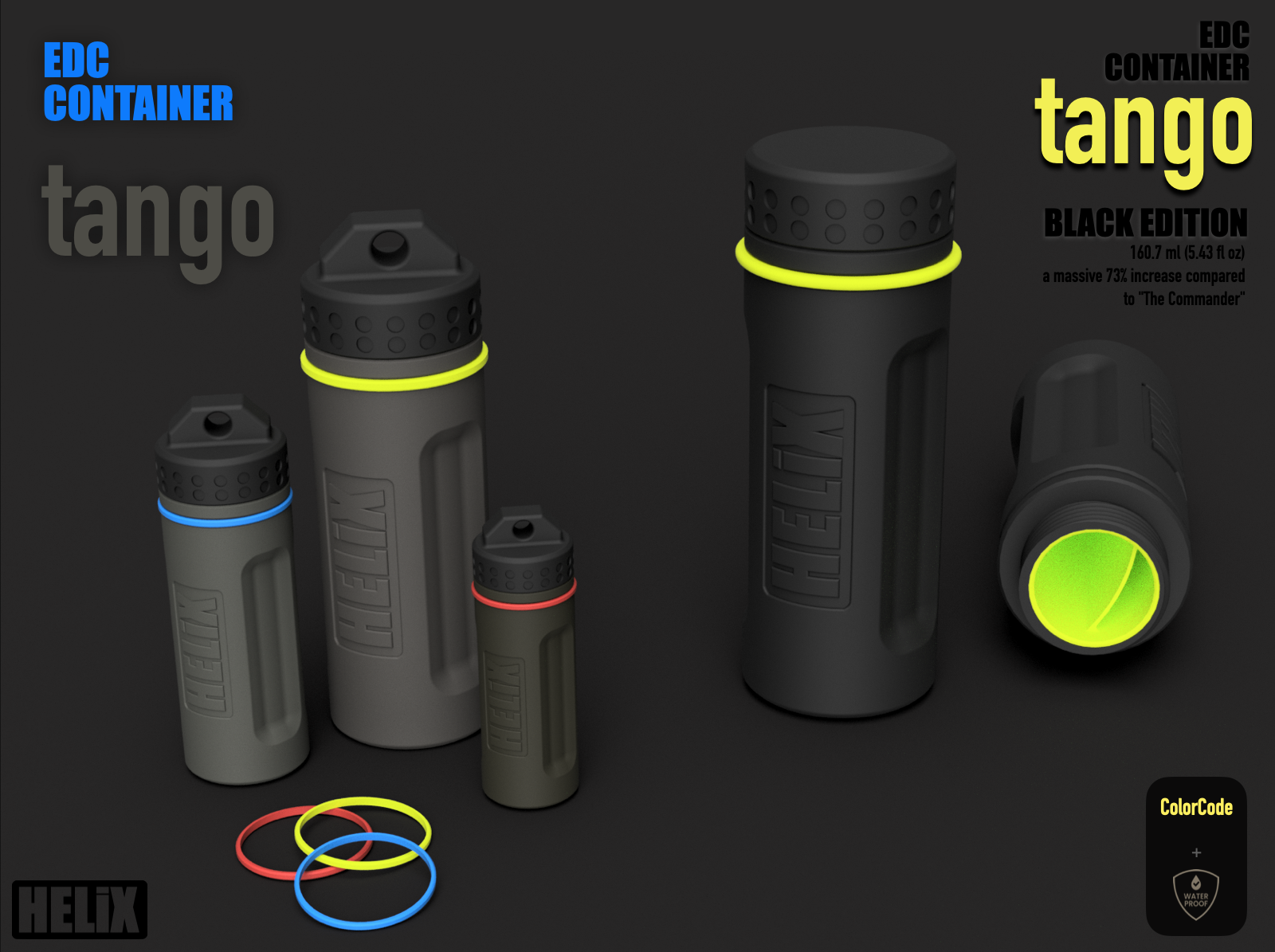

📏 Three Sizes for Every Mission

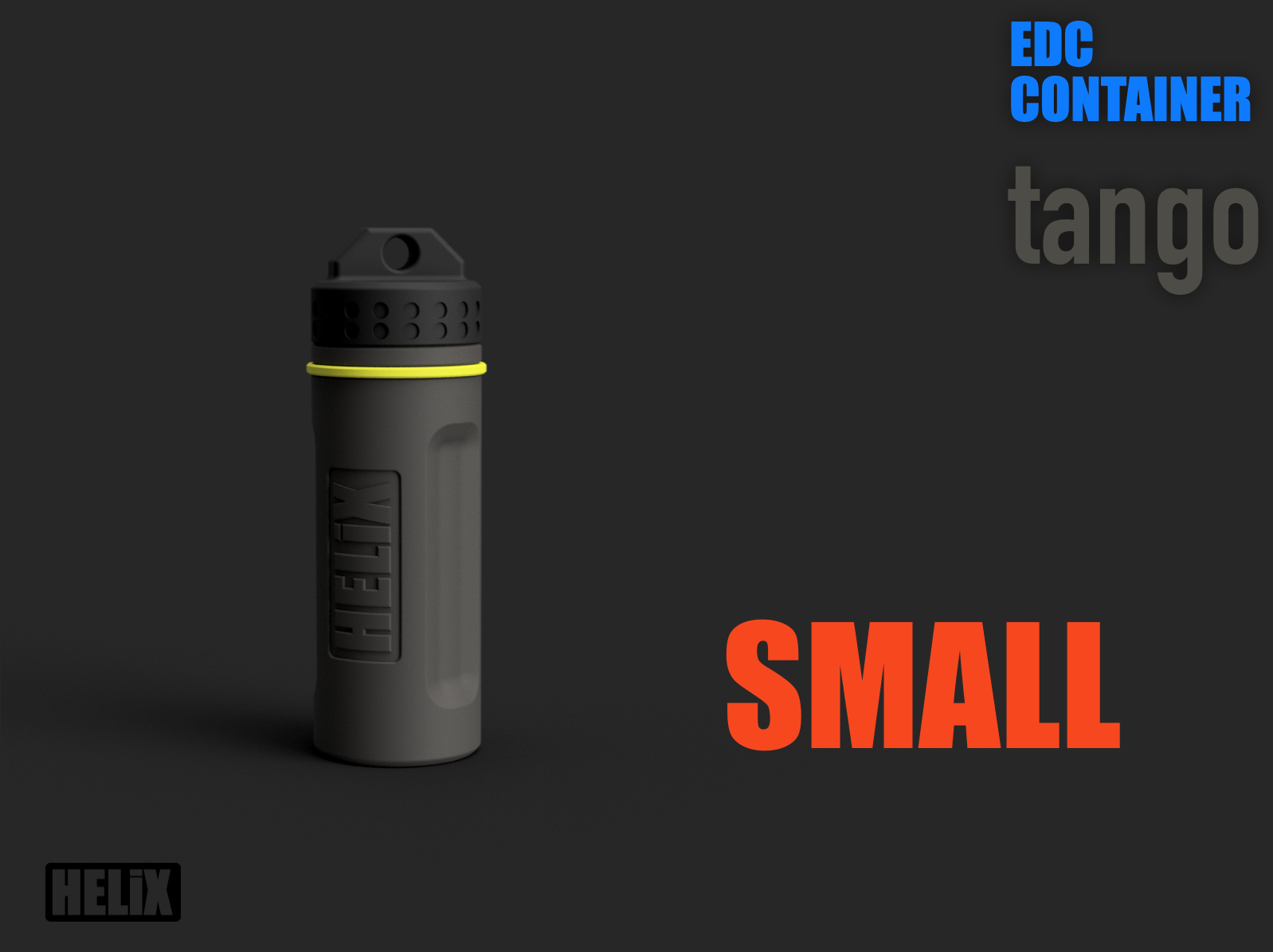

1. Small (The Scout) 🔍

• Exterior: 26.6 mm Ø × 80.5 mm H (~1.05" × 3.17")
• Interior: 17.0 mm Ø × 68.0 mm H (~0.67" × 2.68")
• Volume: ~15 ml (0.5 fl oz)
• Ideal for: Emergency cash, toothpicks, small medication, or sewing kits.

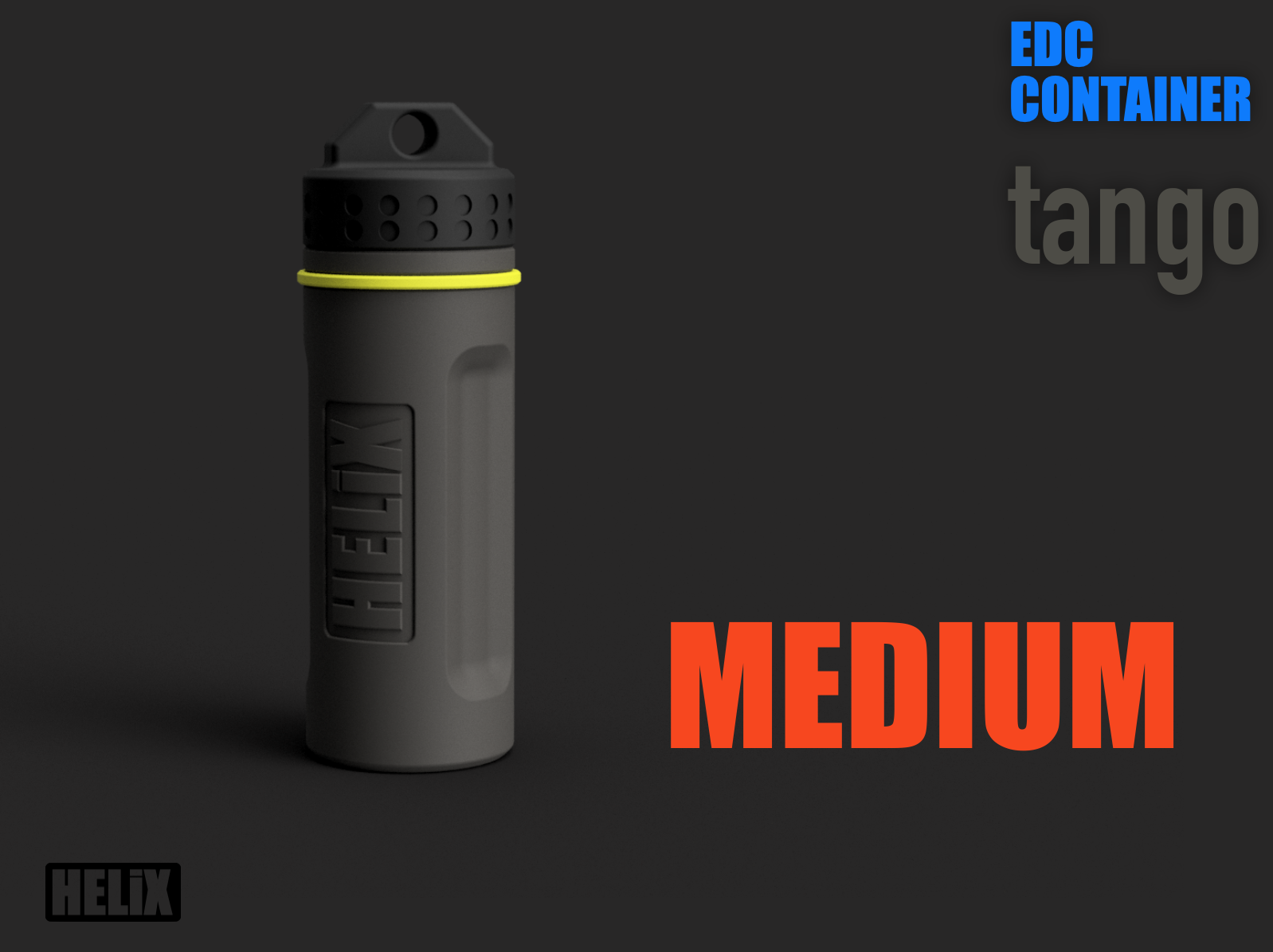

2. Medium (The Operator) ⚡

• Exterior: 33.8 mm Ø × 104.65 mm H (~1.33" × 4.12")
• Interior: 22.1 mm Ø × 88.4 mm H (~0.87" × 3.48")
• Volume: ~34 ml (1.1 fl oz)
• Ideal for: 18650 batteries, rolled-up documents, or fire-starter kits.

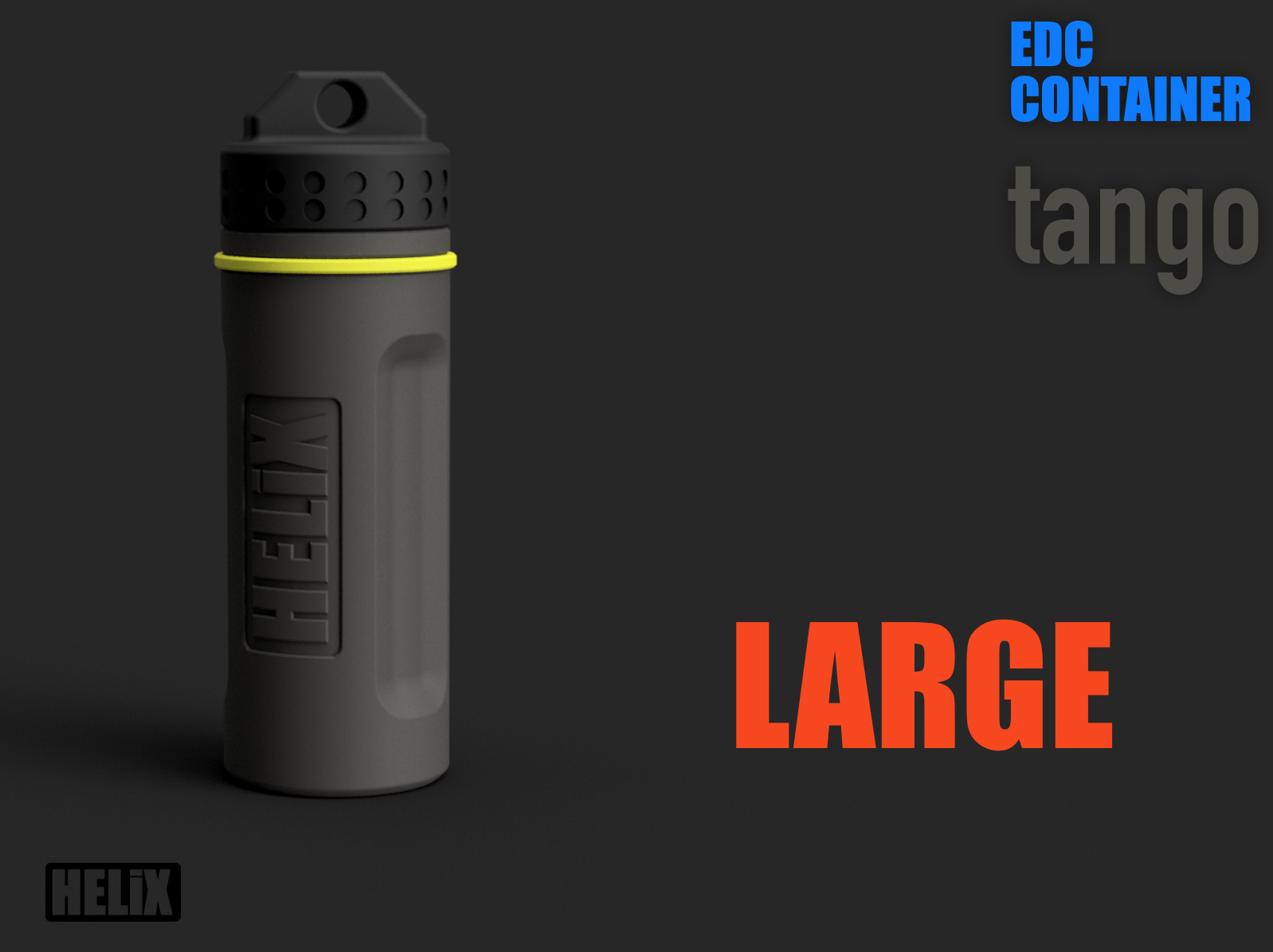

3. Large (The Commander) 🦍

• Exterior: 47.1 mm Ø × 146.5 mm H (~1.85" × 5.77")
• Interior: 30.95 mm Ø × 123.76 mm H (~1.22" × 4.87")
• Volume: ~93 ml (3.1 fl oz)
• Ideal for: Large cigar storage, tactical flashlights, or specialized tools.

✨ Key Features

• 💧 Waterproof & Dustproof: High-precision threads combined with a custom TPU Lid Gasket.
• 🪢 Integrated Lanyard Hole: The lid features a rugged eyelet for Paracord or carabiner attachment. 🎒
• 🌈 ColorCode Ready: Includes separate STLs for the identification rings.
• 🛠️ No-Support Design: Optimized angles for clean, support-free printing. 🏗️✅

🌈 Suggested Color-Code Guide

Maximize your efficiency! Use the interchangeable TPU rings to identify your gear at a single glance without opening the container:

• 🔴 Red: Emergency Medical Supplies / First Aid Kit / Meds 💊
• 🔵 Blue: Batteries / Charging Cables / Spare Tech Parts 🔋
• 🟢 Green: Fire Starting Kit / Tinder / Survival Gear 🔥
• 🟡 Yellow: Small Tools / Screws / Repair Kits 🛠️
• ⚪ White: Hygiene Products / Water Purification Tablets 💧
• 🟠 Orange: High-Visibility / Emergency Signal Gear 🆘

Pro Tip: Print a small stash of different colored rings to stay flexible as your loadout changes! 🔄✨

⚙️ Print Settings

• Container & Lid: PETG, ASA, or ABS (recommended for outdoor/tactical use).
• Gaskets & ColorCode Rings: TPU (95A or softer).
• Walls: 3–4 Wall Loops for maximum durability.
• Wall Order: Inner/Outer (Critical for thread precision!).
• Layer Height: 0.2 mm (0.12 mm for even smoother threads).
• Infill: 15–25% (Gyroid).

📂 Smart Profile Organization: > I have organized each size into dedicated print profiles with 4 plates each:

1. Container (Rigid)
2. Lid (Rigid)
3. Gasket (TPU)
4. ColorCode Ring (TPU) This allows you to easily select the right material for each part and swap colors for your identification rings without any mess! 🛠️✨

💡 Assembly Tip

Slide the ColorCode Ring from the bottom until it snaps into the groove. For 100% water tightness, ensure the TPU gasket is seated flat in the lid. A tiny drop of silicone grease on the threads will make the operation buttery smooth! 🧈✨

********************************************************************

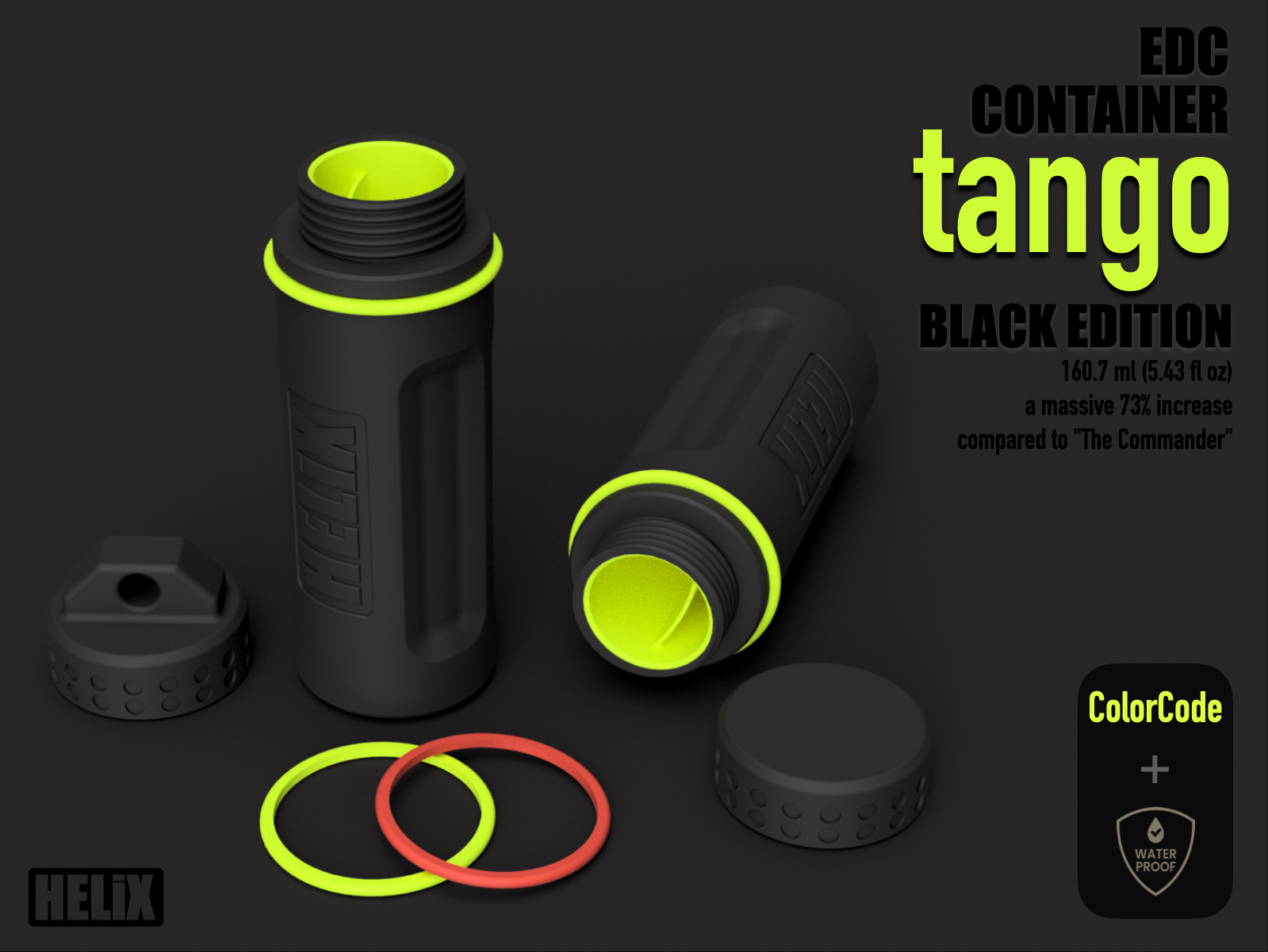

🚀 UPGRADE TO THE BLACK EDITION (BE) 🦍💥

Need more space? The Black Edition is the powerhouse of the Tango lineup, delivering a massive 73% more volumethan the 'Commander'!

• Dual-Chamber TPU Inlay: Silent organization & gear protection. 🛡️✨
• Dual Lid System: Choose between Lid A (Lanyard) or Lid B (Flat).
• ColorCode System: Tactical TPU rings for instant content ID. 🌈
• Volume: ~160.7 ml of pure tactical storage for your heavy-duty EDC.

👉 Check out the TANGO BE on my profile for the ultimate storage solution!

********************************************************************

🚀 Future Roadmap & Community Requests

The HELiX Tactical - "Tango" series is just the beginning! I am currently working on specialized versions based on your feedback.

• Custom Medical Editions: Tailored dimensions for insulin syringes, epi-pens, and sensitive medical gear. 💉🩹
• Tactical Equipment: Precision-fit sleeves for suppressors and specialized gear. 🔇⚡
• Stay Tuned: These will be released as separate, optimized uploads in the near future.

A Note on Development: 🛠️ Designing is one thing, but researching exact dimensions, printing prototypes, and conducting waterproof testing takes time. I want to ensure every "Tango" variant meets the highest standards before I share it with you. Thank you for your patience – I’m working hard to bring these community-requested sizes to life as soon as possible! 🕒🏗️

⚠️ IMPORTANT: Waterproofing Disclaimer

While the HELiX Tactical - "Tango" is designed to be waterproof with the included TPU gasket, the final result depends entirely on your print quality, material choice, and assembly.

• Test before use: Always perform a "dry run" (submerge the empty container in a bowl of water for 30 minutes) before trusting it with expensive electronics or critical medication. 🧪💧
• Maintenance: Ensure the TPU seal is clean and free of debris. A tiny bit of silicone grease on the seal and threads is highly recommended for long-term reliability.
• Liability: I am not responsible for any damage to your gear. Use at your own risk! 🛡️⚖️
