½-Inch Indicator Case with TPU-Padded Insert

Simple snap-fit case for ½ inch indicators. Gently press the 2 side tabs in to open/close

Specific version was modeled off of Mitutoyo's 543 series indicators but let me know if any changes are needed to fit other models/brands.

TPU inserts press-fit into the shell - No glue needed

Overview
Print Profile contains 2 plates:

• Shell: Includes lid and base
• TPU Insert: Includes TPU inserts for both lid and base

Assembly Notes

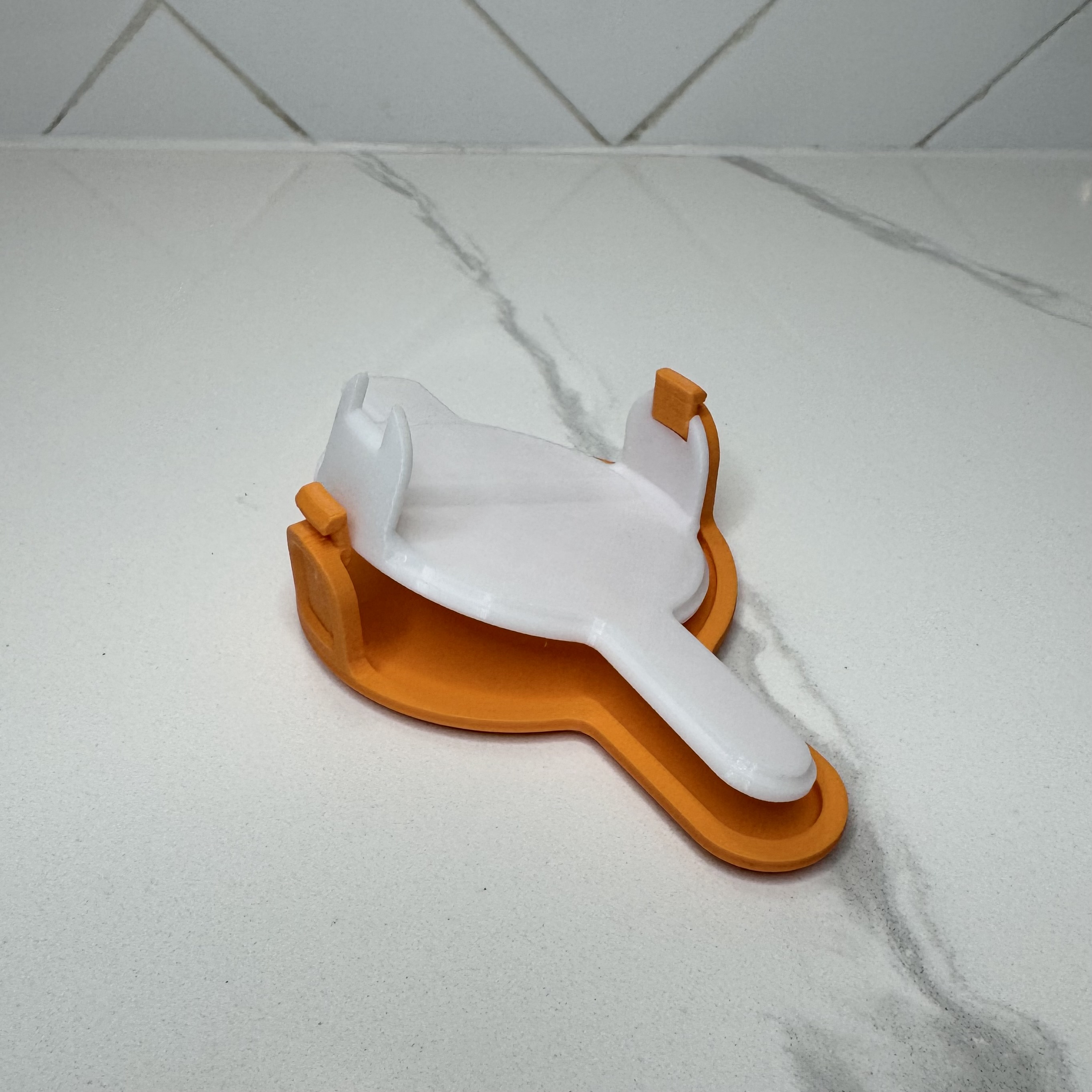

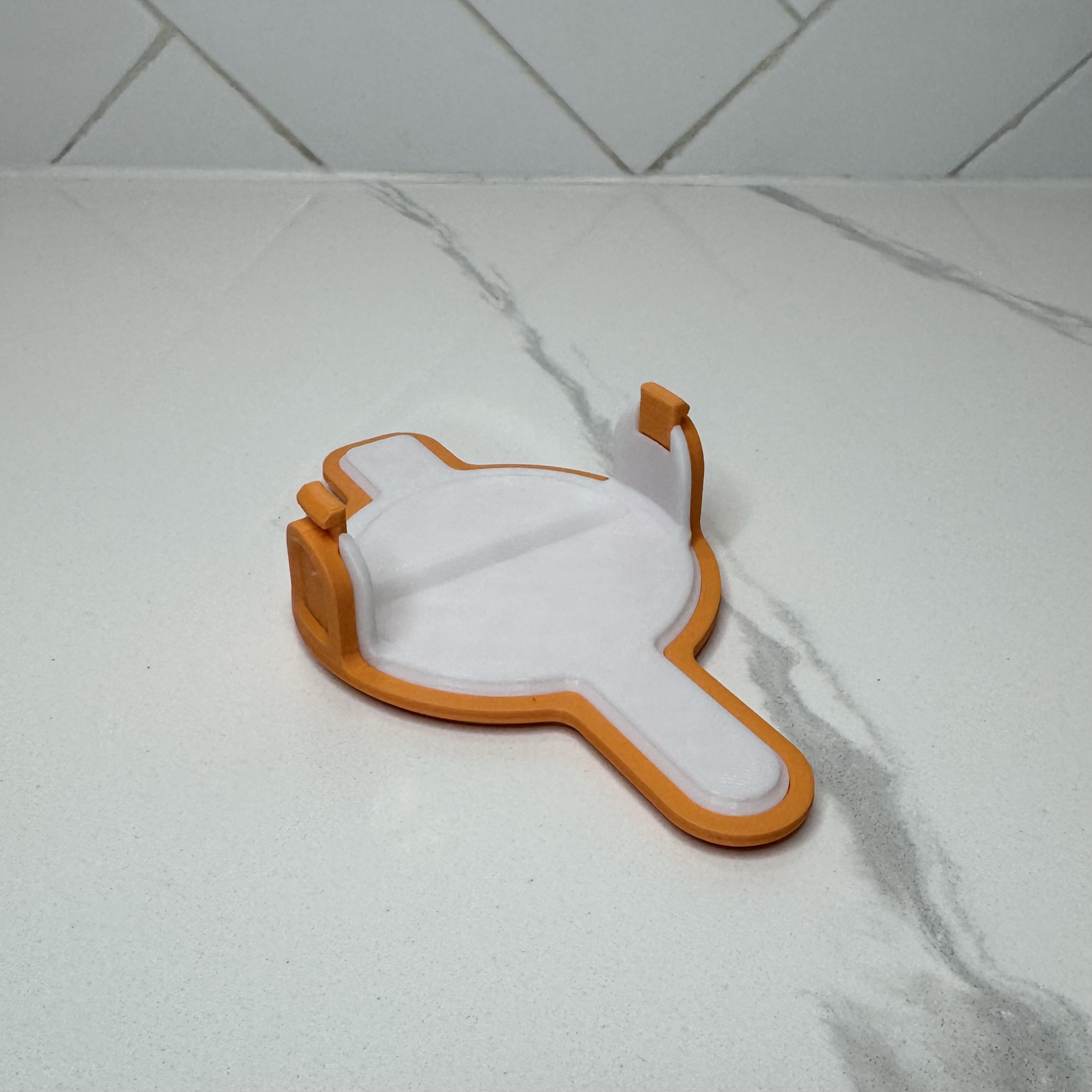

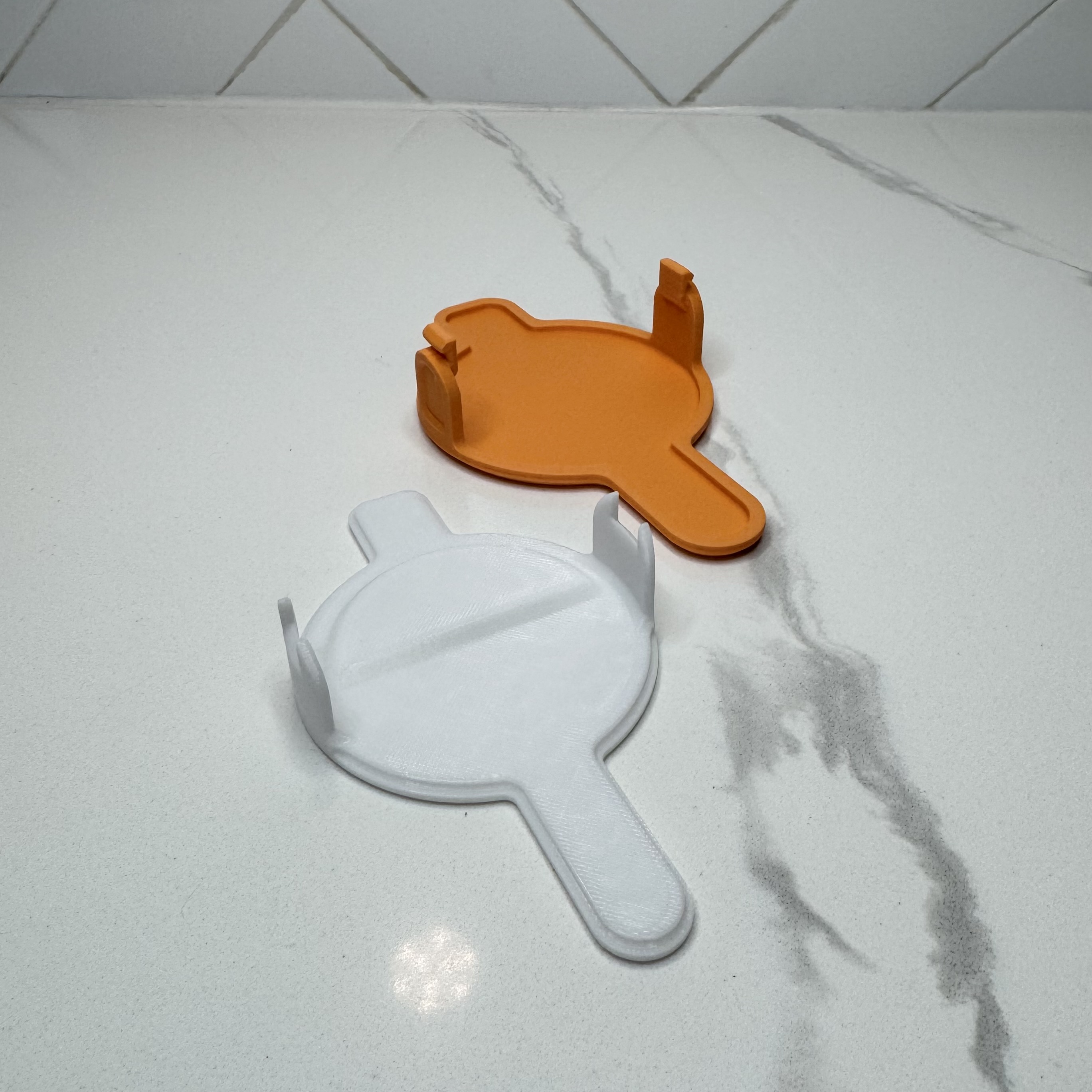

Lid Assembly

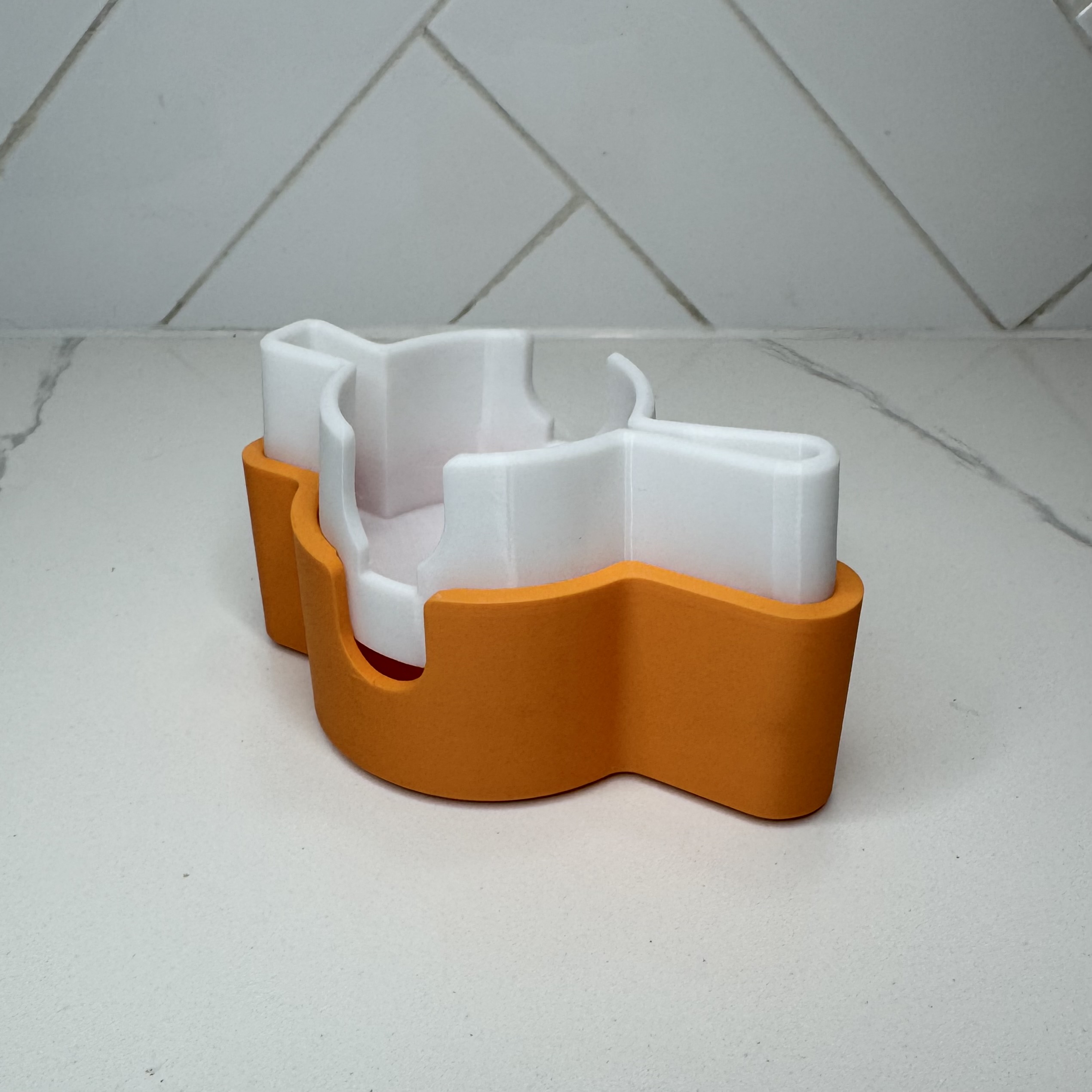

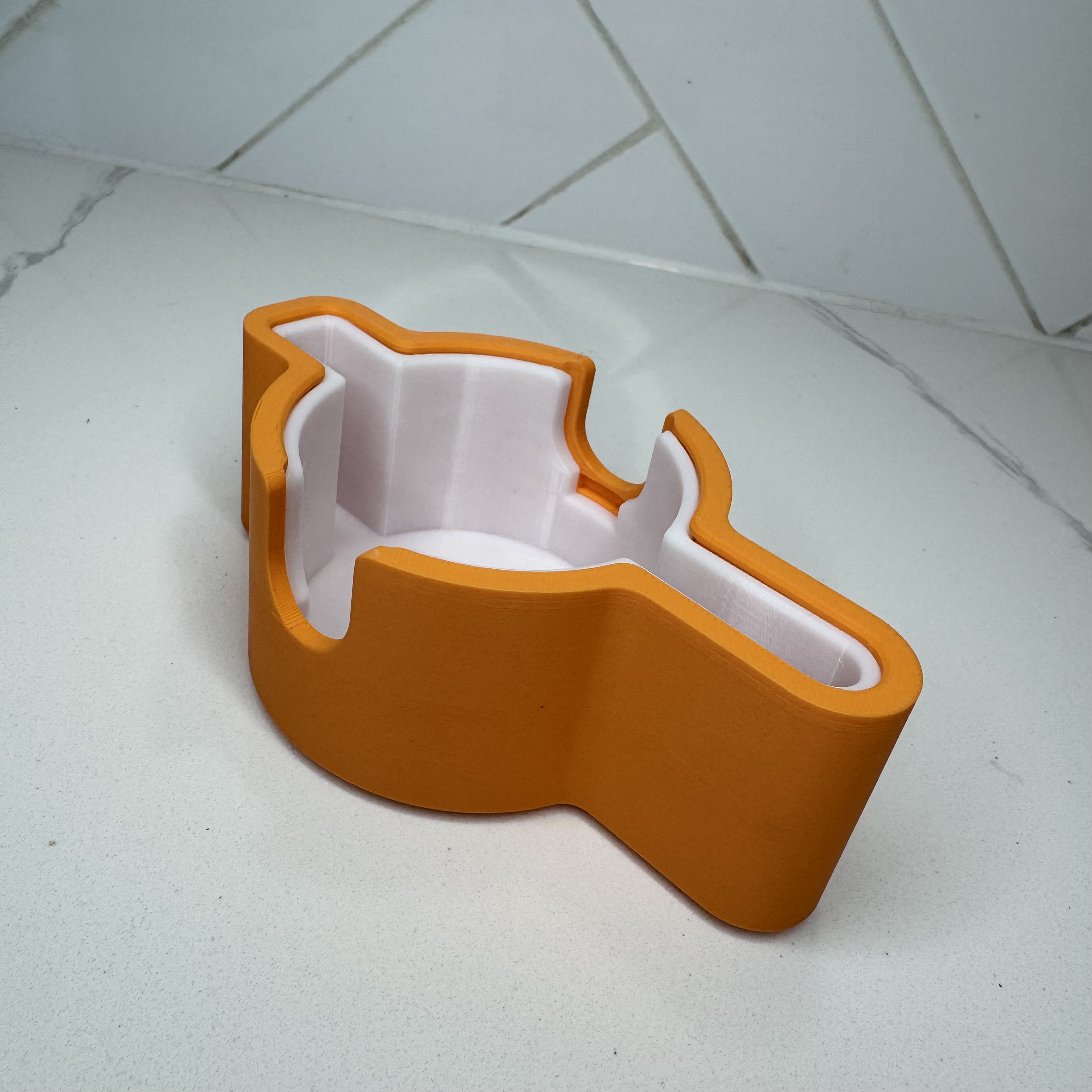

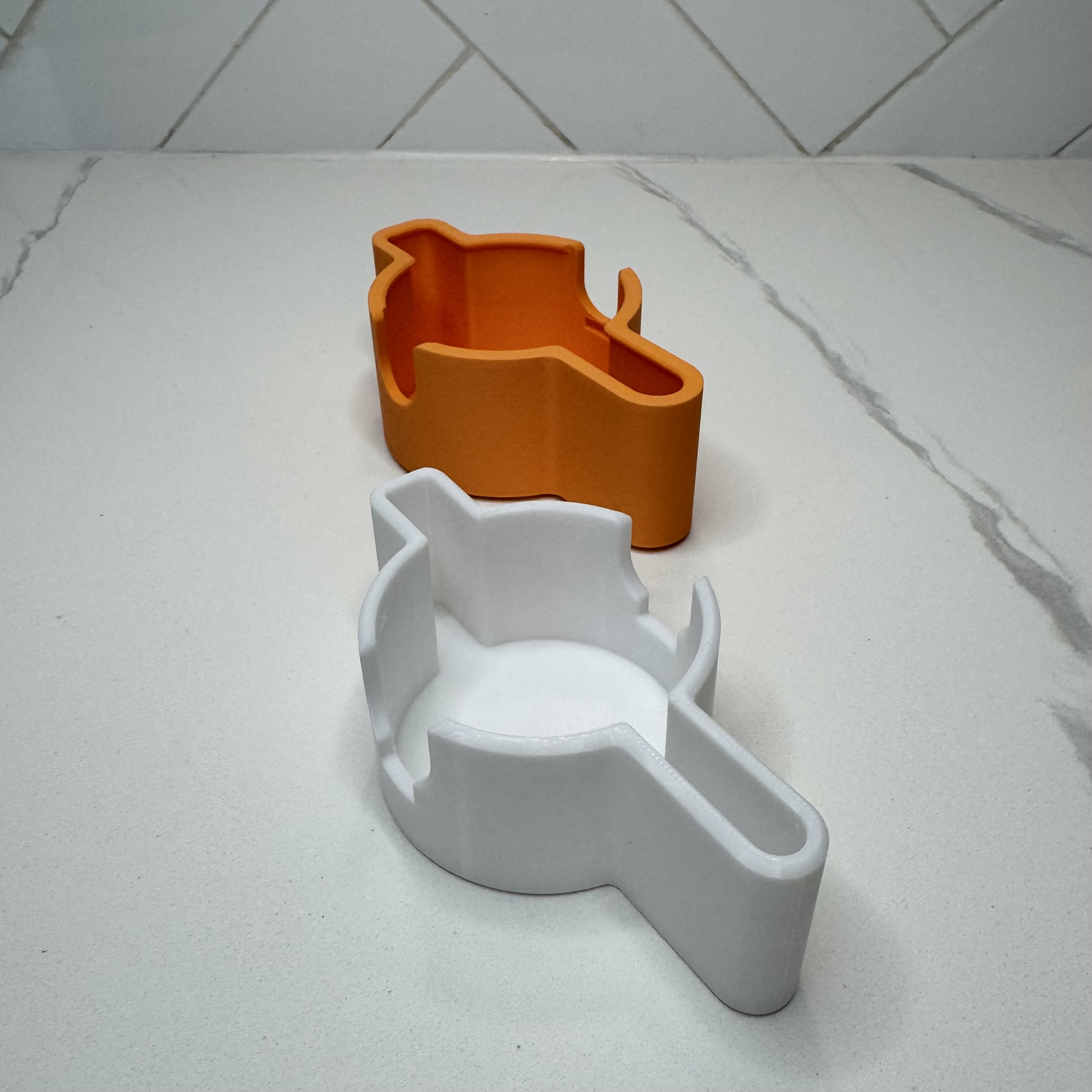

Base Assembly

Print Details

• Layer Height: 0.2mm
• Supports: Shell parts only
• Filament: Shell Printed in PLA but recommend stronger material (PETG/ASA) for extra strength
• TPU: Overture 95A TPU

Estimated Print Times

• Shell: ~2 hrs
• TPU Inserts: ~4 hrs

Notes
TPU is printed at 8% infill for added cushion
