Modular Pocket Tackle Box

• A compact, fully modular tackle box system designed for anglers who want flexibility without unnecessary bulk.
• I really like the idea of this model and designed my own version with a thiner Slim version and a thicker Deep version to store different fishing accessories and lures.

Key Features

1. Two Half-Box Options

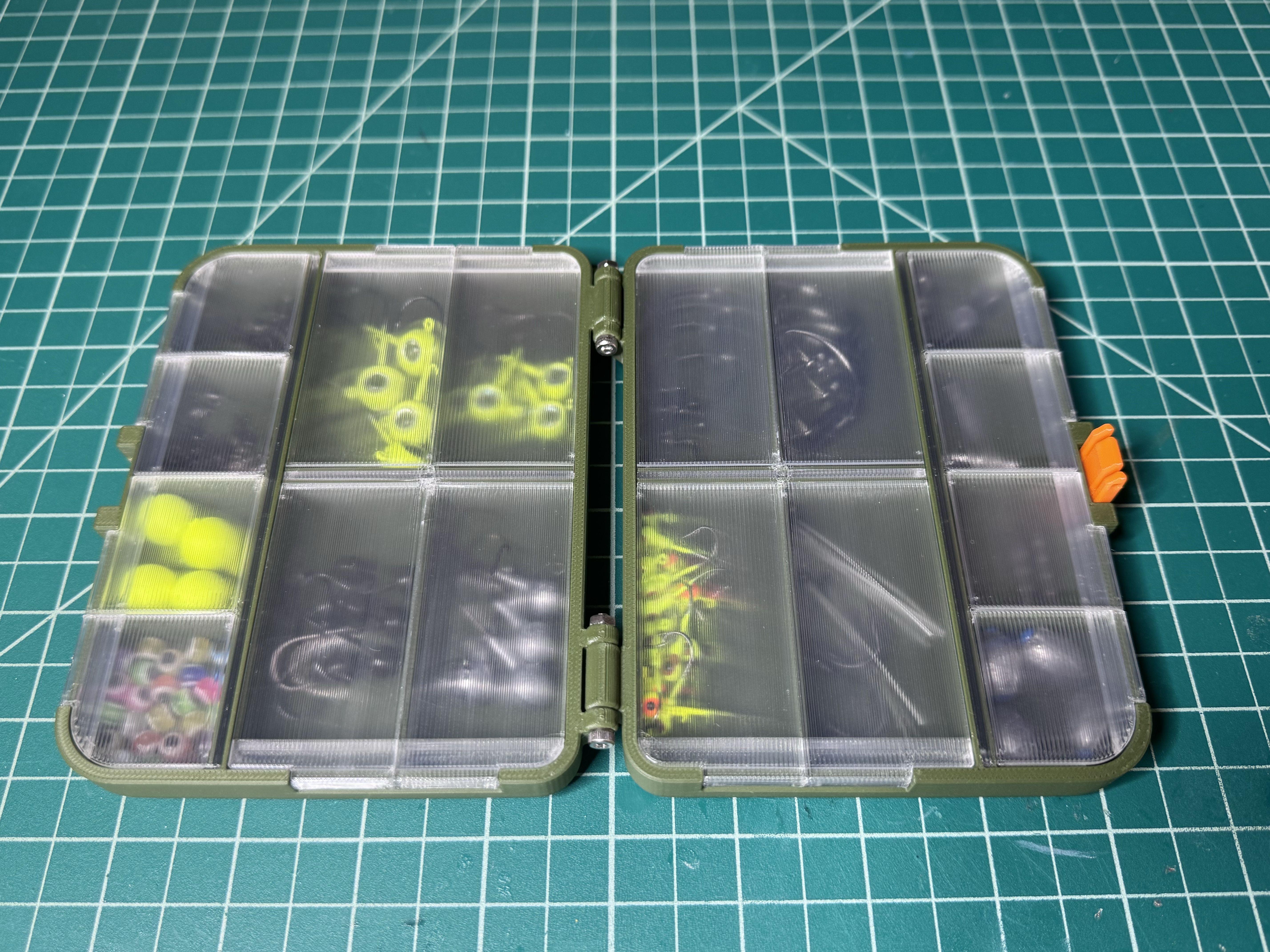

Slim Half Box – 16.8mm Total Height
Designed for hooks, weights, swivels, and small fishing accessories.

• 4 small compartments
• 4 large compartments
• Each compartment is individually covered
•

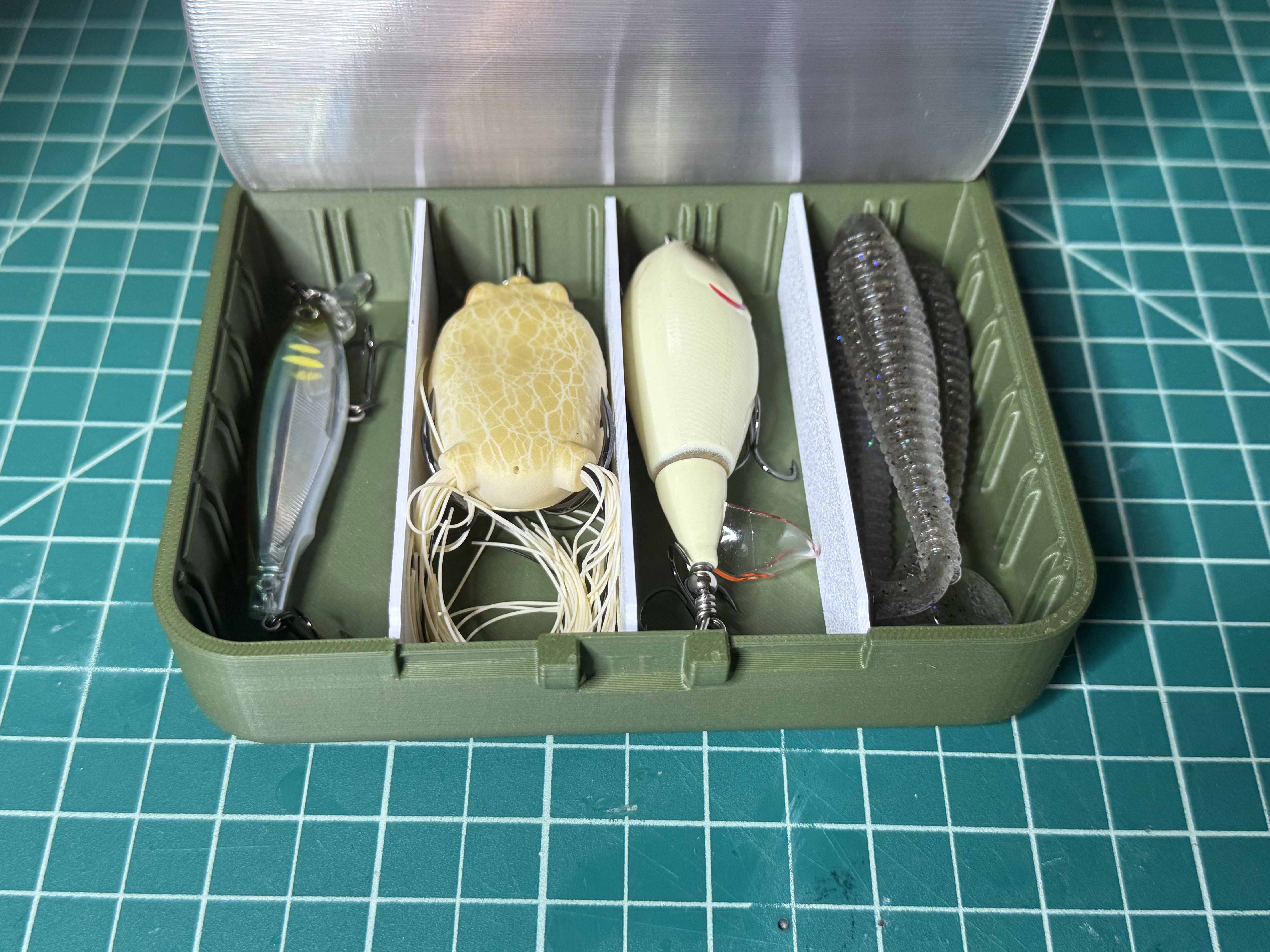

Deep Half Box – 29.8mm Total Height
Designed for jigs, soft plastics, crankbaits, chatterbaits, and other bulkier lures.

• Spacious configurable interior
• Compatible with vertical and horizontal dividers
• Includes dedicated jig organizer divider
•

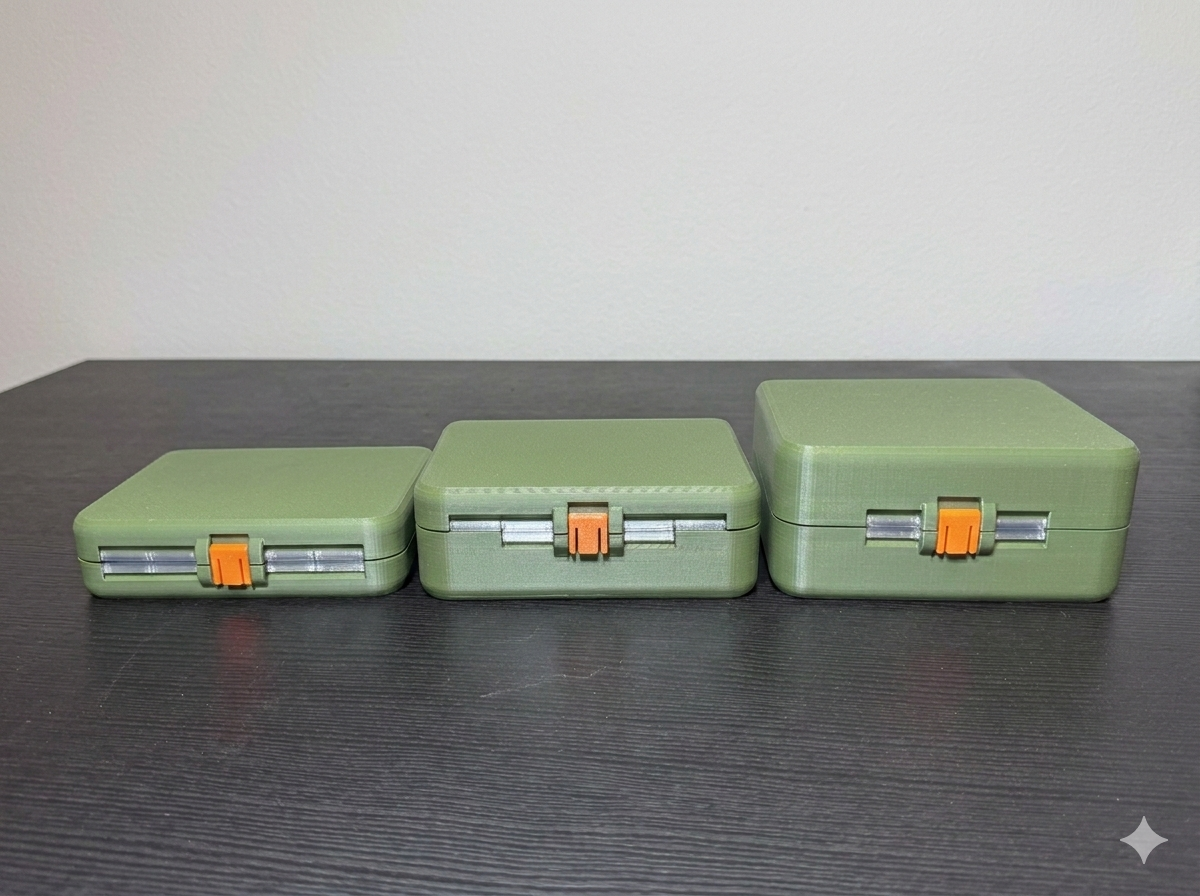

2. Fully Symmetrical & Modular Design

The box is completely symmetrical, allowing both halves to be freely combined:

• Slim + Slim
• Slim + Deep
• Deep + Deep
•

3. Individual Compartment Covers

Each compartment is concealed by its own lid to prevent mixing contents during transport — even when stored vertically or inside a backpack.

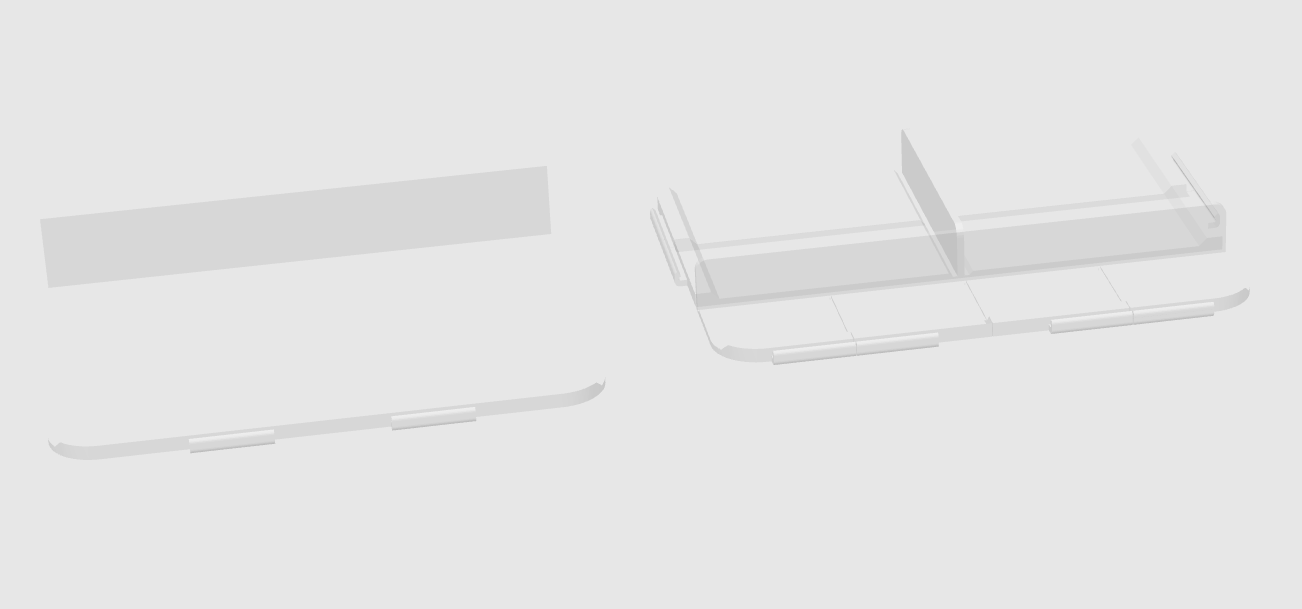

4.Custom Divider System (Deep Version)

The Deep Half Box includes:

• Vertical dividers
• Horizontal dividers

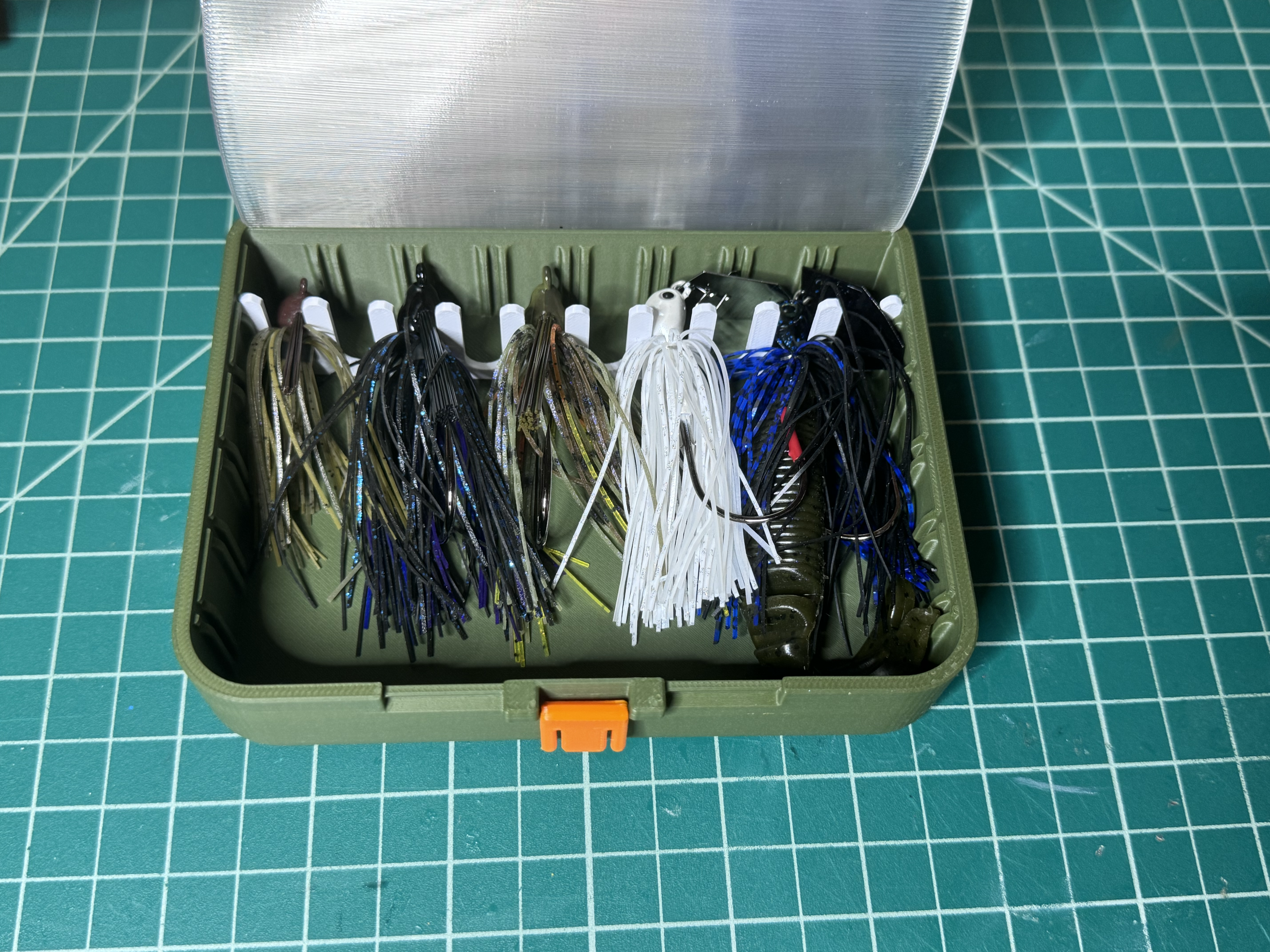

• Specialized jig storage divider





•
•

Print & Assembly Guide

Recommended Materials

• Box / Dividers / Latch: PLA or PETG
• Lids: TPU (for flexibility and improved fit) DO NOT print with PETG, the hinge area will break.

For transparent lids, follow Bambu Lab’s guidance on printing clear TPU. [https://wiki.bambulab.com/en/knowledge-sharing/transparent-petg](https://wiki.bambulab.com/en/knowledge-sharing/transparent-petg)

The default print profile for Lids is my setup for printing transparent TPU.

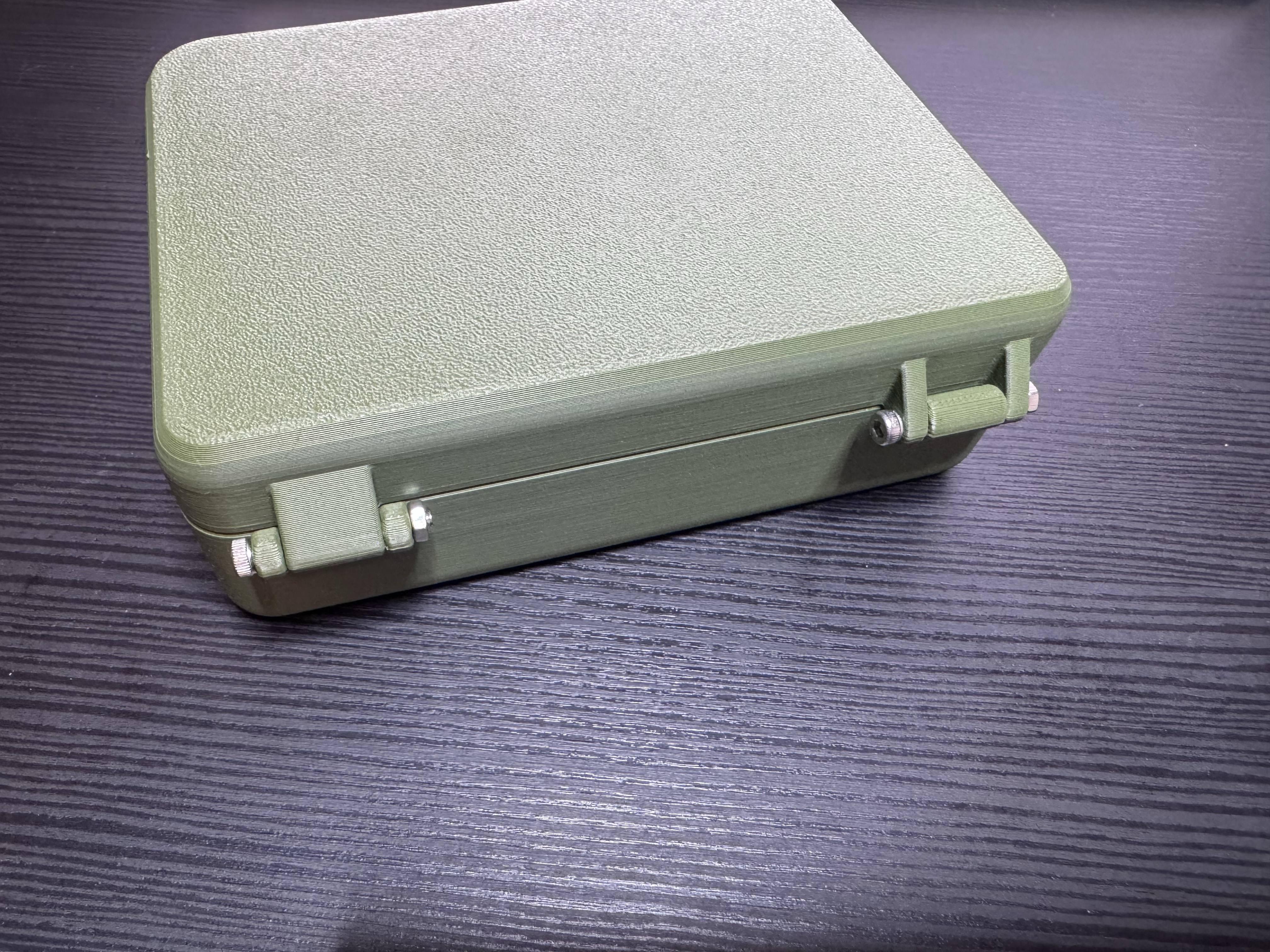

Hardware Required

• 2 × M3 × 25mm screws
• 2 × M3 nuts
  (Used for hinge assembly)
•
