LED strip diffuser for building a multi-color bar graph (to be controlled by your own project). Functions as a colorful display device that can be mounted on a wall or desktop.

Segmented design for displaying levels or other status that your device needs to clearly communicate.

Best printed using AMS (white for diffusers, black for case & dividers) to prevent light bleed-over. Could print all white (without AMS) if small bleed is acceptable.

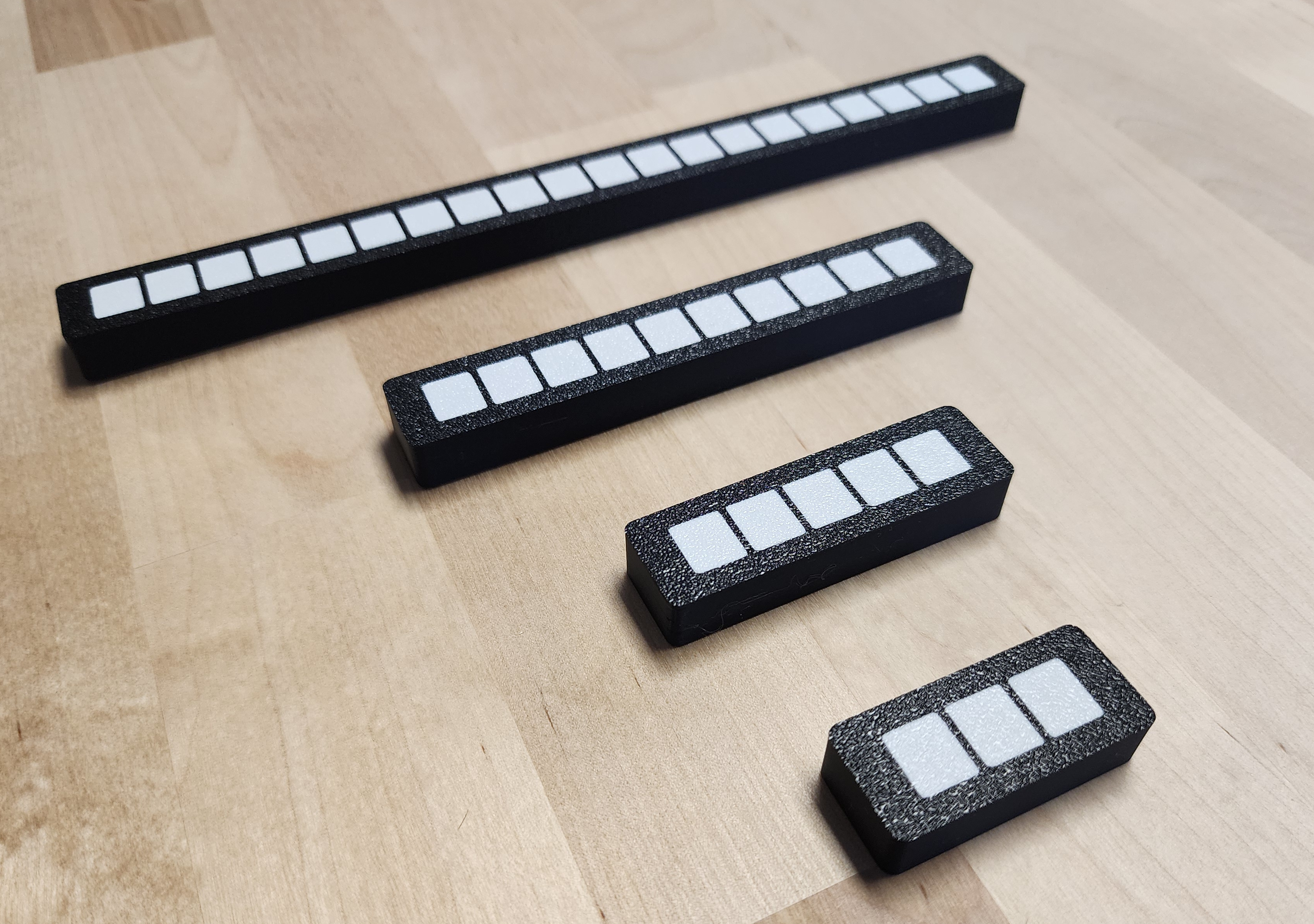

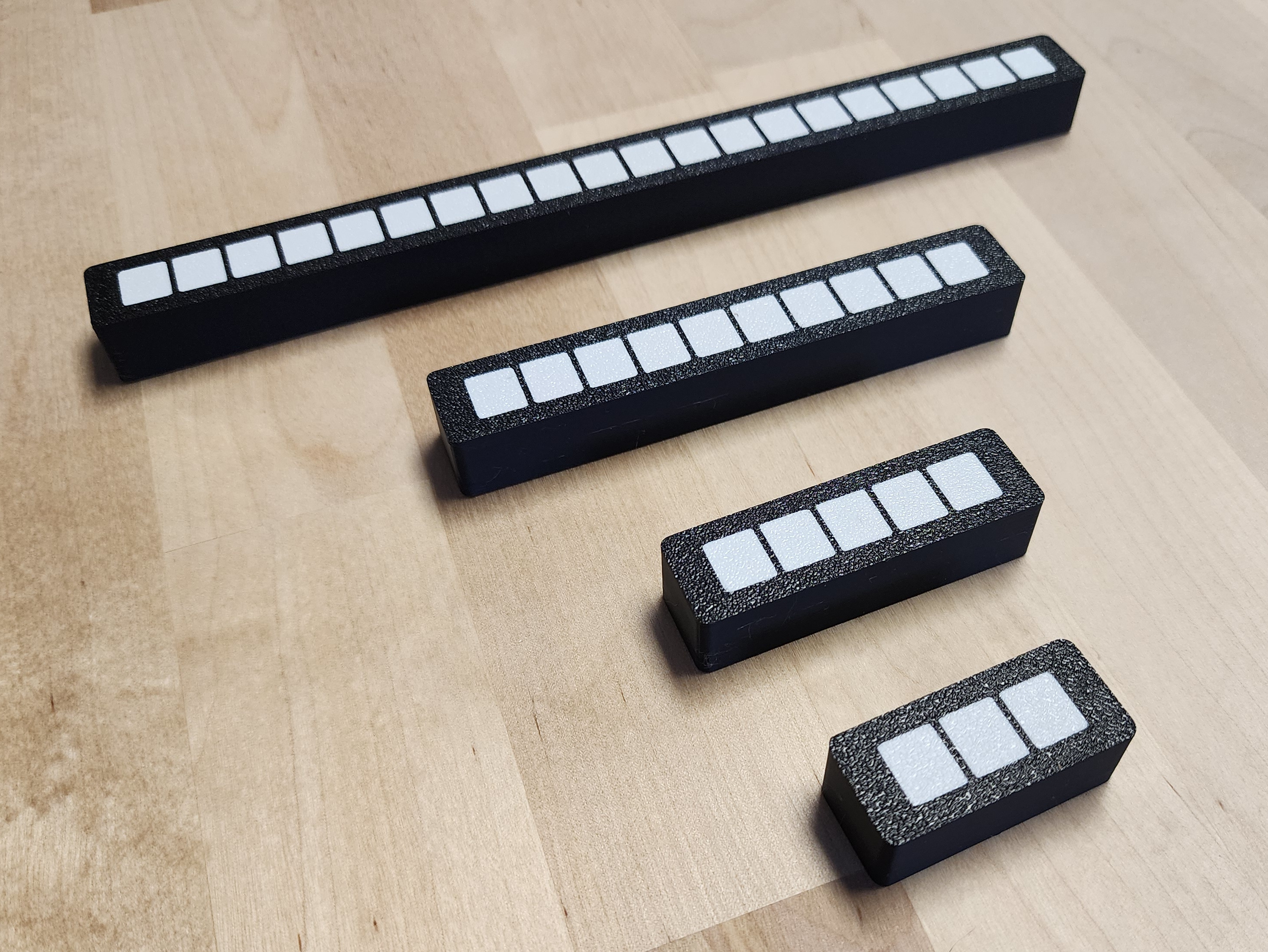

Includes variations for holding 3, 5, 10, or 20 LEDs. Two profiles:

• Thick - Brightness more consistent across entire segment
• Thin - Smaller case, but has a bit more of a “hot spot” in the center of each segment

Designed for WS2812B LED strips such as this [https://www.amazon.com/dp/B088B8G8LD](https://www.amazon.com/dp/B088B8G8LD)

although will likely work for other LED strips that are 10 mm wide and whose LED's are placed every 10mm (100 LED's per meter)
