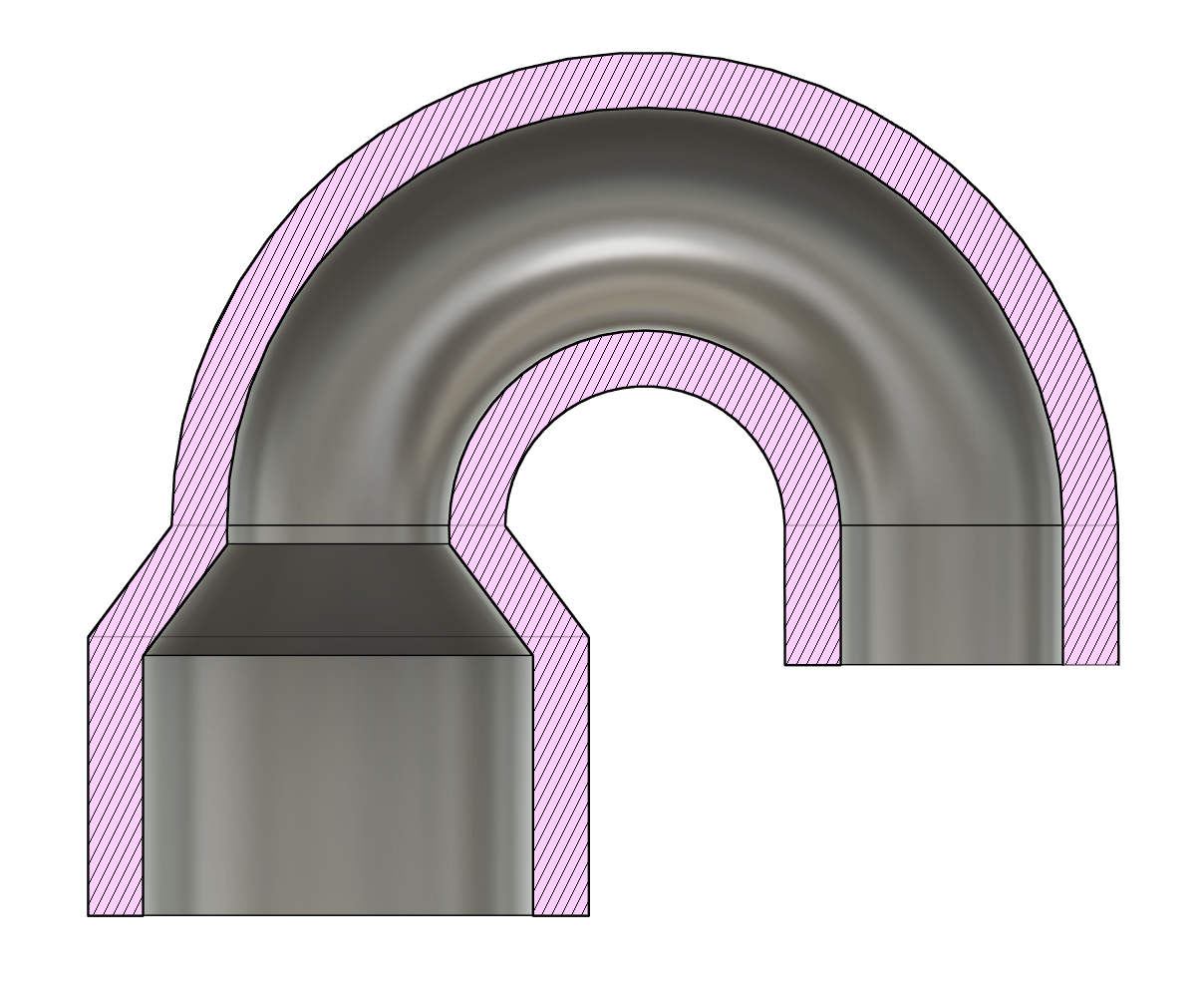

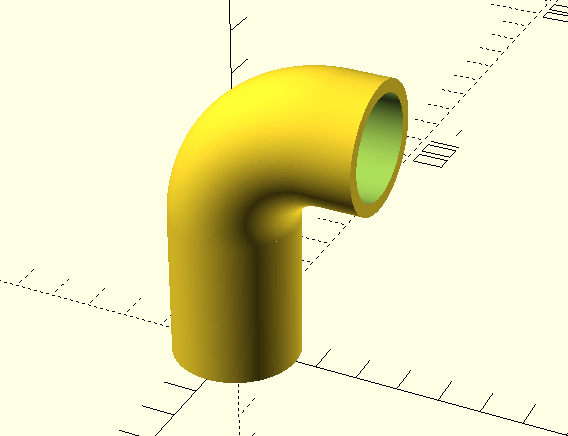

This model is a pipe elbow adapter that can connect pipes of any size and angle you want.

Features

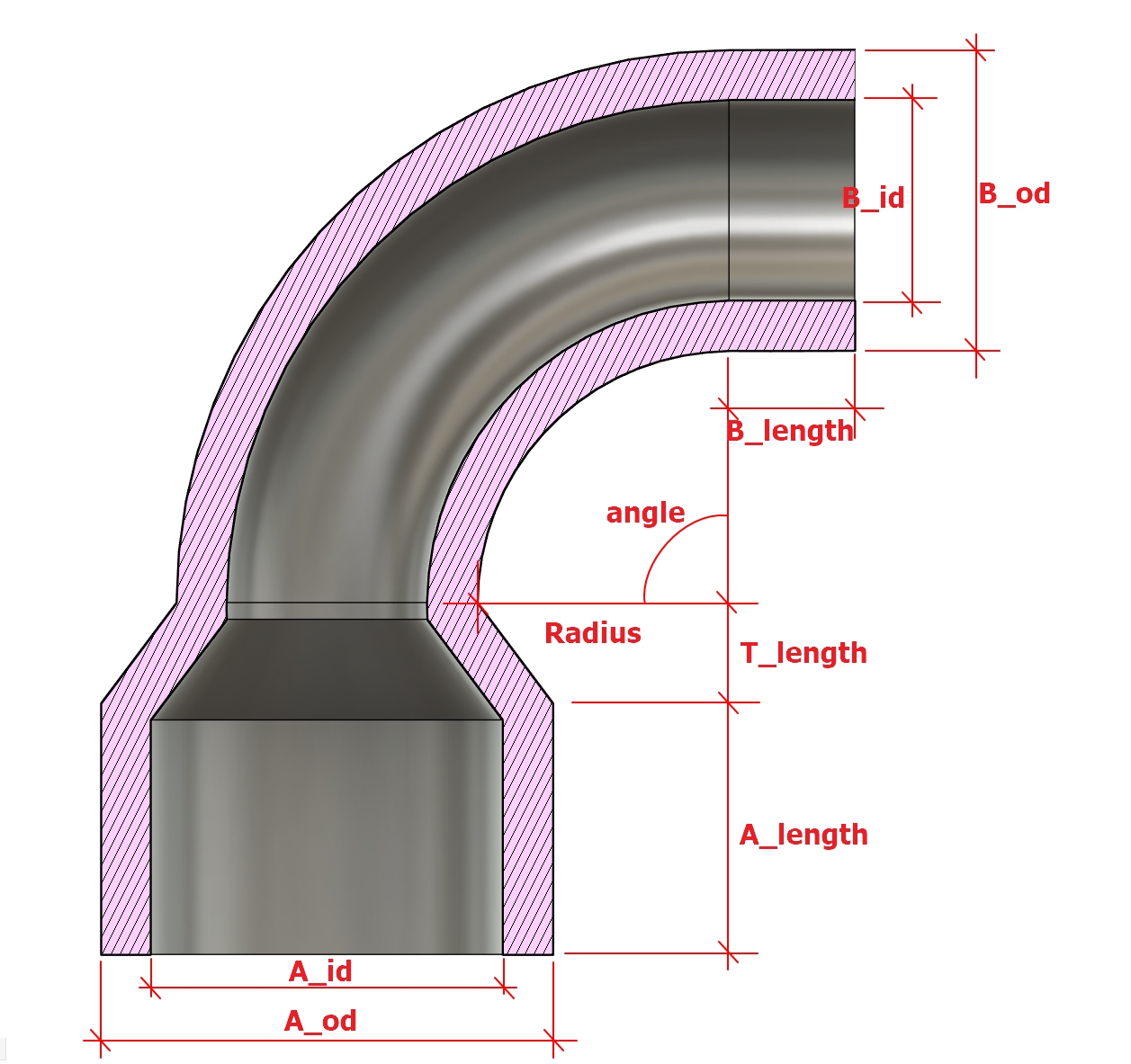

1. Create a model by entering the inside and outside diameters of both pipes instead of the wall thickness.

2. The reducing section(T_length) can be made to zero (this might require support setting when you print it).

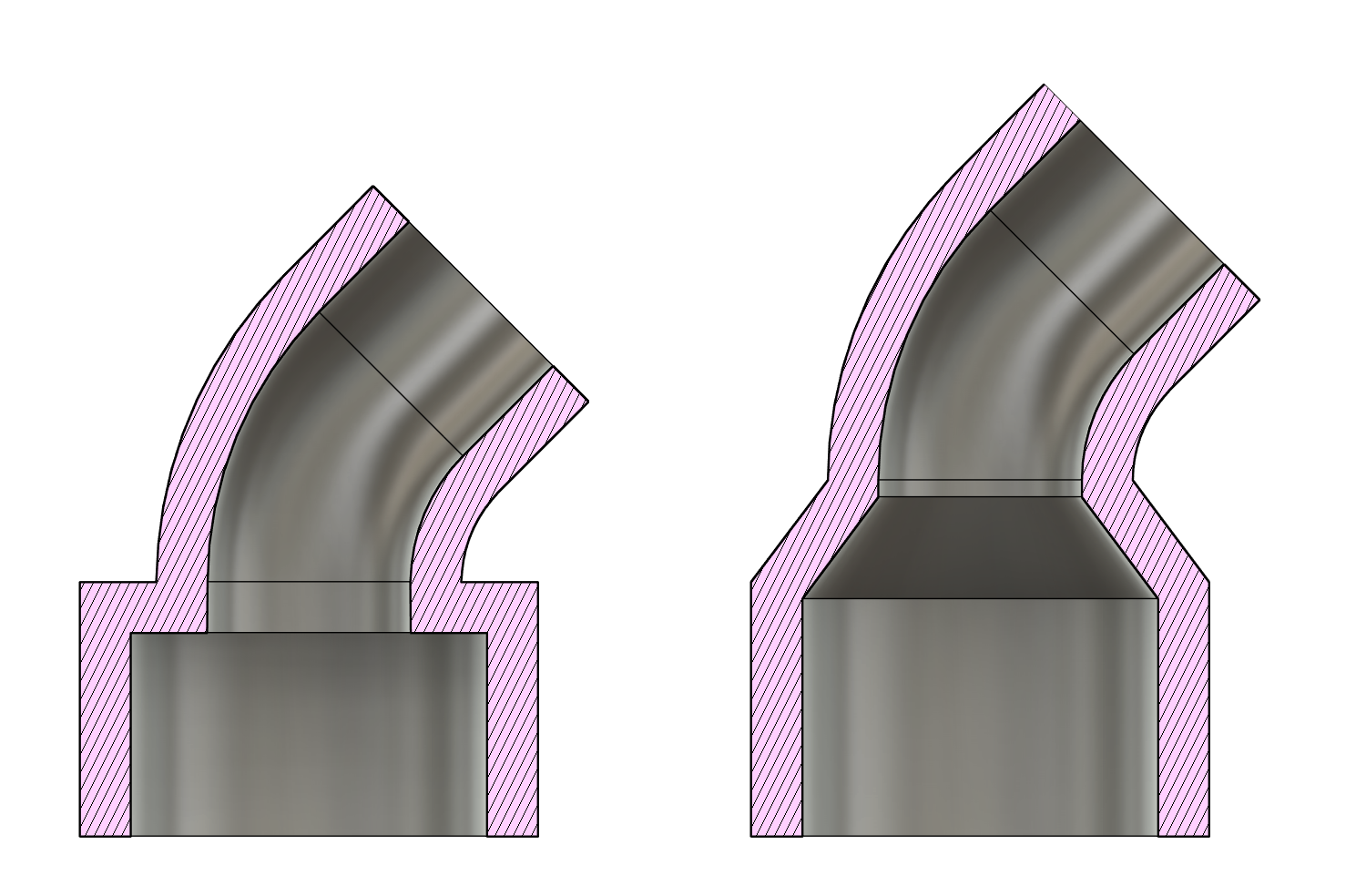

3. The elbow bend angle can be freely set up to 180 degrees or more. (not recommended to set larger than 180 degrees)

4. You can make both pipes the same size.
