H2 Laser Alignment Square Tool

Bambu Lab H2 Laser Alignment Square

Precision Positioning Tool for Repeatable 90° Setup

This 3D printable alignment tool is specifically designed to be compatible with the Bambu Lab H2 Laser version and fits directly between the laser bed cross support ribs.

It is not just a simple square — it is a repeatable positioning system that significantly improves workflow speed and accuracy during laser engraving or cutting.

🔧 How It Works

1️⃣ Insert the cross support bars into the laser bed.

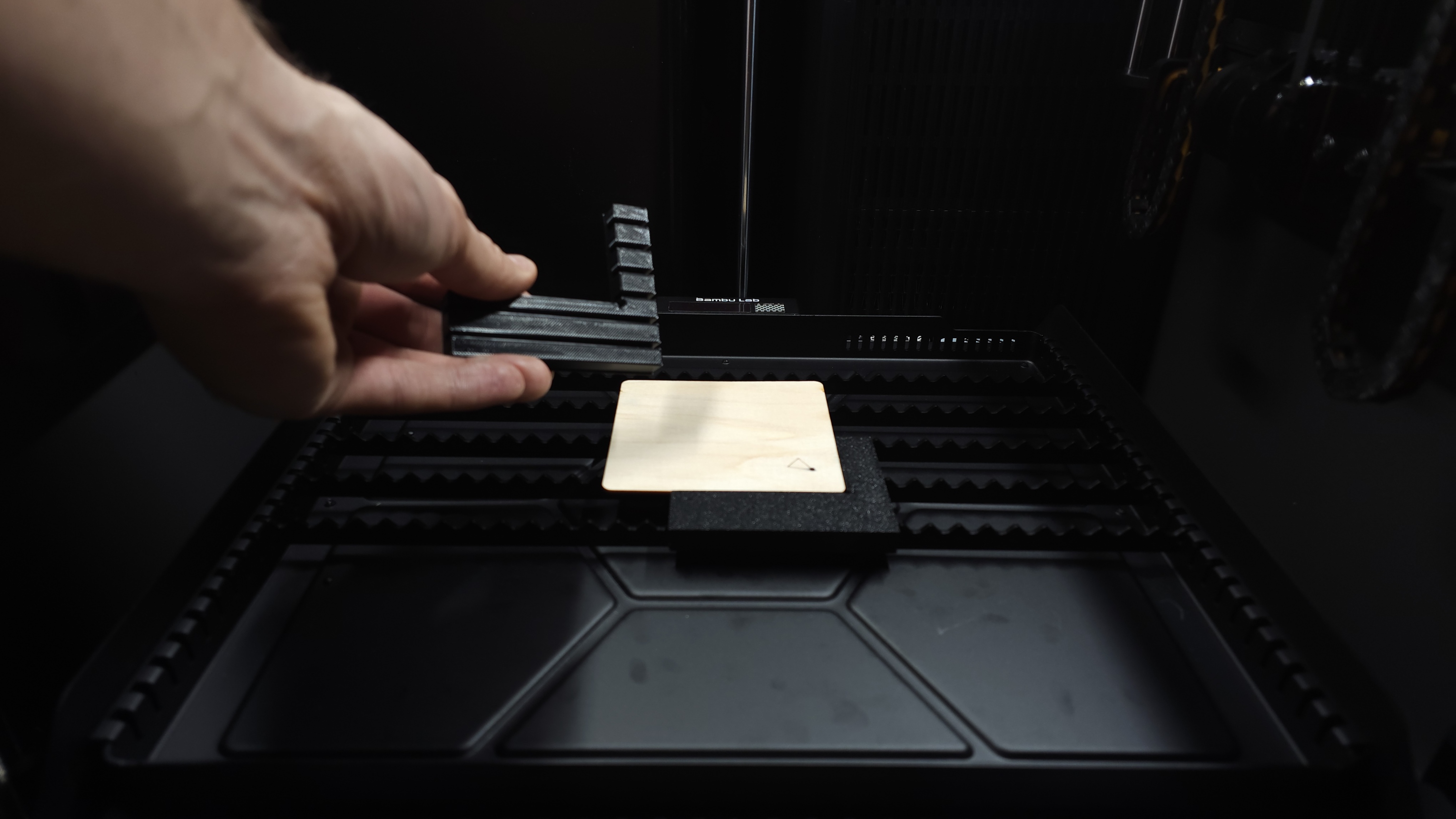

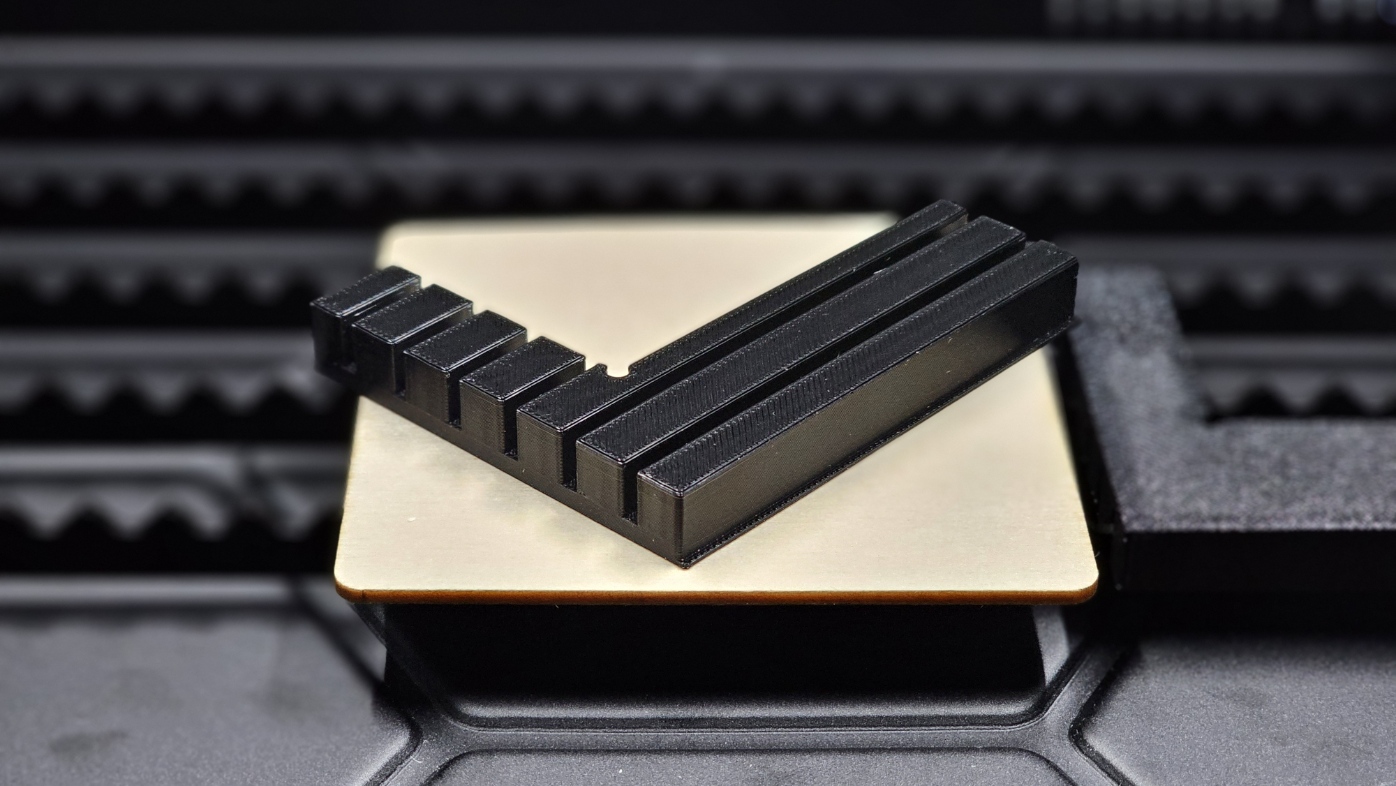

2️⃣ Slide the printed L-shaped alignment tool onto the support bars.
3️⃣ The tool locks into place and creates a stable 90° reference surface.

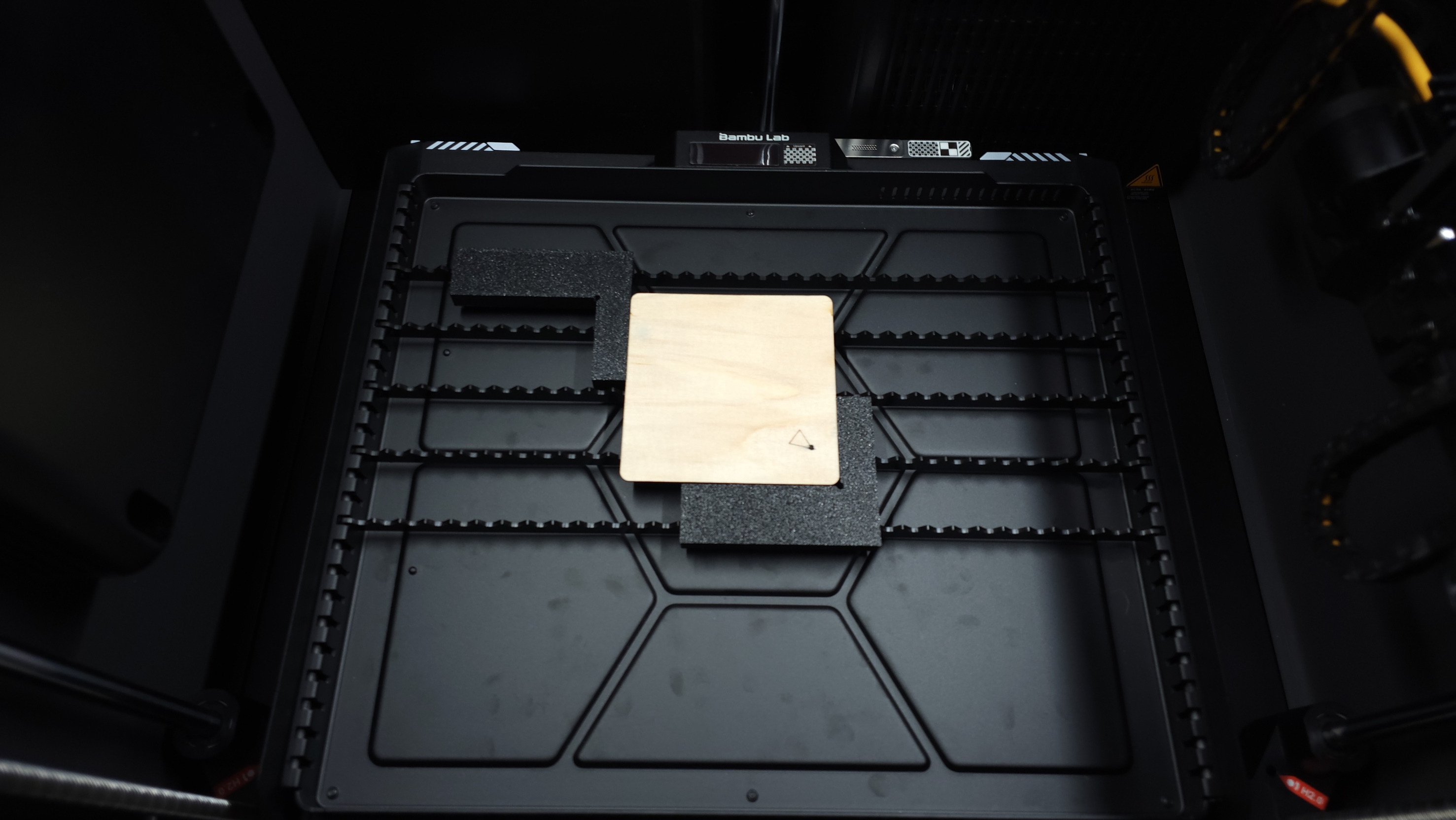

4️⃣ Simply push your workpiece against it for perfectly square positioning.

This ensures your material is aligned exactly 90° relative to the machine’s coordinate system, eliminating guesswork.

🎯 Why It’s Extremely Useful

✔ No more manual measuring
✔ No visual alignment guessing
✔ Faster setup time
✔ Repeatable positioning
✔ Ideal for batch production
✔ Reduces misaligned engravings

🔁 Even More Powerful with Multiple Units

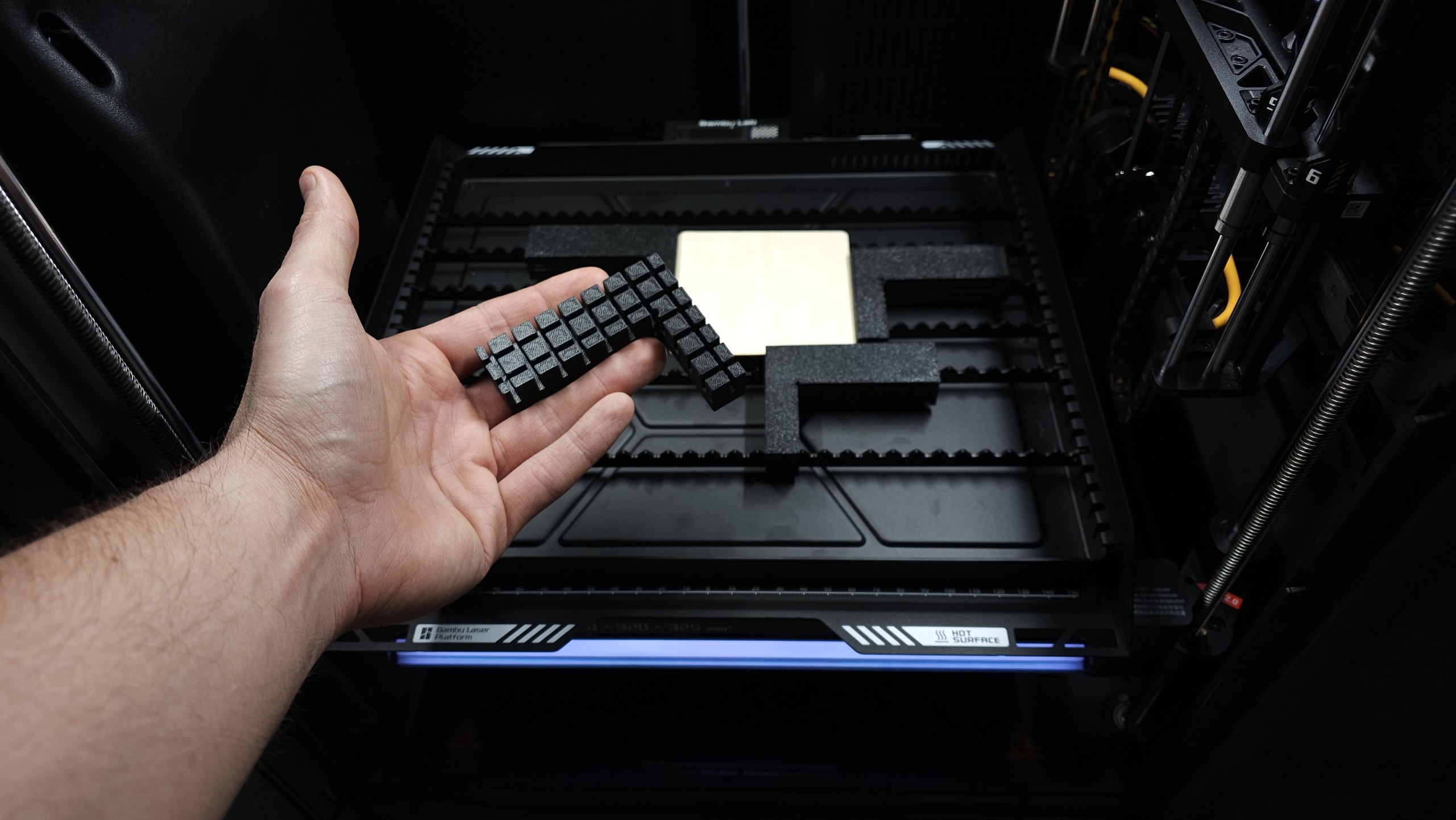

Printing multiple alignment tools allows you to create a full positioning frame.

For example:

• Secure round objects from two sides
• Lock square or rectangular sheets into a fixed reference corner
• Always place workpieces in the exact same origin position
• Perfect for production runs and repeated engraving jobs

With multiple units, your material will always return to the same fixed position, increasing consistency and reducing setup time.

📐 Upcoming Versions

Multiple variations will be available:

• Thin material optimized version
• Thick material version
• Different height offsets
• Alternative rib spacing compatibility

This allows you to adapt the system to various material thicknesses and workflows.

🖨 Print Details

⏱ Print time: approx. 30 minutes
🛠 Supports: not required
📏 0.2 mm layer height recommended
🔧 0.4 mm nozzle
🧵 PLA or PETG recommended

Quick to print, rigid, and designed for repeated workshop use.

💡 Summary

A simple but extremely practical upgrade for Bambu Lab H2 Laser users.

Improves accuracy.
Improves speed.
Improves repeatability.

Minimal design — maximum workflow efficiency.

⚠ This is a third-party accessory and is not an official Bambu Lab product.
Designed for compatibility with Bambu Lab H2 Laser systems.
