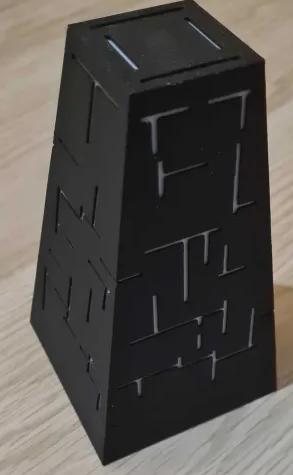

Cryptic obelisk (KC007)

Hereby I present a cryptic obelisk which functions as a cool, mysterious diffused light for the KC007 kit. This design consists of 3 pieces that snaps together. The light pucks have a nice fit in the base, so no adhesive is needed! These lights can be used to light up the inside od your bedroom, office, livingroom, … The possibilities are endless! They can be controlled via the remote, or by just pressing the light itself. No additional hardware is needed other than a light source!

There is a hole in the bottom of the base, which allows for pushing out the led with your thumb if you need the puck light for other purposes.

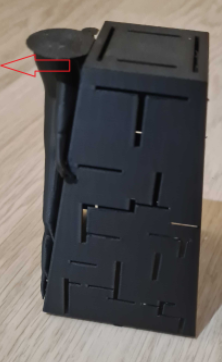

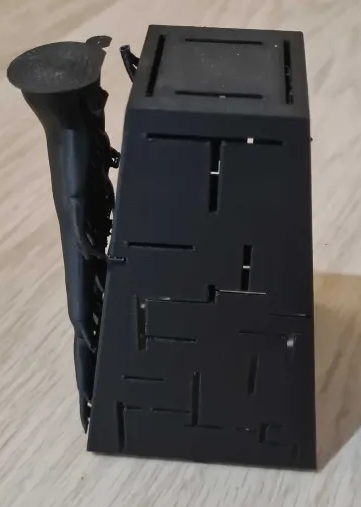

I added tree supports for the outer piece. They are easily removed if you pull on the bottom of the tree away from the part, if there are remaining parts of the support stuck, use your nail to lightly push them out:

Assembly:

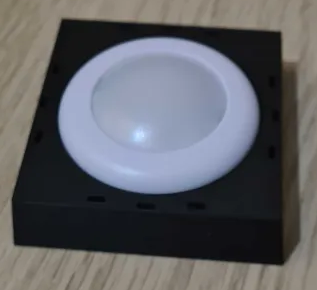

Put the light puck inside the bottom part

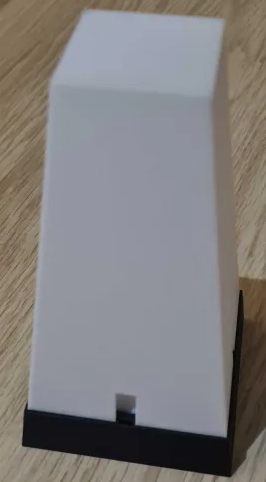

Put the light diffuser on
Put the outer piece on

🔹Features:

Simple & Sleek design
compatible with “Remote Controlled 16-color RGBW Puck Lights” (KC007)
No AMS needed!
Fits on the A1 Mini!
Snaps together
Sturdy
Printed with PLA
Light up your room or office!
Controlled via included remote or via pressing the light

🔹Dimensions:

Outer (bottom) diameter: 80mm (3.15 inch)
Overall height: 140mm (5.51 inch)

🔹Filaments used:

Base & outer piece: Bambu Lab PLA Matte Charcoal
Inner piece (diffuser: Sunlu PLA White
