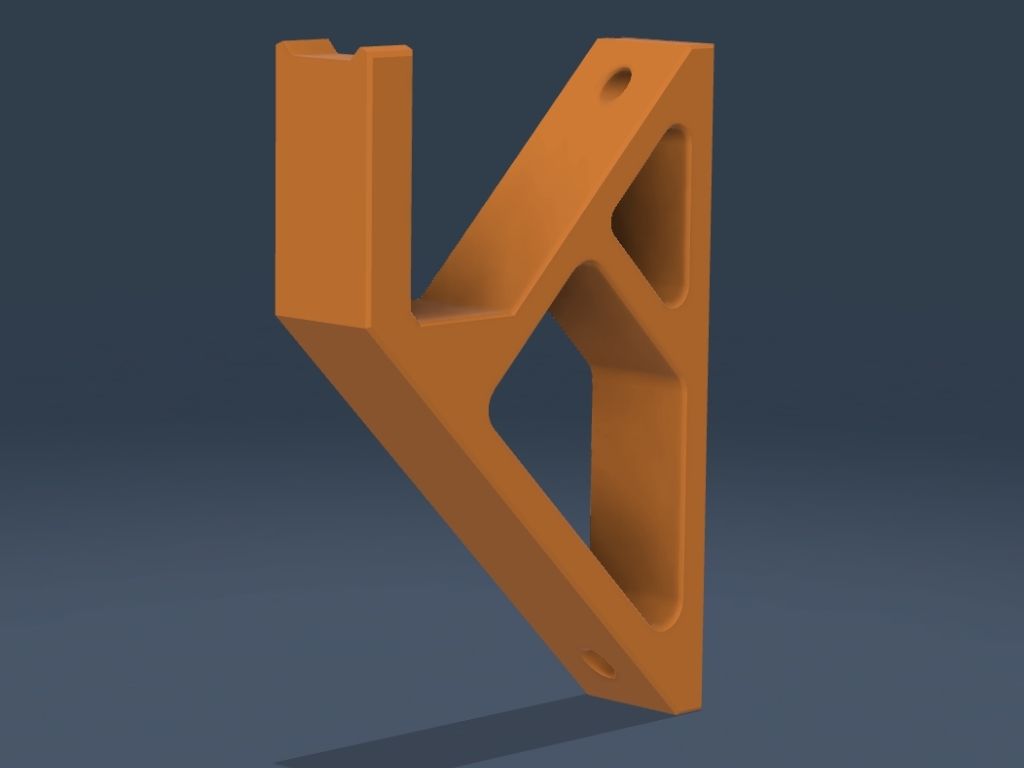

Each dock holds your spray gun in a secure angled position with proper clearance for triggers and air fittings. The system is modular, allowing you to run a single dock or expand your setup by adding multiple units.

Print Compatibility

     Spray gun dock fits on Bambu Lab A1 Mini
⚠️ Back panels require a larger build volume (A1, P1, X1, etc.)

Configuration Options

The dock can be used:

• As a standalone wall mount
• With a small panel profile
• With a full hex panel system

Multiple back panel options included:

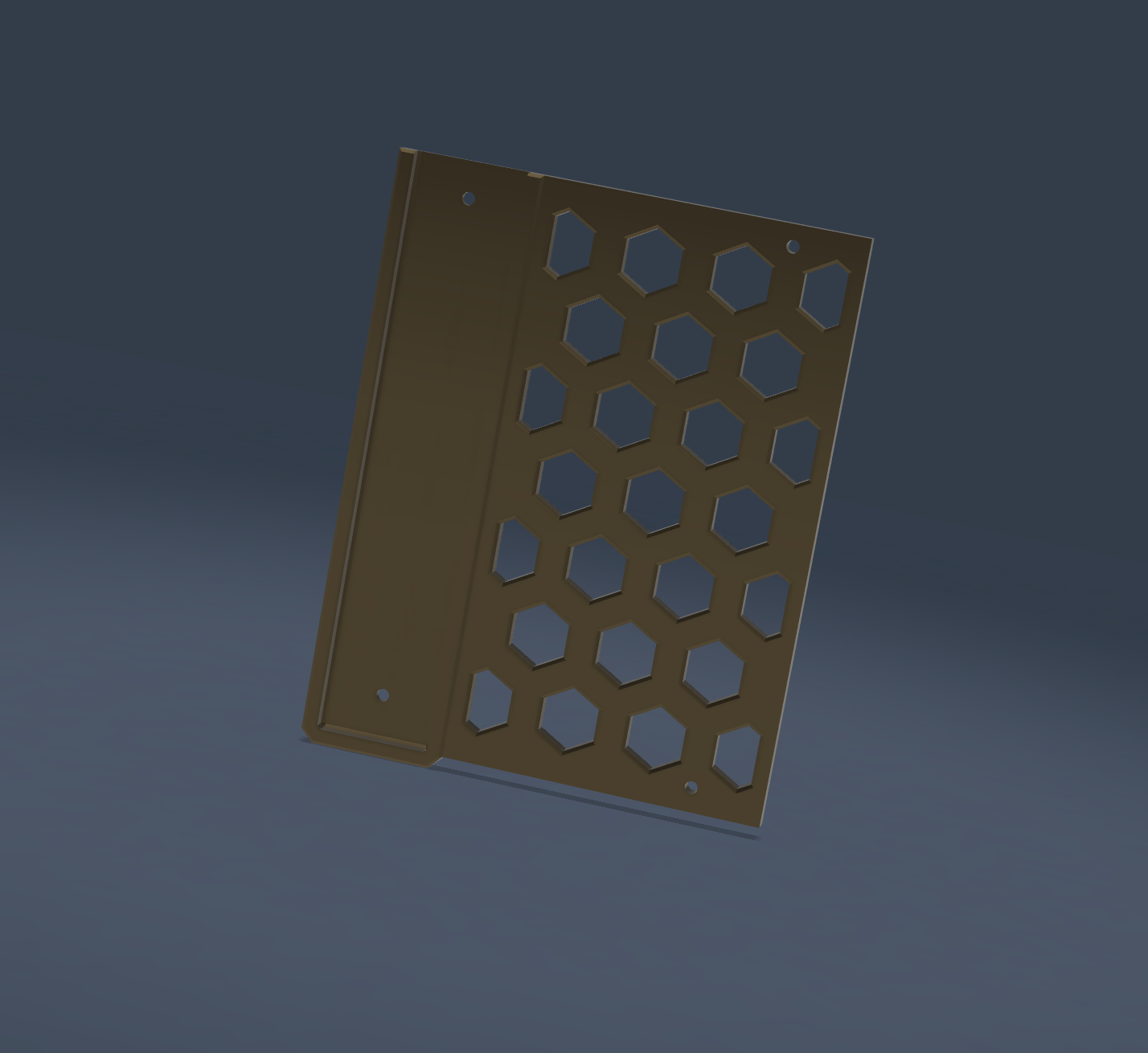

• Hex panel with integrated 1/4" tip holder
• Clean hex panel version

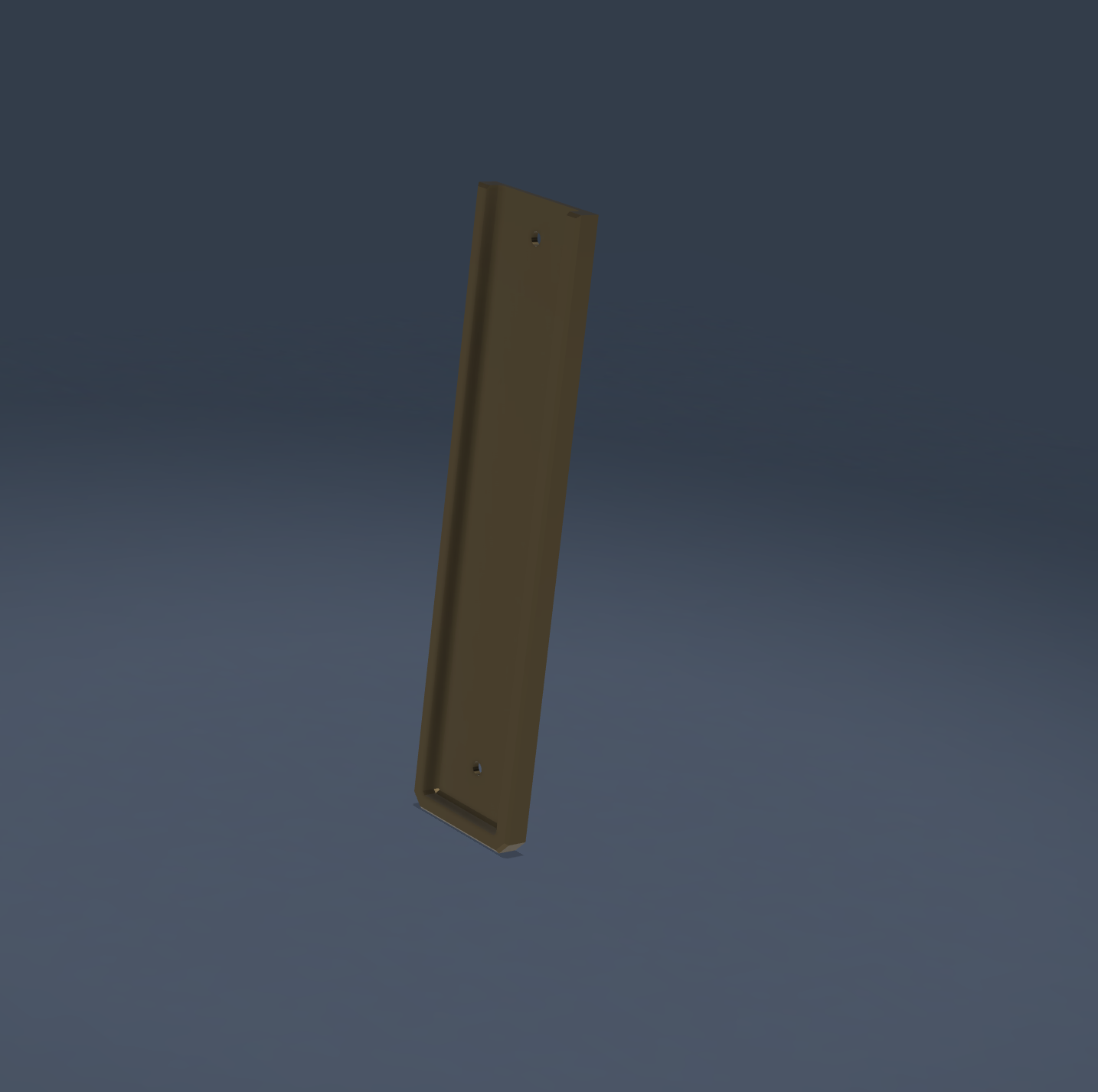

• Minimal standalone configuration

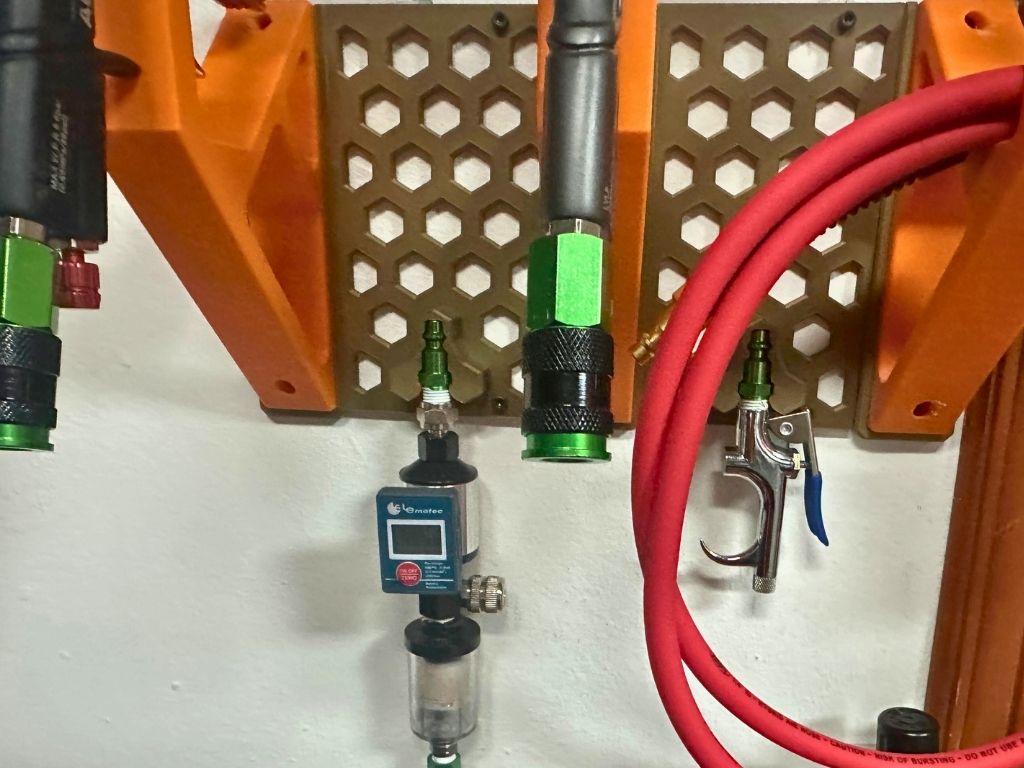

Build a compact single mount or scale into a full spray station layout depending on your printer size and workspace.

Hardware Requirements

Panel + Dock Assembly:

• 2x M4x30mm Allen screws (dock to panel)
• 2x M4x20mm Allen screws (panel mounting)

Standalone Dock:

• 2x M4x30mm Allen screws

Features

✔ Modular & expandable
✔ Standalone or panel-based mounting
✔ Optional integrated 1/4" tip holder
✔ Designed for real shop organization
✔ Compatible with most HVLP / LVLP spray guns
