Update (27.2.2026): A Radius has been added to the Pin to prevent demage.

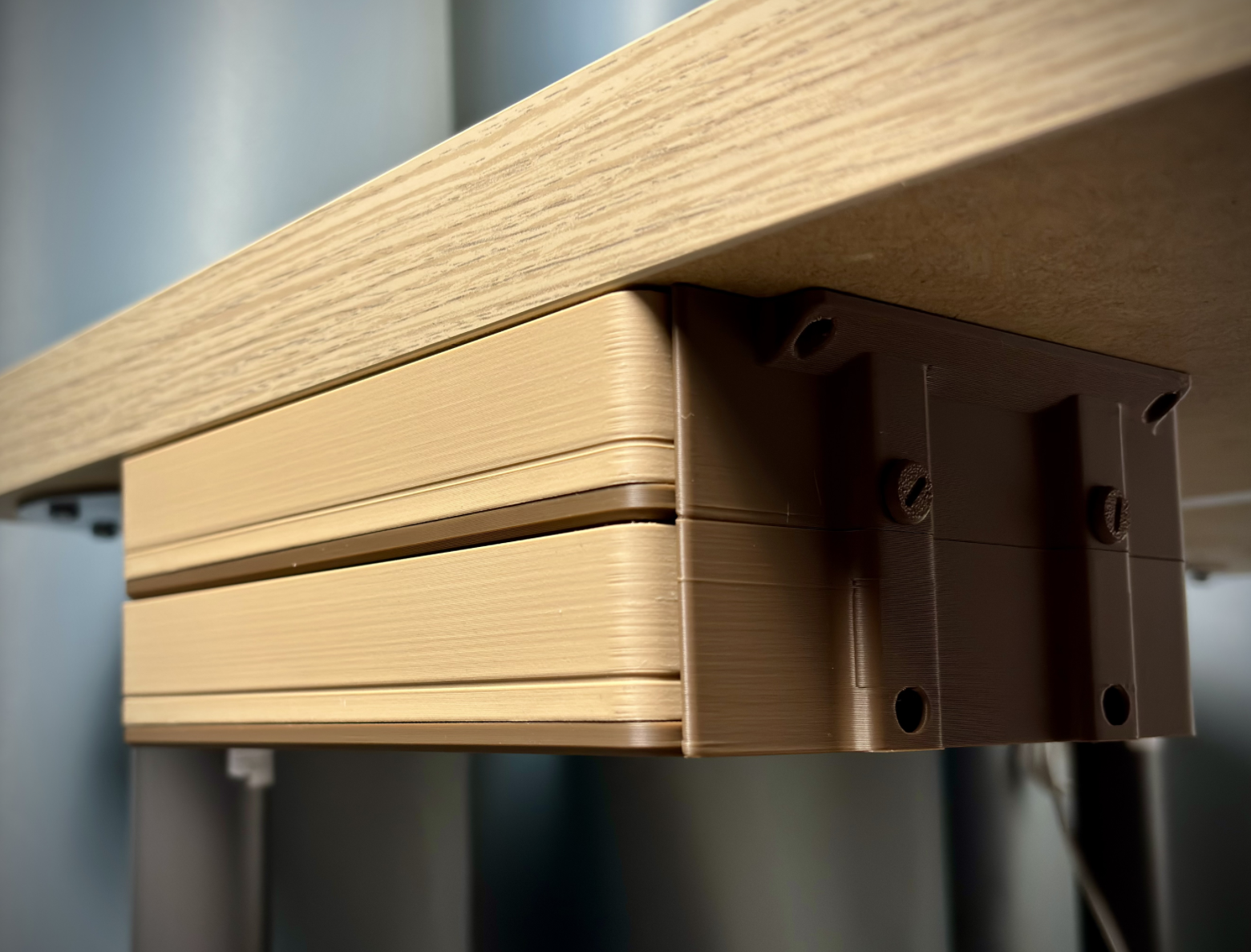

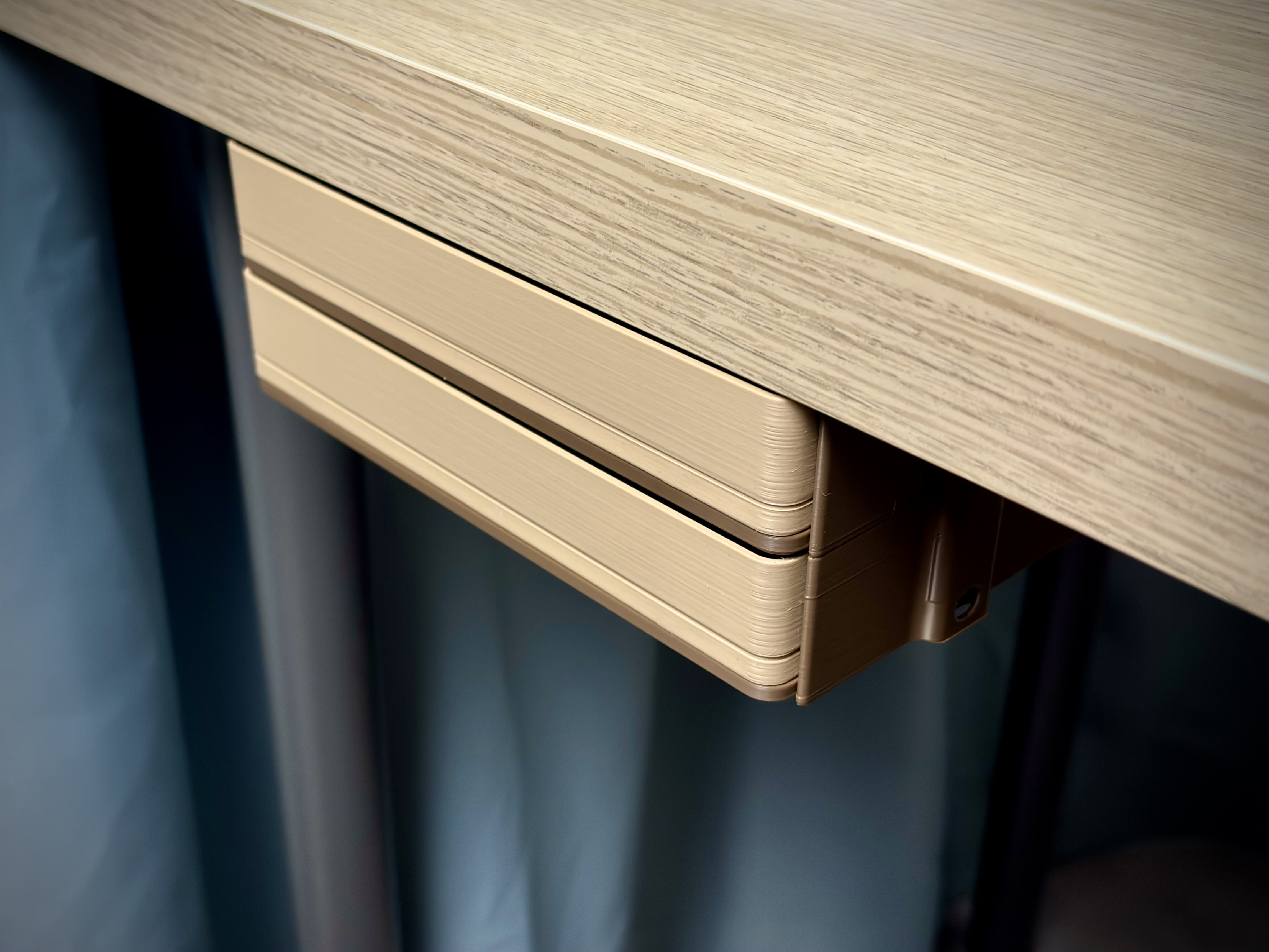

Under Desk Drawer is a drawer system mounted under the desk that helps organize tools and small items without taking up desk space. 🧰 It supports Gridfinity 4x3 layout and uses a push-push mechanism for opening and closing. The design allows stacking multiple drawers vertically as a modular system. 🚀

Push-Push Mechanism - Opening and closing is handled by an elastic band system. No handle required.

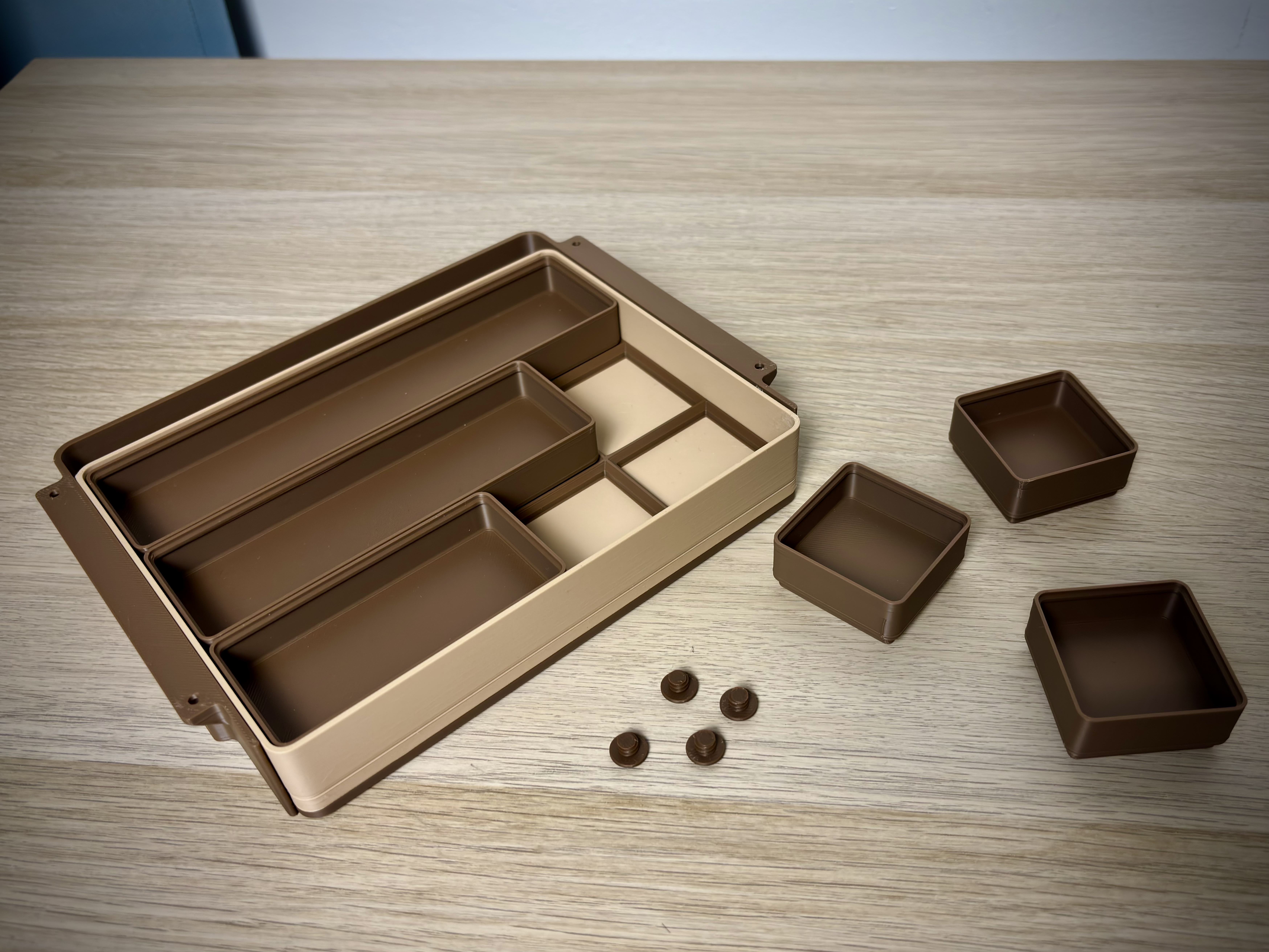

Gridfinity 4x3 Compatible - Designed for standard 42×42 mm Gridfinity layout.
- Uses 21 mm height boxes – available here: [https://makerworld.com/en/models/440625-gridfinity-boxes-for-gridfinity-with-pin#profileId-346311](https://makerworld.com/en/models/440625-gridfinity-boxes-for-gridfinity-with-pin#profileId-346311)

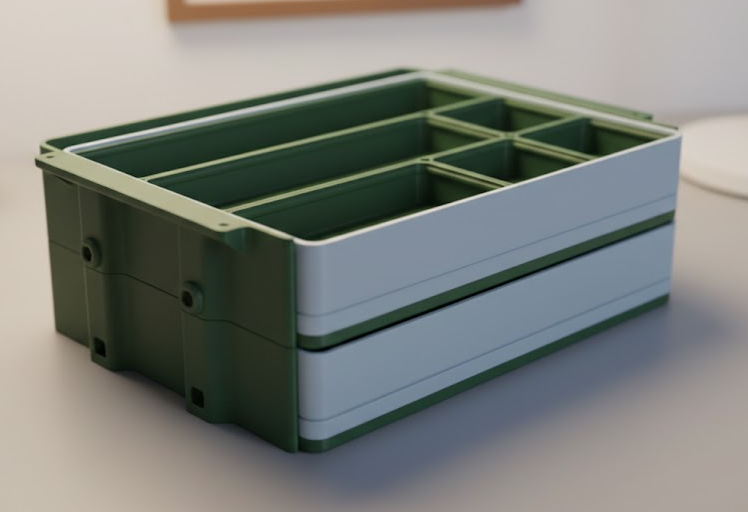

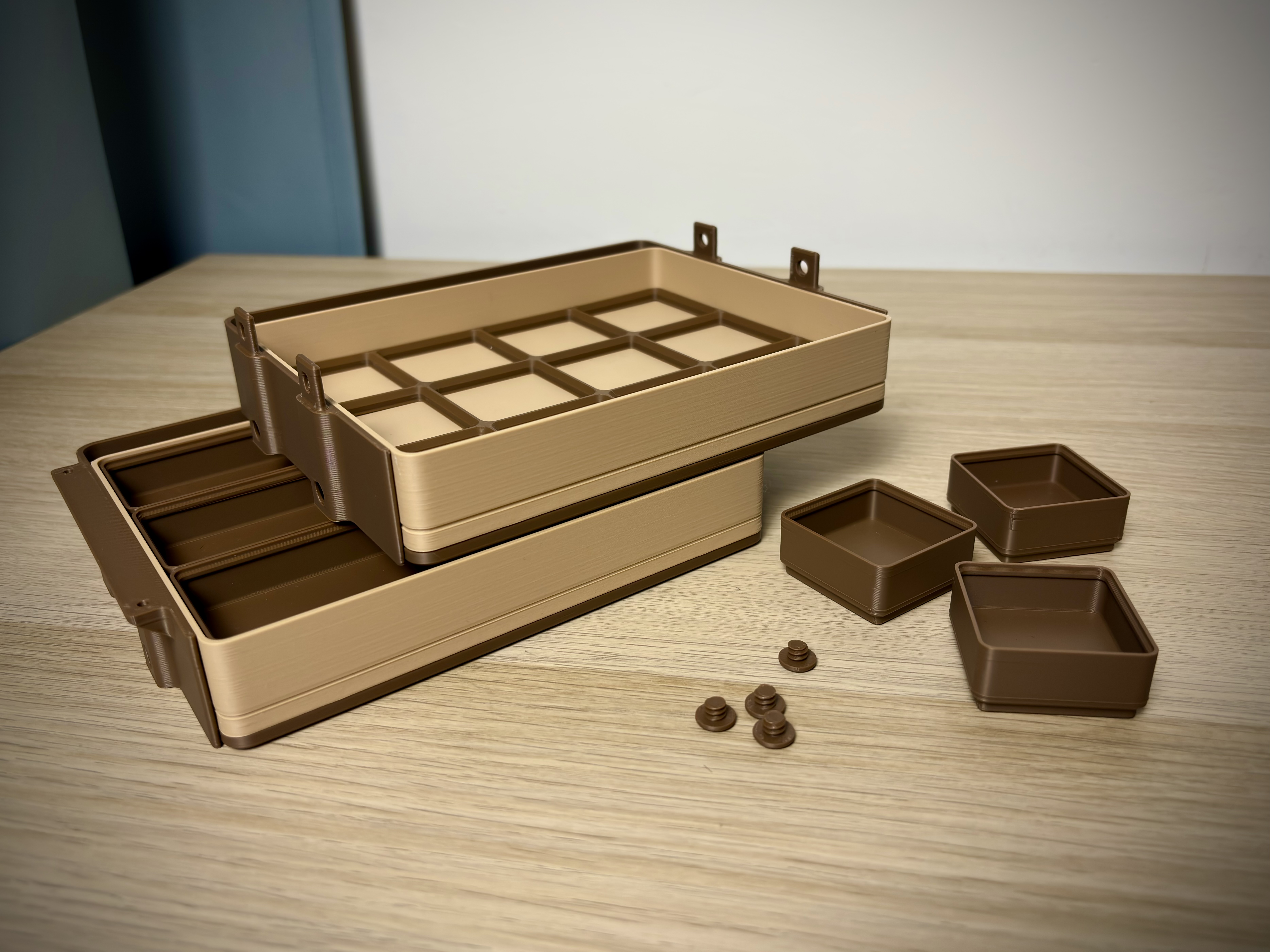

Modular Stackable System 📦 - Not recommended to stack more than 4 drawers.
- Drawers are connected using 4× 06_Screw – Modular (printed screws).
Dimensions of Drawer 185 × 142 × 32 mm
🔩 Mounting Options -
- 02_Case – Base includes 4 mounting holes Ø 3.2 mm for screws.
- Strong double-sided adhesive tape can also be used.
Elastic band required: 1.4 × 35 mm (1.4 × 40 mm also works)
Assembly uses only printed screws.
Assembly is the same as the model Modular Desk Drawer | Push-Push Lock | Skadis.
I recommend printing from PETG (PLA works too, but it needs to be dried - This will prevent PLA from becoming brittle)

Descrição

Assembly instruction step by step👉:
