Feed ledge V3

190mm long 87mm high excluding bowls 95mm deep  as requested by many A Smaller model is available  however require magnets click here

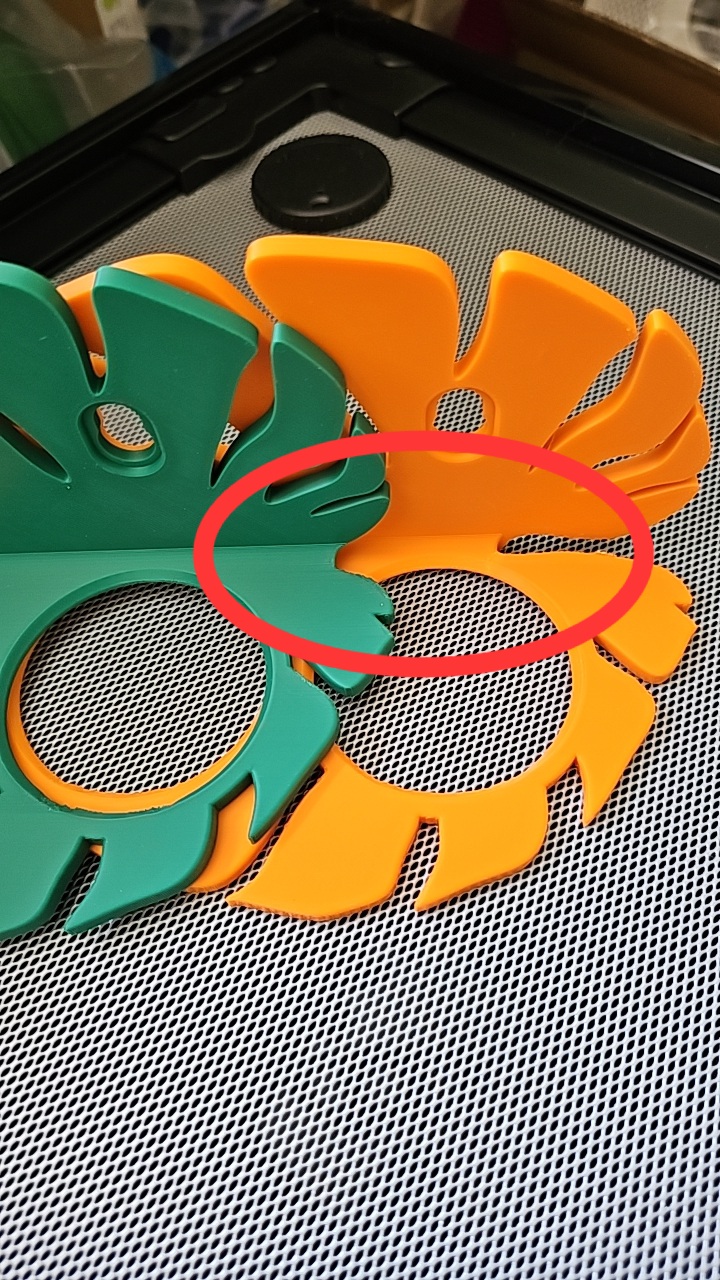

due to some request and issues raised with supports i've modified the existing model to have additional material in the corner to reduce the amount of supports needed and to make it print easier. i have also adjusted my supports settings to allow easier removal  please see image  use v3.5 magnet or suction cup for this improvement however the original deigns will still be available

V3 improvements to the V2 model

1. magnet slots. I had lots of comments that with thicker glass the magnets were not strong enough so i have increased the size of the magnet from 8x2mm to 20x3mm giving it much more pull, and as seen in testing on 6mm glass with the rubber feet it doesn't start to move until around 1kg of force is applied to the end however i don't recommend using this ledge with anything more than 500g this can allow you to reduce the amount of magnets you need if your gecko/ pet is less than 100g
2. rubber feet. i've added slots for 8mm rubber feet to help prevent the 3d print from sliding down the glass

printed in 3 parts for the suction cup version: a deep bowl, a shallow bowl  and the feeding ledge

printed in 7 parts for the magnet version: a deep bowl, a shallow bowl  and the feeding ledge  and 4 magnet clips.

bowl dimensions

small bowl external excluding brim (57.5 diameter x13mm tall)

Large bowl external excluding brim (57.5 diameter x30mm tall)

parts needed

1.suction 40mm cups from amazon: [https://www.amazon.co.uk/dp/B0CJHTV7SP](https://www.amazon.co.uk/dp/B0CJHTV7SP)

2.Magnets 20x3mm 4.6kg pull [https://www.first4magnets.com/product/20mm-dia-x-3mm-thick-n42-neodymium-magnet-46kg-pull-19592](https://www.first4magnets.com/product/20mm-dia-x-3mm-thick-n42-neodymium-magnet-46kg-pull-19592)

3.rubber feet [https://www.amazon.co.uk/dp/B0FY2QGZ8Z](https://www.amazon.co.uk/dp/B0FY2QGZ8Z)

I hope you find the improvements work as well for you as they have for me. and if you get a chance please comment with a photo of how your feed ledge came out and with any suggestions for improvements or future designs you would like to see  and if you have any questions don't hesitate to ask
