Product Overview

This is a comprehensive set of 3D-printable templates designed to simplify the process of marking and cutting pipes for welding and assembly. These tools eliminate the guesswork and complex calculations required for professional-grade pipe fit-ups, allowing you to achieve perfect joints at various angles.

Key Features:

• Precision Fit: The base models are designed specifically for pipes with an outside diameter of $33.7$ mm.
• Universal Scalability: These models are fully scalable. If you need templates for a different pipe diameter, you can easily scale the model proportionally in your slicer software to match your specific requirements.
• Ease of Use: Simply slide the template onto the pipe, mark the cut line, and you are ready to prep your material. Perfect for "fishmouth" joints and various degree bends.

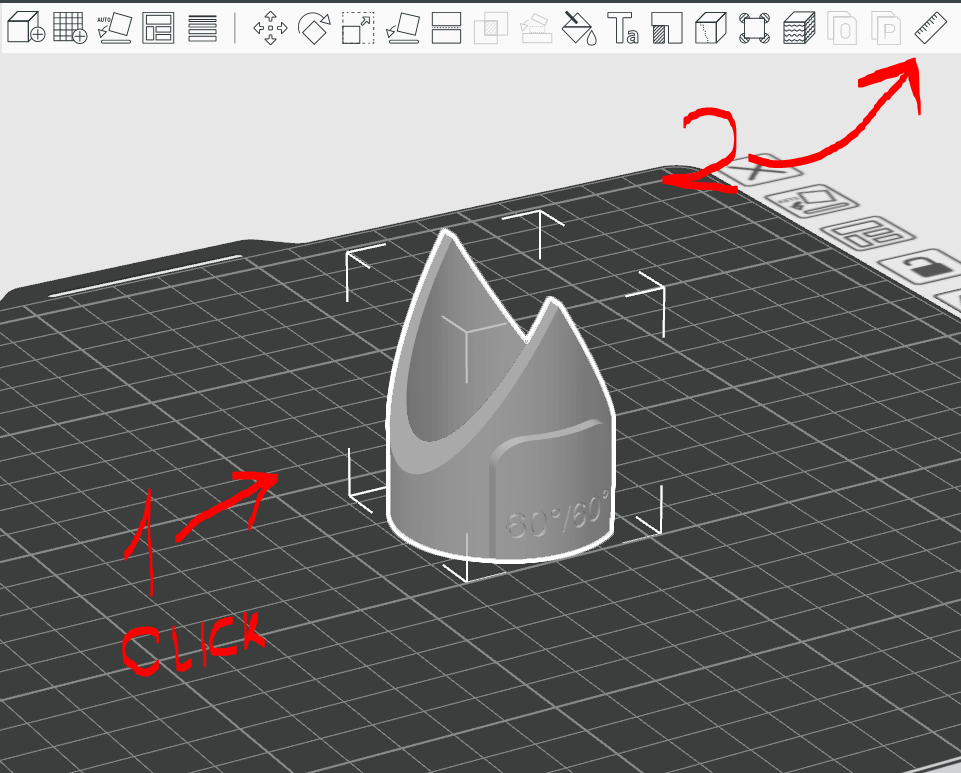

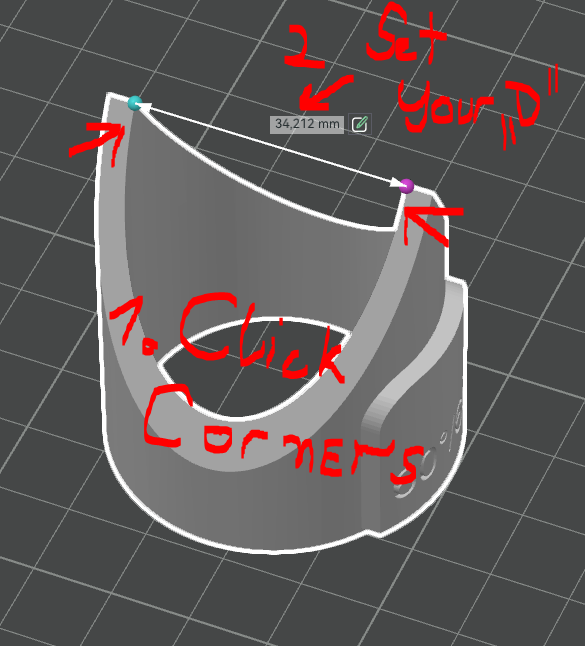

How to Scale Correctly

Technical Recommendations & Printing Tips:

• Optimal Tolerance: For the best user experience and a smooth fit without forcing the template onto the pipe, I recommend a tolerance of $+0.4$ mm to $+0.5$ mm added to the pipe's actual diameter during the scaling process.
• Durability: Designed to be sturdy enough for workshop environments while remaining lightweight and portable.
