🔹 Description
Modular dispenser with compartments for cups, sugar, stirrers, and accessories.
Ideal for bars, offices, kitchens, break areas, or coffee stations.
Compact, functional design optimized for support-free 3D printing.

🔹 Technical Notes

Two models are available:

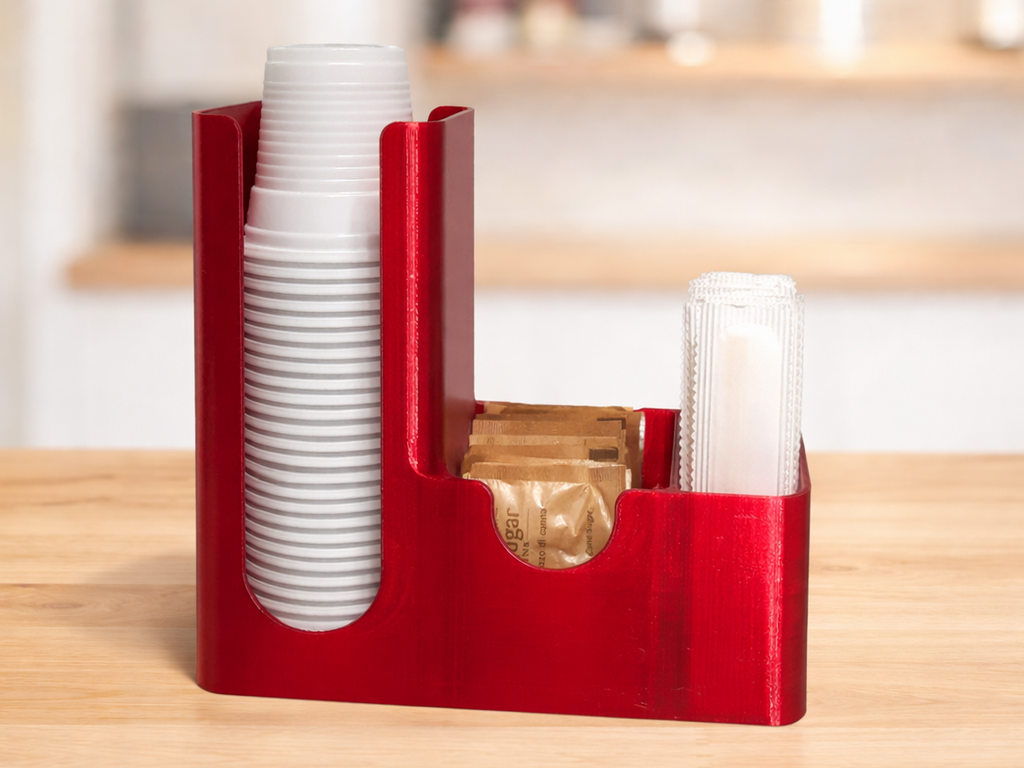

• 3P = Three-compartment model

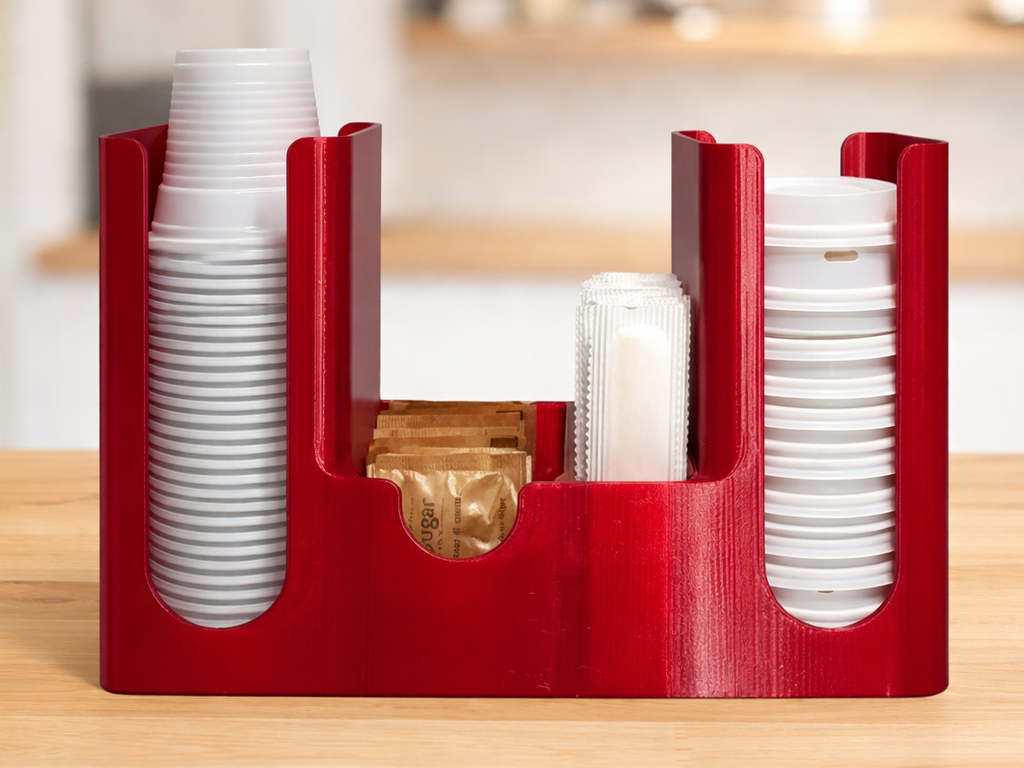

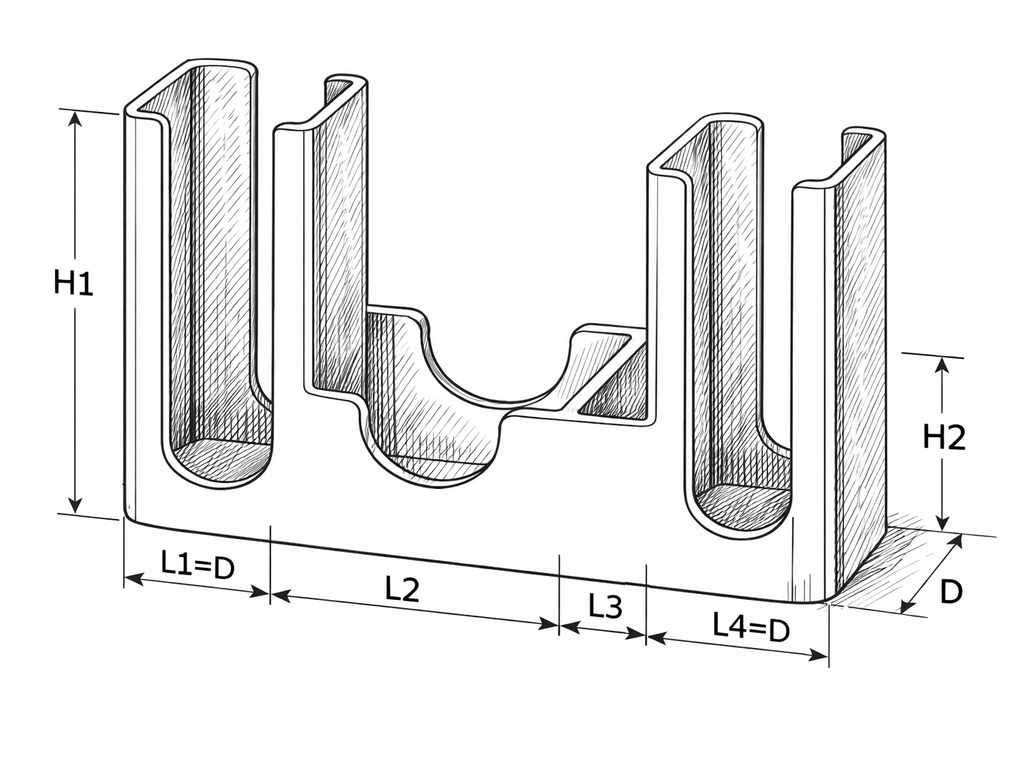

• 4P = Four-compartment model

 The models are fully parametric, designed to fit any cup diameter.

You can customize:

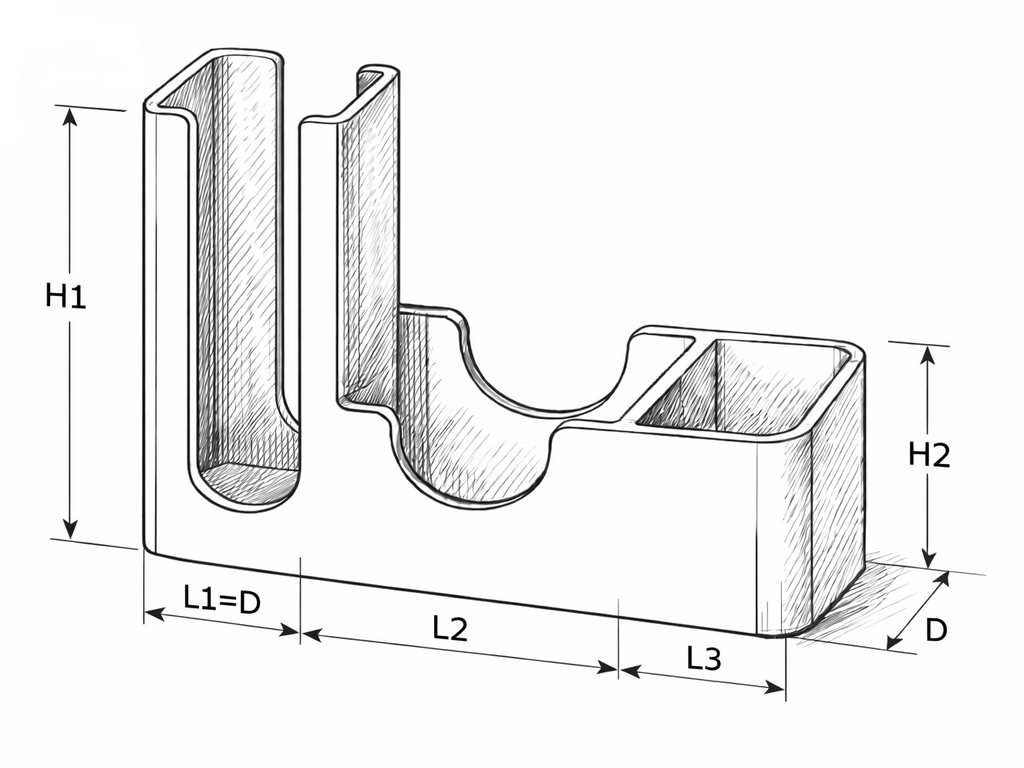

• D = Cup diameter (for 3P model) or Cup lid diameter (for 4P model) (minimum 50mm)

  An automatic +3mm tolerance is added to ensure smooth cup sliding.

• H1 = Greater height (minimum H2 + 15mm)
• H2 = Lower height (minimum 25mm)
• Thickness = Wall thickness (recommended at least 1.2mm, ideally 2mm)
• L1 = Automatically set equal to D
• L2 = Width of the second compartment (minimum 45mm)
• L3 = Width of the third compartment (minimum 35mm)

• L4 = Automatically set equal to D (in the 4P model)
