Display your favourite cars and vehicles – whether toys, favorite building bricks, or scale models – at a dramatic viewing angle with this parametric stand. The design allows you to raise each wheel to an individual height and tilt the whole model, making details much easier to see and photograph.

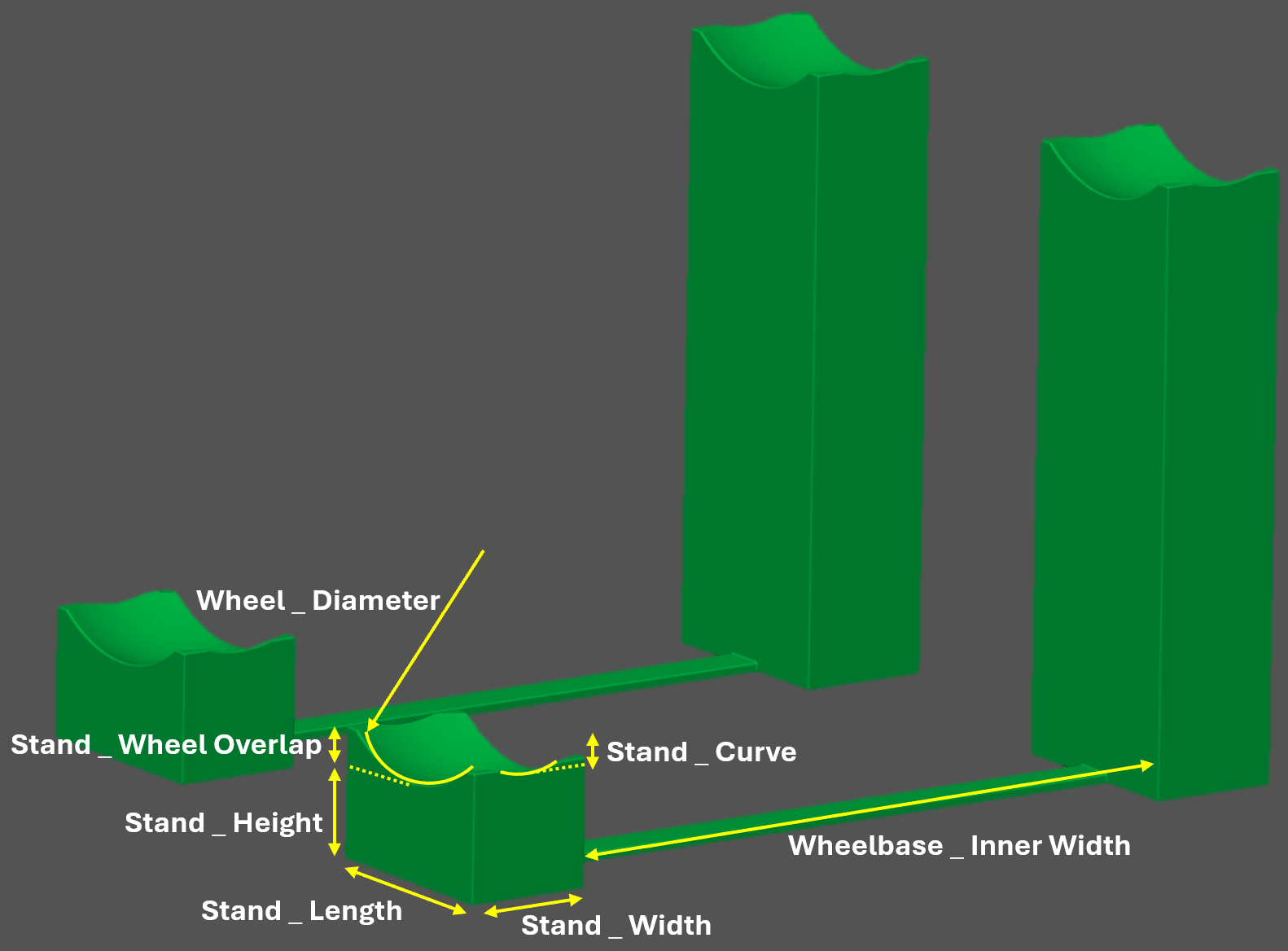

Key parameters of the model:

1. Stand (Front/Back & Left/Right)
   1. Stand Front/Back Width – width of the stand block under the wheel. Recommended: equal to the wheel’s contact width.
   2. Stand Front/Back Length – length of the stand block under the wheel. Recommended: 25–75% of the wheel diameter.
   3. Stand Front/Back & Left/Right Height – height of the stand block from the surface to the bottom of the wheel cut-out.
   4. Stand Front/Back Wheel Overlap – depth of the wheel profile cut-out.
   5. Stand Front/Back Curve – height of the curved wheel profile cut-out for rounded wheels (measured at the center of the stand). Set to 0 for wheels with a flat profile.
2. Wheelbase (Front/Back)
   1. Wheelbase Front/Back Inner Width – distance between the inner surfaces of the wheels. If your stand width is narrower than the wheels themselves, add (Wheel Width − Stand Width) to ensure proper wheel placement.
3. Wheel (Front/Back)
   1. Wheel Front/Back Diameter – together with Stand Front/Back Wheel Overlap, defines the shape of the wheel cut-out.

Always double-check the model dimensions before printing.
Enjoy!
