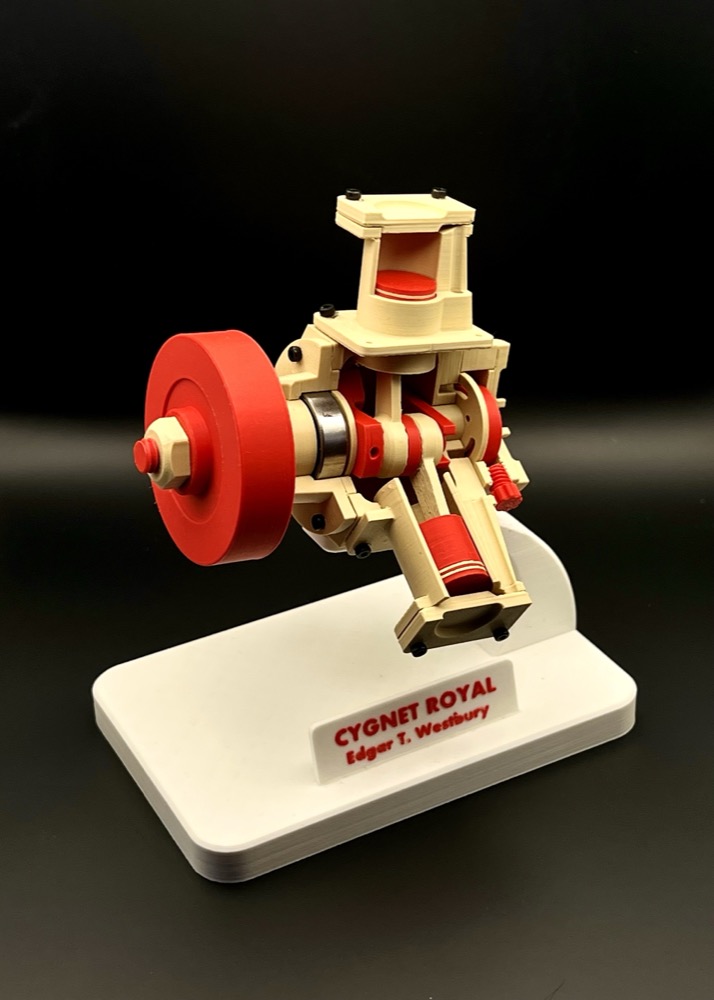

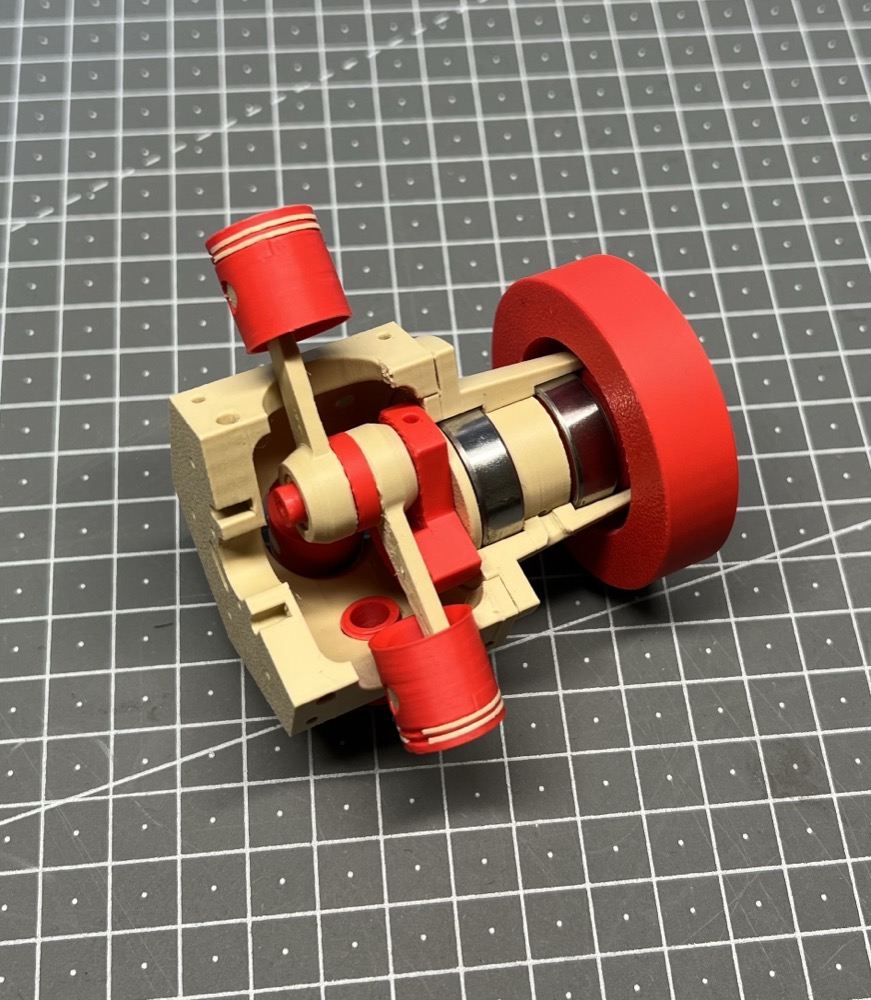

Cygnet Royal

by Edgar T. Westbury


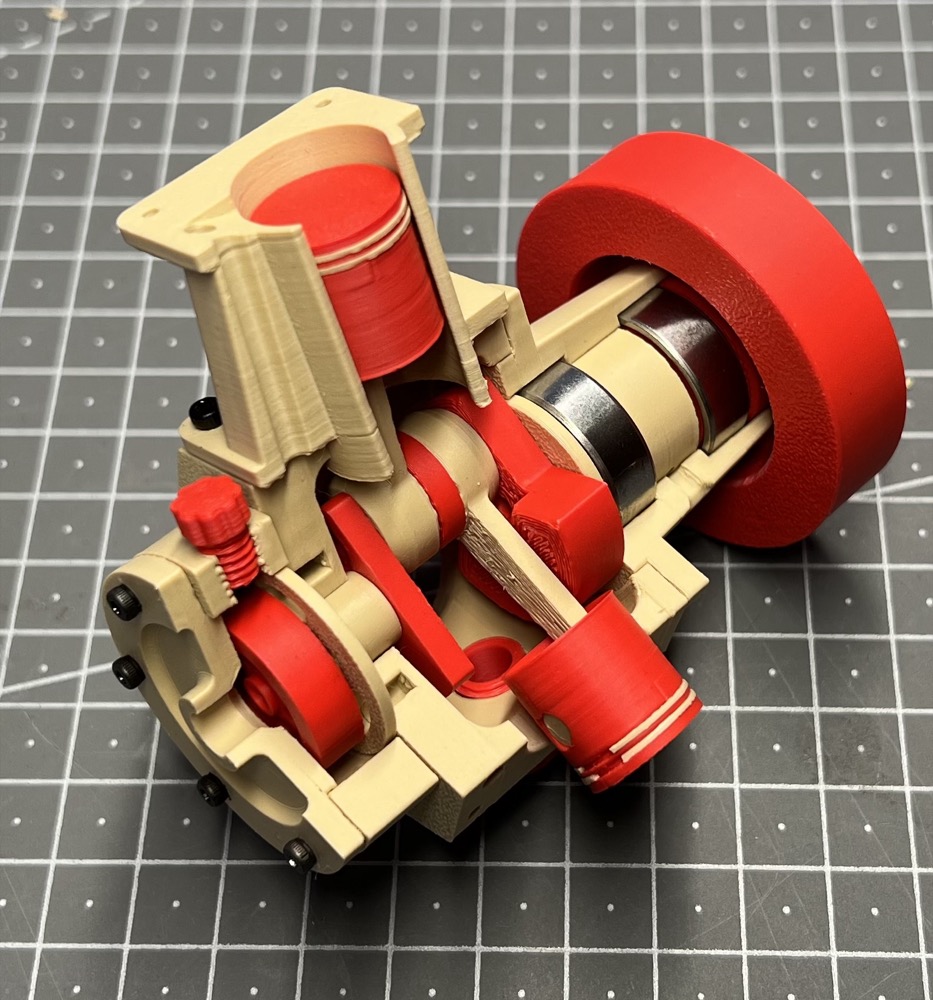

Westbury's Cygnet Royal, a 3 cylinder radial steam engine was

conceived in 1962 as an experimental crossover between steam and IC

build techniques. It was designed as a marine engine for use behind a

flash steam generator, withstanding high pressure (80psi and upwards)

and running at high speed (typically 3,000rpm +). In many ways, with its

in-line orbital distribution valve, it behaves as a 2 stroke IC engine but

running much more smoothly.

Resources:

• Motorboys

Hardware

Required:

• 2x 608ZZ (ID: 8mm  OD: 22mm Thickness: 7mm) Bearings

⚠️ All of these are OPTIONAL. You can glue everything you need.

• 18x M2 6mm Socket machine screw
• 4x M2 16mm Socket machine screw
• 2x M2 8mm Countersunk screw
• 2x M3 6mm Socket machine screw

Removing Supports

I think this is pretty straightforward so I didn't had any photos for removing supports.
Simply pull all the supports you find. Poke any hole with a point tool that might be covered with debries.

Tools I used:
- Needle-nose pliers
- Craft Knife

- Skiving Knife
- Pokey tools

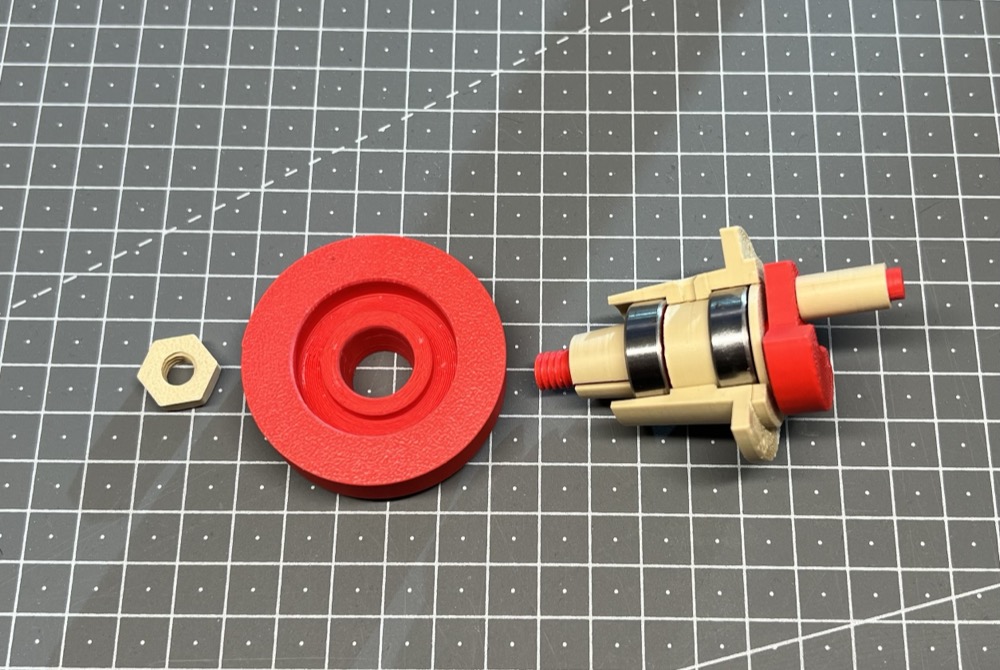

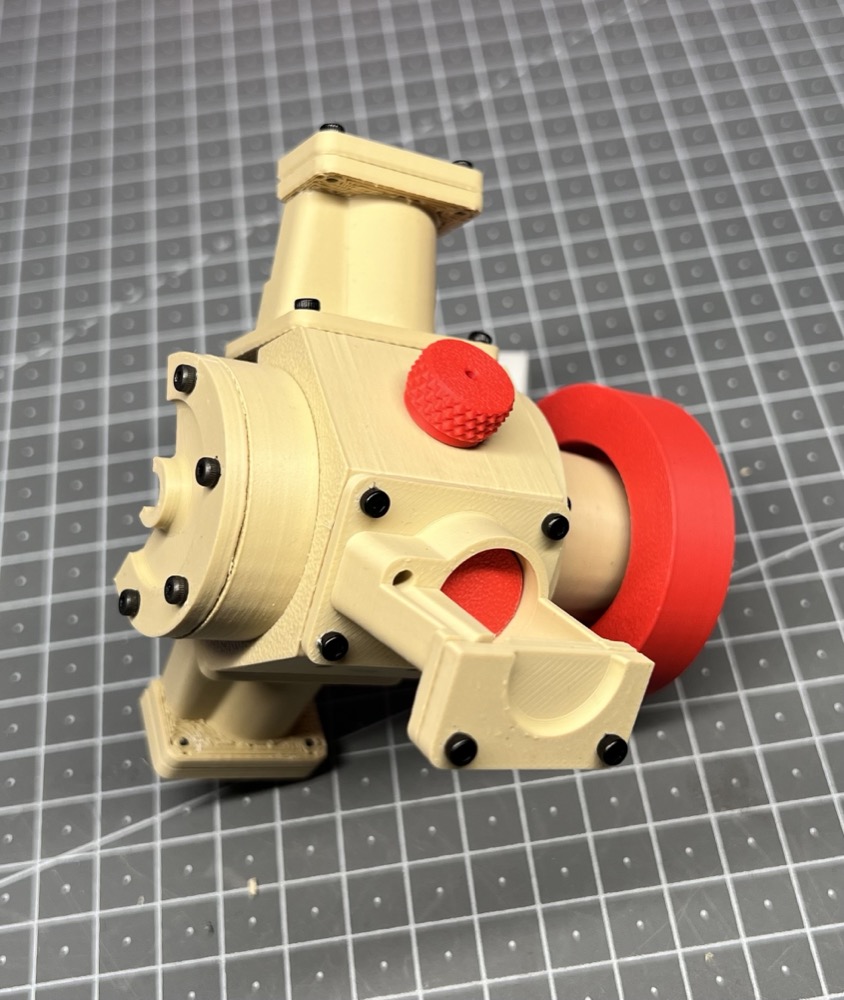

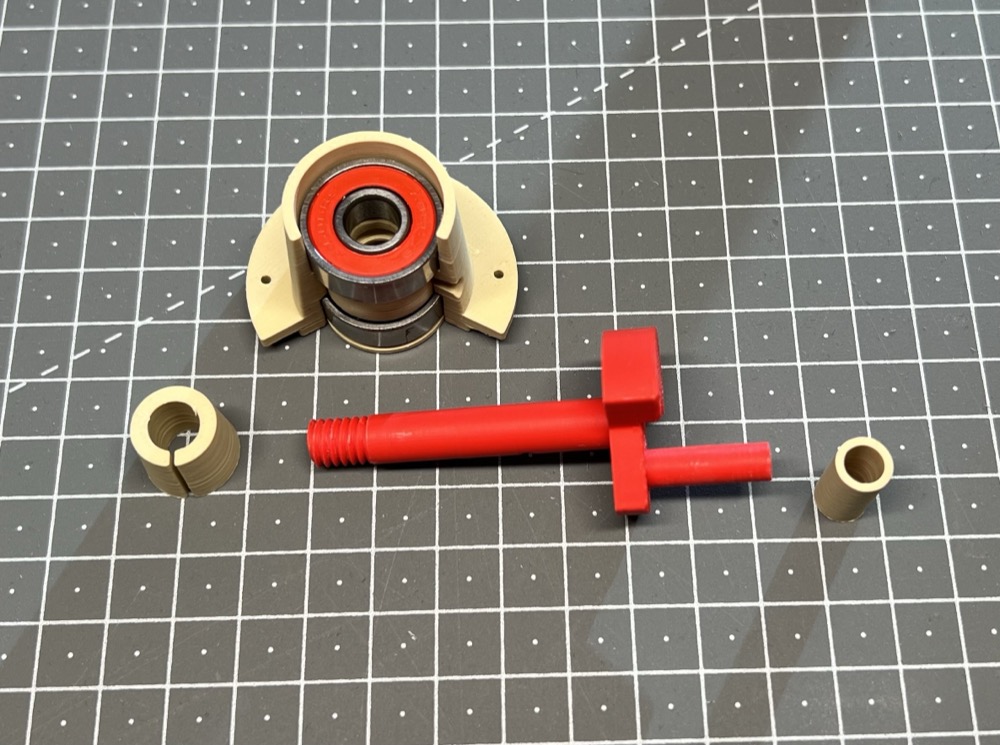

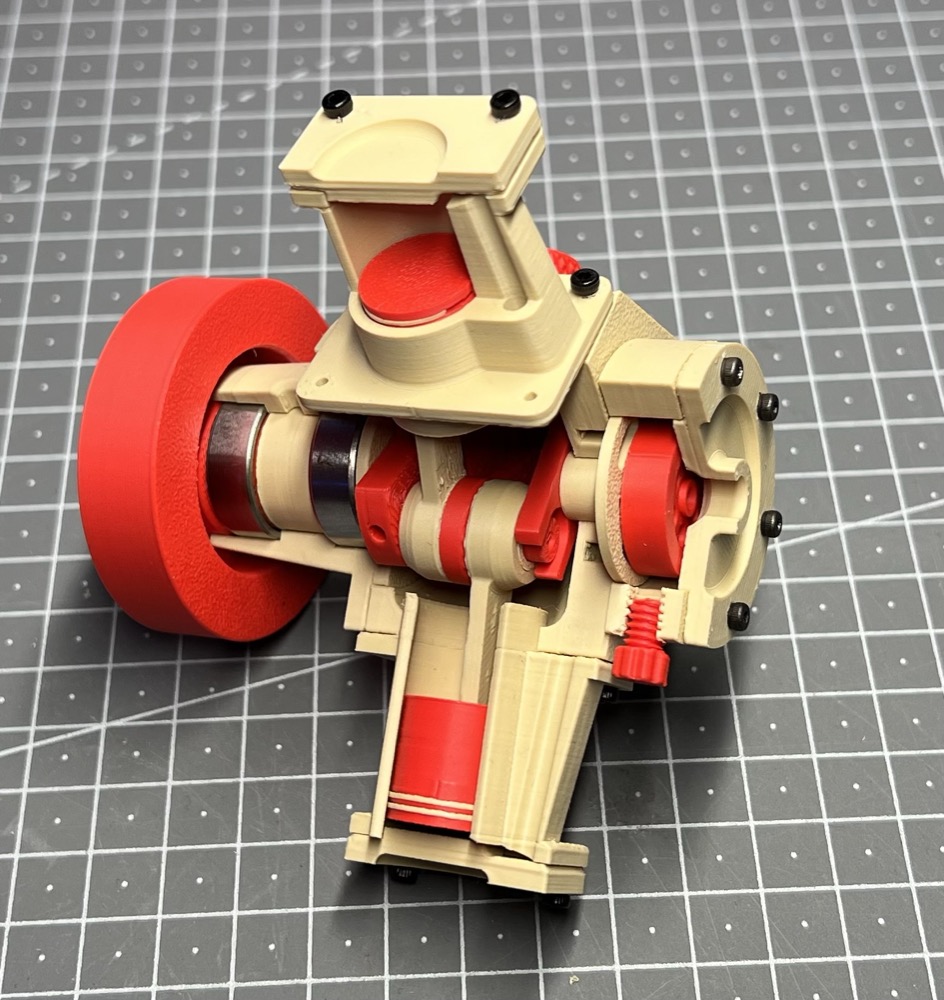

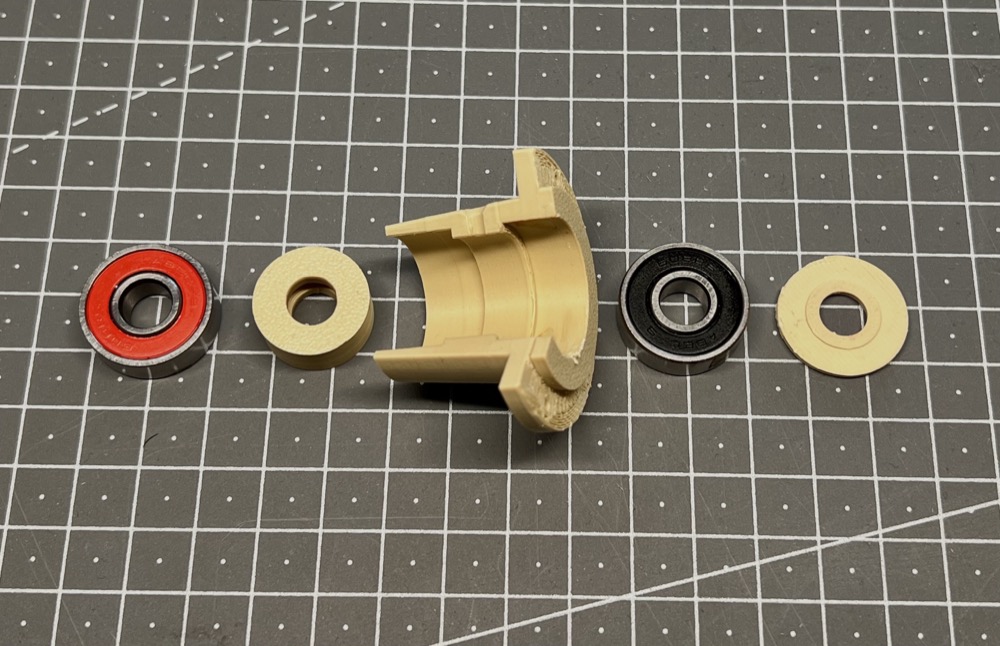

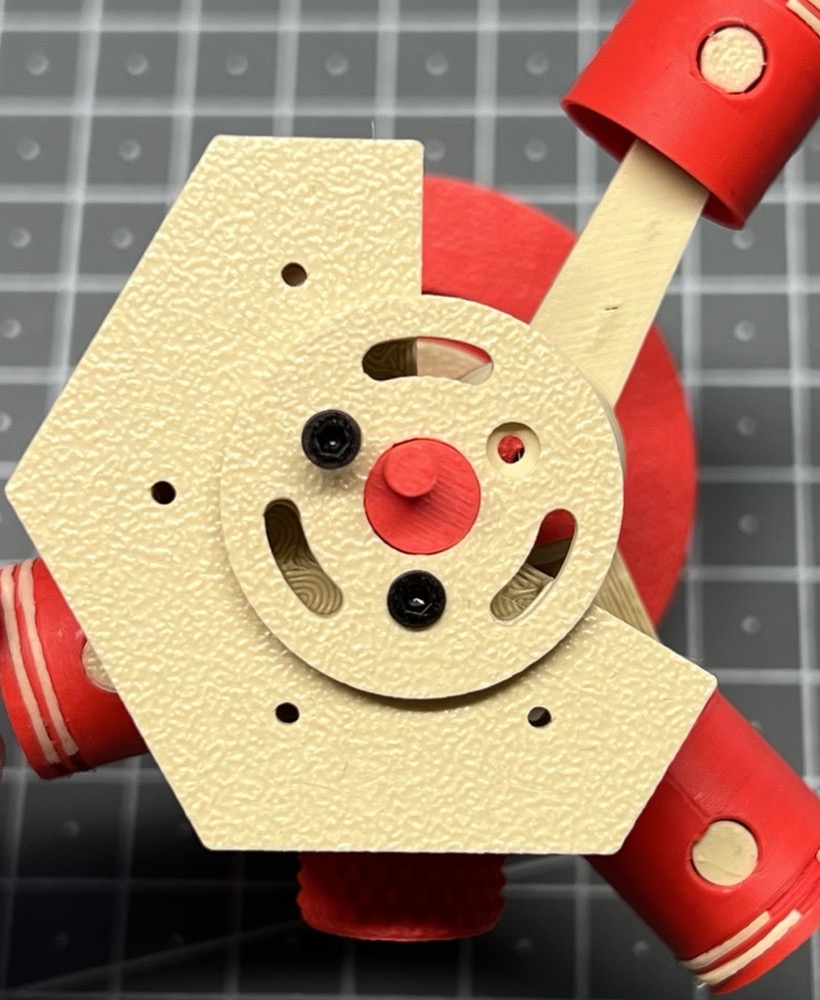

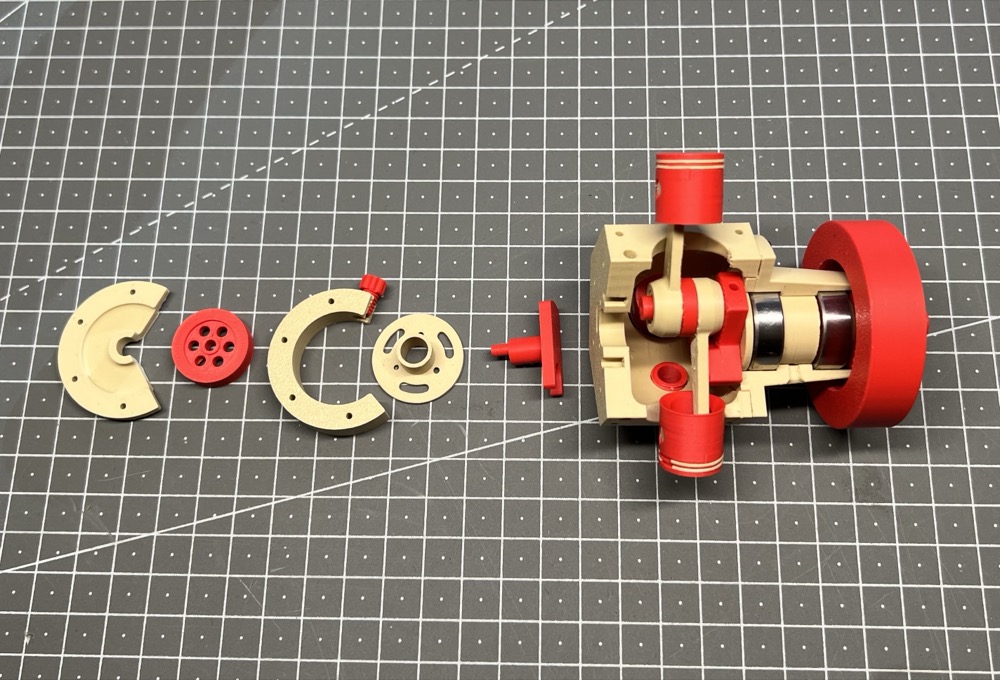

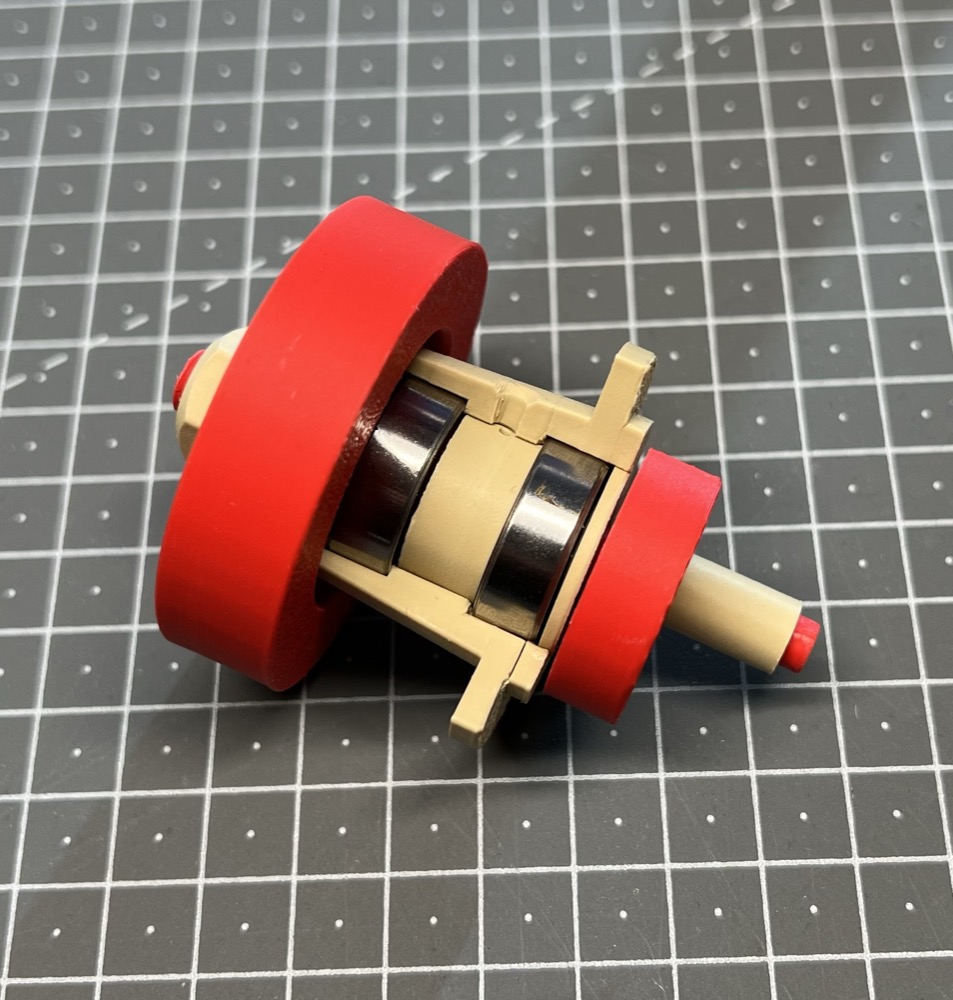

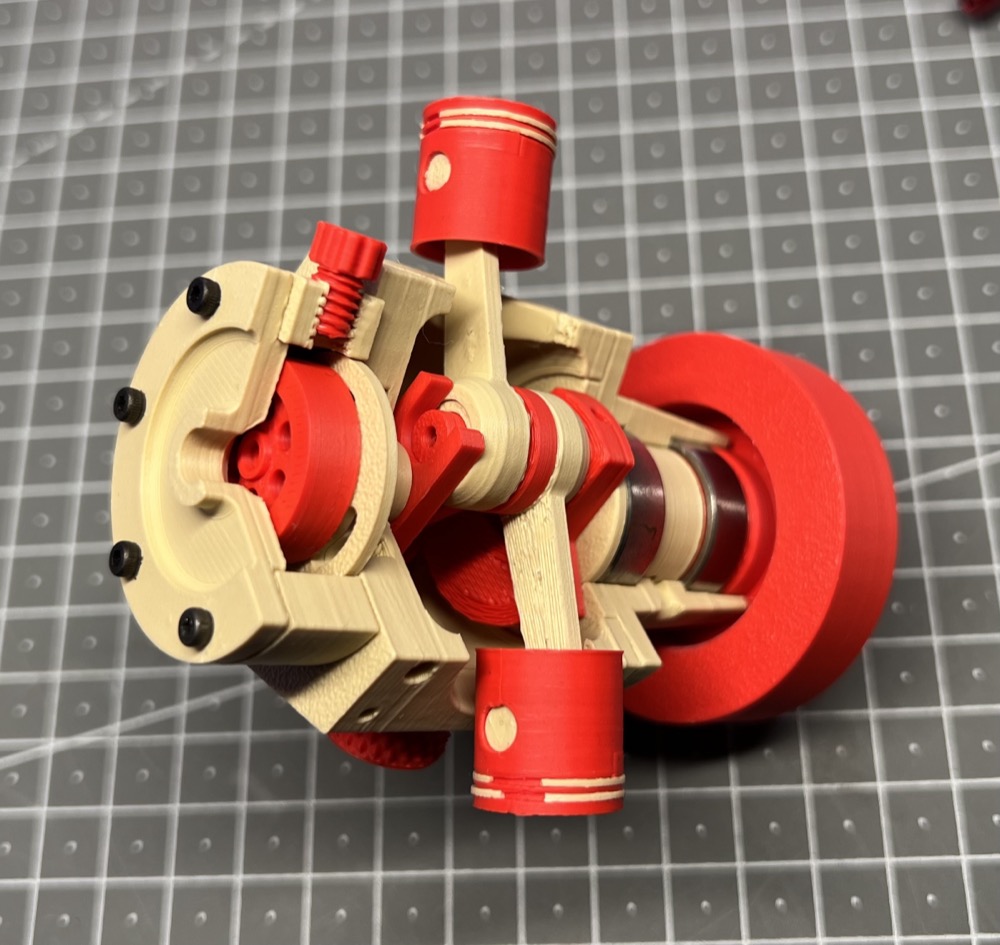

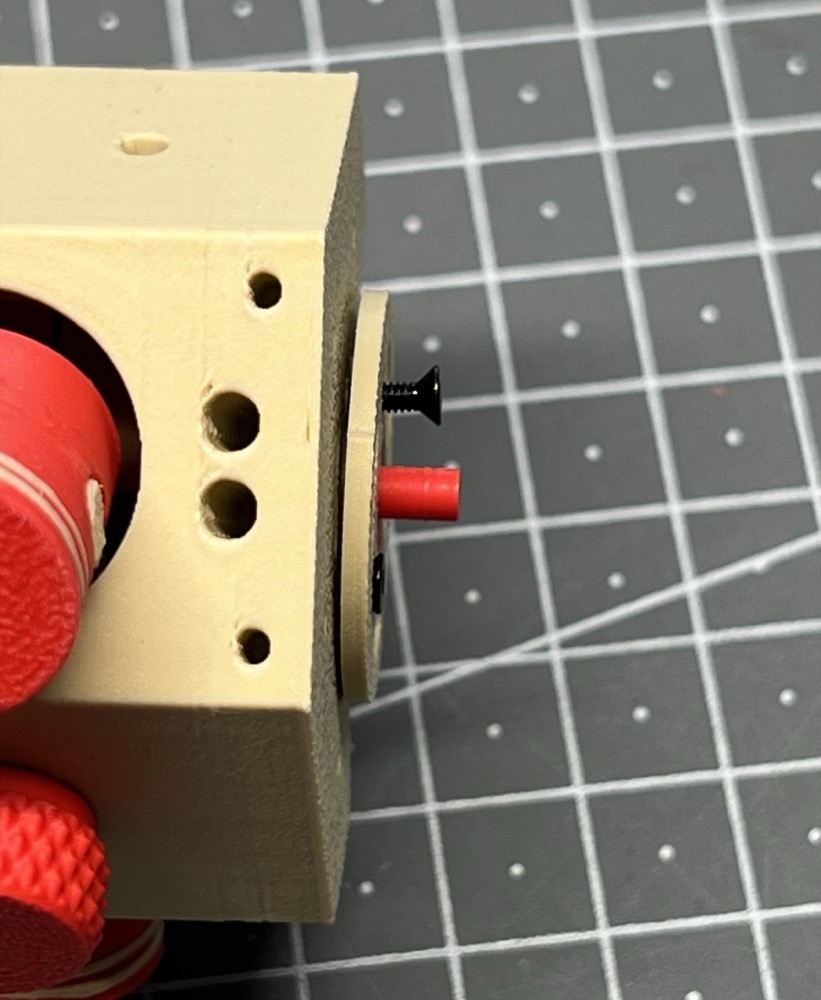

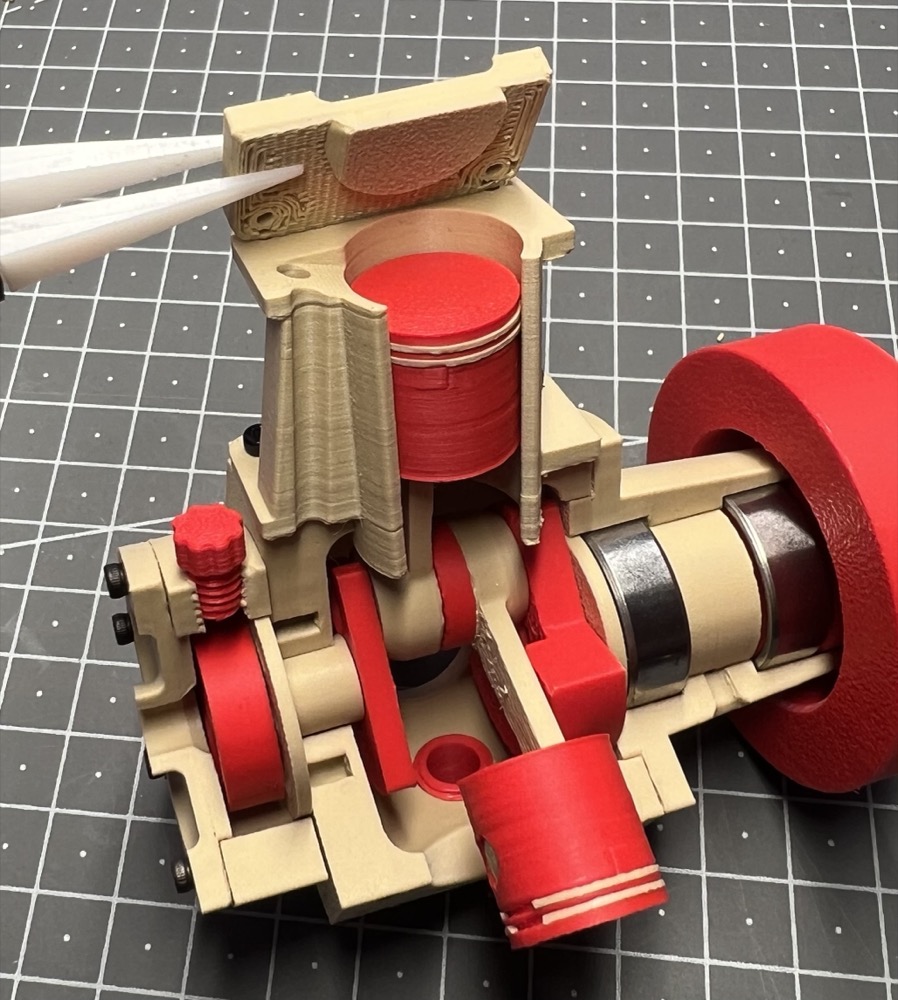

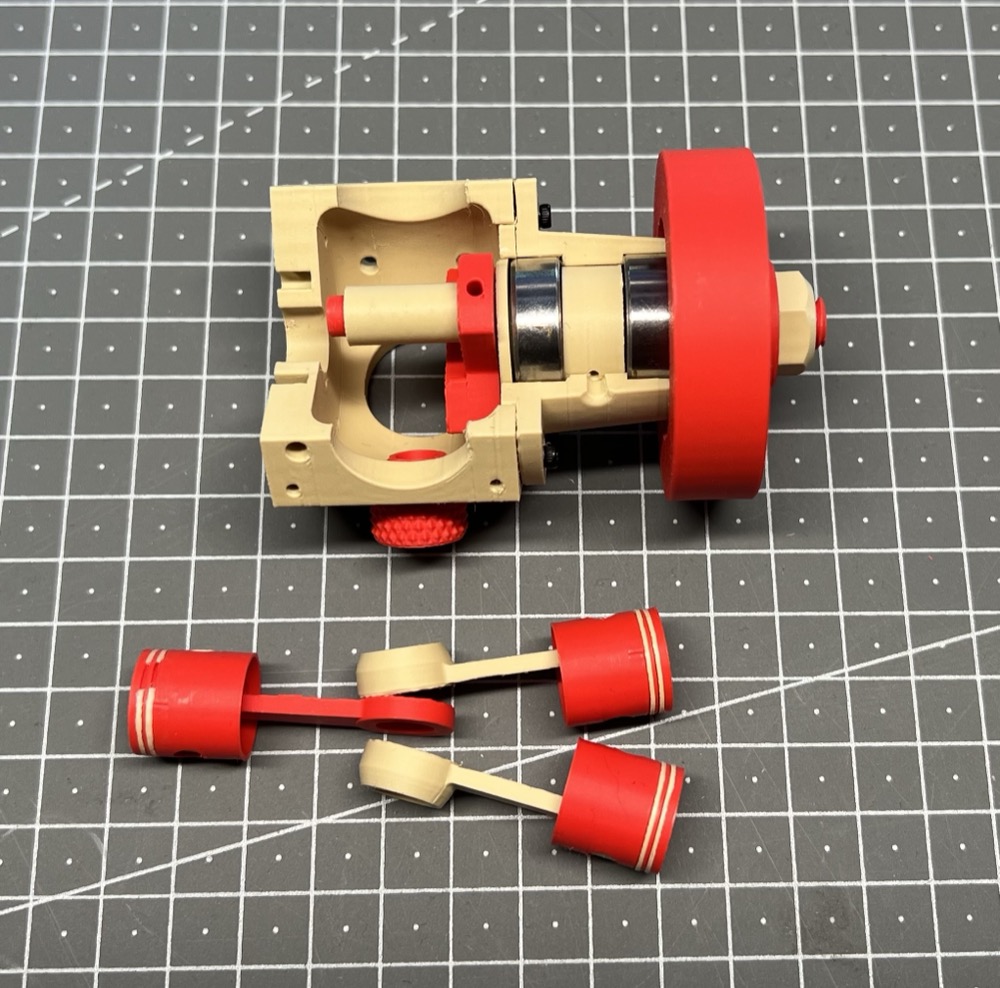

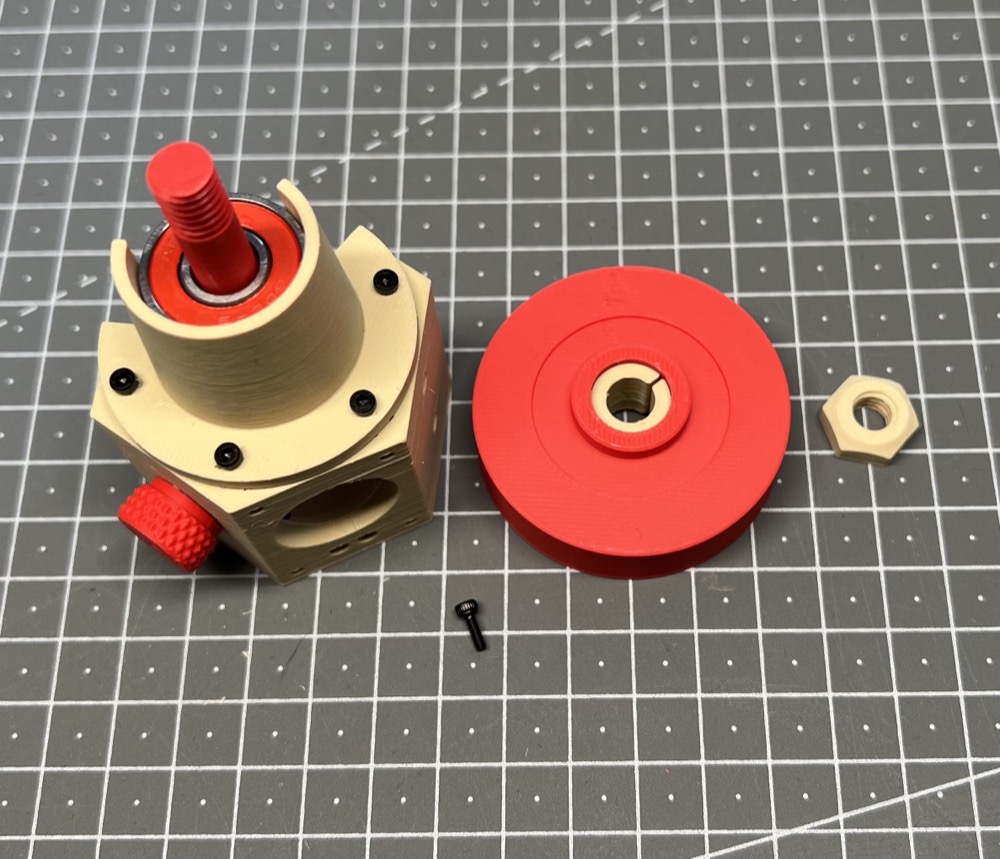

Assembly

Congratulations! You did it!

Thank you for taking the time to print and assemble this awesome engine.

Be sure to Like and Boost Me if you want to support me.

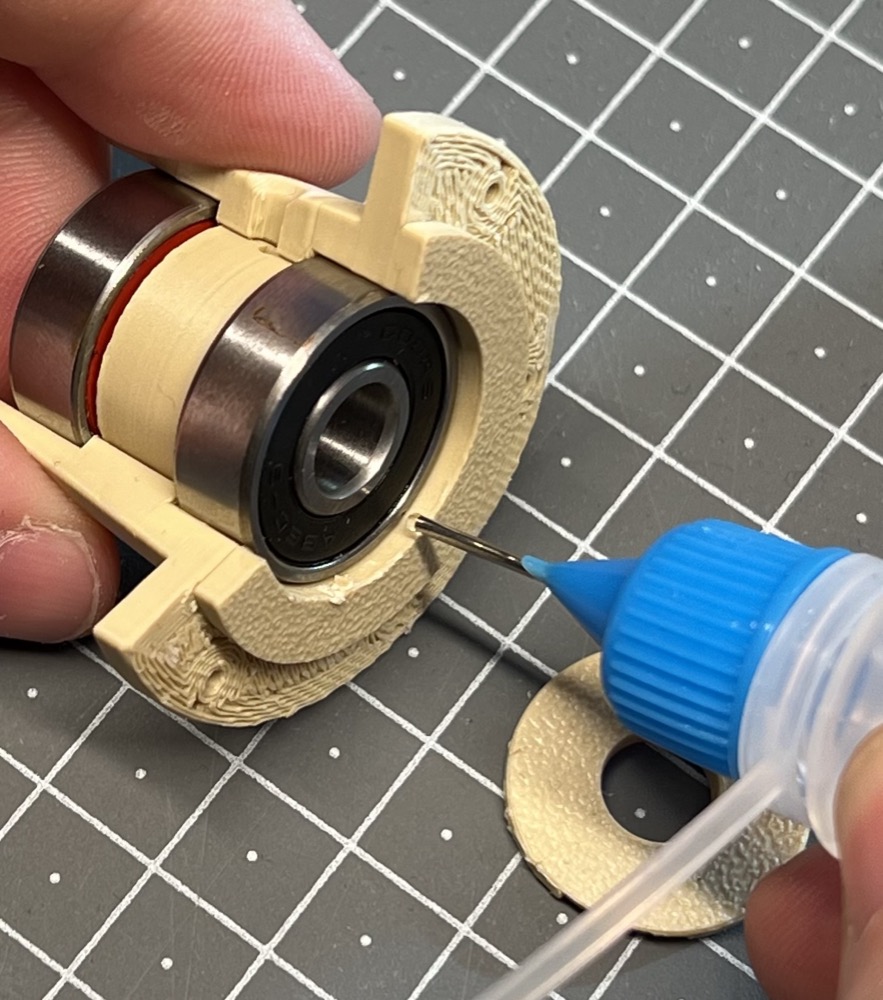

One last tip. Add a few drops of Sewing Machine Oil (or any other oil) to make everything lubricated
