Quick Mount System for MPCNC

This Quick Mount System is designed for fast and secure tool changes on the MPCNC. It allows you to swap between different tools in seconds while maintaining a stable and precise connection to the Z-axis.

Included Mounts

This project includes three dedicated tool mounts:

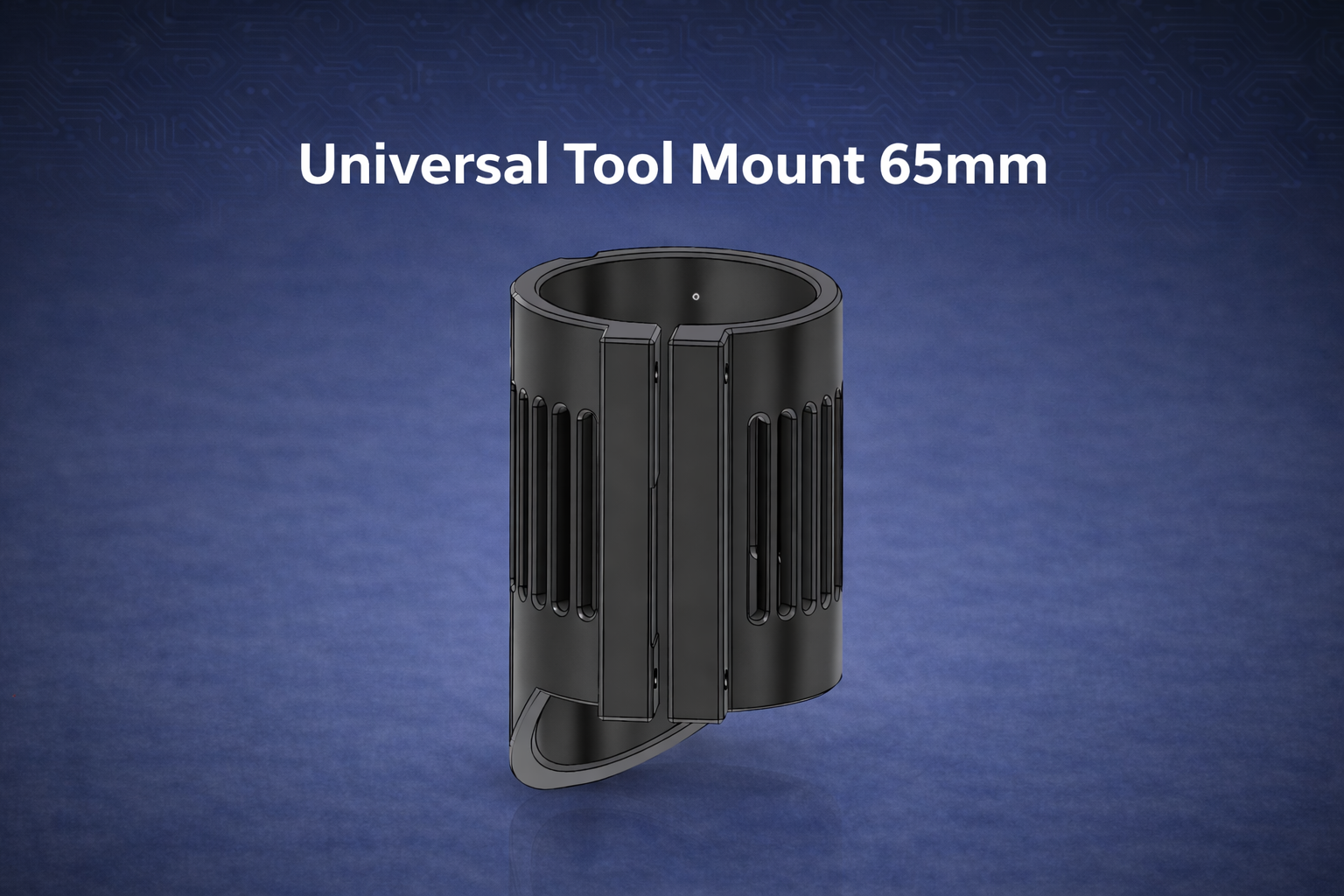

• 65mm Universal Spindle Mount

  Designed for spindles with a 65mm diameter.

  ✔ Also fully compatible with the Makita RT70.

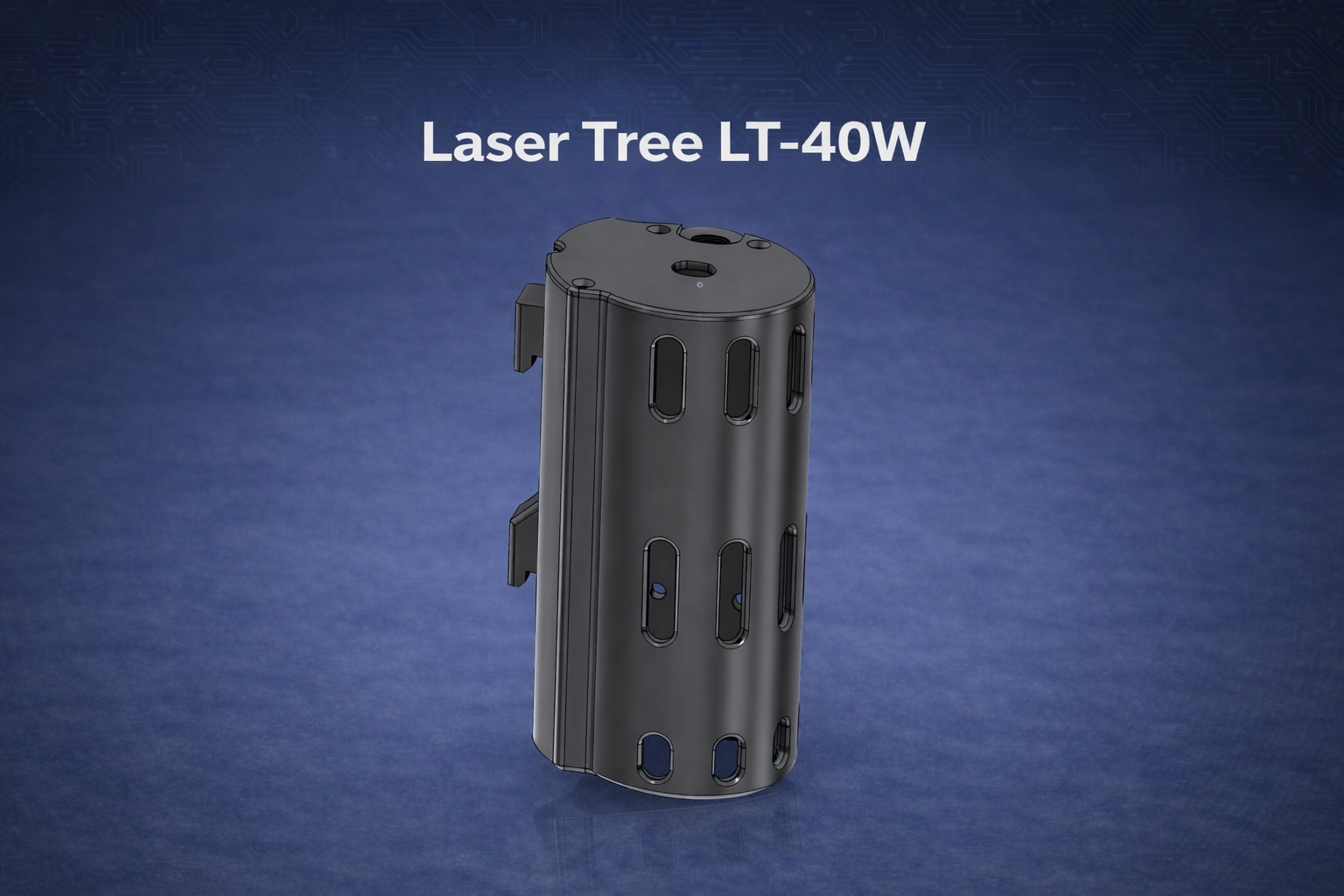

• Laser Tree LT-40W Mount

  Custom-fit mount for the Laser Tree LT-40W module.

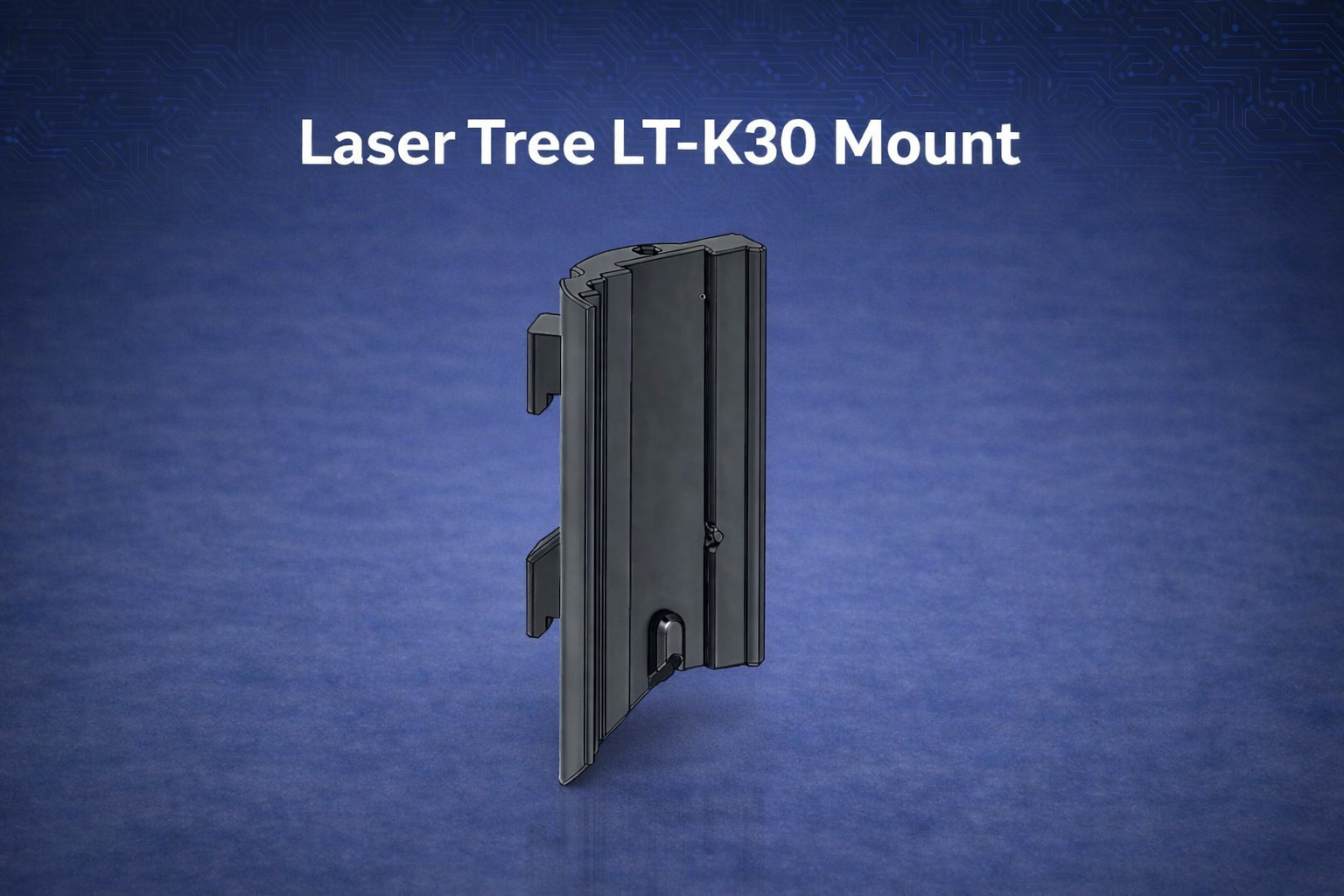

• Laser Tree LT-K30 Mount

  Custom-fit mount for the Laser Tree LT-K30 module.

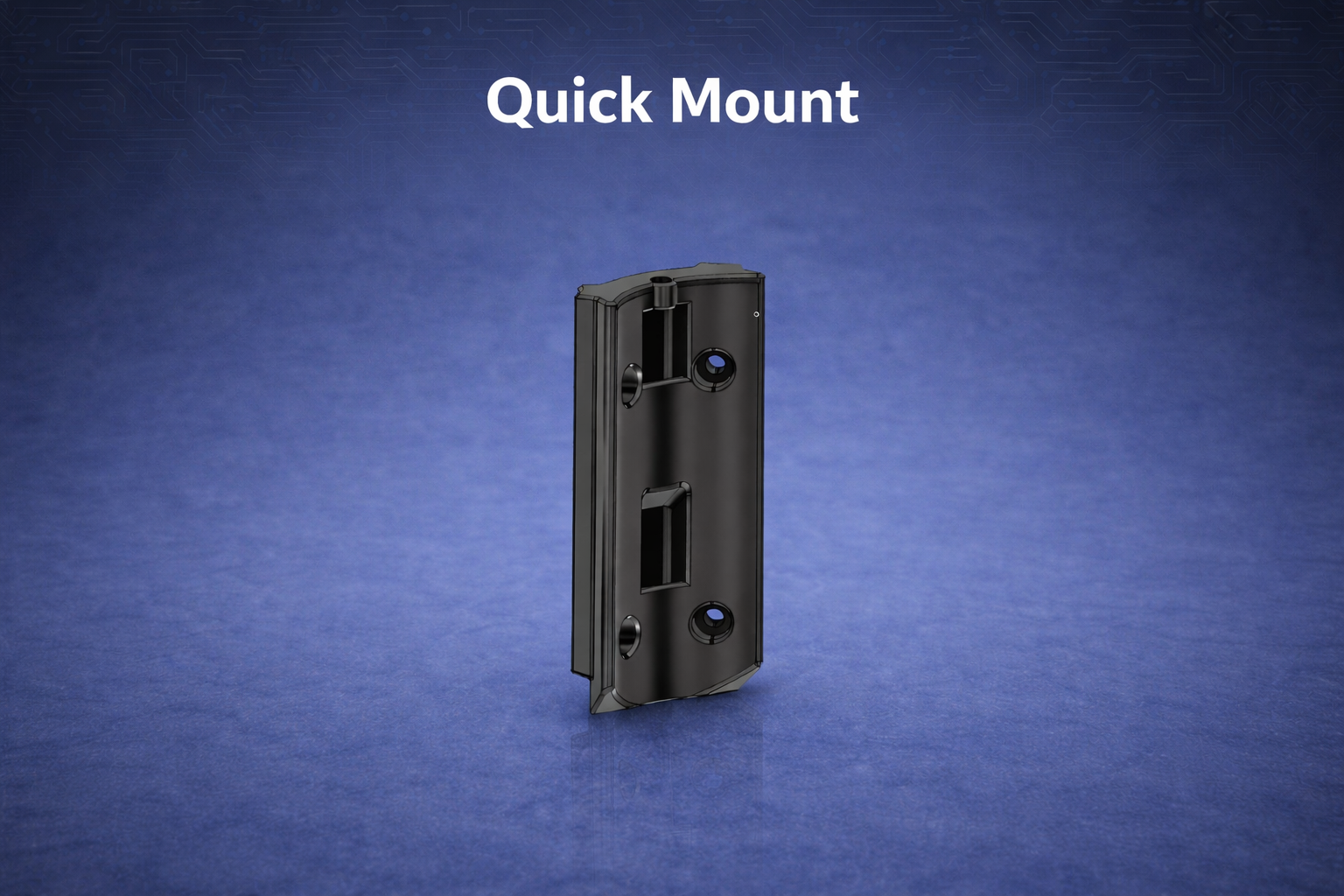

All mounts are designed to integrate seamlessly with the Quick Mount base system.

Secure Locking Mechanism

To ensure the tool adapter cannot be pushed upward during operation, the system uses:

• 1x M4 heat-set insert (press-fit insert)
• 1x M4 screw

The M4 screw locks the tool adapter securely to the Z-axis interface, preventing vertical movement while maintaining easy removal when needed.

Features

• Fast tool changes
• Stable and rigid connection
• Clean and compact design
• Modular system – expand with additional tool adapters
• Designed specifically for MPCNC

This system makes switching between spindle and laser setups quick, reliable, and repeatable.
