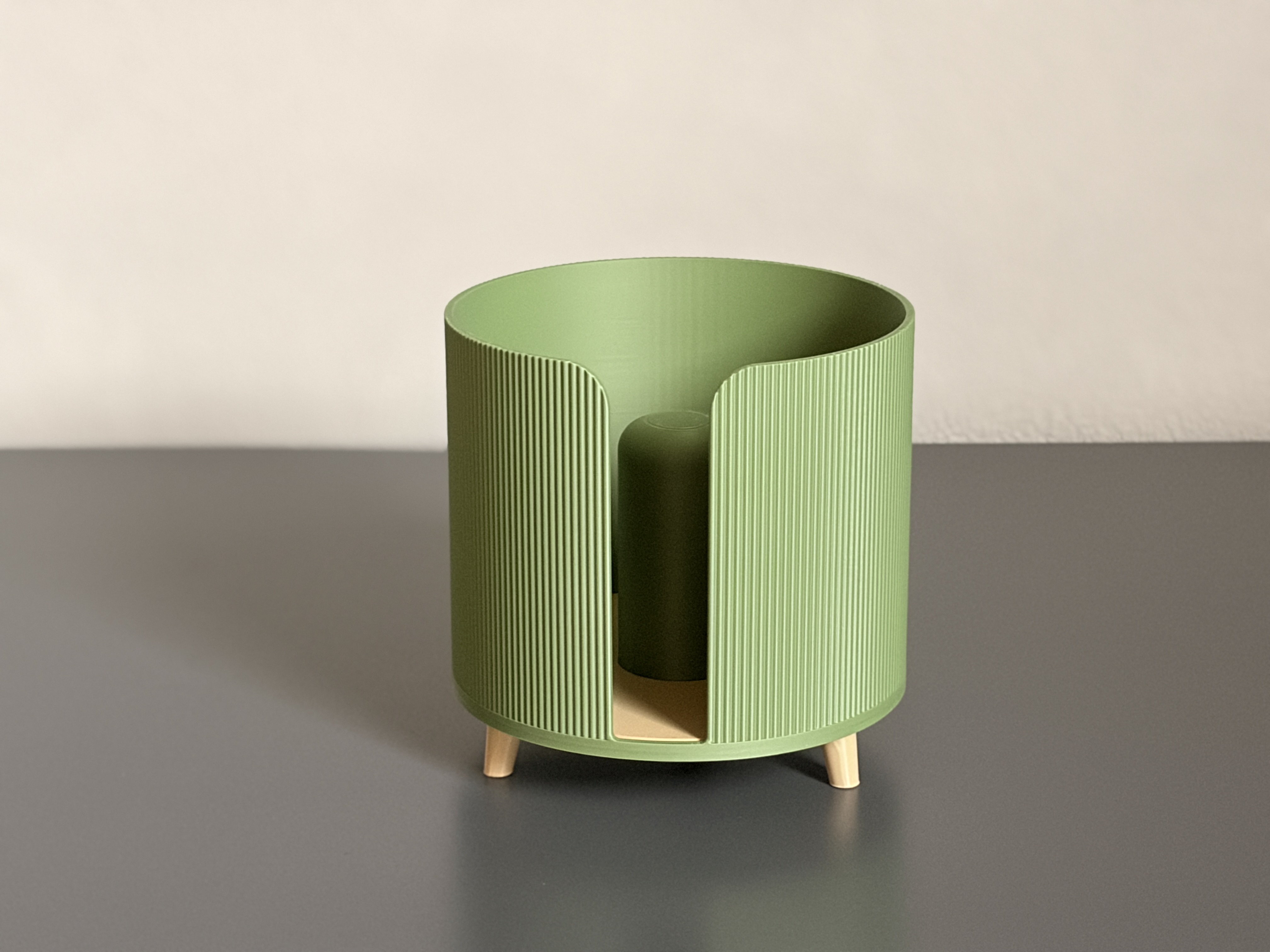

Parametric Paper Roll Holder

A modern, fully parametric paper roll holder. Adjustable for toilet paper or kitchen towel rolls.

This paper roll holder follows the same clean, modern design language as my other models and is fully parametric.

It can be adjusted directly in the Makerworld interface to fit different roll sizes — from standard toilet paper to larger kitchen towel rolls.

The open front design allows easy access to the paper while keeping the roll visually contained and aligned.

Use the “customize” button to create your own design!

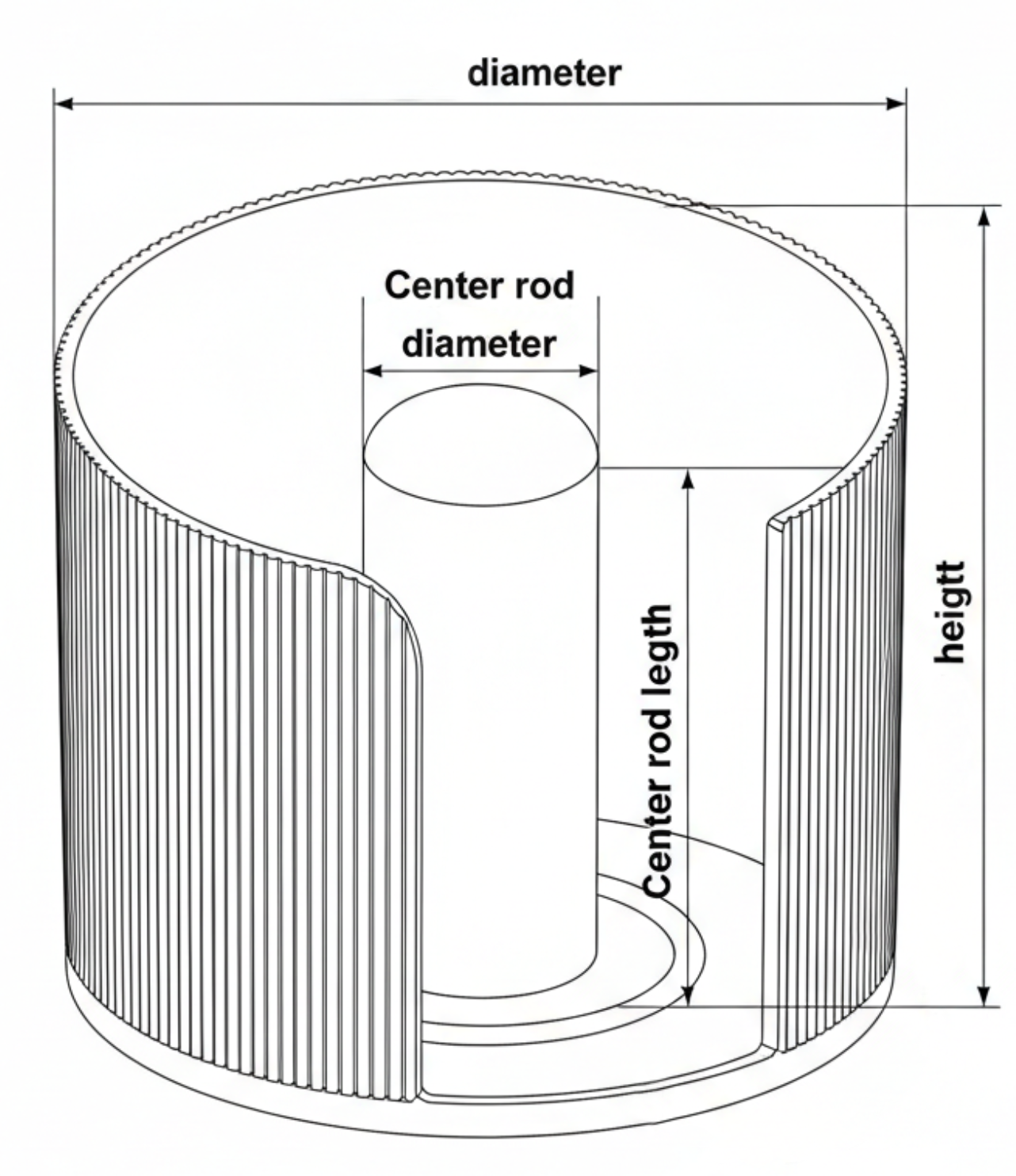

Adjustable Parameters

You can customize the model using the following parameters:

• Holder diameter
• Holder height
• Side wall angle
• Center rod diameter
• Center rod length

Different bottom options

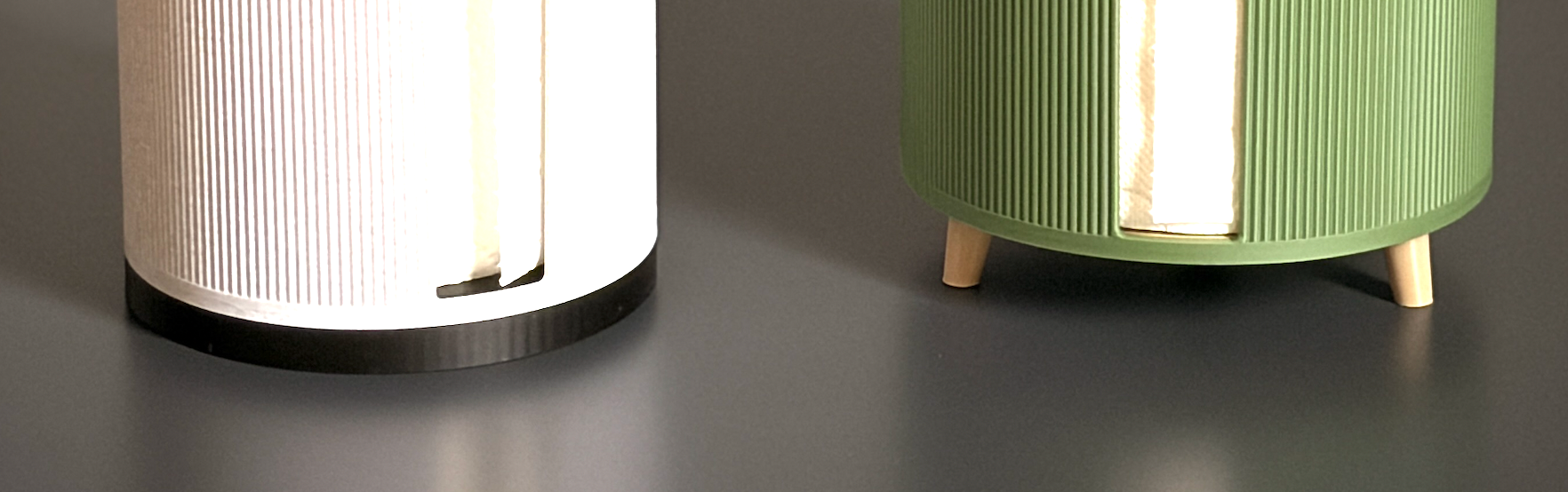

You can choose if you want to use the round base plate (left picture) or the three single feet´s (right picture)

Instructions for parameterization

Please use the "Customize" function to configure the model according to your preferences.

There are a total of 3 templates for parameterization:

1. The container
2. The base plate inside the container
3. The optional base plate (instead of the 3 individual feet)

⚠️ Please note:

The same diameter must then be used for all 3 templates.

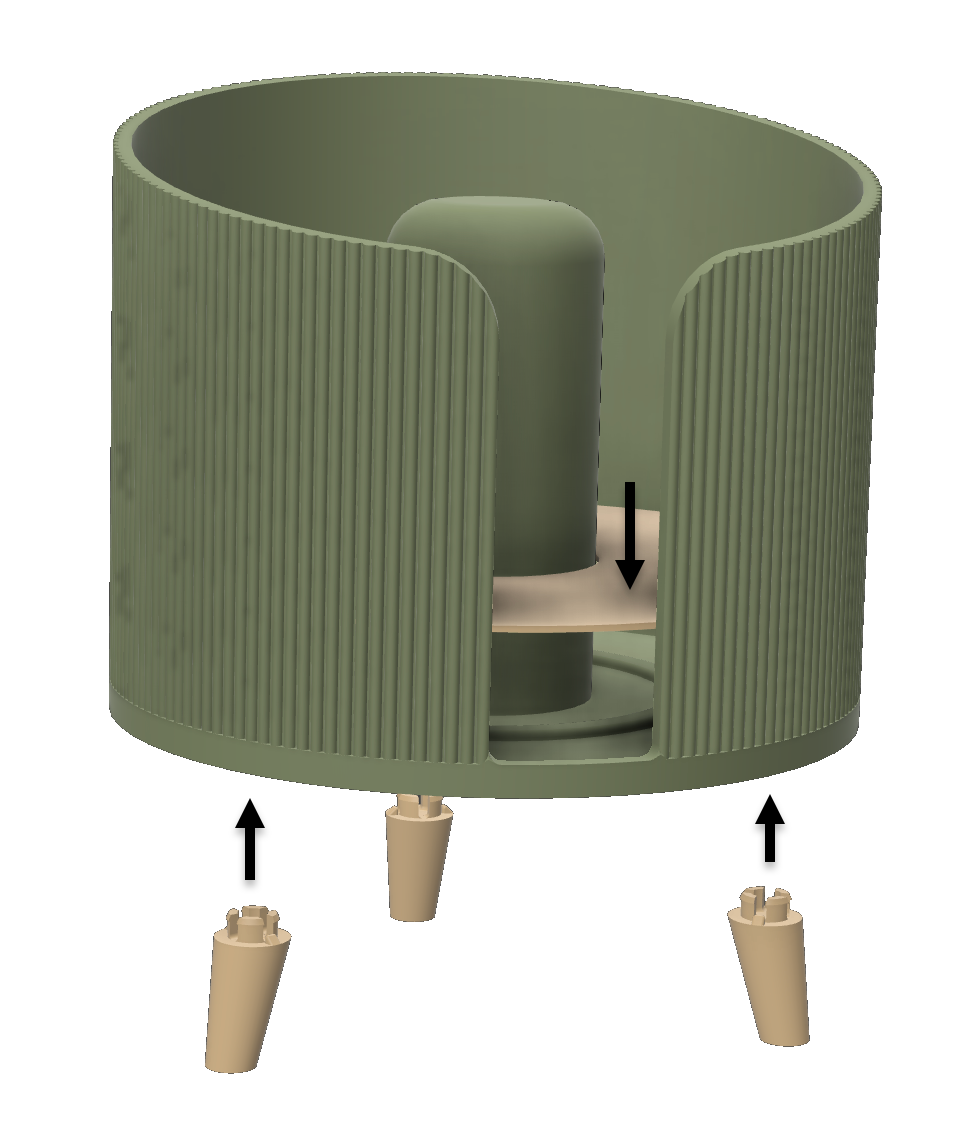

Assembly instructions

Print all files separately and then put everything together.

1. snap in the separate feet´s or the feet plate into the holes of the Holder
2. place the thin cover plate to the holder

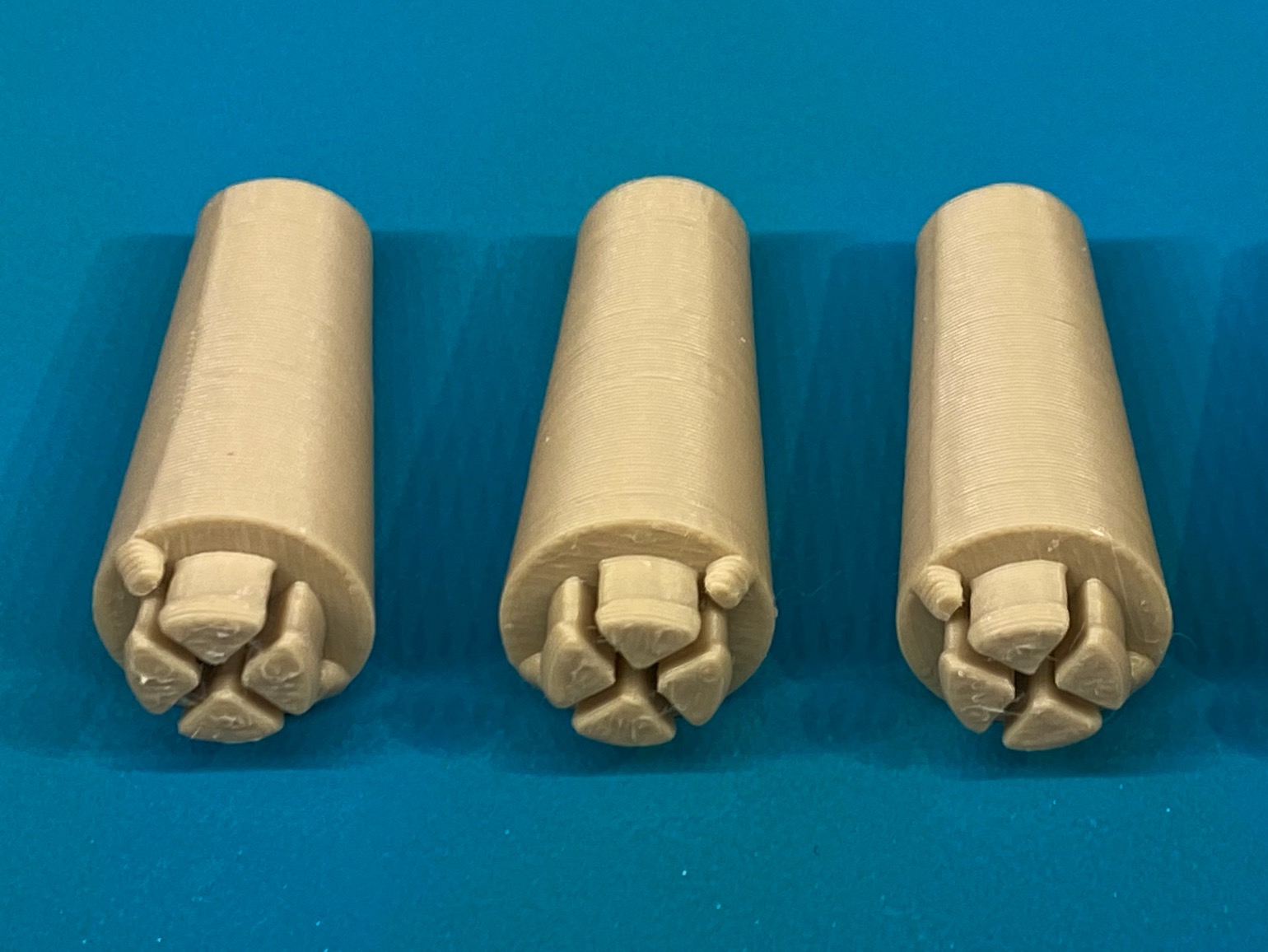

Feet

The feet are provided as a separate print profile.

• 2 Variants (15mm and 20mm)
• Independent of the box size
• No re-parametrization required
• Compatible with all size variations of the organizer

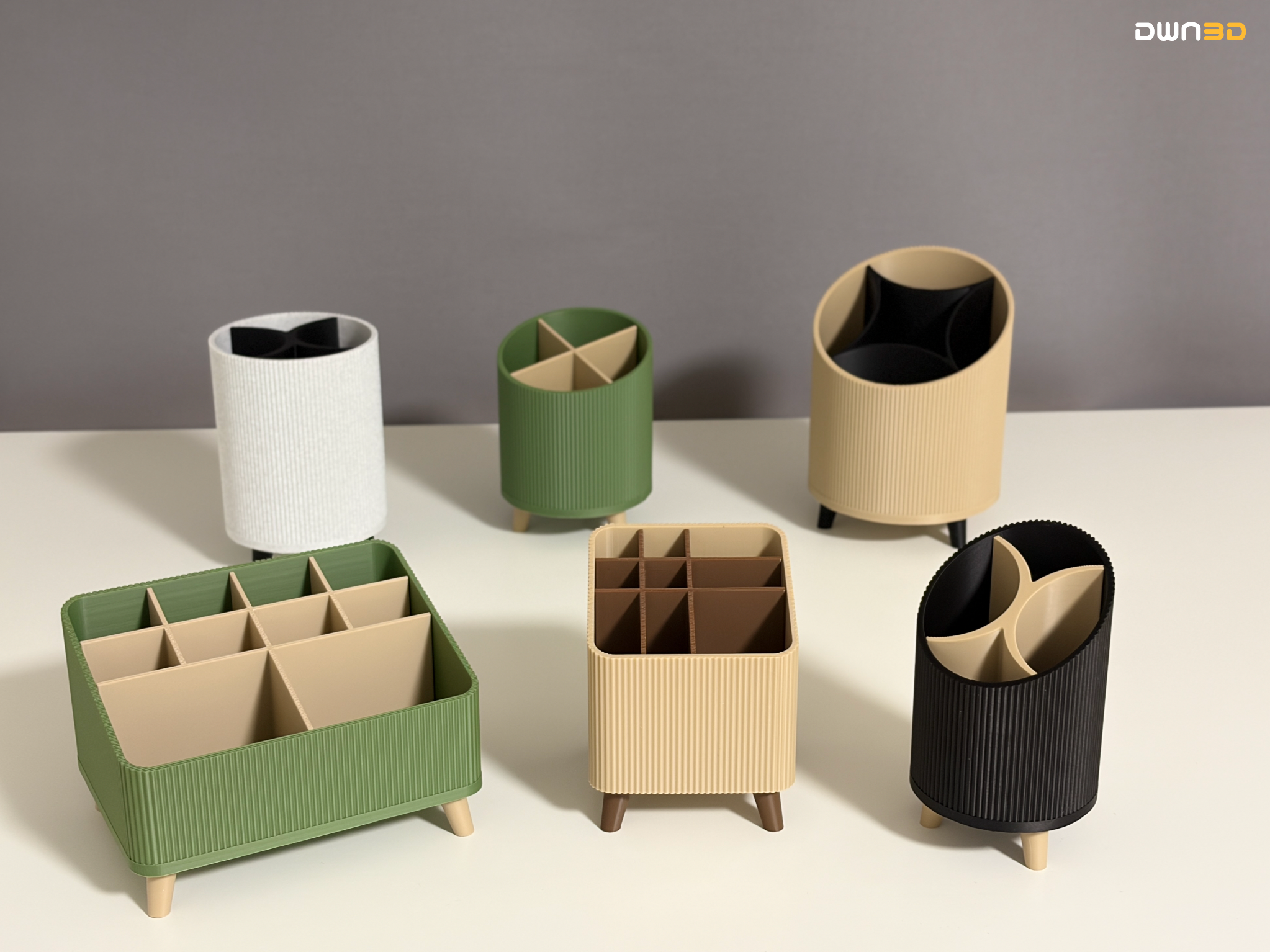

see also my other Organizer designs here: bath & desk organizer collection
