⚡ BOX FUSE: The Ultimate Industrial Fuse Carrier ⚡

💡 Tired of hunting for loose fuses at the bottom of your toolbox or digging through your pockets? 🛠️ BOX FUSE is the professional-grade solution designed specifically for industrial electrical maintainers who demand speed, safety, and organization. ⚡

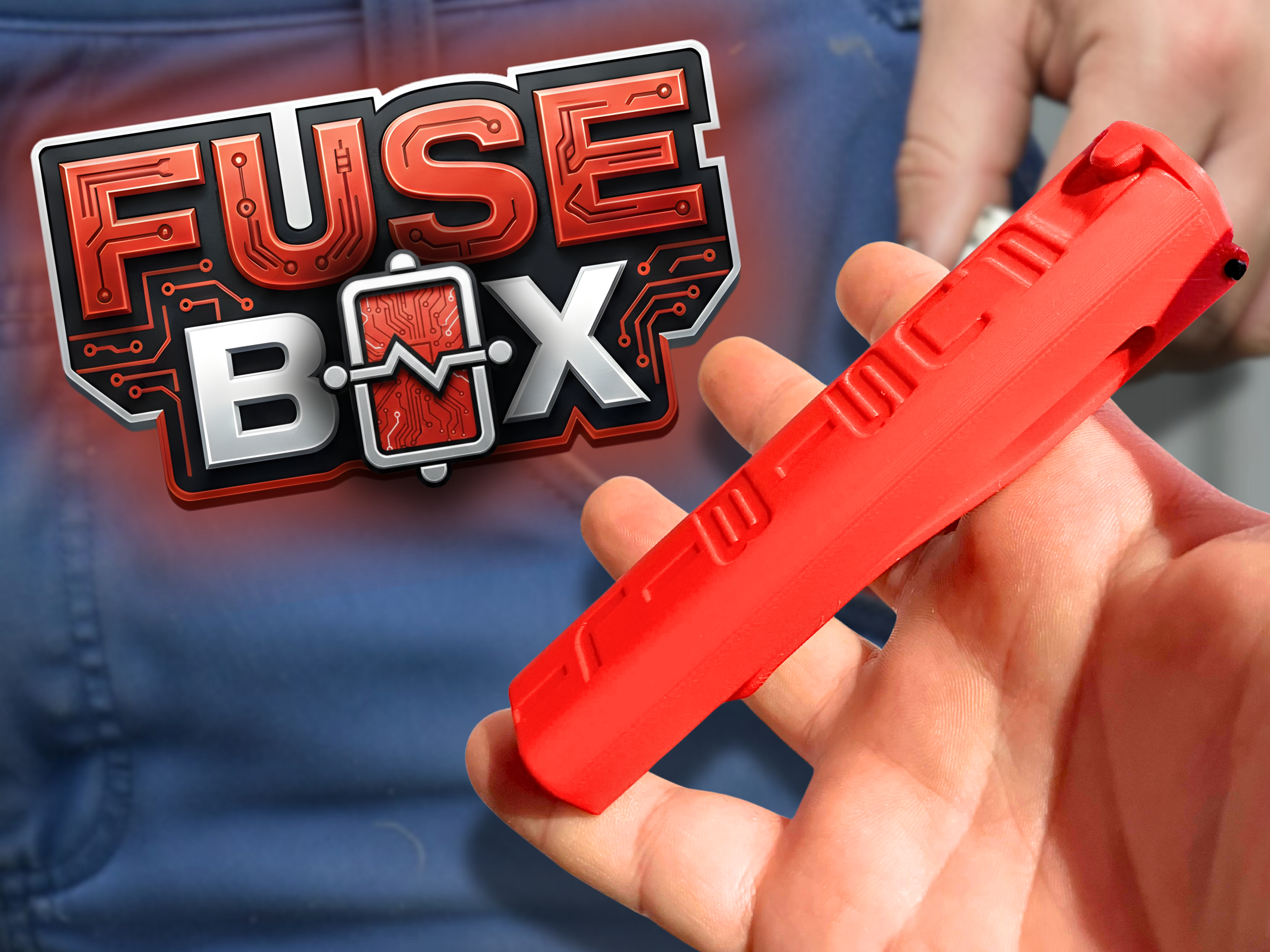

Designed entirely in Fusion 360 📐, this compact and rugged case ensures your critical spares are always right where you need them during an intervention. 🔩 Always Handy! 🧤

🌟 Why Choose BOX FUSE? 🌟

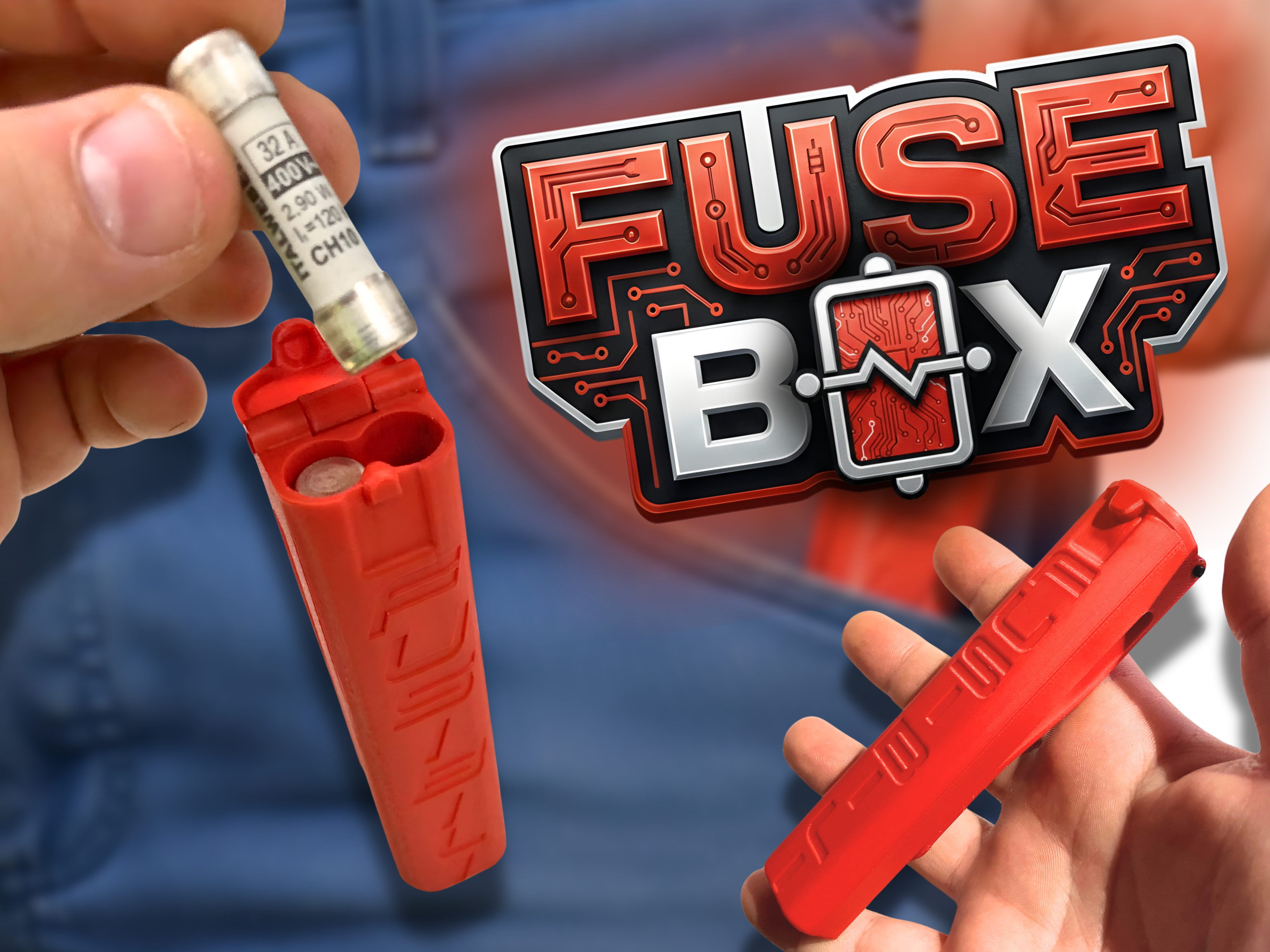

• 📦 Total Organization: Securely holds up to 6 cylindrical fuses (standard 10.3 x 38 mm size).
  • 🔴 3 Dedicated Slots for 16A fuses.
  • 🔵 3 Dedicated Slots for 32A fuses.

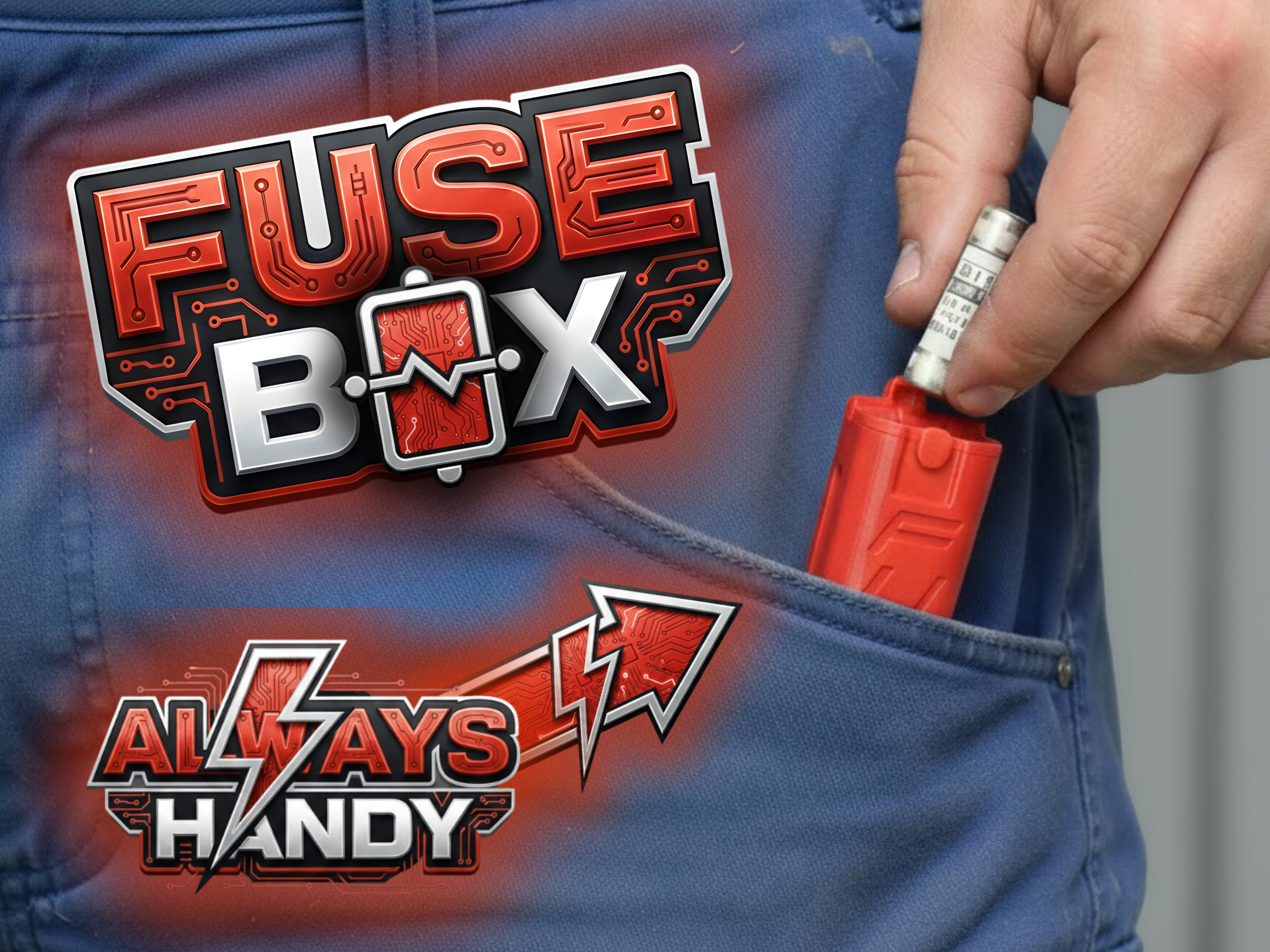

• 📎 Built-in Clothes Clip: Features a heavy-duty clip 👕 to snap onto your pockets, belt, or work overalls so it never goes missing.

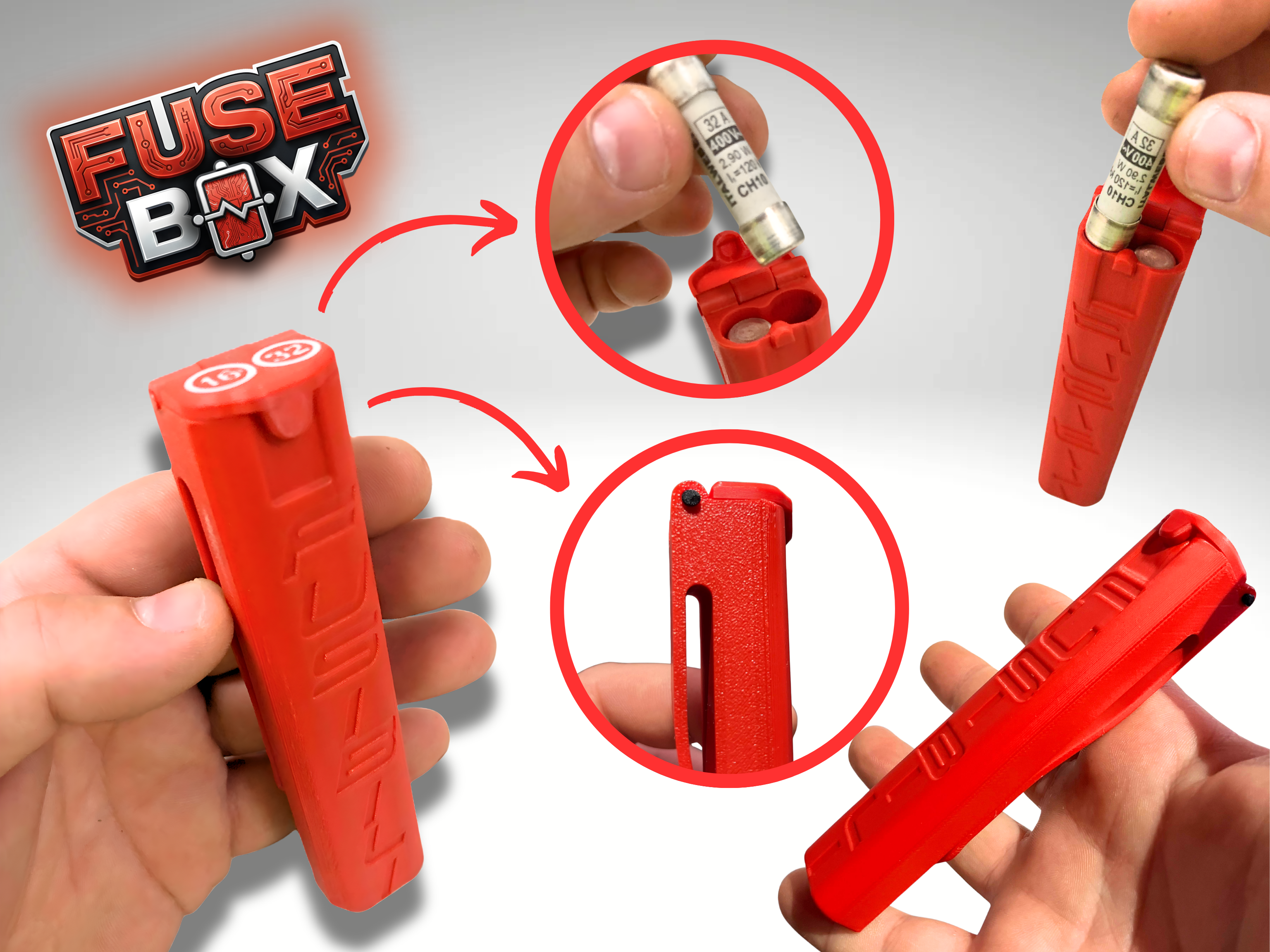

• 🔒 Secure Snap-Fit: The cap is engineered with a precision locking system 🔑 to prevent accidental opening while you move.
• 🏗️ Easy to Print: No need to worry about complex settings—the model includes built-in supports! 👏

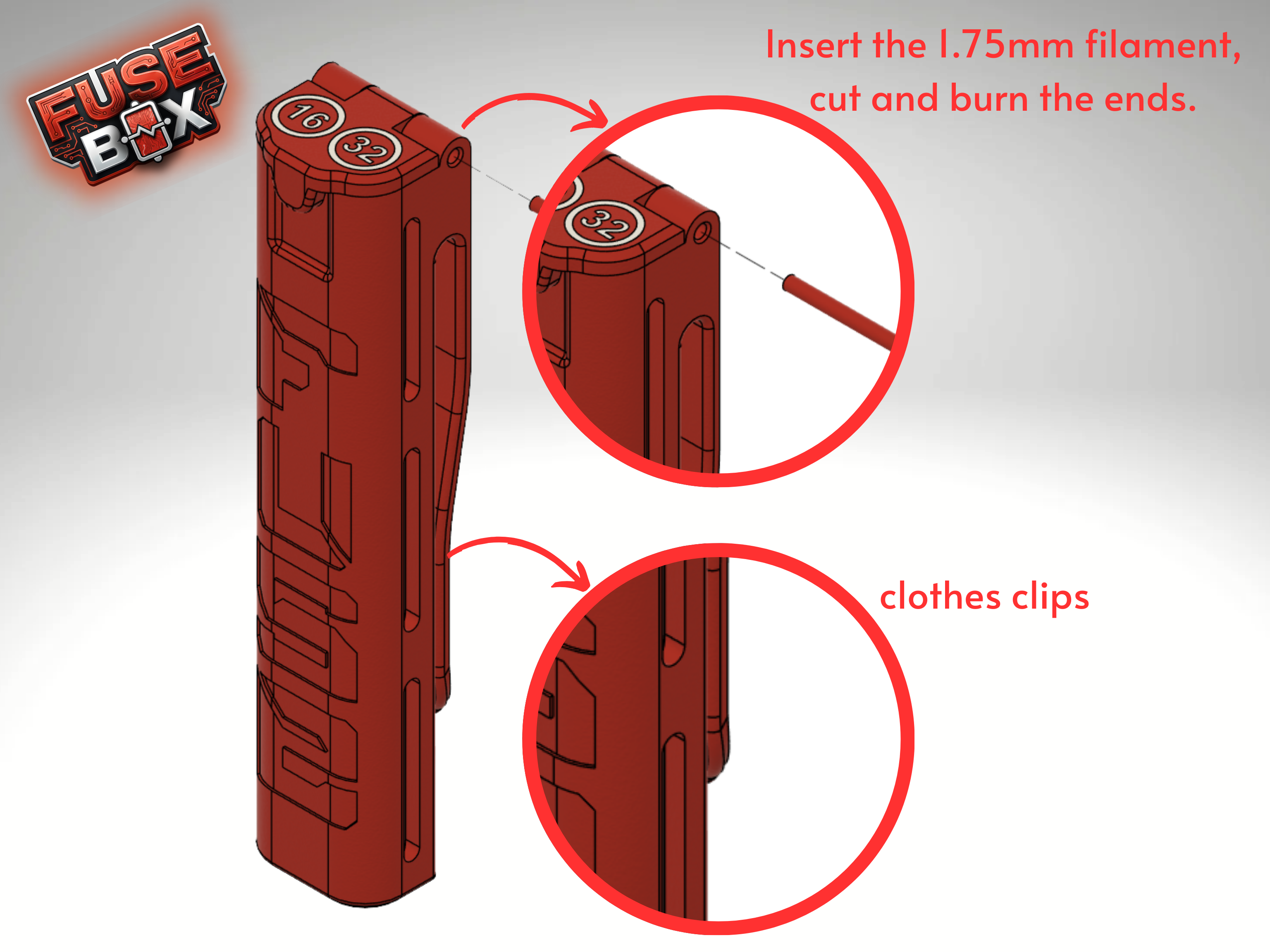

🔧 Assembly Instructions (DIY Hinge) 🔧

The hinge system is designed to be indestructible and simple 🧠:

1. Align the cap with the main body 📏.
2. Insert a short piece of 1.75mm filament through the hinge hole 🧵.
3. Trim the filament, leaving about 1mm protruding on each side ✂️.
4. Melt/Burn the tips slightly with a lighter 🔥 and press them flat against a surface to create a permanent, heavy-duty pivot pin! 🕯️

🖨️ Recommended Print Settings 🖨️

For the best professional finish and mechanical strength, use these parameters:

• 🧪 Filament: PLA (for precision) or PETG (best for clip flexibility and heat resistance 💎).
• 📐 Layer Height: 0.16 mm minimum 📏 (Crucial for the snap-fit precision and legibility of the embossed text).
• 🧱 Supports: Pre-included in the design! 🛠️
• 🌀 Infill: 20% or higher (Gyroid) for a bulletproof clip 🦾.
• 🛡️ Walls: 3+ perimeters for extra durability.

🤝 Support the Project 🤝

If this tool saves you time on the job: 📸 Post a Make—I’d love to see your color combos! ⭐⭐⭐⭐⭐ Leave a Review to help other maintainers find this tool.

Work smart, print fast, and stay safe! ⚡🔌🛠️
