AMS HT Drawer Dock

A modular, stackable storage base for Bambu Lab AMS HT

Designed to perfectly match the profile and aesthetics of the Bambu Lab AMS HT, this modular drawer base adds functional storage without compromising airflow or thermal performance.

Key Features

• Modular drawer configuration
  • Supports 2 standard drawers
  • Or 1 double-height drawer

  • Fully interchangeable configuration



• Stackable design
  • Multiple units can be safely stacked

  • Maintains clean vertical alignment with AMS HT geometry



• Dual-purpose Base
  • If AMS HT is not installed, you can print additional base as top cover

  • Converts the CoreDock into a standalone storage module



• Optimized airflow
  • Integrated side ventilation slots along the upper long edges
  • Prevents heat buildup beneath the AMS HT during drying cycles

  • Reduces thermal stress on the support surface (can be printed all PLA)



• High-capacity drawers
  • Deep internal volume for tools, nozzles, PTFE tubes, silica, spare parts, etc.
  • Optional printable divider inserts for custom organization
  • Dimensions (internal):
    • Standard Drawer (mm): 245D x 100W x37H
    • Double-Height Drawer (mm): 245D x 100W x77H
    • Up to 5 Drawer Divider can be added (spacing 40mm)

Why This Design?

During drying cycles, AMS HT can generate noticeable heat at the base. A fully closed support risks trapping heat and increasing peak temperatures on both the unit and the surface below.

This design intentionally incorporates passive ventilation channels to allow convection airflow, reducing heat accumulation without requiring fans or active cooling.

Practical. Passive. Reliable.

How to Assembly

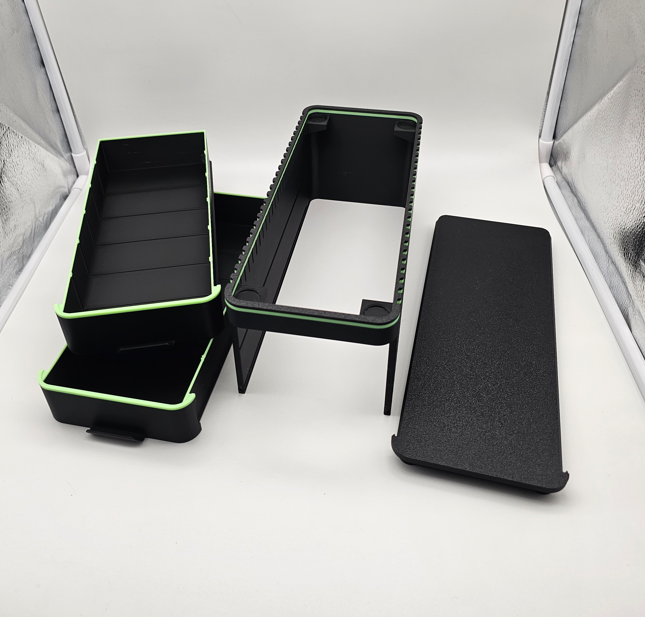

1. Print at least one Main body, one Base, two standard drawer or one double-height drawer.
2. First assembly all easily without adding glue. If all seems ok and drawer move smooth go next step.
3. Add some drops of glue on the edge of the base and insert it on the Main body.
4. Be sure the base is well inserted in the right channell (the last). Wait until  the glue will dry.
5. Insert the drawers and the divider as you need.
6. Enjoy CoreDock
