Descrição
This is a parametric model of an angle bracket, which lets you print a mounting solution perfectly fitted to your application.
This piece is easily printable and designed to evenly distribute the forces, by printing the bracket laying on its supports.
Customizable parameters
Inner width (a) - the space intended for one hole, undisturbed by the inner offset.
Support width (b) - thickness of the support walls.
Inner offset (c) - distance between inner width start and the inside of a support wall.
Amount of holes WIDE (d) - amount of holes you want the bracket to have in width.
Amount of holes LONG (e) - amount of holes you want the bracket to have arm length wise.
Thickness (f) - thickness of the bracket core arms.
Screw hole diameter (g) - outside diameter of your screw's threads.
Screw cap diameter (h) - diameter of your screw's cap.
Screw hole tolerance (i) - how much bigger should the screw holes be than the screws.
Total arm length (j) - total length of the bracket's arms. You have to adjust this value to fit the amount of holes you want length wise (e).

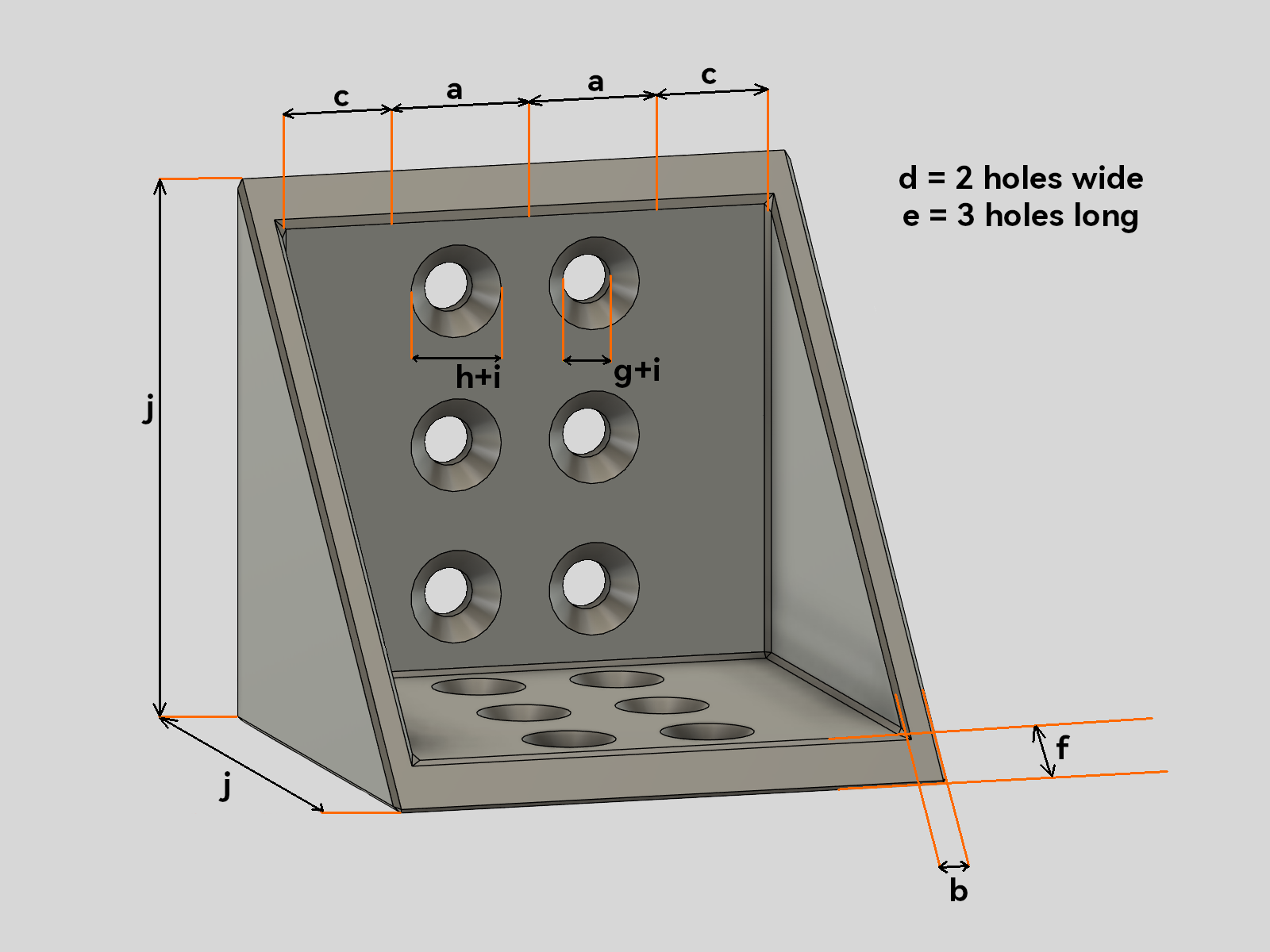

Graphical presentation of given parameters
Printing tips
- lay the model on a flat side like a house (the front face side)
- 50% gyroid infill
- 5 walls
- 5 top and bottom surfaces
- use strong filament (for example PET-G)
Strong Parametric Angle Bracket | CUSTOMIZABLE
Publicado em 13 de fev de 2026
